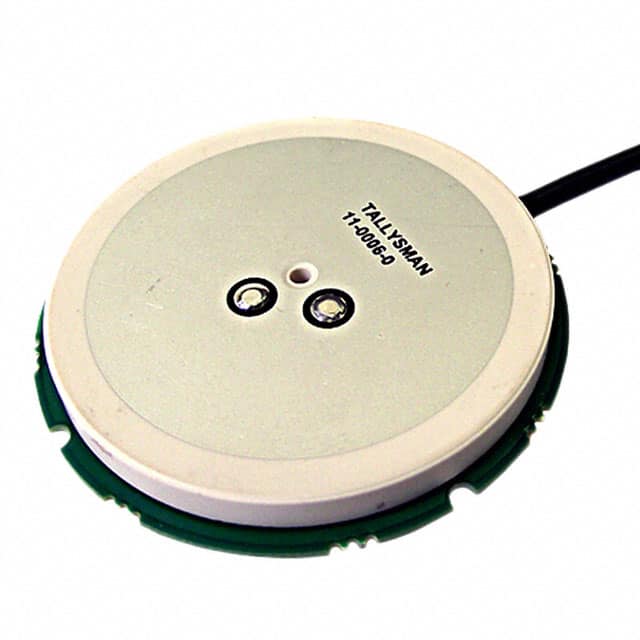

TW2605 When precision matters.® TW2605 Embedded Iridium™ Certified Antenna Frequency Coverage: Iridium Overview The TW2605 employs Tallysman’s patented Accutenna® technology in an embedded, passive right-hand circularly polarised antenna for the 1616 MHz to 1626.5 MHz frequency band, certified and specially designed to maximise the performance of Iridium™ voice and data modems. The TW2605 features a high performance dual-feed patch element that provides great axial ratio (3.0 dB max) over the entire Iridium™ frequency band, thus signals at the band edges remain truly circular, unlike the response of single-feed antennas. The TW2605 provides excellent Iridium™ signal coverage and comes in a compact circular form factor with a built-in 50 mm diameter ground plane. Custom tuning, cable length, and connectors are available on request. Applications Features Benefits • Iridium™ Voice and Data Applications • Sea & land container tracking • Safety & security • Fleet management & asset tracking • Marine & avionics systems • Law enforcement & public safety • Custom high-gain 4.25 dBic dual-feed patch • Great axial ratio, 3.0 dB over full bandwidth • 15 kV ESD circuit protection • Small form factor • Available application specific tuning • RoHS, REACH and CE compliant • Excellent circular polarized signal transmission • Industrial temperature range • Rugged design About Tallysman: With global headquarters and manufacturing in Ottawa, Canada, Tallysman is a leading manufacturer of highprecision antennas and components for Global Navigation Satellite System (GNSS) applications. Tallysman’s mission is to support the needs of a new generation of positioning systems by delivering unprecedented antenna precision at competitive prices. Learn more at www.tallysman.com Revision: 3.3 Contact us: info@tallysman.com T: +1 613 591-3131 TW2605 Embedded Iridium™ Certified Antenna Frequency Coverage: Iridium Antenna Low Noise Amplifier (LNA) - Measured at 3V and 25°C Technology Dual-feed RHCP ceramic patch Frequency Bandwith Out of Band Rejection Gain Axial Ratio dBic typ. at Zenith dB at Zenith L1 - - L2 - - L5 - - G1 - - G2 - - Architecture Non pre-filtered G3 - - Gain - E1 - - Noise Figure - E5A - - VSWR < 1.5:1 typ. 1.8:1 max E5B - - Supply Voltage Range - E6 - - Supply Current - B1 - - ESD Circuit Protection 15 kV air discharge B2 - - P 1dB Output - B2a - - Group Delay - B3 - - IRNSS / NavIC L5 - - QZSS L6 - - - - 4.25 ≤3 - - Efficiency - GNSS GPS / QZSS GLONASS Galileo BeiDou L-Band Services (1525 MHz - 1559 MHZ) 1616 - 1626 MHz Upper Band Lower Band - - - Mechanical Diagram Satellite Communications Iridium Globalstar Other Axial Ratio at 10° - PC Variation - Mechanicals Size 49.7 mm (dia.) x 7.1 mm (h.) Weight 100 g Radome - Mount - Environmental Operating Temperature -40 °C to +85 °C Storage Temperature - Vibration MIL-STD-810-D Shock Vertical axis: 50 G, other axes: 30 G Salt Fog - IP Rating Not Applicable Compliance IPC-A-610, FCC, RED / CE Mark, RoHS, REACH Ordering Information Part Number Where xx = type of connector | zzzz = cable length in mm Warranty: Parts and Labour One year (extended warranty available) Please refer to our Ordering Guide to review available radomes and connectors at: https://www.tallysman.com/resource/tallysman-ordering-guide/ © 2019 Tallysman Inc. All rights reserved. Tallysman, the “When Precision Matters” tag line and the Tallysman logo are trademarks or registered trademarks of Tallysman Inc. and/or its affiliates in Canada and certain other countries. All other trademarks mentioned in this document are the property of their respective owners. The information presented is subject to change without notice. Tallysman assumes no responsibility for any errors or omissions in this document. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind. Revision: 33-2605-xx-zzzz 3.3 www.tallysman.com
