FW.86.B.SMA.M

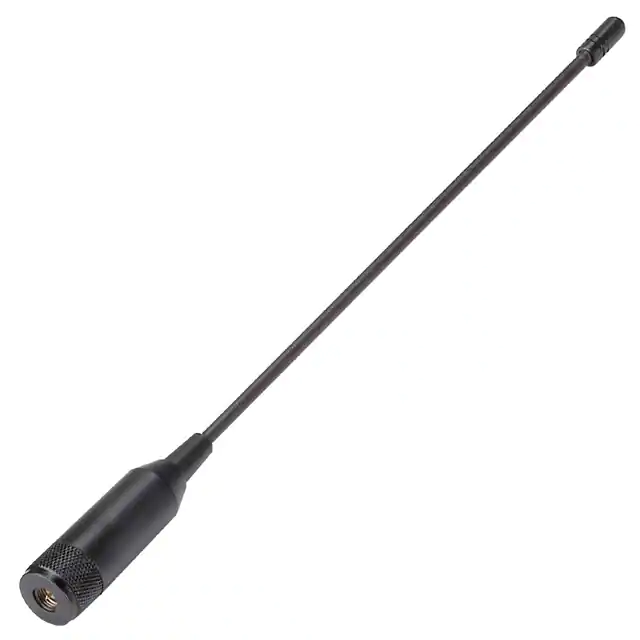

SPECIFICATION Part No. : FW.86.B.SMA.M Description : Meteor ISM Band 868MHz Flexible Whip Monopole Antenna SMA(M) Straight Features : External 868MHz Monopole Antenna Designed for Outdoor Use Over 70% high efficiency* 2.82 dBi high peak gain* Robust Inner Steel Core Antenna Length: 240mm SMA Type(M) Straight Connector IP65 dust and water-resistant *Tested on 30cm*30cm Ground Plane RoHS Compliant  SP-15-8- SPE-16-8-006/B/WY Page 1 of 12 1. Introduction The FW.86 is a flexible 868MHz whip antenna with a SMA type (M) connector for outdoor use. It features excellent efficiency (>70%) and high peak gain (>2.82 dBi) at 868MHz on a 30*30cm ground plane. The antenna was developed for low power radio networks (LORA / LPWAN), monitoring systems, and smart metering. The FW.86 has an excellent omnidirectional radiation pattern, ensuring wide coverage. The antennas high efficiency means that it allows your radio to consume less power than with a lower efficiency antenna when transferring data. It also means a better signal strength and better sensitivity in areas of low signal levels. The antenna performs at its best while attached to a ground plane with dimensions of at least 30x30 cm. For an environment where there is no ground-plane available we recommend to use the terminal antenna the TI.18 or the outdoors fiberglass omni antenna the OMB.868. The FW.86 whip is made of a flexible inner steel core covered by PE so it is extremely resistant to abrasion and maintains its original shape and RF performance even after shock. This rugged design and IP67 rating on the housing ensure high reliability. This antenna comes with SMA(M) connector as standard. Other custom variants can be provided subject to NRE and MOQ. Contact your regional Taoglas office for details. SP-15-8- SPE-16-8-006/B/WY Page 2 of 12 2. Specification ISM Band 868 MHz Center Frequency 850 MHz Design Environment 868 MHz 890MHz On 30x30cm ground Efficiency 67.52% 70.60% 67.53% Peak Gain 1.81dBi 2.82dBi 3.57dBi Return loss < -10 dB VSWR ≤ 2:1 Impedance 50 Ω Polarization Linear Radiation Pattern Omnidirectional Input Power 2W MECHANICAL Dimensions Length 240 ± 6mm Base Diameter 16 ± 0.6mm Whip Diameter 6.2 ± 0.6mm Casing ABS Connector SMA Type(M) Straight Weight Dust and Water Resistance 39 g IP65 ENVIRONMENTAL Temperature Range -40°C to 85°C Humidity Non-condensing 65°C 95% RH SP-15-8- SPE-16-8-006/B/WY Page 3 of 12 3. Antenna Characteristics 3.1. Return Loss 3.2. Antenna Efficiency SP-15-8- SPE-16-8-006/B/WY Page 4 of 12 3.3. Peak Gain 3.4. Average Gain SP-15-8- SPE-16-8-006/B/WY Page 5 of 12 4. Antenna Radiation Pattern 4.1. Antenna Setup On 30*30cm ground plane Y X Z SP-15-8- SPE-16-8-006/B/WY Page 6 of 12 4.2. 2-D Radiation Pattern On 30*30cm Ground Plane XY Plane X Y XZ Plane Z X SP-15-8- SPE-16-8-006/B/WY Page 7 of 12 YZ Plane Z Y SP-15-8- SPE-16-8-006/B/WY Page 8 of 12 4.3. 3-D Radiation Pattern On 30*30cm Ground Plane @ 868MHz SP-15-8- SPE-16-8-006/B/WY Page 9 of 12 5. Antenna Drawing Unit: mm SP-15-8- SPE-16-8-006/B/WY Page 10 of 12 6. Packaging SP-15-8- SPE-16-8-006/B/WY Page 11 of 12 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves the rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © Taoglas Ltd. SP-15-8- SPE-16-8-006/B/WY Page 12 of 12
