TANGO24/1M/SMAM/S/RP/17

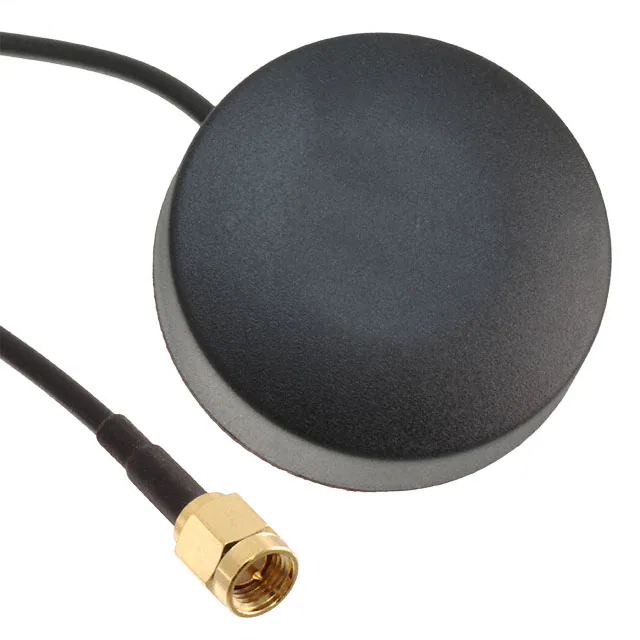

Tango 24 Through-hole mount 2.4GHZ WiFi/WLAN Antenna Key Features • 2.4GHz WiFi Antenna • 2dBi Gain • Compact Puck Design General Description Additional Considerations The Tango 24 is a compact, puck shaped antenna, tuned to 2.4GHz WiFi//Bluetooth/ Zigbee frequencies. • WiFi / Bluetooth / Zigbee / ISM 2450MHz • Screw threaded base for secure mounting • Omni directional radiation The Tango 24 achieves a peak gain of 2dBi to provide a reliable network connection point. The screw base through hole design allows secure mounting into the case of the product. Typical applications include vending machines, point of sales terminals and kiosks. Supplied as standard with an SMA Male connector with reverse polarity. Alternative connectors and cable lengths may be specified for volume orders. Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales fax email web +44(0)118 976 9014 +44(0)118 976 9020 sales@siretta.com www.siretta.com Rev 1.5 Tango 24 Through-hole mount 2.4GHZ WiFi/WLAN Antenna Electrical Specifications Mechanical Specifications Operating Temperature: -30 - +75°C Storage Temperature: -30 - +75°C Impedance: 50 Ohm 2dBi VSWR: ≤2.1 Bandwidth: Power capacity: Polarization: Registered in England No. 08405712 VAT Registration No. GB163 04 0349 46 Ø x H15mm Connector: Gain: Frequency range: Dimensions: SMA Male Reverse Polarity Cable: RG174 Mounting Method: M12 Screw Maximum Material Thickness: 3.5mm 2400 - 2500MHz 100MHz 50W Vertical Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales fax email web +44(0)118 976 9014 +44(0)118 976 9020 sales@siretta.com www.siretta.com Rev 1.5 Tango 24 Through-hole mount 2.4GHZ WiFi/WLAN Antenna Return Loss VSWR Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales fax email web +44(0)118 976 9014 +44(0)118 976 9020 sales@siretta.com www.siretta.com Rev 1.5 Tango 24 Through-hole mount 2.4GHZ WiFi/WLAN Antenna Radiation Patterns Horizontal Vertical Ordering Details Part Number Description TANGO24/1M/SMAM/S/RP/17 Through-hole mount 2.4GHZ WiFi/WLAN Antenna Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales fax email web +44(0)118 976 9014 +44(0)118 976 9020 sales@siretta.com www.siretta.com Rev 1.5
