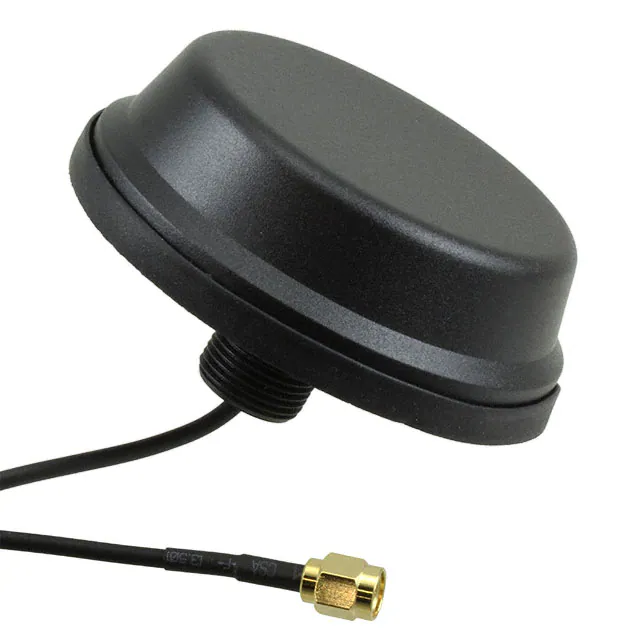

Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Key Features • • • • Quad Band GSM / GPRS 2G and UMTS 3G 4G and 5G LTE Dual Band WiFi 2.4 GHz and 4.9 GHz to 5.9 GHz Low profile General Description Additional Considerations The Tango 11A puck antennas operate on 850/900/1800/1900/2100MHz bands supporting quad band GSM/ GPRS networks throughout Europe, Asia and Africa with the addition of 3G UMTS, 4G/5G LTE and Dual Band WiFi. • Internal or external use • Strong puck design • Meets all EU compliance criteria for electronic goods The tough case and through hole mount design makes it suitable for use in external environments like high sided vehicles. The RF cable is fed via the through hole mount base to ensure no cable is visible when fixed and the rubber ‘skirt’ around the base protects against water ingress. The antenna is finished with an SMA Male connector and comes in different cable lengths. Alternative connector types and cable lengths can be specified for volume orders. Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Electrical Specification Humidity: Mechanical Specification 40 to 95% RH Impedance: 50 Ohms Polarization: Linear vertical Dimensions: 80 mm Ø x H23 mm Cable: RG174 Connector: SMA Male Mounting Method: Environmental Specification Temperature range: -40 to 85 °C M 17 Screw Mount Mounting screw length: 22 mm Max Panel Thickness: 13 mm Radome Material: Nylon PA6 Z X Y orientation Return Loss tested with 1 m cable Return Loss in -dB 0.00 -2.00 -4.00 -6.00 -dB -8.00 -10.00 -12.00 -14.00 -16.00 -18.00 -20.00 0 1000 2000 3000 4000 5000 6000 MHz Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna VSWR tested with 1 m cable VSWR 10.00 9.00 8.00 VSWR 7.00 6.00 5.00 4.00 3.00 2.00 1.00 0 1000 2000 3000 4000 5000 6000 4000 5000 6000 MHz Radiation Efficiency tested with 1 m cable Antenna Radiation Efficiency (in %) 110.00 100.00 90.00 80.00 % Efficiency 70.00 60.00 50.00 40.00 30.00 20.00 10.00 0.00 0 1000 2000 3000 MHz Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna LTE/5G Band Coverage M/5G Bands NB-IoT Band 1/n1 B1 2/n2 3/n3 LTE, CAT- Avg Efficieny % over band Max VSWR over Band Uplink Downlink Europe / Asia 1920-1980 MHz 2110-2170 MHz 63.31 / 57.12 2.02 / 2.05 B2 North America/Latin America/Caribbean 1850-1910 MHz 1930-1990 MHz 60.31 / 62.75 1.99 / 2.01 B3 Europe/Africa/Asia/Oceania 1710-1785 MHz 1805-1880 MHz 54.42 / 58.77 2.04 / 1.99 4 B4 North America/Latin America/Caribbean 1710-1755 MHz 2110-2155 MHz 53.73 / 56.10 2.04 / 2.05 5/n5 B5 Country Specific 824-849 MHz 869-894 MHz 49.23 / 38.62 1.99 / 2.48 7/n7 Regional Coverage 2500-2570 MHz 2620-2690 MHz 44.14 / 42.86 2.49 / 2.58 8/n8 B8 Latin America/Europe/Asia + Europe / Asia + 880-915 MHz 925-960 MHz 29.86 14.20 2.91 / 4.54 11 B11 Country Specific 1427.9-1447.9 MHz 1475.9-1495.9 MHz 36.23 / 39.86 2.84 / 2.07 12/n12 B12 North America/Caribbean + 699-716 MHz 729-746 MHz 48.38 / 50.45 2.47 / 1.38 13/n13 B13 North America/Caribbean + 777-787 MHz 746-756 MHz 52.69 / 51.52 1.11 / 1.25 14/n14 B14 Country Specific 788-798 MHz 758-768 MHz 52.12 / 51.96 1.24 / 1.16 17 B17 North America/Caribbean + 704-716 MHz 734.746 MHz 48.70 / 50.45 2.32 / 1.32 18/n18 B18 Country Specific 815-830 MHz 860-875 MHz 51.09 / 42.72 1.83 / 2.30 19 B19 Country Specific 830-845 MHz 875-890 MHz 49.23 / 38.62 1.94 / 2.45 20/n20 B20 Europe/Africa + 832-862 MHz 791-821 MHz 46.83 / 51.53 2.17 / 1.72 Country Specific 1447.9-1462.9 MHz 1495.9-1510.9 MHz 38.31 / 42.48 2.81 / 2.06 25/n25 21 B25 Country Specific 1850-1915 MHz 1525-1559 MHz 60.31 / 44.88 1.99 / 2.07 26/n26 B26 Country Specific 814-849 MHz 859-894 MHz 49.77 / 41.84 1.99 / 2.48 28/n28 B28 Latin America/Europe/Asia + 703-748 MHz 758-803 MHz 50.45 / 51.53 2.32 / 1.34 - 717-728 MHz 48.87 29/n29 Country Specific 30/n30 31 B31 32 1.78 Country Specific 2305-2315 MHz 2350-2360 MHz 59.23 / 55.87 1.77 / 1.95 Country Specific 452.5-457.5 MHz 462.5-467.5 MHz 16.98 / 14.38 6.13 / 5.08 Country Specific - 1452-1496 MHz 39.18 2.71 38/n38 Europe + 2570-2620 MHz 42.72 2.54 39/n39 Country Specific 1880-1920 MHz 61.14 1.98 40/n40 Asia + 2300-2400 MHz 56.09 1.99 41/n41 Country Specific 2496-2690 MHz 43.86 2.58 42 Country Specific 3400-3600 MHz 40.05 2.64 43 Country Specific 3600-3800 MHz 44.13 2.42 46/n46 Country Specific 5150-5925 MHz 43.03 1.72 48/n48 Country Specific 3550-3700 MHz 43.23 2.59 65/n65 Country Specific 1920-2010 MHz 2110-2200 MHz 62.59 / 57.62 2.02 / 2.05 66/n66 B66 Country Specific 1710-1780 MHz 2110-2200 MHz 53.80 / 57.62 2.04 / 2.05 71/n71 B71 Country Specific 663-698 MHz 617-652 MHz 45.74 / 30.94 2.77 / 2.93 Table data for bands as detailed in 3GPP TS 36.101 & 38.101 Usable Band Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Adequate in good signal area x Not Usable Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna 5G Extended Table for Band Coverage LTE/5G Band NB-IoT Band n24 Uplink Downlink 1626.5 – 1660.5 MHz 1525 – 1559 MHz Avg Efficieny % over band 47.25 / 44.88 Max VSWR over Band 1.88 / 2.07 n34 2010 – 2025 MHz 62.40 2.01 n47 5855 – 5925 MHz 44.18 1.27 n50 1432 – 1517 MHz 39.35 2.84 n51 1427 – 1432 MHz 35.68 2.84 n53 2483.5 – 2495 MHz 47.44 1.91 n67 738 – 758 MHz 50.45 1.26 n70 B70 n74 1695 – 1710 MHz 1995 – 2020 MHz 49.65 / 62.25 2.17 / 2.01 1427 – 1470 MHz 1475 – 1518 MHz 37.28 / 41.19 2.84 / 2.10 n75 1432 – 1517 MHz 39.35 2.84 n76 1427 – 1432 MHz 35.68 2.84 n77 3300 – 4200 MHz 40.12 2.64 n78 3300 – 3800 MHz 41.33 2.64 n79 4400 – 5000 MHz 44.46 2.31 n80 1710 – 1785 MHz 54.42 2.04 n81 880 – 915 MHz 29.86 2.91 n82 832 – 862 MHz 46.83 2.17 n83 703 – 748 MHz 50.11 2.32 1920 – 1980 MHz 63.31 2.02 n84 n85 B85 n86 698 – 716 MHz 728 – 746 MHz 48.38 / 50.45 2.47 / 1.38 1710 – 1780 MHz 53.80 2.04 n89 824 – 849 MHz 49.23 1.99 n90 2496 – 2690 MHz 43.86 2.58 n91 832 – 862 MHz 1427 – 1432 MHz 46.83 / 35.68 2.17 / 2.84 n92 832 – 862 MHz 1432 – 1517 MHz 46.83 / 39.35 2.17 / 2.84 n93 880 – 915 MHz 1427 – 1432 MHz 29.86 / 35.68 2.91 / 2.84 n94 880 – 915 MHz 1432 – 1517 MHz 29.86 / 39.35 2.91 / 2.84 n95 2010 – 2025 MHz n96 5925 – 7125 MHz 62.40 n97 2300 – 2400 MHz 56.09 1.99 n98 1880 – 1920 MHz 61.14 1.98 n99 1626.5 – 1660.5 MHz 47.25 1.88 2.01 unmeasured Table data for bands as detailed in 3GPP TS 38.101 Usable Band Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Adequate in good signal area x Not Usable Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 400 MHz XY XZ YZ 500 MHz XY XZ YZ 600 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 700 MHz XY XZ YZ 800 MHz XY XZ YZ 900 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 1400 MHz XY XZ YZ 1500 MHz XY XZ YZ 1600 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 1700 MHz XY XZ YZ 1800 MHz XY XZ YZ 1900 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 2000 MHz XY XZ YZ 2100 MHz XY XZ YZ 2300 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 2400 MHz XY XZ YZ WiFi Band 2.4 GHz WiFi Band 2.4 GHz Eff % 51.52 Eff % 51.52 2460 MHz XY XZ YZ WiFi Band 2.4 GHz WiFi Band 2.4 GHz Eff % 47.75 Eff % 47.75 2500 MHz XY XZ YZ WiFi Band 2.4 GHz WiFi Band 2.4 GHz Eff % 46.34 Eff % 46.34 Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 2600 MHz XY XZ YZ 2700 MHz XY XZ YZ 3300 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 3400 MHz XY XZ YZ 3500 MHz XY XZ YZ 3600 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 3700 MHz XY XZ YZ 3800 MHz XY XZ YZ 4400 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 4600 MHz XY XZ YZ 4800 MHz XY XZ YZ 5000 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 5200 MHz XY XZ YZ 5400 MHz XY XZ YZ 5600 MHz XY XZ YZ Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna Radiation Plots tested with 1 m cable 5800 MHz XY XZ YZ 5900 MHz XY XZ YZ 3D Radiation Plots tested with 1 m cable 400 MHz 500 MHz 600 MHz Theta 65 Phi 45 Theta 65 Phi 45 Theta 65 Phi 45 Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna 3D Radiation Plots tested with 1 m cable 700 MHz 800 MHz 900 MHz Theta 65 Phi 45 Theta 65 Phi 45 Theta 65 Phi 45 1400 MHz 1500 MHz 1600 MHz Theta 65 Phi 45 Theta 65 Phi 45 Theta 65 Phi 45 1700 MHz 1800 MHz 1900 MHz Theta 65 Phi 45 Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Theta 65 Phi 45 Theta 65 Phi 45 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna 3D Radiation Plots tested with 1 m cable 2000 MHz Theta 65 Phi 45 2400 MHz 2100 MHz Theta 65 Phi 45 2460 MHz 2300 MHz Theta 65 Phi 45 2500 MHz Theta 65 Phi 45 Theta 65 Phi 45 Theta 65 Phi 45 2600 MHz 2700 MHz 3300 MHz Theta 65 Phi 45 Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Theta 65 Phi 45 Theta 65 Phi 45 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna 3D Radiation Plots tested with 1 m cable 3400 MHz Theta 65 Phi 45 3700 MHz 3500 MHz Theta 65 Phi 45 3800 MHz 3600 MHz Theta 65 Phi 45 4400 MHz Theta 65 Phi 45 Theta 65 Phi 45 Theta 65 Phi 45 4600 MHz 4800 MHz 5000 MHz Theta 65 Phi 45 Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Theta 65 Phi 45 Theta 65 Phi 45 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0 Tango 11A 2G/3G/4G/5G & Dual Band WiFi Puck Antenna 3D Radiation Plots tested with 1 m cable 5200 MHz Theta 65 Phi 45 5800 MHz Theta 65 Phi 45 5400 MHz Theta 65 Phi 45 5600 MHz Theta 65 Phi 45 5900 MHz Theta 65 Phi 45 Ordering Details Part Number Description TANGO11A/1.5M/SMAM/S/S/19 2G/3G/4G/5G & Dual Band WiFi Puck Antenna IP65 SMA Male Connector 1.5m Cable TANGO11A/2.5M/SMAM/S/S/19 2G/3G/4G/5G & Dual Band WiFi Puck Antenna IP65 SMA Male Connector 2.5m Cable TANGO11A/5M/SMAM/S/S/19 2G/3G/4G/5G & Dual Band WiFi Puck Antenna IP65 SMA Male Connector 5m Cable Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales email web +44(0)118 976 9014 sales@siretta.com www.siretta.com Rev 2.0
