GWLA.01

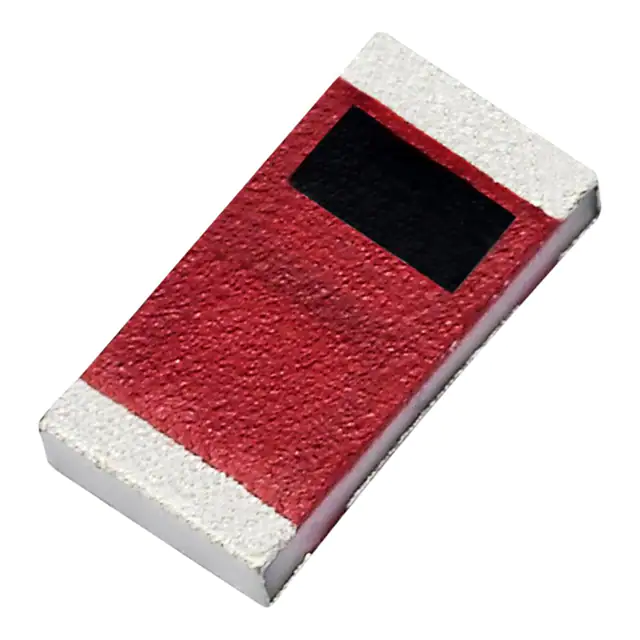

GWLA.01 Description: GPS L1/GALILEO & Bluetooth/Wi-Fi 2.4GHz Embedded 2in1 Ceramic Loop Antenna Features: High Efficiency Omnidirectional Simplifies GPS/GALILEO and 2.4GHz Circuits Multi-Band Application 1575.42MHz and 2.4GHz Two Separate feeds on one antenna Low Profile 3.2*1.6*0.5mm Economical Compact Size Surface-Mount RoHS & Reach Compliant SPE-16-8-048-B 1. Introduction 3 2. Specifications 5 3. Antenna Characteristics 7 4. 2D Radiation Patterns 11 5. 3D Radiation Patterns 14 6. Mechanical Drawing 15 7 Matching Circuit 17 8 Soldering Conditions 18 9. Packaging 19 Changelog 20 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. SPE-16-8-048-B www.taoglas.com 2 1. Introduction 1. Introduction 1. Introduction 1. Introduction GPS/GALILEO / 2.4GHz embedded loop antenna is a high efficiency, miniature SMD, edge mounted 1.The GWLA.01 Introduction ceramic antenna for GPS/GALILEO and 2.4GHz Wi-Fi, WLAN, ZigBee, Bluetooth, and 802.11 applications. It is particularly useful where PCB space is limited. Customers can use this antenna for GPS/GALILEO and 2.4GHz (WiFi or Bluetooth) modules. Rather than using two separate chip antennas for GPS/GALILEO and 2.4GHz, the GWLA.01 has two separate antenna feeds, one for each, making it the ideal choice for applications where there is limited PCB space. The GWLA.01 uses the main PCB as its ground plane, thereby maintaining good efficiency despite its small size. The GWLA.01 can be tuned for different PCB sizes/environments by simply changing the values of the matching circuit. It is ideally mounted on the center edge of a ground-plane. 1. Introduction 1.At 3.2*1.6*0.5mm, Introduction the GWLA.01 is one of the smallest combination embedded antennas available worldwide. This antenna is delivered on tape and reel. Typical Applications – where both GPS/GALILEO and 2.4GHz are required 1. Introduction - Navigation or Position Tracking Systems Handheld Devices Tablet PCs OBD Devices Gateways and Routers Mobile Cameras UAV Communication Systems Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2 dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance. SPE-16-8-048-B www.taoglas.com 3 Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas' peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module. For example, a module manufacturer may state that the antenna must have less than 2 dBi peak gain, but you don't need to select an embedded antenna that has a peak gain of less than 2 dBi in free-space. This will give you a less optimized solution. It is better to go for a slightly higher free-space peak gain of 3 dBi or more if available. Once that antenna gets integrated into your device, performance will degrade below this 2 dBi peak gain due to the effects of GND plane, surrounding components, and device housing. If you want to be absolutely sure, contact Taoglas and we will test. Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits. This antenna can be mounted with no performance degradation in either orientation as long as the antenna is soldered correctly via Surface mounting. Please see the integration instructions section for further detail regarding the optimum way to integrate this antenna into your device. For further optimization to customer-specific device environments and for support to integrate and test this antennas performance in your device, contact your regional Taoglas Customer Services Team. SPE-16-8-048-B www.taoglas.com 4 2. Specifications GNSS Frequency Bands Covered 3. GPS L1 L2 Antenna Characteristics2. GLONASS 3. 4. ▓ ▓ ▓ G1 G2 G3 ▓ ▓ ▓ Galileo E1 E5a Antenna Characteristics BeiDou L5 L6 Specifications E5b E6 ▓ ▓ ▓ ▓ B1 B2a B2b B3 ▓ ▓ ▓ ▓ L1 L2C L5 L6 ▓ ▓ Antenna Radiation Patterns3.Antenna QZSS (Regional) Characteristics2.▓ IRNSS (Regional) ▓ ▓ Specifications L5 ▓ 3. SBAS L1/E1/B1 L5/B2a/E5a Antenna Characteristics2. ▓ ▓ G1 G2 Specifications G3 ▓ ▓ ▓ *SBAS systems: WASS(L1/L5), EGNOSS(E1/E5a), SDCM(G1/G2/G3), SNAS(B1/B2a), GAGAN(L1/L5), QZSS(L1/L5), KAZZ(L1/L5). 3. Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. GNSS Bands and Constellations Antenna Radiation Patterns3.Antenna Characteristics2. SPE-16-8-048-B Specifications www.taoglas.com 5 Electrical* Application Bands GPS/GALILEO Antenna Wi-Fi/Bluetooth Antenna Frequency (MHz) 1575.42 2400-2500 Bandwidth (MHz) 32 (RL6 Impedance 50Ω Polarization Linear Input Power 10W Mechanical Dimensions 3.2*1.6*0.5mm Ground Plane 80*40mm (Standard Evaluation Board) Weight 0.02g Environmental Operating Temperature -40°C to 85°C Storage Temperature -40°C to 85°C Relative Humidity 20% to 70% Moisture Sensitivity Level (MSL) 3 (168 Hours) *Tested on 80*40mm evaluation board. SPE-16-8-048-B www.taoglas.com 6 3. 4. Antenna Characteristics 3.1 Return Loss - GPS/GALILEO Band Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna Characteristics 3.2 Efficiency - GPS/GALILEO Band 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns3.Antenna Characteristics 4. Antenna Radiation Patterns3.Antenna SPE-16-8-048-B Characteristics www.taoglas.com 7 3.3 Peak Gain 3.4 Return Loss - Wi-Fi SPE-16-8-048-B www.taoglas.com 8 3.5 Efficiency- Wi-Fi Dual-Band 3.6 Peak Gain SPE-16-8-048-B www.taoglas.com 9 3.7 Isolation between Wi-Fi and GPS/GALILEO Antennas SPE-16-8-048-B www.taoglas.com 10 4. 2D Radiation Patterns 4. Antenna Radiation Patterns 4.1 Test Setup 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns SPE-16-8-048-B www.taoglas.com 11 4.2 2D Gain Pattern@ GPS/GALILEO 1575.42MHz XY Plane XZ Plane YZ Plane SPE-16-8-048-B www.taoglas.com 12 4.3 2D Gain Pattern@ GPS/GALILEO 1575.42MHz XY Plane XZ Plane YZ Plane SPE-16-8-048-B www.taoglas.com 13 5. 3D Radiation Patterns 5.1 Gain Pattern@ GPS/GALILEO 1575.42MHz 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 5.2 Gain Pattern@ Wi-Fi Dual Bands 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 6. Field Test Results SPE-16-8-048-B 4. Antenna Radiation Patterns www.taoglas.com 14 6. Mechanical Drawing (Units: mm) 6. Packaging5. 6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing Mechanical Drawing 6. Packaging5. Mechanical Drawing 6. Packaging 7. Application Note6. Packaging 7. Application Note 7. Application Note6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. SPE-16-8-048-B Mechanical Drawing www.taoglas.com 15 6.2 5.2. GWLAD.01 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns 4. Antenna Radiation Patterns SPE-16-8-048-B www.taoglas.com 16 7. Matching Circuit c Like all antennas, surrounding components, enclosures, and changes to the GND plane dimensions can alter performance. A pi-matching network like the one shown below is required incase adjustments need to be has a similar matching network. The components on the EVB are a good starting point 6.made. The antenna EVB5. for a new design, but will need to be adjusted upon integration for best performance. The zero ohm resistor is needed to solder down a coax pigtail to make measurements with a vector network analyzer. Packaging Mechanical Drawing 6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. Mechanical Drawing 6. Packaging 7. Application Note6. Packaging 7. Application Note 7. Application Note6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. SPE-16-8-048-B Packaging5. Mechanical Drawing www.taoglas.com 17 8. Soldering Conditions 6. 6. Matching Circuit Packaging5. Mechanical Drawing c 6. 6. Packaging5. Packaging Mechanical Drawing 7. 6. Packaging Application Note6. Packaging5. Mechanical Drawing 7. Application Note6. Packaging5. Mechanical 6. Drawing Packaging5. 6. 6. Packaging5. Packaging 7. 6. Packaging Application Note6. Packaging 7. 7. Application Application Note Note6. Packaging 7. 7. Application Application Note6.Note Packaging 7. 7. Application 6. Packaging Application Note6.Note Packaging5. Mechanical Mechanical Drawing Mechanical Drawing Drawing 7. 6. Application Note6. Packaging5. Drawing Packaging5. SPE-16-8-048-B Mechanical Mechanical Drawing www.taoglas.com 18 9. Packaging 6. Packaging5. 6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing Mechanical Drawing 6. Packaging5. Mechanical Drawing 6. Packaging 7. Application Note6. Packaging 7. Application Note 7. Application Note6. Packaging 7. Application Note6. Packaging5. Mechanical Drawing 6. Packaging5. SPE-16-8-048-B Mechanical Drawing www.taoglas.com 19 SPE-16-8-048-B www.taoglas.com 20 Changelog for the datasheet SPE-16-8-048– GWLA.01 Revision: B (Current Version) Date: Changes: Changes Made by: 2022-06-20 Updated Specifications Cesar Sousa Previous Revisions Revision: A (Original First Release) Date: Notes: Author: SPE-16-8-048-B 2017-05-17 Initial Specification Release Author www.taoglas.com 21 www.taoglas.com SPE-16-8-048-B © Taoglas www.taoglas.com 22
