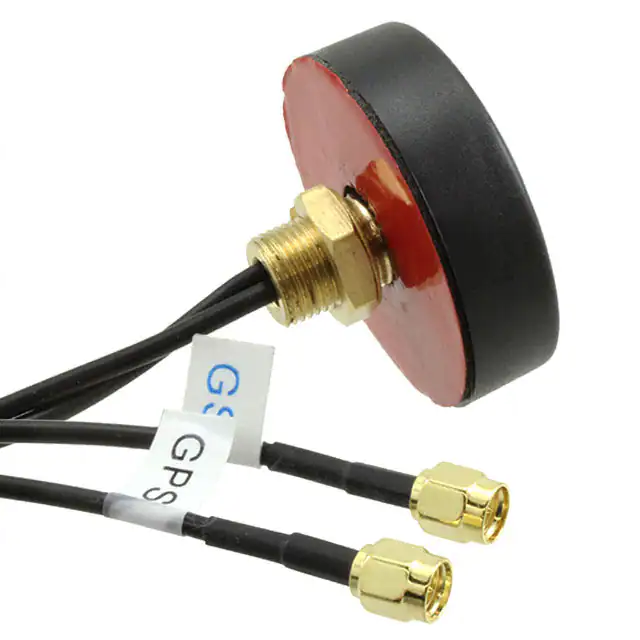

Tango 19 Combined 2G (GPRS)/3G/4G & GPS Puck Antenna Key Features • Quad band GSM and GPS active antenna • Built in LNA with 28dB gain • Compact puck design General Description Additional Considerations The Tango 19 is a combination antenna, with two antennas built into a single package. • Dual mount provides a firm fix to its surface One is an active GPS antenna with a Low Noise Amplifier (LNA) to boost performance and provide a strong satellite signal strength. The stronger signal allows satellites to be acquired more quickly speeding up application use. • Quad band 2G compatible for worldwide use • Best Signal Coverage in Bands: 2G Band 9 (E-GSM-900) 3G Band 8 (E-GSM-900) 3G Band 1 (IMT-2100) 4G Band 20 (800) The other antenna is a passive 1-2dBi gain Quad Band 2G antenna, allowing for worldwide use. Registered in England No. 08405712 VAT Registration No. GB163 04 0349 Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW sales fax email web +44(0)118 976 9014 +44(0)118 976 9020 sales@siretta.com www.siretta.com Rev 1.4 Tango 19 Combined 2G (GPRS)/3G/4G & GPS Puck Antenna Electrical Specifications GSM Antenna Mechanical Specifications Dimensions: L46 Ø x H14.5mm Impedance: 50 Ohm GPS Cable: RG174 GSM Cable: RG174 Typical gain: 2dBi ±@ 850MHz 2dBi ± @ 900MHz 1dBi ± @ 1800MHz 1dBi ± @ 1900MHz VSWR: Frequency Coverage: 2.0:1 GSM Connector SMA Male Mounting Method: Screw Environmental Specifications Impedance: Gain coverage: SMA Male 850/900/1800/1900MHz GPS Dieletric Antenna Peak gain: GPS Connector: 50 Ohm > 3dBi (based on 7 x 7cm groundplane) Operating Temperature: -40 - +85°C Storage Temperature: -45 - +100°C Relative Humidity: 85 ~ 100%RH > -4dBi at -90° < 0 < +90° (over 75% volume) VSWR: 1.5:1 Centre frequency: 1575.42 ± 3MHz Bandwidth: ± 5MHz Polarization: RHCP GPS Antenna LNA gain (without cable): 28dBi Typical Noise Figure: 1.5dB VSWR:
