SPECIFICATION
Part No.
:
AP.25B.07.0052A
Product Name
:
25mm One Stage GPS Active Patch
Antenna Module
Features
:
35mm*35mm*4.50mm (Ground Plane)
52mm Ø1.13 I-PEX MHFI (U.FL)
15dB LNA
1.8V/3.0V/5.0V
ROHS Compliant
:
REVISION STATUS
Version
Date
Page
Revision Description
Prepared
Approved
01
May 11th 2007
All
New format
TW Product Centre
Ronan Quinlan
02
Oct 13th 2009
All
Ireland
Dermot O'Shea
New format
Voltage range increased
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
1.0 Introduction

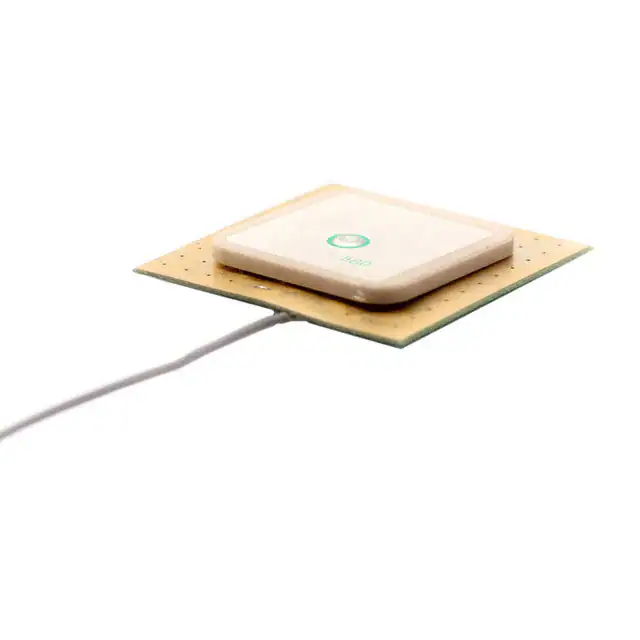

Designed for embedded (inside device) integration with GPS receiver modules, the AP.25B
combines a 25*25*2mm advanced low profile ceramic patch antenna with a one stage LNA and
ultra thin coaxial cable. The Ground Plane size of 35*35mm gives this solution a performance
increase in gain of 12dB. It also helps shields the patch antenna from noise. Taoglas active
antenna modules utilise XtremeGain™ technology for the highest sensitivity in the industry.
The AP.25B has been optimized for telematics, asset tracking, navigation, and remote
monitoring applications or simply any GPS device that requires high performance and needs
quick, relaible and consistent lock. It has been designed to sit directly above the main board
adhered to the underside of the plastic housing. The is a constant Voltage Regulator built into the
LNA integrated circuit this allows any device using the AP.25B to benefit from Lower Power
Consumption.
2.0 Specification
Patch Antenna
Frequency
1575.42 ± 1.023MHz
90°: 2.0 dBi Min.
Antenna Gain
20°: -5.0 dBi Min
Mounted on a 60*60mm Ground Plane
Polarization
Axialration
Patch Dimension
RHCP
90°: 4.0 dBi Max.
Mounted on a 60*60mm Ground Plane
25mm x 25mm x 2mm
LNA
Frequency
1575.42 ± 1.023MHz
Typ. 15dB ± 2.5dB (+25°C5°C)
Gain
Output Impedance
Noise Figure
Output VSWR
50Ω
Max 1.5dB (+25°C5°C)
Max: 2.2dB (+85°C)
2.0 Max
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
Cable* & Connector
RF Cable
Coaxial Cable ψ1.13 ± 0.1mm, length 52 ± 3.0mm
Connector
Ipex MHFI (U.FL)
Dimensions
Dimensions
Weight
35*35*4.50mm
12.3g (typ)
Total Specification
Frequency
Gain
1575.42 ± 5MHz
90°: 17± 4.5dBi
Output Impedance
Polarization
Output VSWR
50Ω
RHCP
Max 2.0
Operation Temperature
-40°C to + 85°C
Storage Temperature
-40°C to + 100°C
Relative Humidity
Input Voltage
Current
40% to 95%
1.8V/3.0V/5.0V
Max: 5.0V
Typ. 3.8mA at 3v
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
3.0 Technical Drawing
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
S21 – Gain – Input Voltage 1.8V
Noise Figure Meter – 1.8V
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
S21 – Gain – Input Voltage 3V
Noise Figure Meter – 3V
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
S21 – Gain – Input Voltage 5V
Noise Figure Meter – 5V
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
