SPECIFICATION
Part No.
:
AP.10B.07.0050B
Product Name
:

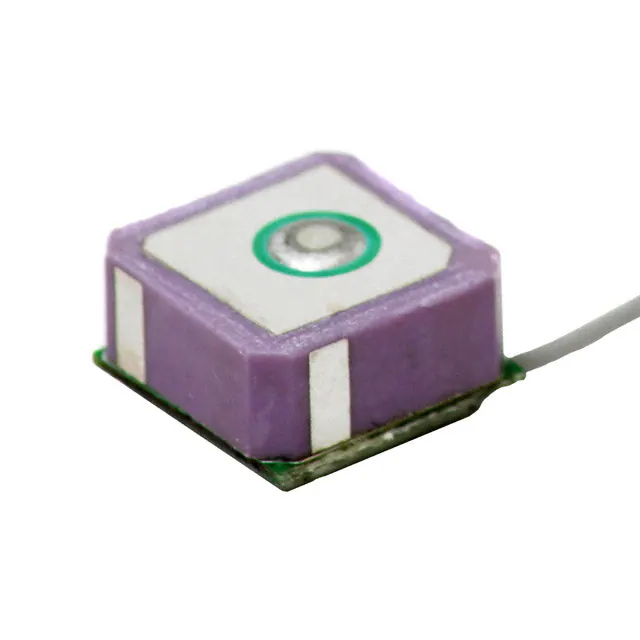

10mm 25dB Active GPS Patch Antenna
Features
:
World smallest GPS active patch
High performance 25dB
Low power consumption
RoHS compliant
:
REVISION STATUS
Version
Date
Page
Revision Description
Prepared
Approved
01
Apr 9th 2008
All
New product
TW Product Centre
Zita Lin
02
Oct 15th 2008
3
Environmental Conditions
TW Product Centre
Dermot O’Shea
© All Rights Reserved
Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Old Dublin Road, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
1.0 Introduction
The AP.10b.01 25dB active GPS patch antenna is the smallest GPS high performance
antenna currently available in the world. Using extremely sensitive high dielectric constant
powder formulation and tight process control the 10mm x 10mm x 4mm patch antenna is
accurately tuned to have its frequency band right at 1575.42MHz for GPS systems. With an
ultra low power consumption two stage LNA , this small active patch has the same relative
performance of an ordinary active patch, but at only a quarter of the size. This product is
suited to small form factor mobile devices such as GPS Smartphones, Personal Location,
Medical devices, Telematic devices and Automotive navigation and tracking. Custom gain,
connector and cable versions are available.
2.0 Specification
Antenna
Parameter
Specification
Frequency
1575.42 ± 1.023MHz
Gain
Typ -3dBic @ Zenith
Impedance
50
Polarization
RHCP
Axial Ratio
Max 4.0dB @ Zenith
Dimension
10mm x 10mm x 4mm
Frequency
1575.42 ± 1.023MHz
Gain
Min. 23dB, Typ. 25dB @ 25oC ± 5oC
LNA
Noise Figure
Typ. 1.4dB @ 25oC ± 5oC
Max 1.8dB @ 85oC
Output Impedance
50
Output VSWR
Max. 2.0
Cable *& Connector
RF Cable
Connector
Coaxial Cable ψ0.8 ± 0.1mm, length
50 ± 2.0mm
IPEX MHFI (U.FL)
© All Rights Reserved
Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Old Dublin Road, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
Total Specification
Parameter
Specification
Frequency
1575.42 ± 1.023MHz
Gain
22 ± 4dBic @ 90o
Output Impedance
50
Polarization
RHCP
Output VSWR
Max 2.0
Operation Temperature
-40°C to + 85°C
Storage Temperature
-40°C to + 85°C
Relative Humidity
40% to 95%
Input Voltage
Current
Min. 2.7V,
Typ. 3.0V,
Typ. 10mA,
Max. 3.3V
Max. 13mA
© All Rights Reserved
Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Old Dublin Road, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
3.0 Technical Drawing
© All Rights Reserved
Taoglas Limited, Unit 7 Peare Campus, Moyne Business Park, Old Dublin Road, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
