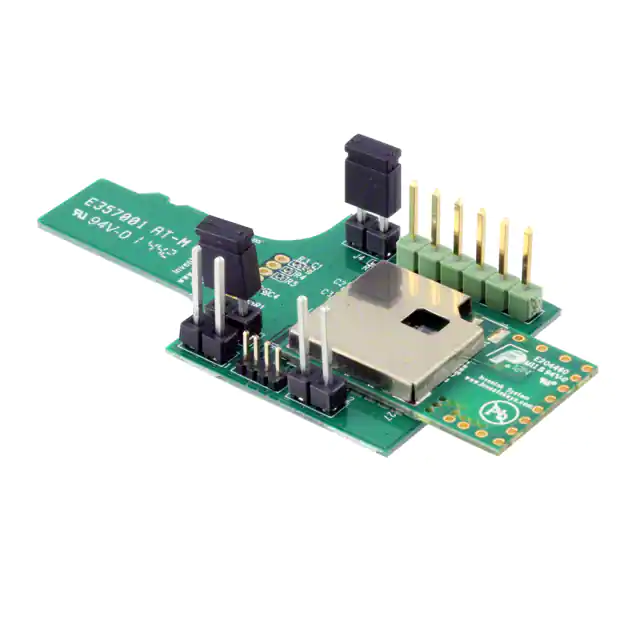

ISM43362-L36-EVB-E

ISM43362-L36 Product Specification INVENTEK SYSTEMS ISM43362-L36 Wi-Fi SiP Module eS-WiFi™ 802.11 b/g/n Data Sheet DOC-DS-20079-1.1 Page 1 Inventek Systems ISM43362-L36 Product Specification Table of Contents 1 2 3 4 General Description ................................................................................................................ 3 Part Number Description ........................................................................................................ 4 General Features ..................................................................................................................... 4 Specifications .......................................................................................................................... 5 4.1 Module Architecture / Block Diagram ........................................................................... 5 5 Limitations .............................................................................................................................. 6 5.1 Regulatory Compliance .................................................................................................. 6 5.2 FCC and IC User’s Manual Statements: ......................................................................... 6 5.3 Industry Canada User’s Manual Statements: .................................................................. 8 6 Complementary Documentation ............................................................................................. 9 6.1 Inventek Systems ............................................................................................................ 9 6.2 Environmental Specifications ......................................................................................... 9 7 Electrical Specifications.......................................................................................................... 9 7.1 Recommended Operating Ratings .................................................................................. 9 8 Power Consumption .............................................................................................................. 10 9 Wi-Fi RF Specification ......................................................................................................... 10 9.1 RF Specification............................................................................................................ 10 9.2 802.11b Transmit .......................................................................................................... 12 9.3 802.11g Transmit .......................................................................................................... 13 9.4 802.11n Transmit .......................................................................................................... 13 9.5 802.11b Receiver .......................................................................................................... 14 9.6 802.11g Receiver ......................................................................................................... 14 9.7 802.11n Receiver .......................................................................................................... 15 10 Footprint ................................................................................................................................ 18 11 PCB Layout (Top View) ....................................................................................................... 19 12 Boot Sequence ...................................................................................................................... 20 13 Communications Interfaces .................................................................................................. 21 13.1 SDIO and gSPI CONFIGURATION ............................................................................ 21 13.2 SDIO Timing (Default Mode) ...................................................................................... 22 13.3 SDIO Timing (High Speed Mode) ................................................................................ 23 13.4 gSPI Interface Characteristics ....................................................................................... 24 13.5 PCB Etch Antenna Gain on the Evaluation Board ........................................................... 25 13. 6 Farfield Directivity........................................................................................................... 26 14................................................................................................................................................... 27 14.1 External Antenna Option .............................................................................................. 27 15 Product Compliance Considerations ..................................................................................... 28 16 Reflow Profile ....................................................................................................................... 29 17 Packaging Information .......................................................................................................... 30 17.1 MSL Level / Storage Condition .................................................................................... 30 17.2 Device baking requirements prior to assembly............................................................. 31 Module’s Assembly Instructions .............................................................................................. 31 18 Contact Information .............................................................................................................. 32 DOC-DS-20079-1.1 Page 2 Inventek Systems ISM43362-L36 Product Specification 1 General Description The Inventek ISM43362-L36 is an 802.11 b/g/n WiFi Radio SiP with on board antenna or optional external antenna with a U.FL connector, which is designed for embedded wireless solutions and offers a cost-effective high performance Broadcom radio device (BCM43362) packaged in an 36 pin LGA (24.4mm x 15.3 mm). It includes standardsbased wired and wireless technologies to enable IP infrastructures for smart grid, smart home, security, building automation, toys, robots, remote health and wellness monitoring and other IoT and M2M applications. The module is based on IEEE802.11 b/g/n antenna single-stream align technology. The solution is FCC/IC/CE certified and helps to reduce development time, lower manufacturing costs, save board space, and ease certification. Summary of Key Features:           802.11 b/g/n compliant based on Broadcom MAC/Baseband/Radio device. SDIO v2.0 On-chip functionality Single-chip: MAC/BB/RF Frequency Band: 2.4 GHz Network Standard: 802.11b, 802.11g, 802.11n (single stream) Modulation Modes: CCK and OFDM with BPSK, QPSK, 16 QAM, 64QAM Hardware Encryption: WEP, WPA/WPA2 Supported Data Rates: IEEE 802.11b 1 – 11 Mbps IEEE 802.11g 6 – 54 Mbps IEEE 802.11n (2.4 GHz) 7.2 – 72.2 Mbps Advanced 1x1 802.11n features: Full/Half Guard Interval Operating Temperature: -40℃ to 85℃ Typical Applications:        PDA, Pocket PC, computing devices. Building automation and smart energy control. Industrial sensing and remote equipment monitoring. Warehousing, logistics and freight management. PC and gaming peripherals. Printers, scanners, alarm and video systems. Medical applications including patient monitoring and remote diagnostics. DOC-DS-20079-1.1 Page 3 Inventek Systems ISM43362-L36 Product Specification 2 Part Number Description Device ISM43362-L36-E ISM43362-L36-U ISM43362-L36-EVB Description 802.11 SiP Module based on Broadcom BCM43362 with on board etch antenna 802.11 SiP Module based on Broadcom BCM43362 with U.FL connector for external antenna SDIO Evaluation Board Ordering Number ISM43362-L36-E ISM43362-L36-U ISM43362-L36-EVB 3 General Features       Based on the Broadcom BCM43362 MAC/Baseband/Radio device. Supports Broadcom WICED SDK. IEEE 802.11n D7.0 -OFDM-72.2 Mbps -single stream w/20 MHz, Short GI IEEE 802.11g (OFDM 54 Mbps) IEEE 802.11b (DSSS 11Mbps) IEEE 802.11i (Security) o o    WPA (Wi-Fi Protected Access) –PSK/TKIP WPA2 (Wi-Fi Protected Access 2)- AES/CCMP/802.1x Authentication Inputs +3.3 V tolerant Lead Free Design which is compliant with ROHS requirements. EMI/EMC Metal Shield recommended for best RF performance in noisy environments and to accommodate for lower RF emissions/signature for easier FCC compliance. DOC-DS-20079-1.1 Page 4 Inventek Systems ISM43362-L36 Product Specification 4 Specifications 4.1 Module Architecture / Block Diagram Figure 1 Inventek’s ISM43362-L36 General Block Diagram DOC-DS-20079-1.1 Page 5 Inventek Systems ISM43362-L36 Product Specification 5 Limitations Inventek Systems products are not authorized for use in safety-critical applications (such as life support) where a failure of the Inventek Systems product would reasonably be expected to cause severe personal injury or death. 5.1 Regulatory Compliance CE Regulator FCC IC CE RoHS Status 07P-362 10147A-362 Certified Compliant 5.2 FCC and IC User’s Manual Statements: OEM INSTRUCTIONS: This module is limited to OEM installation only. OEM integrators must ensure that the end-user has no manual instructions to remove or install the module.. OEM’s must comply with FCC marking regulation part 15 declaration of conformity (Section 2.925(e)). This module is to be installed only in mobile or fixed applications (Please refer to FCC CFR 47 Part 2.1091(b) for a definition of mobile and fixed devices). Separate approval is required for all other operating configurations, including portable configurations with respect to FCC CFR 47 Part 2.1093, and different antenna configurations. The antennas used with this module must be installed to provide a separation distance of at least 20cm from all persons, and must not be co-located or transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi transmitter product procedures. DOC-DS-20079-1.1 Page 6 Inventek Systems ISM43362-L36 Product Specification The ISM43362 Module has been designed to operate with the following antennas and gains. Use with other antenna types or with these antenna types at higher gains is strictly prohibited. Manufacturer Inventek Inventek Type of Antenna U.FL port Antenna Trace Antenna Model Gain dB W24P-U 2.15 NA 0 Type of Connector Unique Connector Permanent integral Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. A clearly visible label is required on the outside of the user’s (OEM) enclosure stat the following text: Contains FCC ID: O7P-362 Contains IC: 10147A-362 This transmitter module has been certified for FCC Part 15 operation; when installed in a host device, the host manufacturer is responsible for making sure that the host device with the transmitter installed continues to be compliant with Part 15B unintentional radiator requirements. DOC-DS-20079-1.1 Page 7 Inventek Systems ISM43362-L36 Product Specification 5.3 Industry Canada User’s Manual Statements: IC RSS-210/RSS-Gen NoticesOperation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. L’opѐration est soumise aux deux conditions suivantes: (1) cet appareil ne peut pas provoquer d’interfѐrences et (2) cet apparial doit accepter toute interfѐrence, y compris les interfѐrences qui peuvent causer un mauvis fonctionment de l’appareil. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Sous la rѐglementation d’Industrie Canada, ce transmetteur radio ne peut fonctionner en utilisant une antenne d’un type et un maximum (ou moins) gain approuvѐes pour l’ѐmetteur par Industrie Canada. Pour rѐduire le risqué d’interference aux autres utilisateures, le type d’antenne et son gain doivent être choisis de maniѐre que la puissance isotrpe rayonnѐe ѐquivalente (PIRE) ne dѐpasse pas ce qui est nѐcessaire pour une communication rѐussie. The radio transmitter has been approved by Industry Canada to operate with the antenna types listed above with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Cet ѐmetteur de radio a ѐtѐ approuvѐ par Industrie Canada pour fonctionner avec les types d’antennes ѐnumѐrѐes ci-dessus avec le gain maximal admissible et impѐdance d’antenna requise pour chaque type d’antenne indiquѐ. Types d’antennes ne figurant pas dans cette liste, ayant un gain supѐrieur au gain maximum indiquѐ pour ce type, sont strictement interdites p DOC-DS-20079-1.1 Page 8 Inventek Systems ISM43362-L36 Product Specification 6 Complementary Documentation 6.1 Inventek Systems  Evaluation Board o ISM43362-L36 SDIO Evaluation Board Specification  Firmware ( NDA/ SLA required ) 6.2 Environmental Specifications Item Operating temperature range Storage temperature range Humidity Description -40 deg. C to +85 deg. C -40 deg. C to +85 deg. C 95% max non-condensing Note 1: The ISM43362-L36 supports a functional operating range of -40°C to +85°C. However the optimal RF performance specified in this data sheet is only guaranteed for temperatures from -10°C to +65°C 7 Electrical Specifications 7.1 Recommended Operating Ratings Symbol Min. Typ. Max. Unit. VDD_3V3 3.0 3.3 3.6 V Voltage Ripple DOC-DS-20079-1.1 +/- 2% max values not exceeding operating voltage Page 9 Inventek Systems ISM43362-L36 Product Specification 8 Power Consumption Condition: 250C, VDD_3V3. Item Tx mode(11b Max current) Condition 11Mbps Tx mode(11g Max current) Tx mode(11n Max current) 54Mbps MCS7 11b (11Mbps) 11g (54Mbps) 11n (MCS7) Rx mode(Rx @Max gain) Min Nom 345 Max 410 Unit mA 250 210 115 115 115 310 270 150 150 150 mA mA mA mA mA 9 Wi-Fi RF Specification 9.1 RF Specification Conditions: VDD=3.3V; TEMP: 25°C Feature WLAN Standard Frequency Range Number of Channels Modulation Output Power Receive Sensitivity (11n,20MHz) @10% PER DOC-DS-20079-1.1 Descriptin IEEE 802.11b/g/n, Wi-Fi compliant 2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band) Ch1 ~ Ch14 802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK 802.11b : CCK, DQPSK, DBPSK 802.11b /11Mbps : 17 dBm ± 1.5 dB 802.11g /54Mbps: 13 dBm ± 1.5 dB 802.11n /72Mbps: 11 dBm ± 1.5 dB - MCS=0 PER @ -86 dBm, typical - MCS=1 PER @ -85 dBm, typical - MCS=2 PER @ -85 dBm, typical - MCS=3 PER @ -84 dBm, typical - MCS=4 PER @ -80 dBm, typical - MCS=5 PER @ -78 dBm, typical - MCS=6 PER @ -72 dBm, typical - MCS=7 PER @ -69 dBm, typical - 6Mbps PER @ -89 dBm, typical - 9Mbps PER @ -88 dBm, typical - 12Mbps PER @ -88 dBm, typical - 18Mbps PER @ -87 dBm, typical Page 10 Inventek Systems ISM43362-L36 Product Specification Receive Sensitivity (11g) @10% PER Receive Sensitivity (11b) @10% PER Data Rates Data Rate (20MHz ,Long GI,800ns) Data Rate (20MHz ,short GI,400ns) Maximum Receive Input Level DOC-DS-20079-1.1 - 24Mbps PER @ -83 dBm, typical - 36Mbps PER @ -80 dBm, typical - 48Mbps PER @ -75 dBm, typical - 54Mbps PER @ -72 dBm, typical - 1Mbps PER @ -93 dBm, typical - 2Mbps PER @ -91 dBm, typical - 5.5Mbps PER @ -89 dBm, typical - 11Mbps PER @ -87 dBm, typical 802.11b : 1, 2, 5.5, 11Mbps 802.11g : 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps 802.11n : 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65,72.2Mbps 802.11b : -10 dBm 802.11g : -10 dBm Page 11 Inventek Systems ISM43362-L36 Product Specification 9.2 802.11b Transmit 802.11b Transmit Item Transmit output power level Transmit center frequency tolerance Condition Min. Typ. Max. Unit 1M/2M/5.5M/11M 15 17 19 dBm -25 0 25 ppm -30* dBr -50* dBr Fc-22MHz
