SG923-0007

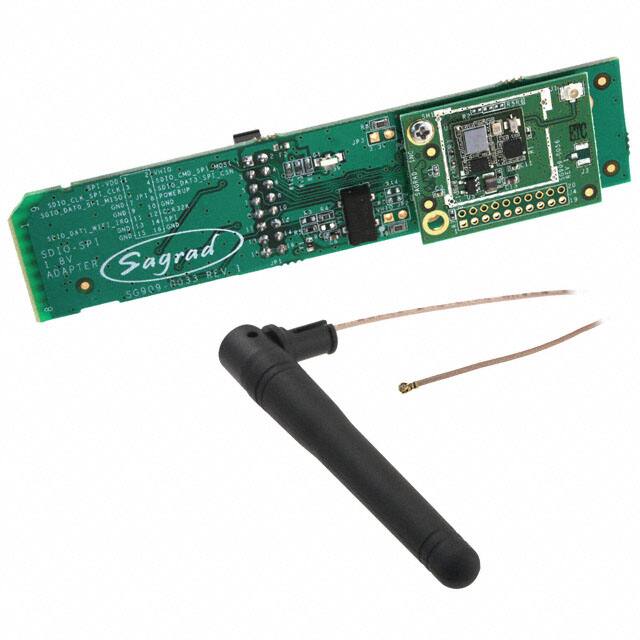

Preliminary SG923-0007 Evaluation Kit Overview Features SG923-0007 Is an evaluation Kit used to simplify the rapid evaluation and software integration of the SG901-1071 Radio Module. The EVK allows for easy access to the SDIO interface via a standard SDIO hardware connector as well as a break out of each pin for debugging. The SDIO connector is designed to plug into processor development boards for rapid software testing. • • • • The SG901-1080 Carrier board which hosts the SG901-1071 board also contains a debug connector which hosts the Blue Tooth coexistence control interface as well as a Debug SPI interface. The evaluation kit can provide power to the module from a 3.3V SDIO socket or external input for instrumentation. A 2.4GHz antenna connection port as well as an optional external Bluetooth interface allow for complete system testing. • • • • • • Easy to connect to SPI and SDIO header Easy to use SDIO connector for common processor EVK. SDIO break out header for logic analysis and driver development Bluetooth test port and Coexistence testing header. Full application circuit example. Standard 3.3V Powered SDIO on Insert SPI and Supply Connector On board Regulator and Sleep Clock Oscillator Simple Client application Versatile SDIO and SPI Bus Ordering Information The Kit consists of a SG901-1071 soldered into a Carrier Board, Sagrad Part Number SG901-1080, Figure 1 and a SDIO/SPI Adapter Board, Sagrad Part number SG901-1042 depicted on Figure 2. Packaging Order Number Evaluation Kit SG923-0007 Most signals can also be used as general-purpose IO, and are available at standard 0.1” pitch headers for SPI applications and SDIO form factor for SDIO applications. An interface for external Bluetooth access is available in a 2mm pitch header. Updated versions of all software are available at: www.sagrad.com/support/1071 Software Support and Drivers Full Assembly View 1-321-255-0515 WWW.SAGRAD.COM DOC#: SG914-0025 rev. 1.0 Preliminary FIGURE 1: SG901-1080 Carrier Board (Includes the SG901-1071 Module) Top View Bottom View FIGURE 2: SG901-1042 Adapter Board Top View Bottom View 1-321-255-0515 WWW.SAGRAD.COM DOC#: SG914-0025 rev. 1.0 Preliminary SG923-0007 Evaluation Kit Boards Main Components Bluetooth Signaling Connector Optional Bluetooth Shared Antenna Access 1.8V Regulator, (VLDO) SG901-1071 Radio Module MOLEX Connector SDIO INSERT Antenna Connector Sleep Clock Oscillator SPI Access Connector 2.4GHz Antenna 1-321-255-0515 WWW.SAGRAD.COM DOC#: SG914-0025 rev. 1.0 Preliminary Connector Descriptions Some of the pin functions on the SG901-1071 are multiplexed between the SPI and SDIO applications. Note that the same Module pins may appear into both SDIO and SPI connectors. The following tables explain the functionality per Bus application. The notes explain the mapping to the SG901-1071 Module pin nomenclature. SDIO INSERT Pin Descriptions PIN NUMBER SIGNAL NAME DESCRIPTION NOTES SDIO_DAT[3] 1 SDIO DATA3 Mapped to CS_SDD3 on SG901-1071 Module SDIO_CMD 2 SDIO CMD Mapped to SDCMD on SG901-1071 Module VSS1 3 VSS, Ground Return VDD 4 SDIO_VDD CLK 5 SDIO Clock VSS2 6 VSS, Ground Return SDIO_DAT[0] 7 SDIO DATA0 Mapped to SDD3 on SG901-1071 Module SDIO_DAT[1] 8 SDIO DATA1 Mapped to SDD1 on SG901-1071 Module SDIO_DAT[2] 9 SDIO DATA2 Mapped to SDD2 on SG901-1071 Module Mapped and connected to VHIO and 3.3V on the SG901-1071. (NOTE: Jumper between pins 1 and 2 of the JP1 connector on the adapter board) Mapped to SDCLK on SG901-1071 Module NOTE: Pin 9 of the standard SDIO pin out is recessed and collocated with pin 1 SPI Pin Descriptions (JP1 on the adapter board schematics) SIGNAL NAME PIN NUMBER DESCRIPTION NOTES Mapped to 3.3V supply on SG901-1071 Module (Requires external power supply at 3.3V) Mapped to VHIO input on SG901-1071 Module. (use a jumper to PIN 1 in case the VHIO is 3.3V or apply an external VHIO source if lower than 3.3V) (VHIO Domain) Mapped to SDCLK on SG901-1071 Module SPI_VDD 1 VDD (external) VHIO 2 VHIO SPI_CLK 3 SPI_MOSI 4 SPI_MISO 5 SPI_CSN 6 SPI Clock SPI Master outSlave in SPI Master inSlave out SPI Chip Select GND 7 Ground Return POWERUP 8 Power Up WIFI GND 9 Ground Return GND 10 Ground Return WIFI_IRQ 11 CLK32K 12 GND 13 SPI 14 GND 15 Interrupt Request Not used in this application Ground Return Not used in this application Ground Return GND 16 Ground Return 1-321-255-0515 (VHIO Domain) Mapped to SDCMD on SG901-1071 Module (VHIO Domain) Mapped to SDD0 on SG901-1071 Module (VHIO Domain) Mapped to SDD3 on SG901-1071 Module Mapped to POWERUP on SG901-1071 Module. This pin is normally high in the adapter board by an internal resistor divider to 3.3V. Use a low level input to disable the SG901-1071 (VHIO Domain) Mapped to SDD1 on SG901-1071 Module An on board Low frequency clock is connected to the SLEEPCLK on the SG901-1071 WWW.SAGRAD.COM DOC#: SG914-0025 rev. 1.0 Preliminary Bluetooth Signaling Pins (J4 on Carrier Board Schematics) SIGNAL NAME PIN NUMBER WLAN_DENY 9 BT_ACTIVE 11 BT_PERIODIC 13 BT_STATUS 15 SDIO Host application For SDIO applications simply insert the assembly into the SDIO socket available in most Host processor application/development boards. There are no external supplies or clocks required. The Kit is powered by the SDIO source in the Host development board. SPI Host application For SPI applications, the user is required to access the Bus using the connector JP1 in the adapter board. An external 3.3V power supply is required to power the evaluation kit assembly. Depending on the Host VHIO domain (Data Bus VOL, VOH, VIL, VIH), an external VHIO supply may be required if different than 3.3V. Please refer to the SPI pin descriptions. Use short wiring for the Bus connection. 1-321-255-0515 WWW.SAGRAD.COM DOC#: SG914-0025 rev. 1.0 Preliminary Carrier Board Schematics 1-321-255-0515 WWW.SAGRAD.COM DOC#: SG914-0025 rev. 1.0 Preliminary Adapter Board Schematics 1-321-255-0515 WWW.SAGRAD.COM DOC#: SG914-0025 rev. 1.0
