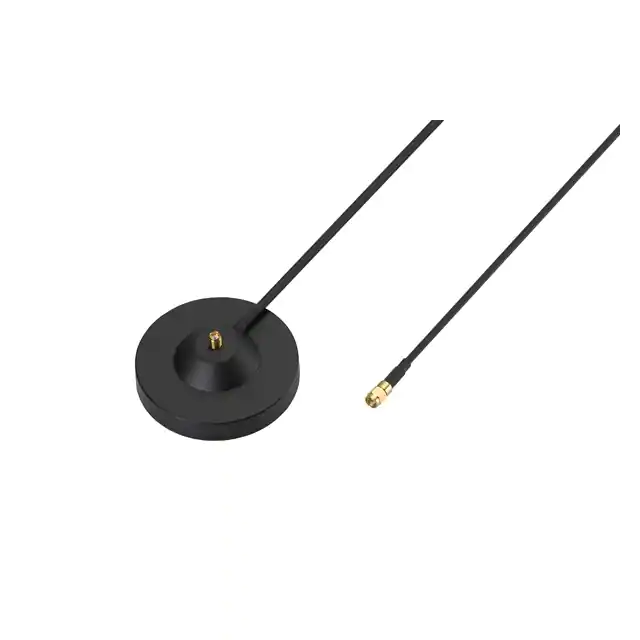

SPECIFICATION Part No. : CAB.X06 Product Name : Taoglas Magnet Mount Antenna Base Cable Assembly SMA(F) on base to SMA(M) Straight Plug on cable with 3M(9.84ft) CFD-200 low loss cable Photo : SPE-14-8-098/B/WY Page 1 of 7 1. Cable Insertion Loss 2. CFD-200 Cable Specification 2.1 Drawing – Cross Section SPE-14-8-098/B/WY Page 2 of 7 2.2 Structure and Dimensions 2.3 Electrical & Physical Specification ELECTRICAL Attenuation 150MHz 450MHz 900MHz 1500MHz 1800MHz 2500MHz dB/100M 12.1 21.6 31.2 41.1 45.3 54.4 Insulation Resistance 1000 MΩ-Km (Min) Capacitance 80.4  3 pF/m Nom. Impedance 53  3 Ω MECHANICAL Cable Type CFD-200 coaxial cable Cable length 3 Meters (9.84ft) Connector Connector Max. Torque SMA(M) SMA(F) Magnet Mount 0.9N∙m Magnetic Pull Force 2.92kgf Weight Magnet 370g Ferric Oxide ENVIRONMENTAL Temperature Range -40°C to 85°C Humidity Non-condensing 65°C 95% RH SPE-14-8-098/B/WY Page 3 of 7 3. Technical Drawing 3.1 CAB.X06 SPE-14-8-098/B/WY Page 4 of 7 3.2 Connectors SPE-14-8-098/B/WY Page 5 of 7 4. Magnetic Pull Force (kilogram-force, kgf) 4.1 Testing setup Maximum Pull Force : 2.92kgf SPE-14-8-098/B/WY Page 6 of 7 5. Packaging Unit: mm SPE-14-8-098/B/WY Page 7 of 7
