MK SD NAND Product Datasheet
Commercial Grade
Product List

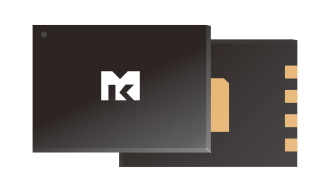

MKDN128GCL-ZA / MKDN256GCL-ZA / MKDN512GCL-ZA
http://www.mkfounder.com
1
Nano SD NAND
Revision History
Version
Rev 1.0
Date
2020/10/31
Description
Original version
Notice :
The datasheet is prepared and approved by MK Founder semiconductor co., LTD.
MK Founder reserves the right to change products or specifications without notice.
©2021 MK Founder semiconductor co., LTD. All rights reserved.
2
Nano SD NAND
Table Of Contents
1 Introduction ....................................................................................................................................... 4
2 Product List....................................................................................................................................... 4
3 Features ........................................................................................................................................... 4
4 Physical Characteristics .................................................................................................................... 4
4.1 Temperature............................................................................................................................................ 4
5 Pin Assignments(SD Mode& SPI Mode) ............................................................................................ 5
6 Usage ............................................................................................................................................... 6
6.1 SD Bus Mode protocol ............................................................................................................................ 6
Command ......................................................................................................................................................... 6
Response ......................................................................................................................................................... 6
Data .................................................................................................................................................................. 6
6.2 Card Initialize .......................................................................................................................................... 8
Normal SD initial flow.................................................................................................................................... 9
SD card Initialize Procedure ............................................................................................................................... 9
SD3.0 initial flow for UHS-I(IO 1.8v) switch.................................................................................................... 10
6.3 DC Characteristics ................................................................................................................................ 11
DC Characteristics ........................................................................................................................................ 11
Peak Voltage and Leak Current...................................................................................................................... 11
Signal Capacitance ....................................................................................................................................... 11
7 Internal Information ......................................................................................................................... 12
7.1 Registers............................................................................................................................................... 12
7.1.1 OCR Register ........................................................................................................................................ 13
OCR register definition ...................................................................................................................................... 13
7.1.2 CID Register .......................................................................................................................................... 14
7.1.3 CSD Register ........................................................................................................................................ 15
7.1.4 RCA Register ........................................................................................................................................ 16
7.1.5 DSR Register ........................................................................................................................................ 16
8 Power Scheme................................................................................................................................ 16
8.1 Power Up .............................................................................................................................................. 16
8.2 Power Up Time ..................................................................................................................................... 17
8.2.1 Power On or Power Cycle ..................................................................................................................... 18
8.2.2 Power Supply Ramp Up ........................................................................................................................ 18
8.2.3 Power Supply Ramp Up ........................................................................................................................ 18
9 Package Dimensions ...................................................................................................................... 19
10 Reference Design ......................................................................................................................... 20
3
Nano SD NAND
1 Introduction
MK Nano SD NAND is an embedded storage solution designed in a LGA package form. The operation of
SD is similar to an SD card which is an Commercial Grade.
Nano SD NAND consists of NAND flash and a high performance controller. 3.3V supply voltage is
required for the NAND area (VCC).
Nano SD NAND is fully compliant with SD3.0 interface, which allows most of general CPU to utilize.
Nano SD NAND has high performance, high quality and low power consumption.
2 Product List
Part Number
Flash Type
Capacity
Actual Capacity
Package
Size
MKDN128GCL-ZA
TLC
128Gbit
14,754MB
LGA-16
9x12.5mm
MKDN256GCL-ZA
TLC
256Gbit
30,162MB
LGA-16
9x12.5mm
MKDN512GCL-ZA
TLC
512Gbit
60,332MB
LGA-16
9x12.5mm
3 Features
⚫
⚫
⚫
⚫
⚫
Support up to 208MHz clock frequency
C10, U3, V30, A2
Support SPI Mode
Support IO Voltage :1.8V / 3.3V
Built-in LDPC Engine and highly reliable NAND management mechanism
4 Physical Characteristics
4.1 Temperature
1)
Operation Conditions
Temperature Range: Ta = -25℃ to 85℃
2)
Storage Conditions
Temperature Range: Tstg = −55℃ to 150℃
4
Nano SD NAND
5 Pin Assignments(SD Mode& SPI Mode)
TOP VIEW
a. Type Key: S=power supply; I= input; O=output using push-pull drivers; PP=I/O using push-pull
drivers.
b. The extended DAT lines (DAT1-DAT3) are input on power up. They start to operate as DAT lines
after the SET_BUS_WIDTH Type Key: S=power supply; I=input; O=output using push-pull drivers;
PP=I/O using push-pull drivers.
c. At power up this line has a 50 kilohm pull-up enabled in the card. This resistor serves two functions:
Card detection and Mode Selection. For Mode Selection, the host can drive the line high or let it be
pulled high to select SD mode. If the host wants to select SPI mode it should drive the line low. For
Card detection, the host detects that the line is pulled high. This pull-up should be disconnected by
the user, during regular data transfer, with SET_CLR_CARD_DETECT (ACMD42) command.
5
Nano SD NAND
6 Usage
6.1 SD Bus Mode protocol
The SD bus allows the dynamic configuration of the number of data line from 1 to 4 Bi-directional data
signal. After power up by default, the SD card will use only DAT0. After initialization, host can change the
bus width.
Multiplied SD cards connections are available to the host. Common VDD, VSS and CLK signal
connections are available in the multiple connections. However, Command, Respond and Data lined
(DAT0-DAT3) shall be divided for each device from host.
This feature allows easy trade off between hardware cost and system performance. Communication over
the SD bus is based on command and data bit stream initiated by a start bit and terminated by stop bit.
Command
Commands are transferred serially on the CMD line. A command is a token to starts an operation from
host to the device. Commands are sent to an addressed single card (addressed Command) or to all
connected cards (Broad cast command).
Response
Responses are transferred serially on the CMD line.
A response is a token to answer to a previous received command. Responses are sent from an
addressed single card or from all connected cards.
Data
Data can be transfer from the card to the host or vice versa. Data is transferred via the data lines.
6
Nano SD NAND
SD NAND (A)
CLK
CMD
DAT0 - DAT3
VDD
VSS
Host card Clock signal
Bi-directional Command/ Response Signal
4 Bi-directional data signal
Power supply
GND
7
Nano SD NAND
6.2 Card Initialize
To initialize the SD NAND, follow the following procedure is recommended example.
1)
Supply Voltage for initialization
Host System can apply the Operating Voltage from initialization to the card. Apply more than 74 cycles of
Dummy-clock to the SD card.
2)
Select operation mode (SD mode or SPI mode)
In case of SPI mode operation, host should drive 1 pin (CD/DAT3) of SD Card I/F to “Low” level. Then,
issue CMD0. In case of SD mode operation, host should drive or detect 1 pin of SD Card I/F (Pull up
register of 1 pin is pull up
to “High” normally).
Card maintain selected operation mode except re-issue of CMD0 or power on below is SD mode
initialization procedure.
3)
Send the ACMD41 with Arg = 0 and identify the operating voltage range of the Card.
4)
Apply the indicated operating voltage to the card.
Reissue ACMD41 with apply voltage storing and repeat ACMD41 until the busy bit is cleared. (Bit 31 Busy
= 1) If response time out occurred, host can recognize not SD Card.
5) Issue the CMD2 and get the Card ID (CID).
6)
Issue the CMD3 and get the RCA. (RCA value is randomly changed by access, not equal zero)
7)
Issue the CMD7 and move to the transfer state.
If necessary, Host may issue the ACMD42 and disabled the pull up resistor for Card detect.
8)
Issue the ACMD13 and poll the Card status as SD Memory Card.Check SD_CARD_TYPE value. If
significant 8 bits are “all zero”, that means SD Card. If it is not, stop initialization.
9)
Issue CMD7 and move to standby state. Issue CMD9 and get CSD. Issue CMD10 and get CID.
10) Back to the Transfer state with CMD7.
11) Issue ACMD6 and choose the appropriate bus-width.
Then the Host can access the Data between the SD card as a storage device.
8
Normal SD initial flow
SD card Initialize Procedure
9
Nano SD NAND
SD3.0 initial flow for UHS-I(IO 1.8v) switc
10
Nano SD NAND
6.3 DC Characteristics
Item
Supply Voltage
High Level
Input
Low Level
Voltage
High Level
Output
Low Level
Voltage
Standby Current
Operation Write
Current (*) Read
Input Voltage Setup Time
DC Characteristics
Symbol MIN.
MAX.
VDD
2.7
3.6
VIH
VDD+0.3
VDD×0.625
VIL
VSS-0.3
VDD×0.25
VOH
－
VDD×0.75
VOL
－
VDD×0.125
－
0.25 (32Gb)
ICC1 －
0.05
－
－
－
ICC2
Vrs
30 (32Gb)
28 (32Gb)
250
Unit
V
V
V
V
V
mA
mA
ms
Note
IOH = -2mA , VDD=VDD min
IOL = 2mA , VDD=VDD min
VDD = 3.6V , Clock 25MHz
VDD = 3.3V, Clock STOP,
Ta=25℃
3.3V / 25MHz, 50MHz
From 0V to VDD min
*) Peak Current: RMS value over a 10usec period
Peak Voltage and Leak Current
Item
Peak voltage on all lines
Input Leakage Current
for all pins
Output Leakage
Current for all outputs
Item
Pull up Resistance
Total bus capacitance
for each signal line
Card capacitance
for signal pin
Pull up Resistance
inside card ( pin1 )
Capacity Conneted to
Power line
Symbol
Min.
-0.3
Max.
VDD+0.3
-10
10
-10
10
Signal Capacitance
Min.
Max.
Unit
V
uA
uA
Symbol
RCMD
10
RDAT
CL
─
100
kΩ
40
pF
CCARD
─
10
pF
RDAT3
CC
10
90
─
5
11
Note
Unit
kΩ
uF
Note
1 card
CHOST+CBUS≦30pF
Nano SD NAND
7 Internal Information
7.1 Registers
The Nano SD NAND has six registers and SD Status information: OCR, CID, CSD, RCA,DSR, SCR and SD
Status. DSR IS NOT SUPPORTED in this card.
There are two types of register groups.
MMC compatible registers: OCR, CID, CSD, RCA, DSR, and SCR SD card Specific: SD Status
SD card Registers
Resister
Name
OCR
CID
CSD
RCA
DSR
SCR
SD Status
Bit Width
32
128
128
16
16
64
512
Description
Operation Conditions (VDU Voltage Profile and Busy Status
Card Identification information
Card specific information
Relative Card Address
Not Implemented (Programmable Card Driver): Driver Stage Register
SD Memory Card‟s special features
Status bits and Card features
12
Nano SD NAND
7.1.1
OCR Register
This 32-bit register describes operating voltage range and status bit in the power supply.
OCR register definition
OCR
bit
31
Card power up status bit(busy)
30
Card Capacity Status
29-25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
reserved
Switching to 1.8V Accepted(S18A)
3.6 - 3.5
3.5 - 3.4
3.4 - 3.3
3.3 - 3.2
3.2 - 3.1
3.1 - 3.0
3.0 - 2.9
2.9 - 2.8
2.8 - 2.7
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved for Low Voltage Range
Reserved
Reserved
Reserved
reserved
9
8
7
6
5
4
3-0
Initial
32Gb
VDD voltage window
64Gb
“0” =
busy
“1” =
“0”= SD
Memory
Card
All „0‟
0
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
All 0
bit 23-4: Describes the SD Card Voltage
bit 31 indicates the card power up status. Value “1” is set after power up and initialization
procedurehas been completed.
13
Nano SD NAND
7.1.2
CID Register
The CID (Card Identification) register is 128-bit width. It contains the card identification information.
(Refer Appendix 3. for the detail)
The Value of CID Register is vender specific.
CID Register
Field
MID
OID
PNM
PRV
PSN
-
a.
b.
8
16
40
8
32
4
MDT
CRC
-
Width CID-slice
12
7
1
[127:120]
[119:104]
[103:64] TBD
[63:56]
[55:24]
[23:20]
[19:8]
[7:1]
[0:0]
Initial Value
32Gb
64Gb
TB
TBD
TBD
TBD
TB
(a) (Product serial number)
All “0b”
(a) (Manufacture date)
(b) (CRC)
1b
Depends on the SD Card. Controlled by Production Lot.
Depends on the CID Register
14
--
Nano SD NAND
7.1.3
CSD Register
CSD is Card-Specific Data register provides information on 128bit width. Some field of this register can
writable by PROGRAM_CSD (CMD27).
Field
CSD_STRUCTURE
TAAC
NSAC
TRAN_SPEED
CCC
READ_BL_LEN
READ_BL_PARTIAL
WRITE_BLK_MISALIG
READ_BLK_MISALIGN
DSR_IMP
C_SIZE
ERASE_BLK_EN
SECTOR_SIZE
WP_GRP_SIZE
WP_GRP_ENABLE
R2W_FACTOR
WRITE_BL_LEN
WRITE_BL_PARTIAL
FILE_FORMAT_GRP
COPY
PERM_WRITE_PROTE
TMP_WRITE_PROTEC
FILE_FORMAT
CRC
-
Cell
Width
Type
2
R
6
R
8
R
8
R
8
R
12 R
4
R
1
R
1
R
1
R
1
R
6
R
22 R
1
R
1
R
7
R
7
R
1
R
2
R
3
R
4
R
1
R
2
R
1
R
(1
1
R/W
(1
1
R/W
1
R/W
2
R
2
R
7
R/W
1
-
CSD Register
CSD
Slice
[127:126]
[125:120]
[119:112]
[111:104]
[103:96]
[95:84]
[83:80]
[79:79]
[78:78]
[77:77]
[76:76]
[75:70]
[69:48]
TBD
[47:47]
[46:46]
[45:39]
[38:32]
[31:31]
[30:29]
[28:26]
[25:22]
[21:21]
[20:16]
[15:15]
[14:14]
[13:13]
[12:12]
[11:10]
[9:8]
[7:1]
[0:0]
Initial Value
32Gb
64Gb
01b
All “0b”
0_0001_110b (1ms)
00000000
0_0110_010b
0101_1011_0101
1001b
0b
0b
0b
0b
All “0b”
TBD
TBD
0b
1b
11_1111_1
000_0000
0b
00b
010b
1001b
0b
All “0b”
0b
0b
0b
0b
00b
All “0b”
(CRC)
1b
Cell Type:R: Read Only, R/W: Writable and Readable, R/W(1): One-time Writable / Readable
Note: Erase of one data block is not allowed in this card. This information is indicated by
“ERASE_BLK_EN”.
Host System should refer this value before one data block size erase.
15
--
Nano SD NAND
7.1.4
RCA Register
The writable 16bit relative card address register carries the card address in SD Card mode.
7.1.5
DSR Register
This register is not implemented on this card.
8 Power Scheme
8.1 Power Up
'Power up time' is defined as voltage rising time from 0 volt to VDD min.
'Supply ramp up time' provides the time that the power is built up to the operating level (Host Supply
Voltage) and the time to wait until the Nano SD NAND can accept the first command,
The host shall supply power to the card so that the voltage is reached to Vdd_min within
250ms and start to supply at least 74 SD clocks to the Nano SD NAND with keeping CMD line to high.
16
Nano SD NAND
8.2 Power Up Time
Host needs to keep power line level less than 0.5V and more than 1ms before power ramp up.
17
Nano SD NAND
8.2.1
Power On or Power Cycle
Followings are requirements for Power on and Power cycle to assure a reliable Tailor™ SD
hard reset.
(1) Voltage level shall be below 0.5V
(2) Duration shall be at least 1ms.
8.2.2
Power Supply Ramp Up
The power ramp up time is defined from 0.5V threshold level up to the operating supply voltage which is
stable between VDD(min.) and VDD(max.) and host can supply SDCLK.
Followings are recommendation of Power ramp up:
(1) Voltage of power ramp up should be monotonic as much as possible.
(2) The minimum ramp up time should be 0.1ms.
(3) The maximum ramp up time should be 35ms for 2.7-3.6V power supply.
8.2.3
Power Supply Ramp Up
When the host shuts down the power, the VDD shall be lowered to less than 0.5Volt for a minimum period
of 1ms. During power down, DAT, CMD, and CLK should be disconnected or driven to logical 0 by the host
to avoid a situation that the operating current is drawn through the signal lines.
If the host needs to change the operating voltage, a power cycle is required. Power cycle means the
power is turned off and supplied again. Power cycle is also needed for accessing cards that are already in
Inactive State. To create a power cycle the host shall follow the power down description before power up
the card (i.e. the VDD shall be once lowered to less than 0.5Volt for a minimum period of 1ms).
18
Nano SD NAND
9 Package Dimensions
19
Nano SD NAND
10 Reference Design
RDAT and RCMD (10K~100 kΩ) are pull-up resistors protecting the CMD and the DAT lines against bus
floating when Nano SD NAND is in a high-impedance mode.
The host shall pull-up all DAT0-3 lines by RDAT, even if the host uses the Nano SD NAND as 1 bit
mode-only in SD mode. It is recommended to have 2.2uF capacitance on VDD.
Rclk reference 0~120 Ω.
20
工商网监
湘ICP备2023018690号
