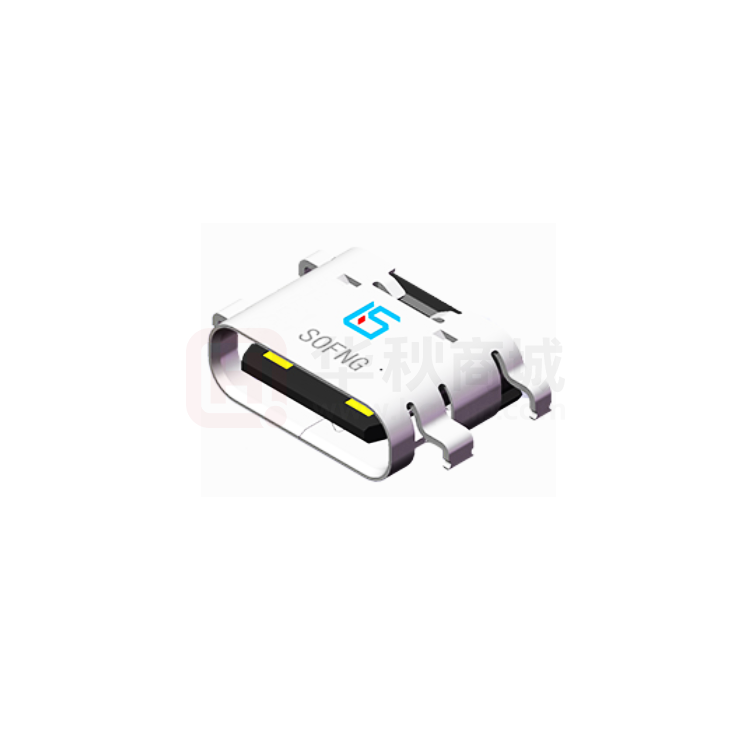

Operation:DIP 2.0Type-C 连接器 & 16PIN 短体 沉板式
ARD SOCKETS
LTEM NO.:MC-314C-4P16
(L6.5mm×
L6.5mm×W11.60mm×
W11.60mm×H3.20mm Type-C CONNECTORS)
沉板贴片 SMT
Technical parameter
╲
LEVEL
A[better product]
╲
PROJECT
Contact Rating
Electrical
Initial Contact Resistance
Properties
Insulation Resistance
Withstand Voltage
B[average product]
侧向導入 LATERAL
5.0A, 20V DC
30mΩ max.
100MΩ min.500V DC
50mΩ max.
精密部品 NICETY
Skey/PD:100MΩ min.300V DC
500V AC for 1 minute
350 V AC for 1 minut
There No Load
10,000 Cycles
8,000 Cycles
Rated Load
8,500 Cycles
6,500 Cycles
可靠 STABILIZE
Durable Performance
Sterage temp.
DECIMALS
ANGLES
.X
:±0.25
X.°
.XX
:±0.15
X.X° :±1.0°
.XXX
:±0.10
.XXX° :±0.5°
-30℃~+75℃(Operating Temp:
適合環保 RoHS
)
Unit:mm
:±1.5°
Material declaration
No.
NAME
Type
Description
①
SHELL
1
Stainless Steel,(Gold Flash)
②
HOUSING
1
THERMOPLASTIC(glass fiber filled)BK
③
CONTACT
14
BRASS(t=0.12mm)
④
METAL COVER
1
STAINLESS STEEL(t=0.30mm)
⑤
LOCK PIN
2
STAINLESS STEEL(t=0.20mm)
SOFNG ELECTRONIC TECHNOLOGY Co., LTD
CIRCUIT BOARD SIZE
(Vertical view)
Operating Force
Inward
5.0~8.0N.(1N.=100gram-force)
Exiting
5.0~8.0N.(1N.=100gram-force)
Solder-ability
IR Reflow:255℃,5sec.
(Max.)
Manual:350℃,3sec.
Pin Definition
PIN
Signal NAME
PIN
Signal NAME
A1
GND
B12
GND
A4
V BUS
B9
V BUS
A5
CC1
B8
SBU2
A6
Dp1
B7
Dn2
A7
Dn1
B6
Dp2
A8
SBU1
B5
CC2
A9
V BUS
B4
V BUS
A12
GND
B1
GND
Reel label
RoHS label
1000PCS/reel
Vacuum Packed Bag
回流方式的参考举例
1. 加热方式远红外线加热的上下加热方式。
2. 温度测量方式用 V0.1 ~ V0.2 的 CA(K) 或 CC(T) 进行测量。
Temperature (˚C )
3. 温度分布
300
RoHS label
255°C MAX.
230°C
200
Cardboard box label
180°C
150°C
本品不屬於危害性廢棄物,須丟棄時可以委託
100
回收商予以回收再生處理。
Room
temperature
Time (s)
Products do not belong to ·
ᇨඤ
120s MAX.
40s
運送時本產品不要直接與水、酸鹼性化學物質
接觸,或放置於含有以上氣體環境中,並且需要
注記 NOTICE
1.碩方公司擁有最終解釋權;The company reserves the right of final interpretation;
2.文件禁止外洩、轉載;Leaked and reproduced prohibited;
3.未經授權修改無效。Modify is invalid.
注意會有滑落、側翻的危險發生;運輸過程中
不能有碰撞或者擠壓,須保證溫度與濕度適中
[常溫 25℃,濕度在 50℃以內],不可導致材料變
形或氧化。
