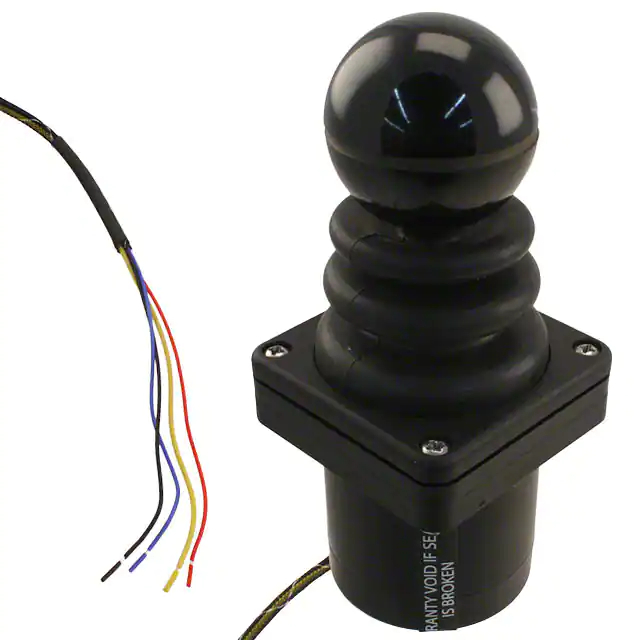

MS-10N00S000

2.51in (63.75mm) 1.75in (44.45mm) Top View 1.75in (44.45mm) Y+ X- Y- X+ 3.70in (93.98mm) Side View 0.20in (5.08mm) 0.19in (4.83mm) 6.28in (159.51mm) SPECIFICATIONS ELECTRICAL SUPPLY VOLTAGE CENTER VOLTAGE SUPPLY CURRENT OUTPUT CURRENT EFFECTIVE OUTPUT OUTPUT TOLERANCE MECHANICAL OPERATING TRAVEL CENTERING BREAKOUT FORCE OPERATING FORCE MAXIMUM FORCE OPERATING TEMP LIFE EXPECTANCY WIRING RED BLACK BLUE YELLOW RoHS compliant 5.0V DC 2.5V DC 10mA max/axis 2mA max/axis 0V – 5V DC ±2% 40° (20° from center) Single spring, omnidirectional 0.544Nm 0.653Nm 1.306Nm -40°C to +85°C 10 million operations Supply voltage Ground X-Axis Y-Axis 2.58in (65.53mm) 2.19in (55.63mm) 0.05in (1.27mm) 2.13in (54.10mm) 2.51in (63.75mm) Bottom View 2.01in (51.05mm) 2.51in (63.75mm) Brass ultraserts 6-32 x 0.25 Screw 6-32 x 7/8 PH PAN s/s 4 places Note: Actual strain relief position may vary from specifications. CH Products P/N DESCRIPTION MS-10N00S000 REV Series III – 2 Axes, Ball Tip PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CH PRODUCTS. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT THE WRITTEN PERMISSION OF CH PRODUCTS IS PROHIBITED. A
