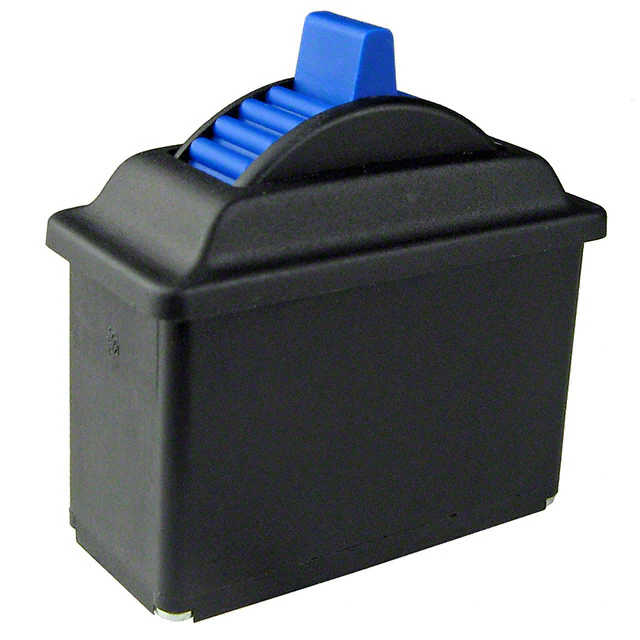

HTW-00-BLUE

0.632in (16.05mm) 1.520in (38.61mm) 0.888in (22.56mm) 1.428in (36.27mm) SPECIFICATIONS ELECTRICAL SUPPLY VOLTAGE SUPPLY CURRENT OUTPUT CURRENT EFFECTIVE OUTPUT OUTPUT TOLERANCE MECHANICAL OPERATING TRAVEL CENTERING ACTUATION FORCE OPERATING TEMPERATURE THUMBWHEEL COLOR LIFE EXPECTANCY WIRING RED BLACK BLUE 5V DC 10mA max 2mA max 0V - 5V DC ±2% 80º (40º from center) Spring centering 80g (0.78 Newtons) -40º to +85ºC Blue 5 million operations 0.618in (15.70mm) 0.710in (18.03mm) 1.524in (38.71mm) STEEL SPRING RETAINER * MOUNTING CUT-OUT DIMENSIONS 0.632in (16.05mm) A A 1.435in (36.45mm) R0.062in - Max Rad (1.57mm) 1.401in (35.59mm) 1.700in (43.18mm) +5V Ground Output A-A RoHS compliant CH Products P/N DESCRIPTION 0.629in 0.811in (15.98mm) (20.60mm) * - used for installation HTW-00-BLUE REV Thumbwheel - Blue PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CH PRODUCTS. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT THE WRITTEN PERMISSION OF CH PRODUCTS IS PROHIBITED. A
