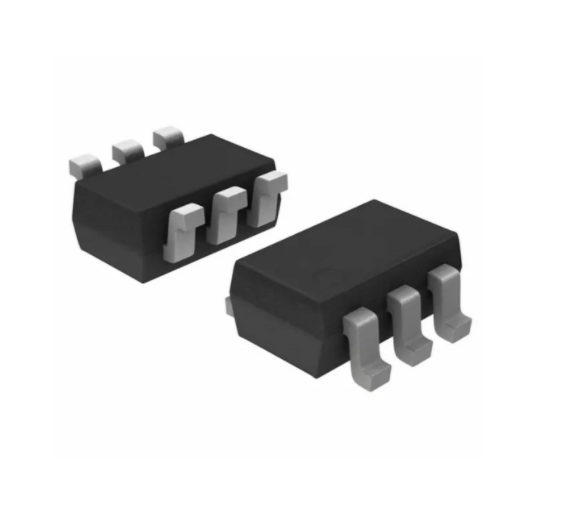

AIP74LVC2G04GC363.TR

Wuxi I-CORE Electronics Co., Ltd. rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN e Tab: 835-12 or AiP74LVC2G04 Dual Inverter Specification i-c Product Specification Revision History： Version Date Description 2019-07-A1 2019-07 New 2021-09-A2 2021-09 2021-10-A3 2021-10 2021-12-A4 2022-03-A5 2021-12 2022-03 Modify ambient temperature to -40℃~+105℃ and add electrical characteristics of -40℃~+105℃ Modify ordering information Modify ordering information Modify ordering information note 1 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 1/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 1、General Description The AiP74LVC2G04 provides the dual inverting buffer. Inputs can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. or e Features:  Wide supply voltage range from 1.65V to 5.5V  5V tolerant inputs for interfacing with 5V logic  ±24mA output drive (VCC=3.0V)  CMOS low power consumption  Latch-up performance exceeds 250mA  Direct interface with TTL levels  Inputs accept voltages up to 5V  Specified from -40℃ to +105℃  Packaging information: SOT-23-6/SOT-363 Ordering Information: Reel packing specifications: Part number SOT-23-6 Marking code AMXX i-c AiP74LVC2G04GB236.TR Packaging form AiP74LVC2G04GC363.TR SOT-363 AMXX Reel quantity Boxed reel quantity 3000 PCS/reel 30000 PCS/box 3000 PCS/reel 30000 PCS/box Notes Dimensions of plastic enclosure: 2.9mm×1.6mm Pin spacing: 0.95mm Dimensions of plastic enclosure: 2.1mm×1.3mm Pin spacing: 0.65mm Note 1: “XX” refers to variable content, meaning year and package batch serial number. Note 2: If the physical information is inconsistent with the ordering information, please refer to the actual product. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 2/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 2、Block Diagram And Pin Description 2.1、Block Diagram e Figure 1. Logic symbol or Figure 2. IEC logic symbol Figure 3. Logic diagram (one gate) i-c 2.2、Pin Configurations 2.3、Pin Description Pin No. 1 2 3 4 5 6 Pin Name 1A GND 2A 2Y VCC 1Y Description data input ground (0V) data input data output supply voltage data output Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 3/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 2.4、Function Table Input nA L H Note: H=HIGH voltage level; L=LOW voltage level. Output nY H L 3、Electrical Parameter 3.1、Absolute Maximum Ratings (Voltages are referenced to GND(ground=0V), unless otherwise specified.) IIK VI IOK Conditions - Min. -0.5 Max. +6.5 output voltage VO Unit V e Symbol VCC VI < 0V -50 - mA - -0.5 +6.5 V VO > VCC or VO < 0V - ±50 mA Active mode Power-down mode VO=0V to VCC - -0.5 -0.5 -100 VCC+0.5 +6.5 ±50 100 - V V mA mA mA or Parameter supply voltage input clamping current input voltage output clamping current i-c output current IO supply current ICC ground current IGND total power Ptot 250 dissipation storage Tstg -65 +150 temperature Soldering TL 10s 250 temperature Note: When VCC=0V (Power-down mode), the output voltage can be 5.5V in normal operation. mW ℃ ℃ 3.2、Recommended Operating Conditions Parameter supply voltage input voltage Symbol VCC VI output voltage VO ambient temperature input transition rise and fall rate Conditions Active mode Power-down mode; VCC=0V Min. 1.65 0 0 0 Typ. - Max. 5.5 5.5 VCC 5.5 Unit V V V V Tamb - -40 - +105 ℃ Δt/ΔV VCC=1.65V to 2.7V VCC=2.7V to 5.5V - - 20 10 ns/V ns/V Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 4/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 3.3、Electrical Characteristics 3.3.1、DC Characteristics 1 (Tamb=-40℃ to +85℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter Symbol Conditions Min. 0.65× VCC 1.7 2.0 0.7× VCC Typ. Max. Unit - - V - - V V - - V VCC=1.65V to 1.95V - - VCC=2.3V to 2.7V VCC=2.7V to 3.6V - - VCC=4.5V to 5.5V - - VCC=1.65V to 1.95V HIGH-level input voltage VIH VCC=2.3V to 2.7V VCC=2.7V to 3.6V VCC=4.5V to 5.5V IO=-100uA; VCC=1.65V to 5.5V IO=-4mA; VCC=1.65V IO=-8mA; VCC=2.3V VI = VIH or VIL IO=-12mA; VCC=2.7V IO=-24mA; VCC=3.0V IO=-32mA; VCC=4.5V IO=100uA; VCC=1.65V to 5.5V IO=4mA; VCC=1.65V IO=8mA; VCC=2.3V VI = VIH or VIL IO=12mA; VCC=2.7V IO=24mA; VCC=3.0V IO=32mA; VCC=4.5V VI=5.5V or GND; VCC=0V to 5.5V VCC 0.1 1.2 1.9 2.2 2.3 3.8 VOH VOL i-c LOW-level output voltage V V input leakage current power-off leakage current IOFF supply current ICC II VI or VO=5.5V; VCC=0V VI=5.5V or GND; IO=0A; VCC=1.65V to 5.5V per pin; VI=VCC-0.6V; IO=0A; VCC=2.3V to 5.5V additional ΔICC supply current input CI VCC=3.3V; VI= GND to VCC capacitance Note: All typical values are measured at Tamb=25℃. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 V - - V - - V V V V V - - 0.10 V - - 0.45 0.30 0.40 0.55 0.55 V V V V V - ±0.1 ±1 uA - ±0.1 ±2 uA - 0.1 4 uA - 5 500 uA - 2.5 - pF or HIGH-level output voltage VIL V e LOW-level input voltage 0.35× VCC 0.7 0.8 0.3× VCC 5/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 3.3.2、DC Characteristics 2 (Tamb=-40℃ to +105℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter Symbol Conditions Min. 0.65× VCC 1.7 2.0 0.7× VCC Typ. Max. Unit - - V - - V V - - V VCC=1.65V to 1.95V - - VCC=2.3V to 2.7V VCC=2.7V to 3.6V - - VCC=4.5V to 5.5V - - VCC=1.65V to 1.95V HIGH-level input voltage VIH VCC=2.3V to 2.7V VCC=2.7V to 3.6V LOW-level input voltage VOH IO=-100uA; VCC=1.65V to 5.5V IO=-4mA; VCC=1.65V IO=-8mA; VCC=2.3V VI = VIH or VIL IO=-12mA; VCC=2.7V IO=-24mA; VCC=3.0V IO=-32mA; VCC=4.5V IO=100uA; VCC=1.65V to 5.5V IO=4mA; VCC=1.65V IO=8mA; VCC=2.3V VI = VIH or VIL IO=12mA; VCC=2.7V IO=24mA; VCC=3.0V IO=32mA; VCC=4.5V VI=5.5V or GND; VCC=0V to 5.5V VCC 0.1 0.95 1.7 1.9 2.0 3.4 VOL i-c LOW-level output voltage input leakage current power-off leakage current II IOFF VI or VO=5.5V; VCC=0V VI=5.5V or GND; IO=0A; VCC=1.65V to 5.5V additional per pin; VI=VCC-0.6V; IO=0A; ΔICC supply current VCC=2.3V to 5.5V Note: All typical values are measured at Tamb=25℃. supply current V V V V - - V - - V V V V V - - 0.10 V - - 0.70 0.45 0.60 0.80 0.80 V V V V V - - ±1 uA - - ±2 uA - - 4 uA - - 500 uA or HIGH-level output voltage VIL 0.35× VCC 0.7 0.8 0.3× VCC e VCC=4.5V to 5.5V ICC Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 6/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 3.3.3、AC Characteristics 1 (Tamb=-40℃ to +85℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Parameter Symbol nA to nY propagation delay tpd Conditions VCC=1.65V to 1.95V VCC=2.3V to 2.7V see Figure 5 VCC=2.7V VCC=3.0V to 3.6V VCC=4.5V to 5.5V Min. 1.0 1.0 1.0 0.5 1.0 Typ. 3.5 2.2 2.7 2.7 1.9 Max. 8.0 4.4 5.2 4.1 3.2 pF or e Power dissipation CPD VCC=3.3V; VI=GND to VCC 13.5 capacitance Note: [1] Typical values are measured at Tamb=25℃ and VCC=1.8V, 2.5V, 2.7V, 3.3V and 5.0V respectively. [2] tpd is the same as tPLH and tPHL. [3] CPD is used to determine the dynamic power dissipation (PD in uW). PD=CPD×VCC2×fi×N+∑(CL×VCC2×fo) where: fi=input frequency in MHz; fo=output frequency in MHz; CL=output load capacitance in pF; VCC=supply voltage in V; N=number of inputs switching; ∑(CL×VCC2×fo)=sum of outputs. Unit ns ns ns ns ns 3.3.4、AC Characteristics 2 (Tamb=-40℃ to +105℃, voltages are referenced to GND (ground=0V), unless otherwise specified.) Symbol Conditions VCC=1.65V to 1.95V VCC=2.3V to 2.7V see Figure 5 VCC=2.7V VCC=3.0V to 3.6V VCC=4.5V to 5.5V i-c Parameter nA to nY propagation delay tpd Min. 1.0 1.0 1.0 0.5 1.0 Typ. - Max. 9.5 5.4 7.0 5.5 3.8 Unit ns ns ns ns ns Note: [1] Typical values are measured at Tamb=25℃ and VCC=1.8V, 2.5V, 2.7V, 3.3V and 5.0V respectively. [2] tpd is the same as tPLH and tPHL. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 7/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 4、Testing Circuit 4.1、AC Testing Circuit Figure 4. Test circuit for measuring switching times e Definitions for test circuit: RL=Load resistance. CL=Load capacitance including jig and probe capacitance. RT=Termination resistance; should be equal to the output impedance Zo of the pulse generator. VEXT=External voltage for measuring switching times. or 4.2、AC Testing Waveforms i-c Figure 5. The input nA to output nY propagation delays 4.3、Measurement Points Supply voltage VCC 1.65V to 1.95V 2.3V to 2.7V 2.7V 3.0V to 3.6V 4.5V to 5.5V 4.4、Test Data Supply voltage VCC 1.65V to 1.95V 2.3V to 2.7V 2.7V 3.0V to 3.6V 4.5V to 5.5V Input Output VM 0.5×VCC 0.5×VCC 1.5V 1.5V 0.5×VCC VM 0.5×VCC 0.5×VCC 1.5V 1.5V 0.5×VCC Input VI VCC VCC 2.7V 2.7V VCC tr = tf ≤ 2.0ns ≤ 2.0ns ≤ 2.5ns ≤ 2.5ns ≤ 2.5ns Load CL 30pF 30pF 50pF 50pF 50pF Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 VEXT RL 1kΩ 500Ω 500Ω 500Ω 500Ω tPLH, tPHL open open open open open 8/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 5、Package Information i-c or e 5.1、SOT-23-6 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 9/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN i-c or e 5.2、SOT-363 Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 10/ 11 VER：2022-03-A5 Wuxi I-CORE Electronics Co., Ltd. Tab: 835-12 rev:B3 Number:AiP74LVC2G04-AX-LJ-B026EN 6、Statements And Notes 6.1、The name and content of Hazardous substances or Elements in the product Hazardous substances or Elements Part name Lead and lead compo unds Mercur y and mercur y compo unds Cadm ium and cadmi um comp ounds Hexaval ent chromiu m compoun ds Polybro minated biphenyl s Polybro minate d biphen yl ethers Dibutyl phthala te Butylbe nzyl phthala te Di-2-et hylhex yl phthala te Diisobu tyl phthala te ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic resin ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Chip ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ The lead ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Plastic sheet installed ○ ○ ○ e Lead frame ○ ○ ○ ○ ○ ○ ○ ○：Indicates that the content of hazardous substances or elements in the detection limit of the following the SJ/T11363-2006 standard. ×：Indicates that the content of hazardous substances or elements exceeding the SJ/T11363-2006 Standard limit requirements. or explanation 6.2、Notion Recommended carefully reading this information before the use of this product； The information in this document are subject to change without notice； This information is using to the reference only, the company is not responsible for any loss； i-c The company is not responsible for the any infringement of the third party patents or other rights of the responsibility. Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 11/ 11 VER：2022-03-A5
