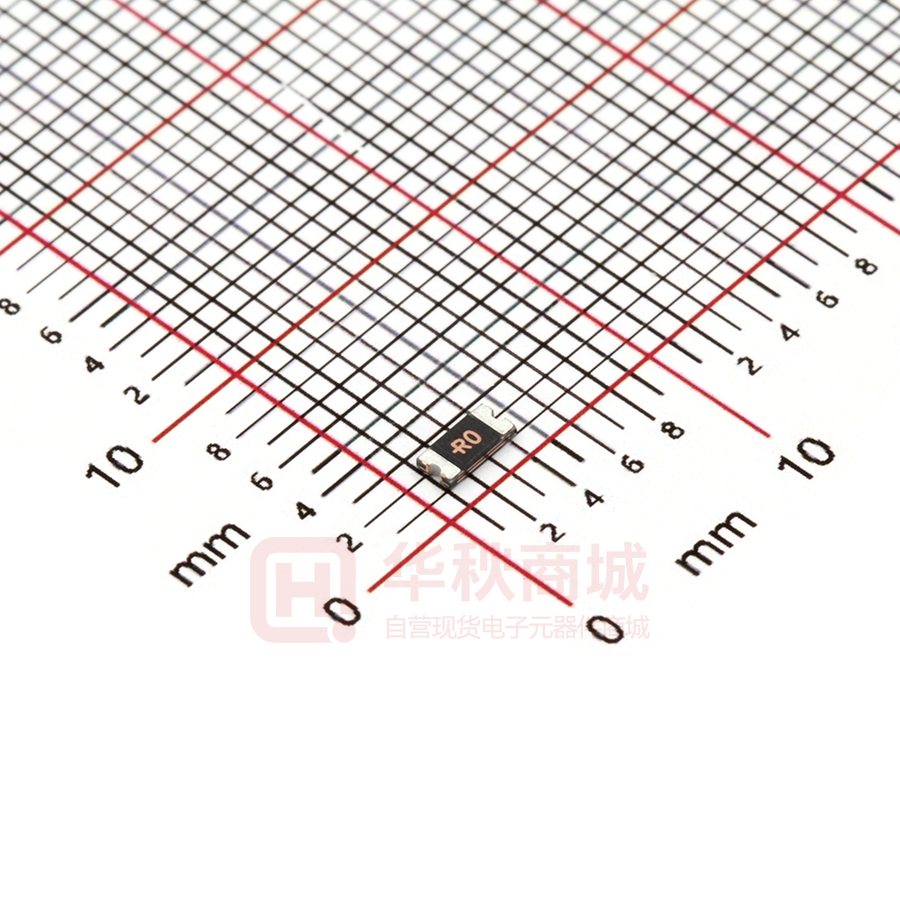

SMD1206 Series
Surface Mountable PTC Resettable Fuse
Features:
RoHS Compliant & Halogen Free
faster tripping, 1206 Dimen sion, Su rface mountable, Solid state
Operation Current: 0.05A~2.00A
Maximum Voltage: 6V~60Vdc
Operating Temperature:-40℃
TO
85℃
Product Dimensions
Terminal pad materials :Tin-Plated Nickle-copper
Terminal pad solderability : Meets EIA specification
RS 186-9E and ANSI/J-STD-002 Category 3.
Pig.1
Unit :mm
Model
Marking
A
B
C
D
E
Min
Max
Min
Max
Min
Max
Min
Min
SMD1206P005TF
JZ
3.00
3.50
1.50
1.80
0.60
1.10
0.15
0.10
SMD1206P010TF
JN
3.00
3.50
1.50
1.80
0.60
1.10
0.15
0.10
SMD1206P010TF/33
JN
3.00
3.50
1.50
1.80
0.50
1.10
0.15
0.10
SMD1206P012TF
JN
3.00
3.50
1.50
1.80
0.60
1.10
0.15
0.10
SMD1206P016TF
JF
3.00
3.50
1.50
1.80
0.40
0.90
0.15
0.10
SMD1206P020TF
JF
3.00
3.50
1.50
1.80
0.40
0.90
0.15
0.10
SMD1206P025TF
JF
3.00
3.50
1.50
1.80
0.40
0.90
0.15
0.10
SMD1206P030TF
JB
3.00
3.50
1.50
1.80
0.40
0.90
0.15
0.10
SMD1206P035TF
JB
3.00
3.50
1.50
1.80
0.40
0.90
0.15
0.10
SMD1206P050TF
JG
3.00
3.50
1.50
1.80
0.35
0.85
0.15
0.10
1/7
SMD1206 Series
Surface Mountable PTC Resettable Fuse
Model
Marking
SMD1206P050TF/13.2
A
B
C
D
E
Min
Max
Min
Max
Min
Max
Min
Min
JG
3.00
3.50
1.50
1.80
0.35
0.85
0.15
0.10
SMD1206P050TF/16
JG
3.00
3.50
1.50
1.80
0.35
0.85
0.15
0.10
SMD1206P050TF/24
JG
3.00
3.50
1.50
1.80
0.35
0.85
0.15
0.10
SMD1206P075TF
JA
3.00
3.50
1.50
1.80
0.35
0.85
0.15
0.10
SMD1206P075TF/13.2
JA
3.00
3.50
1.50
1.80
0.35
0.85
0.15
0.10
SMD1206P075TF/16
JA
3.00
3.50
1.50
1.80
0.60
1.30
0.15
0.10
SMD1206P100TF
SMD1206P100TF/16
JH
3.00
3.50
1.50
1.80
0.40
0.80
0.15
0.10
JH
3.00
3.50
1.50
1.80
0.40
1.30
0.15
0.10
SMD1206P110TF
JH
3.00
3.50
1.50
1.80
0.40
1.30
0.15
0.10
SMD1206P110TF/13.2
JH
3.00
3.50
1.50
1.80
0.40
0.80
0.15
0.10
SMD1206P150TF
JI
3.00
3.50
1.50
1.80
0.60
1.50
0.15
0.10
SMD1206P200TF
JK
3.00
3.50
1.50
1.80
0.70
1.70
0.15
0.10
Thermal Derating Chart-IH(A)
Model
Maximum ambient operating temperatures(℃)
-40
-20
0
25
40
50
60
70
85
SMD1206P005TF
0.09
0.08
0.06
0.05
0.04
0.036
0.033
0.029
0.02
SMD1206P010TF
0.18
0.16
0.12
0.1
0.08
0.072
0.066
0.058
0.04
SMD1206P010TF/33
0.18
0.16
0.12
0.1
0.08
0.072
0.066
0.058
0.04
SMD1206P012TF
0.216
0.192
0.144
0.12
0.096
0.086
0.079
0.070
0.048
SMD1206P016TF
0.288
0.256
0.192
0.16
0.128
0.115
0.106
0.093
0.064
SMD1206P020TF
0.31
0.26
0.22
0.20
0.18
0.16
0.15
0.13
0.07
SMD1206P025TF
0.37
0.33
0.29
0.25
0.22
0.20
0.17
0.15
0.12
SMD1206P030TF
SMD1206P035TF
0.444
0.396
0.348
0.30
0.264
0.24
0.204
0.18
0.144
0.50
0.45
0.40
0.35
0.30
0.27
0.24
0.21
0.15
SMD1206P050TF
SMD1206P050TF/13.2
0.71
0.64
0.57
0.50
0.42
0.39
0.35
0.31
0.25
0.71
0.64
0.57
0.50
0.42
0.39
0.35
0.31
0.25
SMD1206P050TF/16
0.71
0.64
0.57
0.50
0.42
0.39
0.35
0.31
0.25
SMD1206P050TF/24
0.639
0.576
0.513
0.50
0.378
0.351
0.315
0.279
0.225
SMD1206P075TF
1.14
1.01
0.88
0.75
0.65
0.59
0.54
0.49
0.41
SMD1206P100TF
1.45
1.31
1.15
1.00
0.84
0.77
0.69
0.61
0.48
SMD1206P100TF/16
1.305
1.179
1.035
1.00
0.756
0.693
0.621
0.549
0.432
SMD1206P110TF
1.305
1.179
1.035
1.00
0.756
0.693
0.621
0.549
0.432
SMD1206P110TF/13.2
1.595
1.441
1.265
1.10
0.924
0.847
0.759
0.671
0.528
SMD1206P150TF
2.18
1.94
1.72
1.50
1.28
1.17
1.06
0.96
0.77
SMD1206P200TF
2.60
2.44
2.35
2.00
1.78
1.67
1.50
1.45
1.10
2/7
SMD1206 Series
Surface Mountable PTC Resettable Fuse
Electrical Characteristic
Ihold
Itrip
@25°C
@25°C
Current
Time
Rimin
R1max
(A)
(A)
(A)
(A)
(Sec)
()
()
60.0
100
0.05
0.15
0.25
1.50
3.600
50.000
SMD1206P010TF
60.0
100
0.10
0.25
0.5
1.00
1.600
15.000
SMD1206P010TF/33
33.0
100
0.10
0.25
0.5
1.00
1.600
15.000
SMD1206P012TF
30
100
0.12
0.29
1.00
0.20
1.350
10.00
SMD1206P016TF
30
100
0.16
0.37
1.00
0.30
1.000
4.50
SMD1206P020TF
24.0
100
0.20
0.46
8.0
0.08
0.350
3.500
SMD1206P025TF
16.0
100
0.25
0.50
8.0
0.08
0.350
2.500
SMD1206P030TF
16.0
100
0.30
0.65
8.0
0.10
0.250
2.00
SMD1206P035TF
6.0
100
0.35
0.75
8.0
0.10
0.250
1.300
SMD1206P050TF
SMD1206P050TF/13.2
6.0
100
0.50
1.00
8.0
0.10
0.150
0.700
13.2
100
0.50
1.00
8.0
0.10
0.150
0.700
SMD1206P050TF/16
16
100
0.50
1.00
8.0
0.10
0.150
0.750
SMD1206P050TF/24
24
100
0.50
1.00
8.0
0.10
0.150
0.750
SMD1206P075TF
8.0
100
0.75
1.50
8.0
0.20
0.090
0.500
SMD1206P075TF/13.2
13.2
100
0.75
1.50
8.0
0.20
0.090
0.500
SMD1206P075TF/16
16
13.2
100
0.75
1.50
8.0
0.20
0.090
0.500
100
1.00
1.80
8.0
0.30
0.055
0.270
16
100
1.00
1.80
8.0
0.30
0.055
0.330
SMD1206P110TF
8.0
100
1.10
1.80
8.0
0.30
0.050
0.230
SMD1206P110TF/13.2
13.2
100
1.10
1.80
8.0
0.30
0.055
0.270
SMD1206P150TF
8.0
100
1.50
3.00
8.0
1.00
0.040
0.130
SMD1206P200TF
6.0
100
2.00
3.50
8.0
1.0
0.018
0.080
Vmax
Imax
(Vdc)
SMD1206P005TF
Model
SMD1206P100TF
SMD1206P100TF/16
3/7
Time to trip
R25
SMD1206 Series
Surface Mountable PTC Resettable Fuse
Test Procedures And Requirements
Test
Test Conditions
Accept/Reject Criteria
Resistance
In still air @ 25℃
Rmin≤R≤Rmax
Time to Trip
Specified current,Vmax,25℃
Tmaximum Time to Trip
Hold Current
30min,at IH
No trip
Trip Cycle Life
Vmax,Imax,100cycles
No arcing or burning
Trip Endurance
Vmax,1 hours
No arcing or burning
Physical Characteristics and Environmental Specifications
Physical Characteristics
Terminal materials :
Tin-Plated Nickle-copper
Soldering
Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3.
zone
Environmental Specifications
Test
Conditions
Resistance Change
Passive aging
85℃,1000hours
±10%
Humidity aging
85℃/85%RH.1000 hours
±5%
Thermal shock
MIL-STD-202,Method 107G
Solvent Resistance
MIL-STD-202,Method 215
no change
Vibration
ML-STD-883C,Test Condition A
No chage
+85℃/-40℃,20times
-30% typical resistance change
Electrical Specifications:
Ihold = Hold Current. Maximum current device will not trip in 25°C still air.
Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air.
Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax).
Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax).
Pd=Maximum power dissipation when device is in the tripped state in 25°C still air environment at rated voltage.
Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C.
R1max = Maximum device resistance is measured one hour post reflow.
4/7
SMD1206 Series
Surface Mountable PTC Resettable Fuse
Recommended pad layout (mm)
Solder reflow conditions
● Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free.
● Devices are not designed to be wave soldered to the bottom side of the board.
● Recommended maximum paste thickness is 0.25mm (0.010inch).
● Devices can be cleaned using standard industry methods and solvents.
● Soldering temprature profile meets RoHs leadfree process.
Notes: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements
5/7
SMD1206 Series
Surface Mountable PTC Resettable Fuse
Tape Specification And
Reel Dimensions
Coverning Specifications
EIA 481-1(Unit:mm)
W
8.15 +0.15/-0.3
P0
4.0 ± 0.10
P1
4.0± 0.10
P2
2.0 ± 0.05
A0
1.95 ± 0.10
B0
3.65 ± 0.10
D0
1.55± 0.05
F
3.50± 0.05
E1
1.75 ± 0.10
T
0.20± 0.10
Leader min.
390
Trailer min.
160
Reel Dimensions
A
178±1.0
N
59±1
W1
8.5+1.0/-0.2
W2
12.0±1
Packaging Quantity
Model
Quantity
Model
Quantity
SMD1206P005TF
3500
SMD1206P050TF/24
3500
SMD1206P010TF
3500
SMD1206P075TF
5000
SMD1206P010TF/33
3500
SMD1206P075TF/13.2
5000
SMD1206P012TF
3500
SMD1206P075TF/16
3500
SMD1206P016TF
5000
3500
SMD1206P020TF
5000
SMD1206P100TF
SMD1206P100TF/16
SMD1206P025TF
5000
SMD1206P110TF
5000
SMD1206P030TF
5000
SMD1206P110TF/13.2
3500
SMD1206P035TF
5000
SMD1206P150TF
3500
SMD1206P050TF
SMD1206P050TF/13.2
5000
SMD1206P200TF
3500
SMD1206P050TF/16
5000
5000
6/7
3500
SMD1206 Series
Surface Mountable PTC Resettable Fuse
Storage
The maximum ambient temperature shall not exceed 38℃. Storage temperatures higher than 38℃ could result in the
deformation of packaging materials. The maximum relative humidity recommended for storage is 60%. High humidity with
high temperature can accelerate the oxidation of the solder plating on the termination and reduce the solderability of the
components. Sealed plastic bags with desiccant shall be used to reduce the oxidation of the termination and shall only be
opened prior to use. The products shall not be stored in areas where harmful gases containing sulfur or chlorine are present
WARNING
• Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and
flame.
• PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be
used when repeated fault conditions or prolonged trip events are anticipated.
• Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended
electronic, thermal, and mechanical procedures for electronic components.
• Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC.
• Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space.
• Contamination of the PPTC material with certain silicon based oils or some aggressive solvents can adversely impact the
performance of the devices.PPTC SMD can be cleaned by standard methods.
• Requests that customers comply with our recommended solder pad layouts and recommended reflow profile. Improper
board layouts or reflow profilecould negatively impact solderability performance of our devices.
7/7
很抱歉,暂时无法提供与“SMD1206P100TF”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 1+0.09903
- 100+0.09242
- 300+0.08582
- 500+0.07922
- 2000+0.07592
- 5000+0.07394
