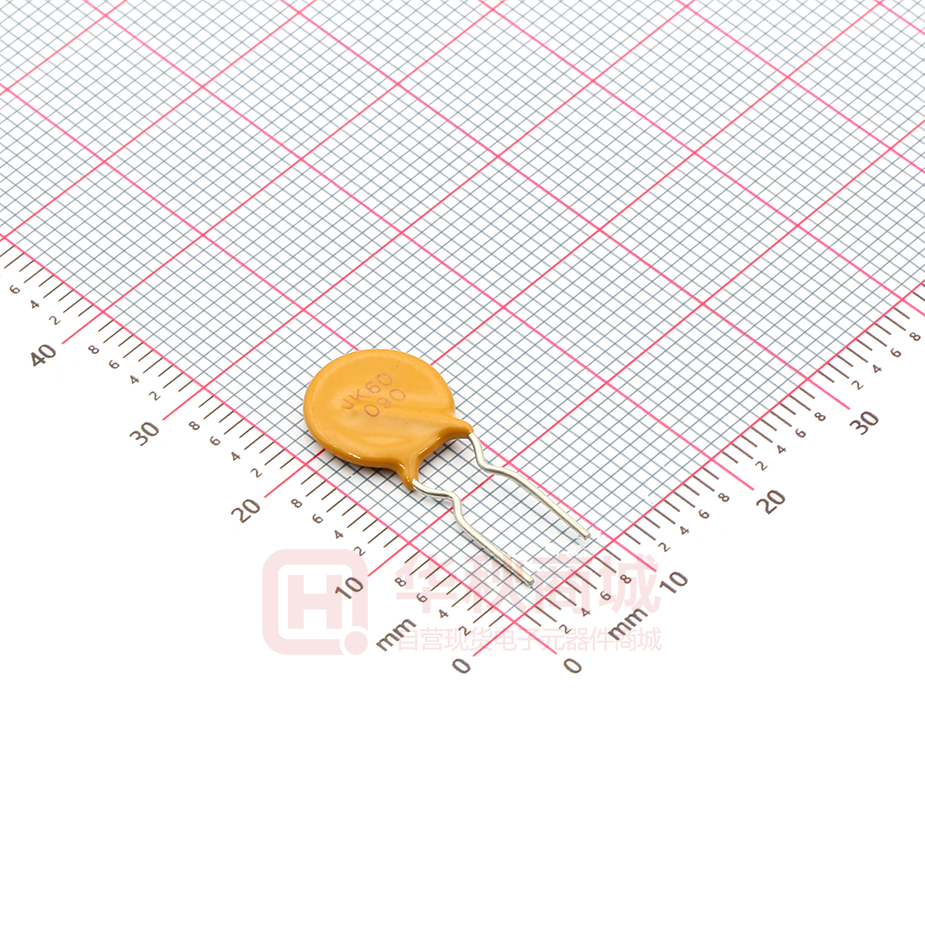

JK60-090

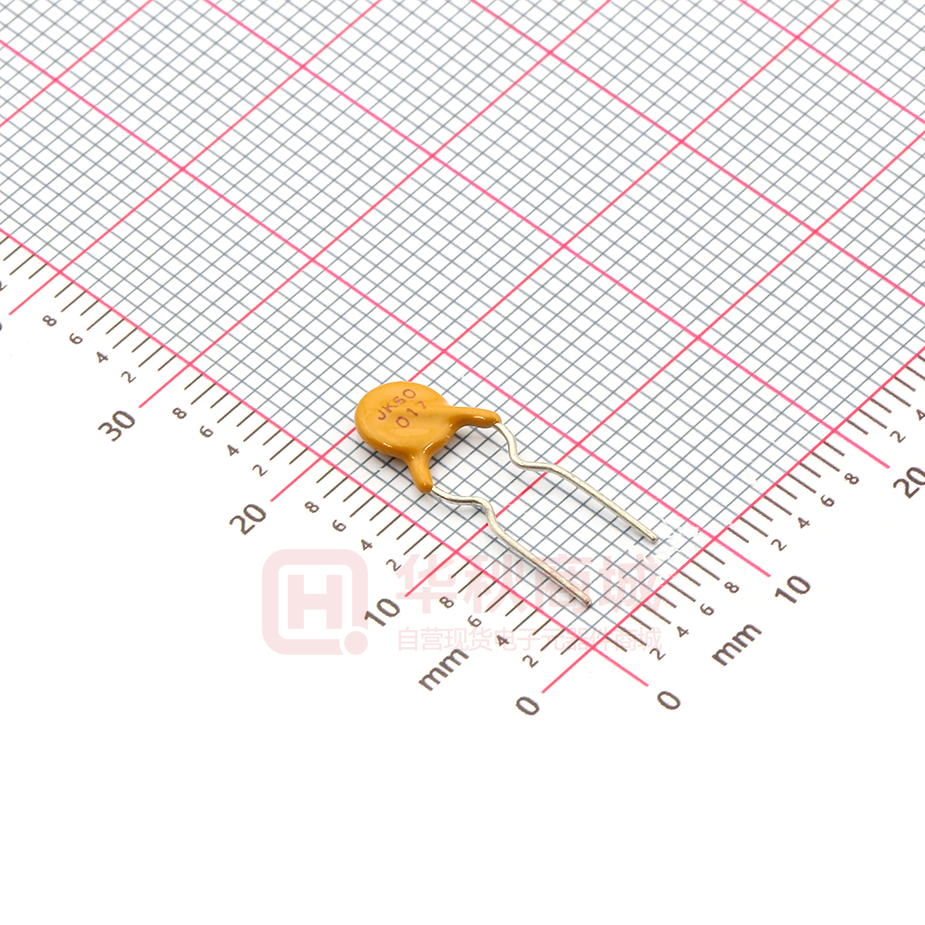

JK60 Series Polyer Positive Temperature Coefficient Features Radial leaded Devices Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements Bulk packaging,or tape and reel available on most models Agency Approval:UL,ROHS Applications Almost anywhere there is a low voltage power supply, up to DC30V and a load to be protested, including: Automotive electronics Medical products Industrial controls Dimensions Pig.1 Pig.2 Unit ：mm Model Dimensions（mm） Lead material Shape A(max) B(max) C(max) D(typ) Tinned matel(mm) Fig JK60-005 5.0 8.5 3.0 5.1 24AWG/Φ0.5 1 JK60-010 J K60-017 5.5 7.4 9.5 12.7 3.0 5.1 5.1 24AWG/Φ0.5 24AWG/Φ0.5 1 J K60-020 J K60-025 7.4 7.4 12.7 12.7 3.0 24AWG/Φ0.5 24AWG/Φ0.5 1 3.0 5.1 5.1 J K60-030 7.4 13.0 3.0 5.1 24AWG/Φ0.5 1 JK60-040 7.8 16.2 3.0 5.1 24AWG/Φ0.5 1 JK60-050 7.8 16.2 3.0 5.1 24AWG/Φ0.5 1 JK60-065 9.7 17.8 3.0 5.1 22AWG/Φ0.6 1 JK60-075 10.4 18.4 3.0 5.1 22AWG/Φ0.6 1 JK60-090 11.7 18.4 3.0 5.1 22AWG/Φ0.6 1 3.0 1/5 1 1 JK60 Series JK60-110 13.0 18.0 3.0 5.1 20 AWG/Φ0.8 2 JK60-135 14.5 19.6 3.0 5.1 20 AWG/Φ0.8 2 JK60-160 16.3 21.3 3.0 5.1 20 AWG/Φ0.8 2 JK60-185 17.8 22.9 3.0 5.1 20 AWG/Φ0.8 2 JK60-200 17.8 22.9 3.0 5.1 20 AWG/Φ0.8 2 JK60-250 21.3 26.4 3.0 10.2 20 AWG/Φ0.8 2 JK60-300 21.3 26.4 3.0 10.2 20 AWG/Φ0.8 2 JK60-375 28.5 33.5 3.0 10.2 20 AWG/Φ0.8 2 JK60-500 28.5 33.5 3.0 10.2 20 AWG/Φ0.8 2 Note: ① Dimensions A, B, C is the maximum size, D values are typical tolerance of ± 0.50mm Thermal Derating Chart -IH （A） Model Maximum ambient operating temperatures（℃） -40 -20 0 25 40 50 60 70 80 85 JK60-005 0.08 0.07 0.06 0.05 0.04 0.04 0.03 0.03 0.02 0.02 JK60-010 0.15 0.13 0.12 0.10 0.09 0.08 0.07 0.06 0.05 0.04 JK60-017 0.25 0.23 0.20 0.17 0.15 0.13 0.12 0.10 0.09 0.06 JK60-020 0.30 0.27 0.24 0.20 0.18 0.16 0.14 0.12 0.10 0.08 JK60-025 0.37 0.34 0.30 0.25 0.22 0.20 0.18 0.15 0.13 0.10 JK60-030 0.45 0.40 0.35 0.30 0.27 0.24 0.21 0.19 0.16 0.12 JK60-040 0.60 0.54 0.47 0.40 0.36 0.32 0.28 0.25 0.21 0.16 JK60-050 0.75 0.68 0.59 0.50 0.45 0.40 0.36 0.31 0.27 0.20 JK60-065 0.97 0.88 0.77 0.65 0.58 0.52 0.46 0.41 0.35 0.26 JK60-075 1.12 1.02 0.89 0.75 0.67 0.60 0.54 0.47 0.40 0.30 JK60-090 1.35 1.22 1.07 0.90 0.81 0.73 0.64 0.56 0.48 0.36 JK60-110 1.65 1.49 1.31 1.10 0.99 0.89 0.79 0.69 0.59 0.44 JK60-135 2.02 1.83 1.60 1.35 1.21 1.09 0.97 0.85 0.72 0.54 JK60-160 2.40 2.17 1.90 1.60 1.44 1.29 1.15 1.00 0.86 0.64 JK60-185 2.77 2.51 2.20 1.85 1.66 1.49 1.33 1.16 1.00 0.74 JK60-200 3.00 2.72 2.38 2.00 1.80 1.62 1.44 1.26 1.08 0.80 JK60-250 3.75 3.40 2.97 2.50 2.25 2.02 1.80 1.57 1.35 1.00 JK60-300 4.50 4.08 3.57 3.00 2.70 2.43 2.16 1.89 1.62 1.20 JK60-375 5.62 5.1 4.46 3.75 3.37 3.03 2.70 2.36 2.02 1.50 JK60-500 7.50 6.80 5.95 5.00 4.50 4.05 3.60 3.15 2.70 2.00 2/5 JK60 Series Electrical Characteristic Model IHold(A) ITrip (A) Vmax Imax Pd max Maximum Time to Trip V（DC） A（DC） W Current（A） Time（S） JK60-005 0.05 0.15 60 40 0.26 0.25 JK60-010 0.10 0.3 60 40 0.38 JK60-017 0.17 0.34 60 40 JK60-020 0.2 0.4 60 JK60-025 0.25 0.5 JK60-030 0.30 JK60-040 Nominal resistance（Ω） Rmin Rmax 8.0 7.3 20 0.5 5.0 2.5 7.5 0.48 0.85 5.0 2 5.21 40 0.41 1.0 5.0 1.5 2.84 60 40 0.45 1.25 5.0 1.0 1.95 0.6 60 40 0.49 1.5 5.0 0.76 1.38 0.40 0.8 60 40 0.56 2.0 5.0 0.45 0.88 JK60-050 0.50 1.0 60 40 0.77 2.5 5.0 0.40 0.79 JK60-065 0.65 1.3 60 40 0.88 3.25 5.0 0.31 0.50 JK60-075 0.75 1.5 60 40 0.92 3.75 5.0 0.25 0.42 JK60-090 0.90 1.8 60 40 0.99 4.5 5.0 0.20 0.33 JK60-110 1.10 2.2 60 40 1.5 5.5 8.0 0.15 0.27 JK60-135 1.35 2.7 60 40 1.7 6.75 8.0 0.12 0.21 JK60-160 1.60 3.2 60 40 1.9 8.0 8.0 0.09 0.16 JK60-185 1.85 3.7 60 40 2.1 9.25 8.0 0.08 0.14 JK60-200 2.00 4.0 60 40 2.3 10.0 8.0 0.07 0.14 JK60-250 2.50 5.0 60 40 2.5 12.5 8.0 0.05 0.10 JK60-300 3.00 6.0 60 40 2.8 15.0 8.0 0.04 0.08 JK60-375 3.75 7.5 60 40 3.2 18.75 24.0 0.03 0.06 JK60-500 5.00 10 60 40 3.5 25.0 24.0 0.02 0.06 Test Procedures And Requirements Test Test Conditions Accept/Reject Criteria Resistance In still air @ 25℃ Rmin≤R≤R max 3/5 JK60 Series Time to Trip Specified current，Vmax ，25℃ Tmaximum Time to Trip Hold Current 60min，at I H No trip Trip Cycle Life Vmax，Imax，100cycles No arcing or burning Trip Endurance Vmax，24hours No arcing or burning Physical Chara cteristics an d Enviro nmental Specificatio ns Physical Characteristics Test Conditions Resistance change Passive aging +85℃，1000hrs ±8% typical Humidity aging +85℃，85%R.H.1000hrs ±8% typical Thermal shock +125℃ to -55℃，10times ±12% typical Resistance to solvent MIL-STD-202，Method 215 No change Vibration MIL-STD-202，Method 201 No change Operation Condition 1 Ambient temperature: -40℃～85℃ 2 Humidity: ≤95%HR(40℃) 3 Atmospheric pressure: 86Kpa ~106Kpa. 4 Vibration frequency: 10Hz ~ 50Hz. 5 Acceleration: 98m/s2. 6 Storage temperature: -40℃~85℃. 7Soldering 7.1 Wave Soldering: Soldering Temperature:240℃~270℃ Soldering Time:≤5sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 recommended curve 4/5 JK60 Series 7.2 Manual soldering Soldering Temperature:280℃~300℃ Soldering Time: ≤2sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Electrical Specifications: IH=Hold current:maximum current at which the device will not trip at 25℃ still air. IT=Trip current:minimum current at which the device will nalways at 25℃ still air. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand tithout damage at rated voltage. Ttrip=Maximum time to trip(s) at assigned current. Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax=Maximum device resistance at 25℃ prior to tripping. Packaging and Storage JK60-005～JK60-110 JK60-135～JK60-200 JK60-250～JK60-500 1000Pcs/Bag 500 Pcs/Bag 200 Pcs/Bag or 2000Pcs/Box 5/5
