JK16 Series
Polyer Positive Temperature Coefficient
Features
Radial leaded Devices
Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements
Bulk packaging,or tape and reel available on most models
Agency Approval:ROHS
Applications
Almost anywhere there is a low voltage power supply, up to DC30V and a load to be protested, including:
Personal computer
Medical electronics
Peersonal care product
Dimensions
Unit :mm
Model
Pi g.1Pig.2
Dimensions(mm)
Lead material
Shape
A(max)
B(max)
C(max)
D(typ)
Tinned matel(mm)
Fig
JK16-010 ( T)
5.5
12.0
3.0
5.1
24 AWG/Φ0.5
1
JK16 -025(T)
JK16 030( T)
5.5
12 .0
3.0
24 AWG/Φ0.5
1
5.5
12 .0
3.0
5. 1
5. 1
24 AWG/Φ0.5
1
JK16 050(T)
5.5
12.0
3.0
5.1
24 AWG/Φ0.5
1
JK16-075(T)
7.4
13.5
3.0
5.1
24 AWG/Φ0.5
1
JK16-090(T)
7.4
13.5
3.0
5.1
24 AWG/Φ0.5
1
JK16-110(T)
7.4
13.5
3.0
5.1
24 AWG/Φ0.5
1
JK16-135(T)
7.4
13.5
3.0
5.1
24 AWG/Φ0.5
1
JK16-160(T)
7.4
14.0
3.0
5.1
24 AWG/Φ0.5
1
JK16-200(T)
9.0
12.0
3.0
5.1
24 AWG/Φ0.5
2

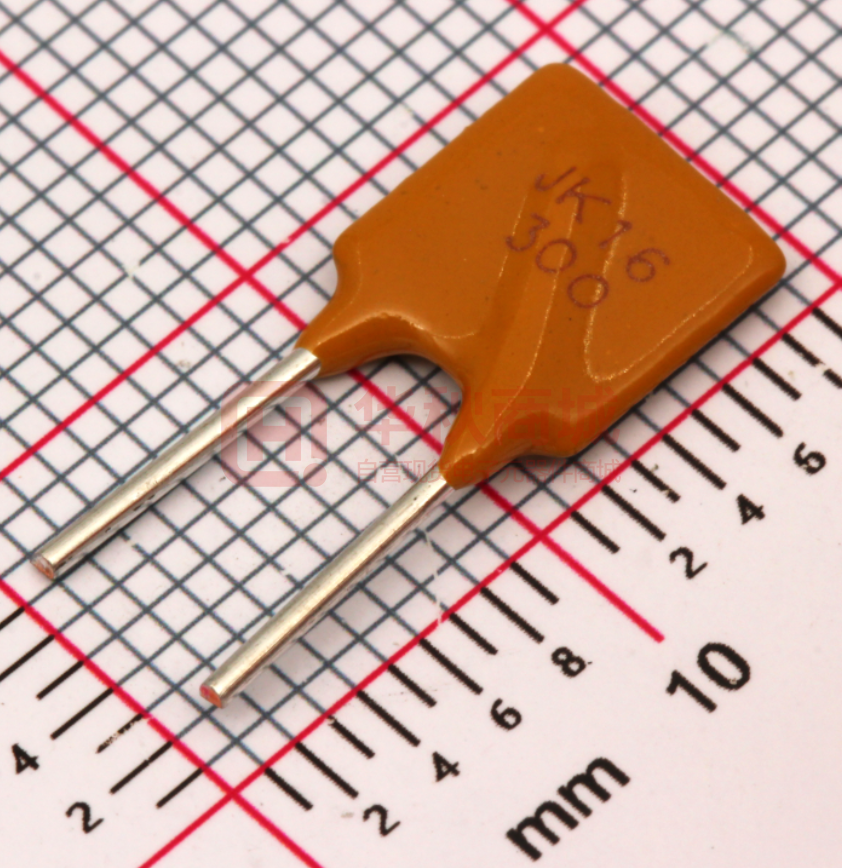

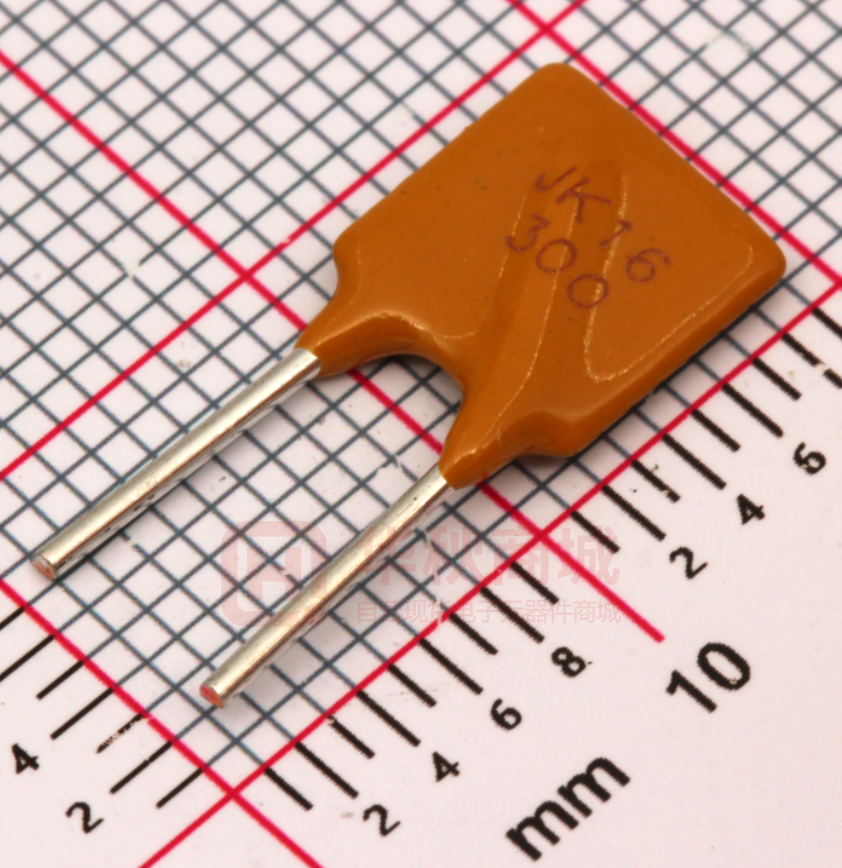

JK16-300
9.0
12.0
3.0
5.1
20 AWG/Φ0.8
2
JK16-400
10.0
13.0
3.0
5.1
20 AWG/Φ0.8
2
JK16-500
10.0
17.5
3.0
5.1
20 AWG /Φ0.8
2
-
-
1/5
JK16 Series
JK16-600
3.0
13.5
13.5
17.5
23.0
13.5
23.0
JK1 6-1 000
15.0
18.0
24.0
26.0
JK16-1100
18.0
26.0
3.0
3.0
JK16-1200
22.5
24.0
26.0
3.0
30.0
30.0
3.0
3.0
JK16-700
JK16-800
JK16-900
JK1 6-1 300
JK16-1400
Note: ①
24.0
3.0
3.0
3.0
5.1
5.1
20 AWG/Φ0.8
20 AWG/Φ 0.8
2
2
5.1
20 AWG/Φ0.8
2
5.1
5.1
20 AWG/Φ0.8
20 AWG/Φ 0.8
2
2
5.1
20 AWG/Φ0.8
2
10.2
10.2
20 AWG/Φ0.8
20 AWG/Φ 0.8
2
2
10.2
20 AWG/Φ0.8
2
Dimensions A, B, C is the maximum size, D values are typical tolerance of ± 0.50mm
Thermal Derating Chart-IH(A)
Model
Maximum ambient operating temperatures(℃)
-40
-20
0
25
40
50
60
70
80
85
JK16-010(T)
0.14
0.13
0.12
0.1
0.09
0.08
0.08
0.07
0.06
0.04
JK16-025(T)
0.37
0.33
0.3
0.25
0.24
0.22
0.2
0.17
0.15
0.11
JK16-030(T)
0.44
0.39
0.36
0.3
0.28
0.26
0.24
0.21
0.18
0.14
JK16-050(T)
0.74
0.66
0.6
0.5
0.48
0.44
0.4
0.35
0.30
0.23
JK16-075(T)
1.11
0.99
0.9
0.75
0.72
0.66
0.6
0.53
0.45
0.35
JK16-090(T)
1.33
1.18
1.08
0.9
0.86
0.79
0.72
0.63
0.54
0.42
JK16-110(T)
1.62
1.45
1.32
1.1
1.05
0.96
0.88
0.78
0.67
0.51
JK16-135(T)
1.99
1.78
1.62
1.35
1.29
1.18
1.08
0.95
0.82
0.63
JK16-160(T)
2.36
2.11
1.92
1.6
1.53
1.40
1.28
1.13
0.97
0.75
JK16-200(T)
2.96
2.64
2.4
2
1.92
1.76
1.6
1.42
1.22
0.94
JK16-300
4.44
3.96
3.6
3
2.88
2.64
2.4
2.13
1.83
1.41
JK16-400
5.92
5.28
4.8
4
3.84
3.52
3.2
2.84
2.44
1.88
JK16-500
7.4
6.6
6
5
4.8
4.4
4
3.55
3.05
2.35
JK16-600
8.88
7.92
7.2
6
5.76
5.28
4.8
4.26
3.66
2.82
JK16-700
10.36
9.24
8.4
7
6.72
6.16
5.6
4.97
4.27
3.29
JK16-800
11.84
10.56
9.6
8
7.68
7.04
6.4
5.68
4.88
3.76
JK16-900
13.32
11.88
10.8
9
8.64
7.92
7.2
6.39
5.49
4.23
JK16-1000
14.8
13.2
12
10
9.6
8.8
8
7.1
6.1
4.7
JK16-1100
16.28
14.52
13.2
11
10.56
9.68
8.8
7.81
6.71
5.17
JK16-1200
17.76
15.84
14.4
12
11.52
10.56
9.6
8.52
7.32
5.64
JK16-1300
19.24
17.16
15.6
13
12.48
11.44
10.4
9.23
7.93
6.11
JK16-1400
20.72
18.48
16.8
14
13.44
12.32
11.2
9.94
8.54
6.58
2/5
JK16 Series
Electrical Characteristic
Model
IHold
(A)
ITrip
(A)
Vmax
Imax
Pd Max
V(DC)
A
W
Current(A)
Time(S)
Rmin
Rmax
JK16-010(T)
0.1
0.3
16
100
0.38
0.5
5
1500
7500
JK16-025(T)
0.25
0.5
16
100
0.45
1.25
5
500
1950
JK16-030(T)
0.3
0.6
16
100
0.49
1.5
5
300
700
JK16-050(T)
0.5
1.0
16
100
0.56
2.5
5
200
500
JK16-075(T)
0.75
1.5
16
100
0.72
3.75
5
100
260
JK16-090(T)
0.9
1.8
16
100
0.83
4.5
5
90
180
JK16-110(T)
1.1
2.2
16
100
0.94
5.5
5
60
150
JK16-135(T)
1.35
2.7
16
100
1.2
6.75
5
40
130
JK16-160(T)
1.6
3.2
16
100
1.4
8
5
40
110
JK16-200(T)
2
4
16
100
2.2
6
15
35
75
JK16-300
3
6
16
100
2.3
9
15
20
60
JK16-400
4
8
16
100
2.4
12
15
20
40
JK16-500
5
10
16
100
2.6
15
15
14
25
JK16-600
6
12
16
100
2.8
18
15
10
21
JK16-700
7
14
16
100
3.0
21
15
8
15
JK16-800
8
16
16
100
3.0
24
15
6
13
JK16-900
9
18
16
100
3.3
27
25
4
12
JK16-1000
10
20
16
100
3.7
30
30
4
11
JK16-1100
11
22
16
100
3.7
33
30
3
9
JK16-1200
12
24
16
100
4.2
36
30
3
8
JK16-1300
13
26
16
100
4.2
39
50
3
8
JK16-1400
14
28
16
100
4.2
40
50
3
7
3/5
Maximum Time to Trip
Nominal resistance(mΩ)
JK16 Series
Test Procedures And Requirements
Test
Test Conditions
Accept/Reject Criteria
Resistance
In still air @ 25℃
Rmin≤R≤Rmax
Time to Trip
Specified current,Vmax,25℃
Tmaximum Time to Trip
Hold Current
60min,at IH
No trip
Trip Cycle Life
Vmax,Imax,100cycles
No arcing or burning
Trip Endurance
Vmax,24hours
No arcing or burning
Physical Characteristics and Environmental Specifications
Physical Characteristics
Test
Conditions
Resistance change
Passive aging
+85℃,1000hrs
±8% typical
Humidity aging
+85℃,85%R.H.1000hrs
±8% typical
Thermal shock
+125℃ to -55℃,10times
±12% typical
Resistance to solvent
MIL-STD-202,Method 215
No change
Vibration
MIL-STD-202,Method 201
No change
Operation Condition
1 Ambient temperature: -40℃~85℃
2 Humidity: ≤95%HR(40℃)
3 Atmospheric pressure: 86Kpa ~106Kpa.
4 Vibration frequency: 10Hz ~ 50Hz.
5 Acceleration: 98m/s2.
6 Storage temperature: -40℃~85℃.
7Soldering
7.1 Wave Soldering:
Soldering Temperature:240℃~270℃
Soldering Time:≤5sec.
Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。
4/5
JK16 Series
recommended curve
7.2 Manual soldering
Soldering Temperature:280℃~300℃
Soldering Time: ≤2sec.
Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。
Electrical Specifications:
IH=Hold current:maximum current at which the device will not trip at 25℃ still air.
IT=Trip current:minimum current at which the device will nalways at 25℃ still air.
Vmax=Maximum voltage device can withstand without damage at rated current.
Imax=Maximum fault current device can withstand tithout damage at rated voltage.
Ttrip=Maximum time to trip(s) at assigned current.
Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment.
Rmin=Minimum device resistance at 25℃ prior to tripping.
Rmax=Maximum device resistance at 25℃ prior to tripping.
Packaging and Storage
JK16-010(T)~JK16-600
JK16-700~JK16-900
JK16-1000~JK16-1400
1000Pcs/Bag
500 Pcs/Bag
200 Pcs/Bag
or 2000Pcs/Box
5/5
