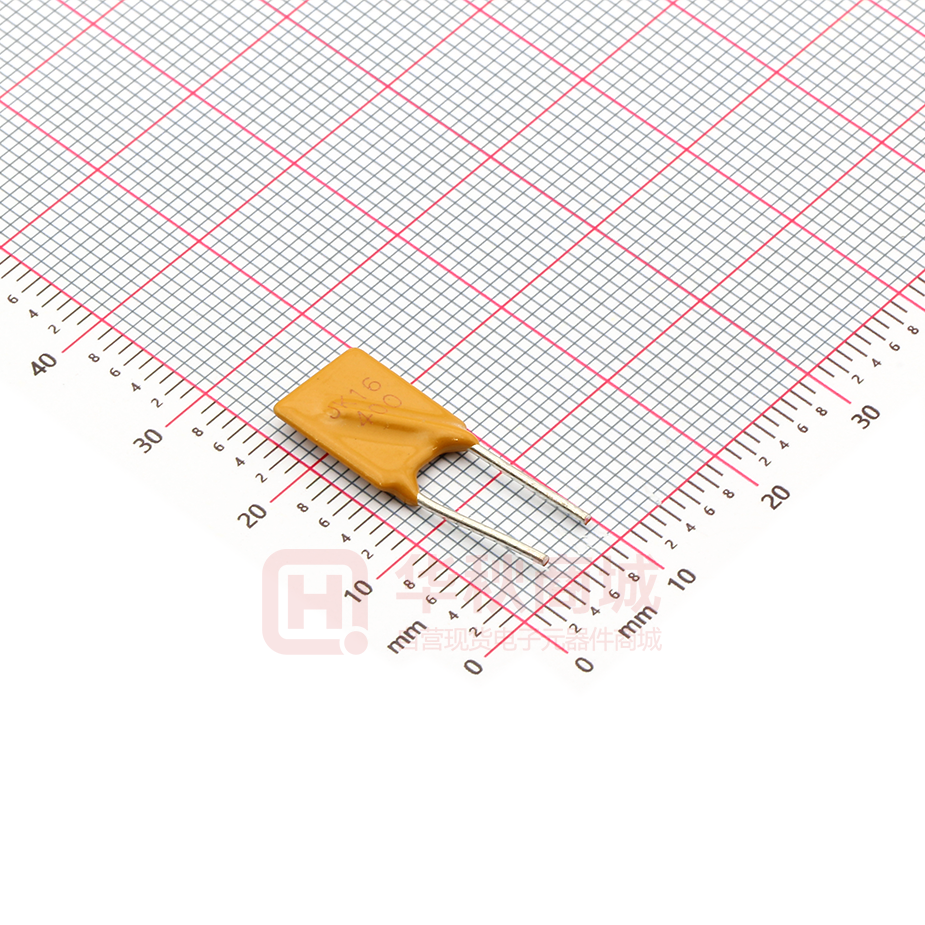

JK16-400

JK16 Series Polyer Positive Temperature Coefficient Features Radial leaded Devices Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements Bulk packaging,or tape and reel available on most models Agency Approval:ROHS Applications Almost anywhere there is a low voltage power supply, up to DC30V and a load to be protested, including: Personal computer Medical electronics Peersonal care product Dimensions Unit ：mm Model Pi g.1Pig.2 Dimensions（mm） Lead material Shape A(max) B(max) C(max) D(typ) Tinned matel(mm) Fig JK16-010 ( T) 5.5 12.0 3.0 5.1 24 AWG/Φ0.5 1 JK16 -025(T) JK16 030( T) 5.5 12 .0 3.0 24 AWG/Φ0.5 1 5.5 12 .0 3.0 5. 1 5. 1 24 AWG/Φ0.5 1 JK16 050(T) 5.5 12.0 3.0 5.1 24 AWG/Φ0.5 1 JK16-075(T) 7.4 13.5 3.0 5.1 24 AWG/Φ0.5 1 JK16-090(T) 7.4 13.5 3.0 5.1 24 AWG/Φ0.5 1 JK16-110(T) 7.4 13.5 3.0 5.1 24 AWG/Φ0.5 1 JK16-135(T) 7.4 13.5 3.0 5.1 24 AWG/Φ0.5 1 JK16-160(T) 7.4 14.0 3.0 5.1 24 AWG/Φ0.5 1 JK16-200(T) 9.0 12.0 3.0 5.1 24 AWG/Φ0.5 2 JK16-300 9.0 12.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-400 10.0 13.0 3.0 5.1 20 AWG/Φ0.8 2 JK16-500 10.0 17.5 3.0 5.1 20 AWG /Φ0.8 2 - - 1/5 JK16 Series JK16-600 3.0 13.5 13.5 17.5 23.0 13.5 23.0 JK1 6-1 000 15.0 18.0 24.0 26.0 JK16-1100 18.0 26.0 3.0 3.0 JK16-1200 22.5 24.0 26.0 3.0 30.0 30.0 3.0 3.0 JK16-700 JK16-800 JK16-900 JK1 6-1 300 JK16-1400 Note: ① 24.0 3.0 3.0 3.0 5.1 5.1 20 AWG/Φ0.8 20 AWG/Φ 0.8 2 2 5.1 20 AWG/Φ0.8 2 5.1 5.1 20 AWG/Φ0.8 20 AWG/Φ 0.8 2 2 5.1 20 AWG/Φ0.8 2 10.2 10.2 20 AWG/Φ0.8 20 AWG/Φ 0.8 2 2 10.2 20 AWG/Φ0.8 2 Dimensions A, B, C is the maximum size, D values are typical tolerance of ± 0.50mm Thermal Derating Chart-IH（A） Model Maximum ambient operating temperatures（℃） -40 -20 0 25 40 50 60 70 80 85 JK16-010(T) 0.14 0.13 0.12 0.1 0.09 0.08 0.08 0.07 0.06 0.04 JK16-025(T) 0.37 0.33 0.3 0.25 0.24 0.22 0.2 0.17 0.15 0.11 JK16-030(T) 0.44 0.39 0.36 0.3 0.28 0.26 0.24 0.21 0.18 0.14 JK16-050(T) 0.74 0.66 0.6 0.5 0.48 0.44 0.4 0.35 0.30 0.23 JK16-075(T) 1.11 0.99 0.9 0.75 0.72 0.66 0.6 0.53 0.45 0.35 JK16-090(T) 1.33 1.18 1.08 0.9 0.86 0.79 0.72 0.63 0.54 0.42 JK16-110(T) 1.62 1.45 1.32 1.1 1.05 0.96 0.88 0.78 0.67 0.51 JK16-135(T) 1.99 1.78 1.62 1.35 1.29 1.18 1.08 0.95 0.82 0.63 JK16-160(T) 2.36 2.11 1.92 1.6 1.53 1.40 1.28 1.13 0.97 0.75 JK16-200(T) 2.96 2.64 2.4 2 1.92 1.76 1.6 1.42 1.22 0.94 JK16-300 4.44 3.96 3.6 3 2.88 2.64 2.4 2.13 1.83 1.41 JK16-400 5.92 5.28 4.8 4 3.84 3.52 3.2 2.84 2.44 1.88 JK16-500 7.4 6.6 6 5 4.8 4.4 4 3.55 3.05 2.35 JK16-600 8.88 7.92 7.2 6 5.76 5.28 4.8 4.26 3.66 2.82 JK16-700 10.36 9.24 8.4 7 6.72 6.16 5.6 4.97 4.27 3.29 JK16-800 11.84 10.56 9.6 8 7.68 7.04 6.4 5.68 4.88 3.76 JK16-900 13.32 11.88 10.8 9 8.64 7.92 7.2 6.39 5.49 4.23 JK16-1000 14.8 13.2 12 10 9.6 8.8 8 7.1 6.1 4.7 JK16-1100 16.28 14.52 13.2 11 10.56 9.68 8.8 7.81 6.71 5.17 JK16-1200 17.76 15.84 14.4 12 11.52 10.56 9.6 8.52 7.32 5.64 JK16-1300 19.24 17.16 15.6 13 12.48 11.44 10.4 9.23 7.93 6.11 JK16-1400 20.72 18.48 16.8 14 13.44 12.32 11.2 9.94 8.54 6.58 2/5 JK16 Series Electrical Characteristic Model IHold (A) ITrip (A) Vmax Imax Pd Max V（DC） A W Current（A） Time（S） Rmin Rmax JK16-010(T) 0.1 0.3 16 100 0.38 0.5 5 1500 7500 JK16-025(T) 0.25 0.5 16 100 0.45 1.25 5 500 1950 JK16-030(T) 0.3 0.6 16 100 0.49 1.5 5 300 700 JK16-050(T) 0.5 1.0 16 100 0.56 2.5 5 200 500 JK16-075(T) 0.75 1.5 16 100 0.72 3.75 5 100 260 JK16-090(T) 0.9 1.8 16 100 0.83 4.5 5 90 180 JK16-110(T) 1.1 2.2 16 100 0.94 5.5 5 60 150 JK16-135(T) 1.35 2.7 16 100 1.2 6.75 5 40 130 JK16-160(T) 1.6 3.2 16 100 1.4 8 5 40 110 JK16-200(T) 2 4 16 100 2.2 6 15 35 75 JK16-300 3 6 16 100 2.3 9 15 20 60 JK16-400 4 8 16 100 2.4 12 15 20 40 JK16-500 5 10 16 100 2.6 15 15 14 25 JK16-600 6 12 16 100 2.8 18 15 10 21 JK16-700 7 14 16 100 3.0 21 15 8 15 JK16-800 8 16 16 100 3.0 24 15 6 13 JK16-900 9 18 16 100 3.3 27 25 4 12 JK16-1000 10 20 16 100 3.7 30 30 4 11 JK16-1100 11 22 16 100 3.7 33 30 3 9 JK16-1200 12 24 16 100 4.2 36 30 3 8 JK16-1300 13 26 16 100 4.2 39 50 3 8 JK16-1400 14 28 16 100 4.2 40 50 3 7 3/5 Maximum Time to Trip Nominal resistance（mΩ） JK16 Series Test Procedures And Requirements Test Test Conditions Accept/Reject Criteria Resistance In still air @ 25℃ Rmin≤R≤Rmax Time to Trip Specified current，Vmax，25℃ Tmaximum Time to Trip Hold Current 60min，at IH No trip Trip Cycle Life Vmax，Imax，100cycles No arcing or burning Trip Endurance Vmax，24hours No arcing or burning Physical Characteristics and Environmental Specifications Physical Characteristics Test Conditions Resistance change Passive aging +85℃，1000hrs ±8% typical Humidity aging +85℃，85%R.H.1000hrs ±8% typical Thermal shock +125℃ to -55℃，10times ±12% typical Resistance to solvent MIL-STD-202，Method 215 No change Vibration MIL-STD-202，Method 201 No change Operation Condition 1 Ambient temperature: -40℃～85℃ 2 Humidity: ≤95%HR(40℃) 3 Atmospheric pressure: 86Kpa ~106Kpa. 4 Vibration frequency: 10Hz ~ 50Hz. 5 Acceleration: 98m/s2. 6 Storage temperature: -40℃~85℃. 7Soldering 7.1 Wave Soldering: Soldering Temperature:240℃~270℃ Soldering Time:≤5sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 4/5 JK16 Series recommended curve 7.2 Manual soldering Soldering Temperature:280℃~300℃ Soldering Time: ≤2sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Electrical Specifications: IH=Hold current:maximum current at which the device will not trip at 25℃ still air. IT=Trip current:minimum current at which the device will nalways at 25℃ still air. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand tithout damage at rated voltage. Ttrip=Maximum time to trip(s) at assigned current. Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax=Maximum device resistance at 25℃ prior to tripping. Packaging and Storage JK16-010(T)～JK16-600 JK16-700～JK16-900 JK16-1000～JK16-1400 1000Pcs/Bag 500 Pcs/Bag 200 Pcs/Bag or 2000Pcs/Box 5/5
