JIANGSU HD-CRYSTAL TECHNOLOGY CO., LTD
+&60'
4XDUW]&U\VWDO
72012000RW1
1.
Scope:
1.1 This specification applies to the RoHS
compliance quartz crystal unit with a frequency of 12.000MHz which will be used
in crystal oscillator applications.
2.
Construction:

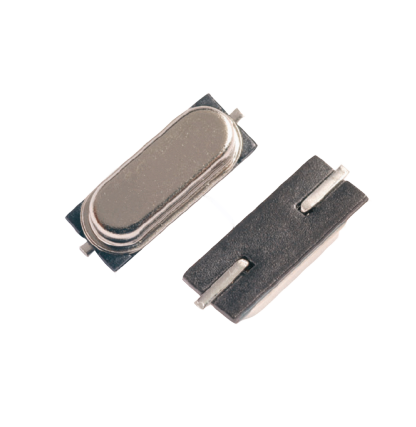

2.1 Type of Quartz Resonator: HC-49SMD
3.
Electrical Characteristics
3.1 Nominal Frequency(f):
12.0000Hz
3.2 Load Capacitance(CL):
20pF
3.3 Frequency Tolerance(Ƹf/f):
±20ppm
3.4 Frequency Temperature Stability:
±20ppm
3.5 Resonance Resistance(ohm):
40 ohms Max
3.6 Osc mode:
Fundamental mode
3.7 Shunt Capacitance(C0):
7pF Max
3.8 Drive Level(DL):
100ȝW typical
3.9 Operating Temperature Range(TOPR):
-20 to + 70°C
3.10 Storage Temperature Range(TSTG):
-55 to + 125°C
3.11 Insulation Resistance(IR):
˚500M ohms
3.12 Aging(ƸfA):
±5ppm/Year Max
www. hd- crystal.
com
1
Rev . 1. 1
Reliability Specification
Item
Condition
Free drop from 75cm height on a hard wooden
1.
Drop characteristics
board for 3 times. (Board is thickness more than
30 mm.)
2
Mechanical shock
Device are shocked to half sine wave (1000g)
three mutually perpendicular axes each 3 times
Shake frequency 10~55Hz, cyc1~2 minutes,
3.
Shake characteristics
swing 1.5mm, direction x/y/z, all 30 minutes, test
after 1 hours.
Humidity
4.
5.
6.
characteristics
Low temperature
characteristics
High temperature
characteristics
7.
Temperature cycling
8.
Refluence
examination
+40±2ć & 90%~95% R.H. 250 hours
Standard
Frequency change:ݱ5ppm
Rr as specification
Frequency change:ݱ5ppm
Rr as specification
Frequency change:ݱ5ppm
Rr as specification
Frequency change:ݱ5ppm
Rr as specification
-40±2ć, 250 hours, put in room temperature,
Frequency change:ݱ5ppm
test after 1 hours.
Rr as specification
+85±2ć, 250 hours, put in room temperature,
Frequency change:ݱ5ppm
test after 1 hours.
Rr as specification
-30±3ć/30±3 min~+85±2ć/30±3min,
Frequency change:ݱ5ppm
5 cycles
Rr as specification
Frequency change:ݱ5ppm
Rr as specification
www. hd- crystal.
com
2
Rev . 1. 1
3DFNDJH2XWOLQH'LPHQVLRQV
www. hd- crystal.
com
3
Rev . 1. 1
Packing Specificatio
Qty1000Pcs
www. hd- crystal.
com
4
Rev . 1. 1
