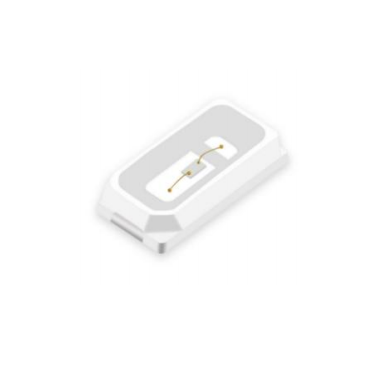

XL-4014UWC-02

XL-4014UWC-02 Technical Data Sheet 4014白（0.2w） haracteristic * 外观尺寸（L/W/H）:4.0*1.45*0.65mm OutlineDimensions (L / w / h): 4.0x1.45x0.65 mm * 发光颜色及胶体: 高亮度白色/黄色胶体 Luminous color and colloid: high brightness White / Yellow colloid * 环保工艺符合ROHS要求 Environmental protection products Complied With RoHS Directive * EIA规范标准包装 EIA standard packaging * 适用于SMT贴片自动化生产 Suitable for SMT automatic production * 使用寿命长 Long operating life * 降低维护成本 Reduced maintenance costs * 高能效、启动快 High energy efficiency, fast startup * 低电压直流驱动 Low voltage DC drive roduct application * 医用设备：内窥镜、血氧仪 Medical equipment: endoscope、oximeter * 汽车电子： 背光按键灯、指示灯 Automotive electronics: backlight key light、 indicator light * 工业产品：电子仪表盘、工业设备 Industrial products: electronic instrument panel、industrial equipment * 智能家居： 白色家电、数码管LED Smart home: white appliances, nixie tube LED * 通讯产品： 手机按键灯、路由器、电视盒 Communication products: mobile phone button lamp, router 1 Catalogue 电性参数 Electrical Characteristics.............................................................................................................3 色坐标分布图 Color coordinate distribution map.............................................................................................................6 典型特性曲线 Typical Characteristic Curves....................................................................................................................7 可靠性试验 Reliability Test Items And Conditions........................................................................................................8 外形尺寸 Outline Dimensions......................................................................................................................................9 包装 Packaging......................................................................................................................................................10 焊接指导 Guideline for Soldering.............................................................................................................................. 12 使用注意事项 Precautions.......................................................................................................................................14 2 Electrical Characteristics 最大绝对额定值 Absolute maximum ratings at Ta=25℃ 参数 Parameter 符号 Symbol 典型值 Typical 单位 Unit 功率耗损 Power dissipation Pd 185 mW 正向电流 Forward current If 60 mA 反向电压 Reverse voltage Vr 5 V 工作温度范围 Operating temperature range Top -40 ~+85 ℃ 贮存温度范围 Storage temperature range Tstg -40~+100 ℃ 最大脉冲电流 Peak pulsing current Ifp 90 mA 抗静电能力 Electrostatic Discharge ESD 2000(HBM) V 焊接温度 Soldering temperature Tsol 230~240，≤10s ℃ IFP 条件：脉冲持续时间≦10msec，占空因素≦1/10 NOTE: IFP Conditions: Pulse Width≦10msec. and Duty cycle≦1/10. 3 电性光电特性 Electrical-optical characteristics at Ta=25℃ 参数 Parameter 最小值 Min. 典型值 Typ. 最大值 Max. 单位 Test Condition 符号 Symbol 正向电压 Forward voltage If=60mA Vf 3.0 -- 3.2 V 光通量 Luminous intensity If=60mA Iv 24 -- 26 Lm 显示指数 Color rendering index If=60mA Ra -- 70 -- -- 色温 Color tempareture If=60mA CCT 7000 -- 8000 K If=60mA X 0.294 -- 0.307 -- If=60mA Y 0.2961 -- 0.3259 -- 半功率角 Viewing angle at 50% Iv If=60mA 2 θ 1/2 -- 120 -- Deg 反向电流 Reverse current Vr=5V Ir -- -- 5 A 色座标 CIE Chromaticity 测试条件 Unit NOTE: 1. Tolerance of luminous intensity is ±10% 发光强度公差为±10% 2. Tolerance of forward voltage is ±0.05V 正向电压公差±0.05 4 : Brightness grading Code Min Max Unit L11 24 26 LM Code Min Max Unit A09 3.0 3.2 V Code Min Max Unit HW04 7000 7500 K Test conditions IF=60mA : Voltage grading Test conditions IF=60mA : Wavelength grading Test conditions IF=60mA 5 Color coordinate distribution map 色坐标参数 Chromatic coordinate parameter BIN数 1# X坐标 Y坐标 0.2987 BIN数 X坐标 Y坐标 0.3151 0.3034 0.3259 0.294 0.3043 0.2987 0.3151 0.2976 0.2961 0.3023 0.3069 0.3023 0.3069 0.307 0.3177 0.2987 0.3151 0.3034 0.3259 2# 6 Typical optical characteristics curves 7 Reliability Test Items And Conditions*1 Criteria For Judging Damage 测试项目 Test project 测试条件 Test conditions 测试周期 Test cycle 样品数量 Sample quantity 允收 Ac/Re 常温老化 Normal temperature aging Ta=25℃ IF=150mA 1000H 22pcs 0/1 高温老化 High temperature aging Ta=85℃ IF=150mA 500H 22pcs 0/1 高温存储 High temperature storage Ta=100℃ 1000H 22pcs 0/1 低温存储 Cryogenic storage Ta=-40℃ 1000H 22pcs 0/1 冷热冲击 Thermal Shock -40℃/30min~ 100℃/30min 100 cycles 22pcs 0/1 回流焊 Reflow test Ta=260℃ T=10s 3 times 22pcs 0/1 高温高湿老化 High temperature and high humidity aging 85℃/85%RH IF=150mA 500H 22pcs 0/1 硫化实验 Vulcanization experiment Ta=85℃ 2H 10pcs 0/1 红墨水实验 Red ink experiment Ta=85℃ 2H 22pcs 0/1 静电测试 Antistatic test 2000V HBM 1 times/pcs 10pcs 0/1 8 Package Dimensions 建议焊盘 Recommended pad size 备注（NOTES）： ①所有标注尺寸单位为毫米 All dimensions are millimeters； ②公差为0.05毫米 Tolerance is 0.05 mm 9 包装（1） Packaging 备注（NOTES）： 1、无材料部分同样用上封带密封； No material part is also sealed with sealing tape. 2、材料缺口（负极）方向，与卷带齿孔方向一致； The direction of material gap (negative pole) is the same as that of the coiling hole. 3、4000pcs/卷 4000 pcs/ Reel. 10 包装（2） Packaging （2） 11 1 Guideline for Soldering (1) 1. Hand Soldering 推荐使用功率低于 20W 的烙铁，焊接时烙铁的温度必须保持在 300℃以下，且每个电极只能进行一次焊 接，每次焊接的持续时间不得超过 3 秒。 人手焊接过程中的不慎操作易引起 LED 产品的损坏，应当小心谨慎。 A soldering iron of less than 20W is recommended to be used in Hand Soldering. Please keep the temperature of the soldering iron under 300℃ while soldering. Each terminal of the LED is to go for less than 3 second and for one time only. Be careful because the damage of the product is often started at the time of the hand soldering. 2. 推荐使用以下无铅回流焊接温度图进行。 Reflow Soldering: Use the conditions shown in the under Figure ofPb-Free Reflow Soldering. 说明（Note）： 1、 焊接时请不要重压 LED 灯（Do not press LED lamp when welding）； 2、焊接后温度未回降到常温时请勿扭曲线路板（Do not distort the circuit board when the temperature does not return to normal temperature after welding）； 3、手工焊接时，烙铁温度不高于 300℃，每个焊脚焊接时间不超过 3 秒 （The temperature of the iron should be lower than 300℃ and soldering within 3sec per solder-pad is to be observed）； 12 2 Guideline for Soldering (2) 3. Cleaning 在焊接后推荐使用酒精进行清洗，在温度不高于 30℃的条件下持续 3 分钟， 不高于 50℃的条件下持续 30 秒。使用其他类似溶剂清洗前，请先确认使用的溶剂不会对 LED 的封装和环氧树脂部分造成损伤。 超声波清洗也是有效的方法，一般最大功率不应超过 300W ，否则可能对 LED 造成损伤。请根据具体的 情况预先测试清洗条件是否会对 LED 造成损伤。 It is recommended that alcohol be used as a solvent for cleaning after soldering. Cleaning is to go under 30℃ for 3 minutes or 50℃ for 30 seconds. When using other solvents, it should be confirmed beforehand whether the solvents will dissolve the package and the resin or not. Ultrasonic cleaning is also an effective way for cleaning. But the influence of Ultrasonic cleaning on LED depends on factors such as ultrasonic power. Generally, the ultrasonic power should not be higher than 300W. Before cleaning, a pretest should be done to confirm whether any damage to LEDs will occur. 此一般指导原则并不适用于所有 PCB 设计和焊接设备的配置。具体工艺受到诸多因素的影响， 请根据特定的PCB设计和焊接设备来确定焊接方案。 Note: This general guideline may not apply to all PCB designs and configurations of all soldering equipment. The technics in practise is influenced by many factors, it should be specialized base on the PCB designs and configurations of the soldering equipment.. 13 1 Precautions (1) 1. Storage · 本产品使用密封防潮抗静电袋包装，并附有干燥剂，未开封的产品有一年的保存时间。 Moisture proof and anti-electrostatic package with moisture absorbent material is used, to keep moisture to a minimum. · 开封前，产品须存放在温度不高于 30℃，湿度不高于 60%RH 的环境中。 Before opening the package, the product should be kept at 30℃ or less and humidity less than 60% RH, and be used within a year. · 开封后，产品须存放在温度不高于 30℃，湿度不高于 10%RH 的环境中，且应该在 168 小时（7 天） 内使 用完。建议工作环境为温度不高于 30℃，湿度不高于 60%RH。 After opening the package, the product should be stored at 30℃ or less and humidity less than 10%RH, and be soldered within 168 hours (7 days). It is recommended that the product be operated at the workshop condition of 30℃ or less and humidity less than 60%RH. · 对于尚未焊接的 LED，如果吸湿剂或包装失效，或者产品没有符合以上有效存储条件，烘焙可以起到一定 的性能恢复效果。烘焙条件： （60±5）℃，持续 24 小时。 If the moisture absorbent material has fade away or the LEDs have exceeded the storage time, baking treatment should be performed based on the following condition: (60±5)℃ for 24 hours. 2. Static Electricity 静电和电涌会导致产品特性发生改变，例如正向电压降低等，如果情况严重甚至会损毁产品。所以在使用 时 必须采取有效的防静电措施。 所有相关的设备和机器都应该正确接地，同时必须采取其他防止静电和电涌的措施。 使用防静电手环，防静电垫子，防静电工作服、工作鞋、手套，防静电容器，都是有效的防止静电和电涌 的 措施。 Static electricity or surge voltage damages the LEDs. Damaged LEDs will show some unusual characteristic such as the forward voltage becomes lower, or the LEDs do not light at the low current. even not light. All devices, equipment and machinery must be properly grounded. At the same time, it is recommended that wrist bands or anti-electrostatic gloves, anti-electrostatic containers be used when dealing with the LEDs. 14 2 Precautions (2) 3. Design Consideration 设计电路时，通过 LED 的电流不能超过规定的最大值，同时，还需使用保护电阻，否则，微小的电压变 化将会引起较大的电流变化，可能导致产品损毁。 建议使用以下（A）电路，该电路能够很好的调节通过每个 LED 的电流； 不推荐使用（B）电路，该电路 在持续的电压驱动下，LED 的正向电压（VF ）发生变化，电流会随之而发生变化，可能使某些 LED 承受高于 规定的电流值。 In designing a circuit, the current through each LED must not exceed the absolute maximum rating specified for each LED. In the meanwhile, resistors for protection should be applied, otherwise slight voltage shift will cause big current change, burn out may happen. It is recommended to use Circuit A which regulates the current flowing through each LED rather than Circuit B. When driving LEDs with a constant voltage in Circuit B, the current through the LEDs may vary due to the variation in Forward Voltage (VF) of the LEDs. In the worst case, some LED may be subjected to stresses in excess of the Absolute Maximum Rating. (A) (B) LED 的特性容易因为自身的发热和环境的温度的改变而发生改变。温度的升高会降低 LED 的发光效率、 影响发光颜色等，所以在设计时应充分考虑散热的问题。 Thermal Design is paramount importance because heat generation may result in the Characteristics decline, such as brightness decreased, Color changed and so on. Please consider the heat generation of the LEDs when making the system design. 15 Precautions (3） 4. Others 直接用手拿取产品不但会污染封装树脂表面，也可能由于静电等因素导致产品性能的改变。过度的压力也可能直接 影响封装内部的管芯和金线，因此请勿对产品施加过度压力，特别当产品处于高温状态下，例如在回流焊接过程中。 When handling the product, touching the encapsulant with bare hands will not only contaminate its surface, but also affect on its optical characteristics. Excessive force to the encapsulant might result in catastrophic failure of the LEDs due to die breakage or wire deformation. For this reason, please do not put excessive stress on LEDs, especially when the LEDs are heated such as during Reflow Soldering. LED 的环氧树脂封装部分相当脆弱，请勿用坚硬、尖锐的物体刮、擦封装树脂部分。在用镊子夹取的时 候也应当小心注意。 The epoxy resin of encapsulant is fragile, so please avoid scratch or friction over the epoxy resin surface. While handling the product with tweezers, do not hold by the epoxy resin, be careful. 不可用在PH
