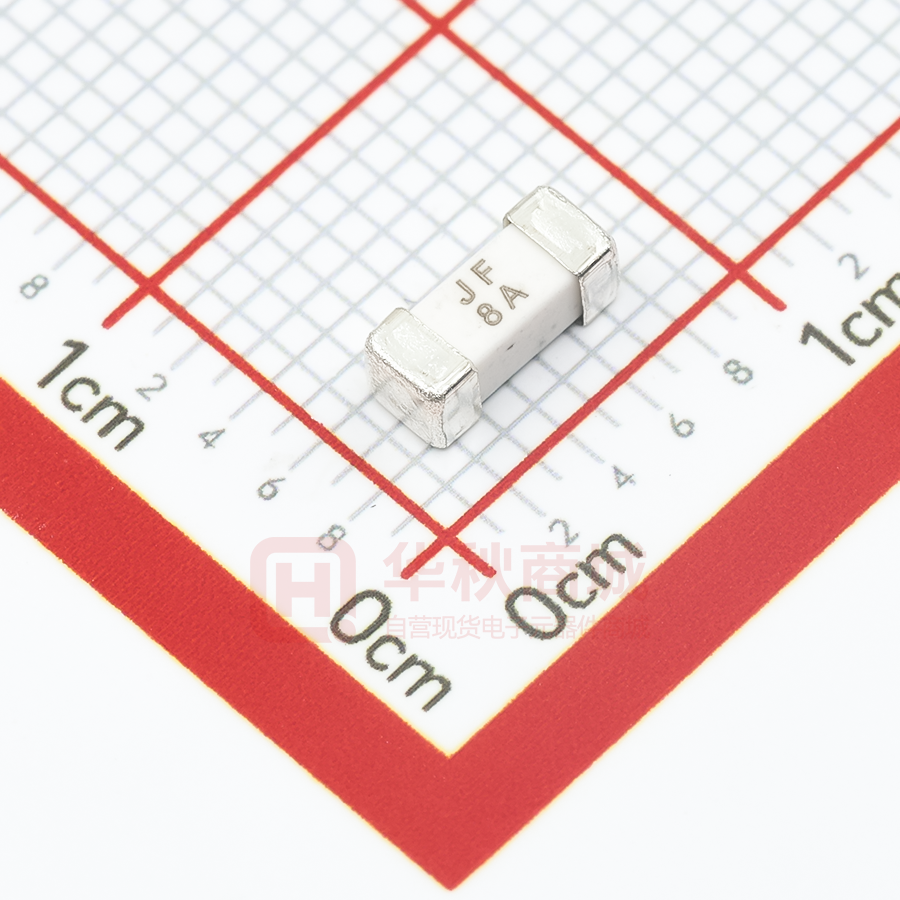

JFC2410-1800FS

JFC2410-1800FS

  • 厂商:

    JDTFUSE(集电通)

  • 封装:

    2410

  • 描述:

    JFC2410-1800FS

  • 数据手册
  • 价格&库存
JFC2410-1800FS 数据手册
PRODUCT DATASHEET Nano Fuse JFC2410 快断 JFC2410 快断 SCOPE Agency Approvals AGENCY AGENCY FILE NUMBER E486200 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Notebook PC LCD/PDF TV LCD/PDP panel LCD monitor LCD backlight inverter Portable DVE player Power supply Networking PC server Cooling fan system Storage system Telecom system Wireless base station White goods Game console Automotive Battery charging circuit Office Automation Industrial equipment Medical equipment PART NUMBERING JF C xxxx - xxxx F S S=SMD T=Time-Lag F=Fast Acting 四位电流 四位体积 C=Ceramic T=Thin Film H=High Temperature Ceramic Series JF=JDT Fuse JDT FUSE Electronics Corp. www.jdtfuse.com Page 1/6 JFC2410 快断 RATED CURRENT AND RATED VOLTAGE ● Rated Current 10mA━30A ● Rated Voltage 250V AC ( 20A-30A:72V AC ) MARKING The fuses shall have the following marking ● Manufacturing factory mark &logo : ● Rated Current(A):_mA / _A ● Electrical characteristics: F Note There is no provision on label size and position APPEARANCES AND CONFIGURATION ● Appearance : No significant stains, rust or crack, mark should be easy to recognize. ● Shape: Surface Mount Fuse Performance Specification Part Number Rated Current (A) JFC2410-0100FS Nominal Cold Resistance (ohms) Nominal Melting I2t (A2sec) 0.10 3.1000 0.00138 JFC2410-0500FS 0.50 0.4200 0.0795 JFC2410-0750FS 0.75 0.2450 0.185 JFC2410-1100FS 1.00 0.1530 0.459 JFC2410-1150FS 1.50 0.0630 0.853 JFC2410-1200FS 2.00 0.0367 0.530 JFC2410-1250FS 2.50 0.0286 1.029 JFC2410-1300FS 3.00 0.0227 1.650 JFC2410-1350FS 3.50 0.0200 2.469 JFC2410-1400FS 4.00 0.0160 3.152 JFC2410-1500FS 5.00 0.0125 5.566 JFC2410-1600FS 6.00 0.0108 8.670 JFC2410-1630FS 6.30 0.0096 9.170 JFC2410-1700FS 7.00 0.0090 10.32 JFC2410-1800FS 8.00 0.0077 20.23 JFC2410-2100FS 10.0 0.0056 26.46 JFC2410-2120FS 12.0 0.0049 47.97 JFC2410-2150FS 15.0 0.0037 97.82 JFC2410-2200FS 20.0 0.0023 210 JFC2410-2250FS 25.0 0.0017 400 JFC2410-2300FS 30.0 0.0012 900 JDT FUSE Electronics Corp. www.jdtfuse.com Max Voltage Rating(V) 250V 72V Interrupting Rating 50A@250V 500A@72V Page 2/6 JFC2410 快断 OUTLINE DRAWING AND STRUCTURE ● Outline Drawing and dimensions (unit : mm) 2.6±0.2 1.4±0.1 2.6±0.2 6.10 ± .20 ① Cap ② Ceramic tube ● Structure NO. Component Material Quantity ① Cap Silver Plated Brass 2 ② Body Ceramic tube 1 PRODUCT CHARACTERISTICS No. Item Contain 1 Insulation Resistance 10,000 ohms minimum 2 Solderability 3 Resistance to Soldering Heat 4 Thermal Shock 5 Mechanical Shock 6 Vibration 7 Moisture Resistance 8 Salt spray T=235℃±5℃, t=5+0/-0.5s, Cover≧95% Reference standard MIL-STD-202G, Method 302 Test ConditionA MIL-STD-202G, Method 208H 10 sec at 260℃ MIL-STD-202G, Method 210F Test Condition B 5 cycles, -65℃ to 125℃, 15minutes @each extreme MIL-STD-202G, Method 107G Test Condition B 100G’s peak for 6 milliseconds, 3 cycles MIL-STD-202G, Method 213B Test 1 0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs MIL-STD-202G, Method 201A 10 cycles MIL-STD-202G, Method 106G 48hrs MIL-STD-202G, Method 101E Test Condition B ELECTRICAL CHARACTERISTICS ● Pre-Arcing Time / Current Characteristics: Ampere Rating % of Ampere Rating Opening Time 100% 4 hours, Minimum 200% 5 sec, Maximum 10mA – 30A ● Breaking Capacity 10mA-15A : 50A@250V AC/50A@125V AC 20A-30A:500A@72V AC JDT FUSE Electronics Corp. www.jdtfuse.com   Page 3/6 JFC2410 快断 ENVIRONMENTAL CHARACTERISTIC ● Operating temperature range : -55℃ to 125℃ ● Company operating temperature of the environment more than 25+/-5℃, in the selection of fuse specifications, it needs to consider the impact of the operating environment of the temperature fuse. Photo: temperature derating curve. Temperature Rerating Curve Test .062A .125A .160A .200A .250A .315A .375A .500A .750A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 7A 8A 10A 12A 15A Average Time-Current Curve 100 TIME IN SECONDS 10 1 0.1 0.01 0.001 0.05 0.1 1 10 100 1000 CURRENT IN AMPERES JDT FUSE Electronics Corp. www.jdtfuse.com Page 4/6 JFC2410 快断 INSTALLATION WAY AND PARAMETERS ● Propose that the following picture installation way is installed and satisfied the required size. 6.86 3.15 Recommended pad layout 2.95 1.96 ● Recommended Customer Soldering Parameters TP 20~40 S TP 260 Ramp-up Critical Zone TL to TP TL 217 tL Tsmax 60~150 s Temperature (°C ) 200 Tsmin Ramp-down 150 ts Preheat 60~180 s 25 t 25°C to peak Time Reflow Condition Preheating Soldering JDT FUSE Electronics Corp. www.jdtfuse.com Pb-Free assembly Temperature Min Ts(min) 150℃ Temperature Max Ts(man) 200℃ Time Max 120 secs Temperature (TL)(Liquidus) 260℃ Time Max (TL) 60 secs Temperature (TP) Max 260℃ Time Max (TP) 10 secs Page 5/6 JFC2410 快断 OTHER NOTICE IN USED ● It could be in conformance with another file which made by our company. PACKING ● Packing Quantity ● 1000 fuses each disc OTHERS ● If in use beyond the requirements of the specifications, must pass through the mutual confirmation ! ● If the specification is not appropriate, must through consultation between the two sides and by the company to modify. JDT FUSE Electronics Corp. www.jdtfuse.com Page 6/6
JFC2410-1800FS 价格&库存

很抱歉,暂时无法提供与“JFC2410-1800FS”相匹配的价格&库存,您可以联系我们找货

免费人工找货
JFC2410-1800FS
  •  国内价格
  • 10+0.53770
  • 100+0.46440
  • 300+0.39110
  • 500+0.29330
  • 1500+0.24440
  • 7500+0.23220

库存:30186

JFC2410-1800FS
  •  国内价格
  • 10+0.40565
  • 100+0.32789
  • 300+0.28901

库存:971

JFC2410-1800FS
    •  国内价格
    • 1+0.25920
    • 10+0.25470

    库存:29
