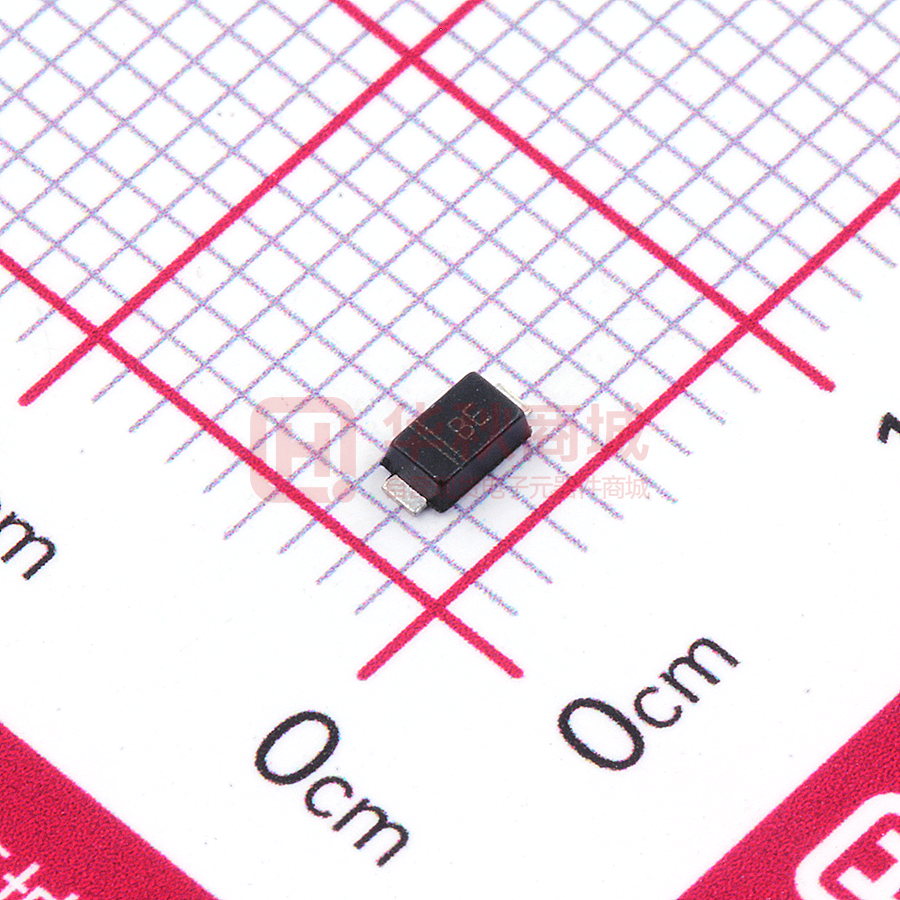

KPTVS12VS1UR

KPTVSxxxS1UR Surface mount transient voltage suppressor power 200 watts Stand-Off Voltage： 5.0V~220V PINNING PIN FEATURES • For surface mounted applications in order to DESCRIPTION 1 Cathode 2 Anode optimize board space. • Low profile package 1 2 • Glass passivated junction Unipolar • Low inductance Top View • Plastic package has Underwriters Laboratory Simplified outline sSOD-123FL and symbol Flammability MECHANICAL DATA ▪Case: SOD-123FL ▪Terminals: Solderable per MIL-STD-750, Method 2026 ▪Approx. Weight:15mg 0.00048oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Parameter Peak Pulse Power Dissipation on TA=2 5°C (Note 1,2,5, Fig1) Peak Forward Surge Current (Note 3) Symbol Value Unit P PPM 200 W I FSM 20 A see Table 1 A 1 W -55 to +150 °C (UNI) Peak Pulse Current on 10/1000 us waveform (Note 1 ) Fig 2 I PPM Steady State Power Dissipation (Note 4) P M(AV) Operating Junction and Storage Range T J,T STG RθJA Typical Thermal Resistance NOTES 1. Non-repetitive current pulse per Fig 3 and derated above T A=25°C per Fig 2 2. Mounted on 5mm 2 copper pads to each terminal 3. 8.3ms single half sinewave, or equivalent square wave duty cycle=4 pulses per minutes maximum 4. lead temperature at T L=75°C 5. Peak pulse powe. waveform is tp=10/1000us 6. A transient suppressor is selected according to the working peak reverse voltage(V RWM), Which Should be equal to or greater than the DC or continuous peak operating voltage level www.cj-elec.com 1/4 180 °C KPTVSxxxS1UR Characteristics at Ta = 25°C Test Current Breakdown Voltage Type Marking Reverse Leakage Max. Clamp Voltage Peak Pulse Current I R @ V RWM V C @ I PP I PP A V BR @ I T V RMW IT Min Max Uni Uni V V V mA μA V KPTVS5V0S1UR AE 5 6.4 7 10 200 9.2 21.7 KPTVS6V0S1UR AG 6 6.67 7.37 10 100 10.3 19.4 KPTVS6V5S1UR AK 6.5 7.22 7.98 10 75 11.2 17.9 KPTVS7V0S1UR AM 7 7.78 8.6 10 50 12 16.7 KPTVS7V5S1UR AP 7.5 8.33 9.21 1 50 12.9 15.5 KPTVS8V0S1UR AR 8 8.89 9.83 1 25 13.6 14.7 13.9 KPTVS8V5S1UR AT 8.5 9.44 10.4 1 10 14.4 KPTVS9V0S1UR AV 9 10 11.1 1 5 15.4 13 KPTVS10VS1UR AX 10 11.1 12.3 1 2.5 17 11.8 KPTVS11VS1UR AZ 11 12.2 13.5 1 2.5 18.2 11 KPTVS12VS1UR BE 12 13.3 14.7 1 2.5 19.9 10.1 KPTVS13VS1UR BG 13 14.4 15.9 1 1 21.5 9.3 KPTVS14VS1UR BK 14 15.6 17.2 1 1 23.2 8.6 KPTVS15VS1UR BM 15 16.7 18.5 1 1 24.4 8.2 KPTVS16VS1UR BP 16 17.8 19.7 1 1 26 7.7 KPTVS17VS1UR BR 17 18.9 20.9 1 1 27.6 7.2 KPTVS18VS1UR BT 18 20 22.1 1 1 29.2 6.8 KPTVS20VS1UR BV 20 22.2 24.5 1 1 32.4 6.2 KPTVS22VS1UR BX 22 24.4 26.9 1 1 35.5 5.6 KPTVS24VS1UR BZ 24 26.7 29.5 1 1 38.9 5.1 KPTVS26VS1UR CE 26 28.9 31.9 1 1 42.1 4.8 KPTVS28VS1UR CG 28 31.1 34.4 1 1 45.4 4.4 KPTVS30VS1UR CK 30 33.3 36.8 1 1 48.4 4.1 KPTVS33VS1UR CM 33 36.7 40.6 1 1 53.3 3.8 KPTVS36VS1UR CP 36 40 44.2 1 1 58.1 3.4 KPTVS40VS1UR CR 40 44.4 49.1 1 1 64.5 3.1 KPTVS43VS1UR CT 43 47.8 52.8 1 1 69.4 2.9 KPTVS45VS1UR CV 45 50 55.3 1 1 72.7 2.8 KPTVS48VS1UR CX 48 53.3 58.9 1 1 77.4 2.6 KPTVS51VS1UR CZ 51 56.7 62.7 1 1 82.4 2.4 KPTVS54VS1UR DE 54 60 66.3 1 1 87.1 2.3 KPTVS58VS1UR DG 58 64.4 71.2 1 1 93.6 2.1 KPTVS60VS1UR DK 60 66.7 73.7 1 1 96.8 1.8 KPTVS64VS1UR DM 64 71.1 78.6 1 1 103 1.7 KPTVS70VS1UR DP 70 77.8 86 1 1 113 1.5 KPTVS75VS1UR DR 75 83.3 92.1 1 1 121 1.4 KPTVS78VS1UR DT 78 86.7 95.8 1 1 126 1.4 KPTVS85VS1UR DV 85 94.4 104 1 1 137 1.3 KPTVS90VS1UR DX 90 100 111 1 1 146 1.2 KPTVS100VS1UR DZ 100 111 123 1 1 162 1.1 KPTVS110VS1UR EE 110 122 135 1 1 177 1 KPTVS120VS1UR EG 120 133 147 1 1 193 0.9 KPTVS130VS1UR EK 130 144 159 1 1 209 0.8 KPTVS150VS1UR EM 150 167 185 1 1 243 0.7 KPTVS160VS1UR EP 160 178 197 1 1 259 0.7 KPTVS170VS1UR ER 170 189 209 1 1 275 0.6 KPTVS180VS1UR ET 180 201 222 1 1 292 0.5 KPTVS200VS1UR EX 200 224 247 1 1 324 0.5 KPTVS220VS1UR E22 220 246 272 1 1 356 0.5 www.cj-elec.com 2/4 KPTVSxxxS1UR Fig.2 Forward Current Derating Curve PEAK PULSE POWER(PPP)OR CURRENT(Ipp) DERATINGIN PERCENTAGE% P PPM ,PEAK PULSE FORWARD ,kW Fig.1 Peak Pulse Power Rating Curve 100 Non-Repetive Pulse.Wavefom Shown in Figure.3 T A=25°C 10 1.0 0.1 0.1 1 10 100 1000 10000 100 80 60 40 20 0 25 I ppm ,Peak Pulse Current (%) I FSM ,PEAK FORWARD SURGE CURRENT, AMPERES T A =25°C 100 Peak Value Pulse Width (td) is Defined as the Point where the Peak. Current Decayst to 50% of Ipp I ppm 80 Half Value-I pp /2 60 10/1000usec Waveform as Defined bye R.E.A. 40 20 0 0 1.0 2.0 3.0 100 125 150 175 Fig.4 Maximum Non-Repetitive Peak Forward Surge Current Fig.3 Pulse Waveform t f =10usec 75 T A ,AMBIENT TEMPERATURE,°C td,PULSE WIDTH ,us 120 50 4.0 T,TIME,ms 30 25 20 15 10 05 T J =T J max 8.3ms Single Half Sinepwave JEDEC Method 0 1 10 Number of Cycles at 60Hz www.cj-elec.com 3/4 100 KPTVSxxxS1UR PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND VM D E A g g pad e E A pad HE Top View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm mil Bottom View ∠ 7° The recommended mounting pad size 1.2 (47) 2.0 (79) 1.2 (47) 1.2 (47) Unit： mm (mil) www.cj-elec.com 4/4
