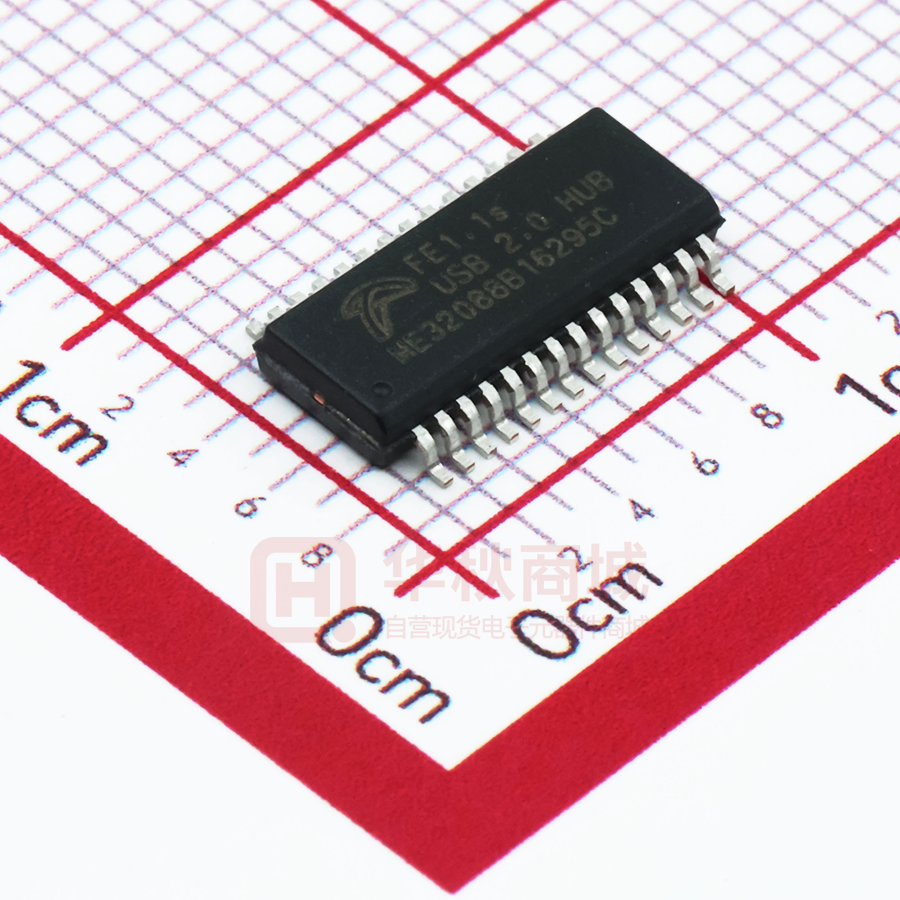

FE1.1S-BSOP28BCN

USB 2.0 4-Port Hub Data Sheet Rev. 1.0 FE1.1S USB 2.0 HIGH SPEED 4-PORT HUB CONTROLLER _______________________Data Sheet_______________________ INTRODUCTION The FE1.1s is a highly integrated, high quality, high performance, low power consumption, yet low cost solution for USB 2.0 High Speed 4-Port Hub. It adopts Single Transaction Translator (STT) architecture to be more cost effective. Six, instead of two, non-periodic transaction buffers are used to minimize potential traffic jamming. The whole design is based on state-machinecontrol to reduce the response delay time; no micro controller is used in this chip. To guarantee high quality, the whole chip is covered by Test Scan Chain – even on the high speed (480MHz) modules, so that all the logic components could be fully tested before shipping. Special Build-In-Self-Test mode is designed to exercise all high, full, and low speed Analog Front End (AFE) components on the packaging and testing stages as well. FEATURES         Low power consumption is achieved by using 0.18μm technology and comprehensive power/clock control mechanism. Most part of the chip will not be clocked unless needed.  NOV. 29, 2008 Fully compliant with Universal Serial Bus Specification Revision 2.0 (USB 2.0); □ Upstream facing port supports HighSpeed (480MHz) and Full-Speed (12MHz) modes; □ 4 downstream facing ports support High-Speed (480MHz), Full-Speed (12MHz), and Low-Speed (1.5MHz) modes; Integrated USB 2.0 Transceivers; Integrated upstream 1.5KΩ pull-up, downstream 15KΩ pull-down, and serial resisters; Integrated 5V to 3.3V and 1.8V regulator. Integrated Power-On-Reset circuit; Integrated 12MHz Oscillator with feedback resister, and crystal load capacitance; Integrated 12MHz-to-480MHz Phase Lock Loop (PLL); Single Transaction Translator (STT) – □ One TT for all downstream ports; □ The TT could handle 64 periodic StartSplit transactions, 32 periodic Complete-Split transactions, and 6 none-periodic transactions; Automatic self-power status monitoring; □ Automatic re-enumeration when Self- Subject to Change Without Notice 1 USB 2.0 4-Port Hub Data Sheet Rev. 1.0    Powered switching to Bus-Powered; Ganged Power Control and Global OverCurrent Detection support; EEPROM configured options – □ Vendor ID, Product ID, & Device Release Number; and □ Number of Downstream Ports; Comprehensive Port Indicators support: □ Downstream Port Enabled indicator LED (x4, Green); □ Hub Active/Suspend indicator LED. NOV. 29, 2008 Subject to Change Without Notice 2 USB 2.0 4-Port Hub Data Sheet Rev. 1.0 BLOCK DIAGRAM To Downstream Devices Downstream PHY #1 Downstream PHY #2 Downstream PHY #3 To Upstream Host/Hub Downstream PHY #4 Upstream PHY Routing Switch USB Multi-port Transceiver Macro Cell 12M Hz Crystal 3.3V & 1.8V Regulator OSC Over Current Detection Power Switch Control POR PLL (x40) Data Transmit USB 2.0 Hub Controlle r Downstream Port Controllers Transaction Translator Full/Low-Speed Handler SIE Transaction Translator High-Speed Handler Unified Transaction Translator Buffer (2KB) Data Recovery & Elastic Buffer Upstream Port Controller Hub Controller LED Controller EEPROM, Hub Activity LED Port Indicators Fig. 1: Block Diagram NOV. 29, 2008 Subject to Change Without Notice 3 USB 2.0 4-Port Hub Data Sheet Rev. 1.0 PACKAGE 28-pin SSOP (Body Size: 10x4 mm, Pitch: 0.64 mm) PIN ASSIGNMENT VSS 1 28 VD18 XOUT 2 27 XIN 3 26 TESTJ OVCJ DM4 4 25 PWRJ DP4 5 24 LED2 DM3 6 23 LED1 DP3 7 22 DRV DM2 8 21 VD33_O DP2 9 20 VDD5 DM1 10 19 BUSJ DP1 11 18 VBUSM VD18_O 12 17 XRSTJ VD33 13 16 DPU REXT 14 15 DMU FE1.1s Fig. 2: SSOP-28 Pin Assignment NOV. 29, 2008 Subject to Change Without Notice 4 USB 2.0 4-Port Hub Data Sheet Rev. 1.0 PIN DESCRIPTION TABLE Pin Name LQFP SSOP Type Pin No. Pin No. Function VSS 10 1 P Ground. XOUT 11 2 OSC 12 MHz Crystal Oscillator output XIN 12 3 OSC 12 MHz Crystal Oscillator input. DM4 14 4 UT The D- pin of the 4th Downstream Facing Port. DP4 15 5 UT The D+ pin of the 4th Downstream Facing Port. DM3 17 6 UT The D- pin of the 3rd Downstream Facing Port. DP3 18 7 UT The D+ pin of the 3rd Downstream Facing Port. DM2 20 8 UT The D- pin of the 2nd Downstream Facing Port. DP2 21 9 UT The D+ pin of the 2nd Downstream Facing Port. DM1 23 10 UT The D- pin of the 1st Downstream Facing Port. DP1 24 11 UT The D+ pin of the 1st Downstream Facing Port. VD18_O 26 12 P 1.8V power output from 3.3V→1.8V integrated regulator – a Note 10μF decoupling capacitor is required. VD33 27 13 REXT 28 14 P 3.3V power input for 3.3V→1.8V integrated regulator. A 2.7KΩ (± 1%) resister should be connected to VSS to provide internal bias reference. DMU 30 25 UT The D- pin of the Upstream Facing Port. DPU 31 16 UT The D+ pin of the Upstream Facing Port. XRSTJ 34 17 I External Reset, active low, is an optional source of chip reset signal, beside the build-in Power-On-Reset. The minimum low pulse width is 10 μs. VBUSM 35 18 I The VBUS Monitor of upstream facing port. BUSJ 36 19 I Bus power indicator: 0 – Bus Powered; 1 – Self Powered. VDD5 38 20 P 5V power input for integrated 5V→3.3V regulator. VD33_O 39 21 P 3.3V power output from 5V→3.3V integrated regulator – a 10μF decoupling capacitor is required. TEST 40 ―— I Test Mode Enable – should be tied to ground for normal operation. DRV 42 NOV. 29, 2008 22 I/O LED Drive Control Subject to Change Without Notice 1 5 USB 2.0 4-Port Hub Data Sheet Rev. 1.0 LED1/ 43 23 I/O Port 1 and Port 3 Enabled Indicator (LED) Control, and EESCL 1 external Serial EEPROM Clock. LED2 44 24 I/O Port 2 and Port 4 Enabled Indicator (LED) Control 1 PWRJ 47 25 O Downstream Device Power Enable, active low, for Ganged Power Switching. OVCJ 48 26 I Over Current Indicator, active low, for Global Over-Current Protection. TESTJ/ 2 27 I/O Test Mode Enable, active low with internal pull-up, and EESDA VD18 1 external Serial EEPROM Data/Address. 9 28 P 1.8V power input. Type Abbreviation – I : Input; O : Output; I/O : Input/Output; P : Power/Ground; UT: USB Transceiver. TESTJ Green LED1 FE1.1s Port 1 Indicator SDA A0 SCL A1 EEPROM A2 Port 3 Indicator Green Green LED2 Port 2 Indicator Port 4 Indicator Green Red DRV Hub Active/Suspend Indicator Fig. 3: LED and EEPROM Connections Note 1 – LED Status Indicators and External Serial EEPROM Interface The FE1.1s supports up to 5 LED for status indication with DRV, LED1, and LED2 pins, as shown by Fig. 4. For each Downstream Facing Port, one LED (Green) is provided to indicate that the attached device of the corresponding port is enabled or not. The fifth LED (Red) shows the Active (On) or Suspend (Off) status of the Hub itself. The FE1.1s can be configured by an external serial EEPROM via LED1 and TESTJ pins. The EEPROM is checked and loaded each time after chip reset. NOV. 29, 2008 Subject to Change Without Notice 6 USB 2.0 4-Port Hub Data Sheet Rev. 1.0 EEPROM CONTENTS Address Contents Note 0x00 0x40 Constant, low byte of check code 0x01 0x1A Constant, high byte of check code 0x02 Vendor ID (Low) Low byte of Vendor ID, idVendor field of Standard Device Descriptor 0x03 Vendor ID (High) High byte of Vendor ID 0x04 Product ID (Low) Low byte of Product ID, idProduct field of Standard Device Descriptor 0x05 Product ID (High) High Byte of Product ID 0x06 Device Release (Low) Low byte of Device Release Number, must be Binary Coded Decimal, bcdDevice field of Standard Device Descriptor 0x07 Device Release (High) High byte of Device Release Number, must be Binary Coded Decimal 0x08 ~ 0x19 Filling 0x1A Port Number 0x1B ~ 0x1E Filling 0x1F Check Sum All 0x00 Number of Downstream Ports, bNbrPorts field of Hub Descriptor. All 0x00 The 8-bit sum of all value from 0x00 to 0x1E. The first two bytes are the check code from the existence of EEPROM, their value must be 0x1A40. Any other value would cause the EEPROM loading mechanism of FE1.1s to conclude that the contents of this EEPROM is unusable, and use the default value instead. The last byte, 0x1F, is a checksum made up of the sum of all value from 0x00 to 0x1E. The number must match to render the content of the EEPROM usable. Otherwise, the loading mechanism of FE1.1s would discard the value from EEPROM and use default value instead. NOV. 29, 2008 Subject to Change Without Notice 7 USB 2.0 4-Port Hub Data Sheet Rev. 1.0 ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS Parameter Symbol Min. Max. Unit Storage Temperature TS -55 +150 ℃ Power Supply Voltage VDD5 VD33 VD18 -0.5 -0.5 -0.5 +6.0 +4.0 +2.5 V ESD Human Body Mode -2000 2000 V ESD Machine Mode -200 200 V Latch Up -200 200 mA RECOMMENDED OPERATING RANGES Parameter Symbol Min. Operating temperature TA 0 Operating voltage VDD5 VD33 VD18 4.5 3.0 1.62 LOW level voltage of digital input VIL HIGH level voltage of digital input Typ. Max. Unit 70 ℃ 5.5 3.6 1.98 V -0.3 0.8 V VIH 2.0 5.5 V Threshold voltage of digital input VTH 1.45 1.58 1.74 V Low-to-High level of schmitt-trigger input VT+ 1.44 1.5 1.56 V High-to-Low level of schmitt-trigger input VT- 0.89 0.94 0.99 V LOW level voltage of digital output@4mA VOL 0.4 V HIGH level voltage of digital output@4mA VOH NOV. 29, 2008 Subject to Change Without Notice 2.4 5.0 3.3 1.8 V 8 USB 2.0 4-Port Hub Data Sheet Rev. 1.0 POWER CONSUMPTION DC SUPPLY CURRENT Symbol Condition Active ports I_suspend 3 Icc 2 1 No active Unit 500 uA Device Suspend 4 NOV. 29, 2008 Host Typ. Full-Speed 4x Full-Speed 25 mA High-Speed 4x High-Speed 100 mA High-Speed 4x Full-Speed 42 mA Full-Speed 3x Full-Speed 25 mA High-Speed 3x High-Speed 86 mA High-Speed 3x Full-Speed 42 mA Full-Speed 2x Full-Speed 25 mA High-Speed 2x High-Speed 71 mA High-Speed 2x Full-Speed 42 mA Full-Speed 1x Full-Speed 25 mA High-Speed 1x High-Speed 57 mA High-Speed 1x Full-Speed 42 mA Full-Speed 25 mA High-Speed 42 mA Subject to Change Without Notice 9 USB 2.0 4-Port Hub Data Sheet Rev. 1.0 PACKAGE 28-pin SSOP (Body Size: 10x4 mm, Pitch: 0.64mm) 原理图地址: http://ishare.iask.sina.com.cn/f/20573757.html TERMINUS TECHNOLOGY INC. 1052, 10F, NO. 3-2, YUANQU ST. NANGANG TAIPEI, TAIWAN, ROC NOV. 29, 2008 Subject to Change Without Notice 10
