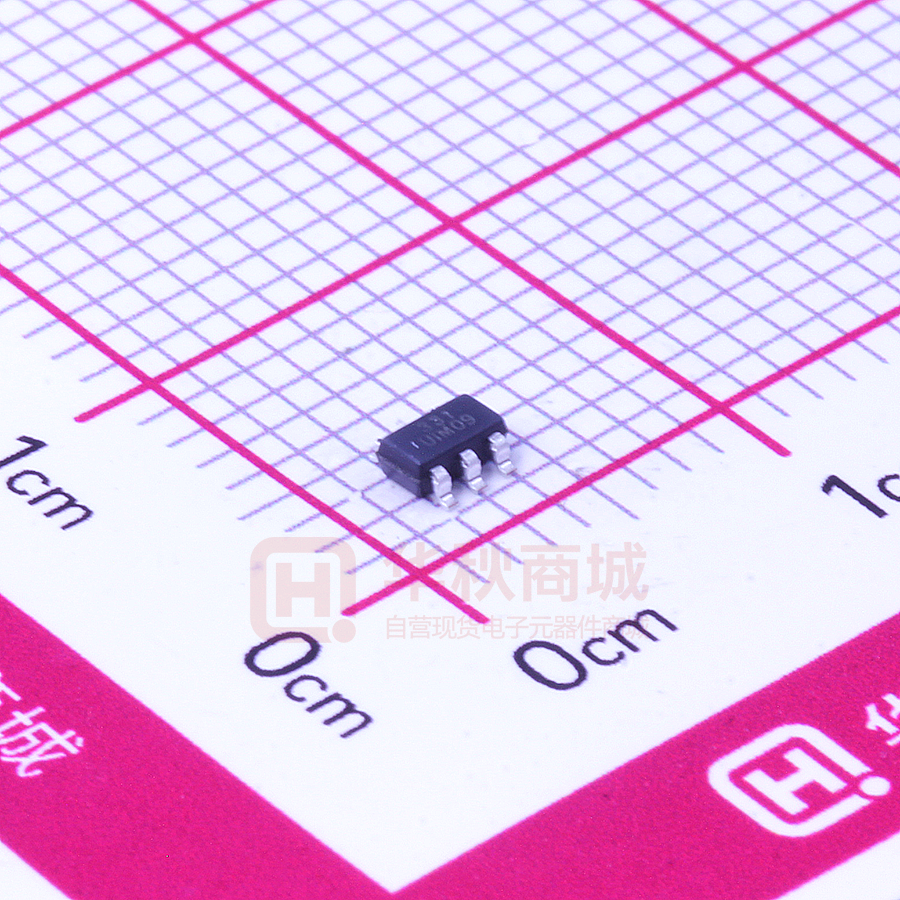

GS331 LOW POWER LOW OFFSET VOLTAGE SINGLE COMPARATOR Features l Wide Supply Voltage Range l Single Supply: 2.0V to 36V l Dual Supplies: ±1.0V to ±18V l Low Output Saturation Voltage: 200mV at 4mA l Low Supply Current at VCC=5V: 0.4mA l Open Collector Output l Low Input Bias Current: 25nA (Typ) l Small Package: l Low Input Offset Current: 5nA (Typ) l Low Input Offset Voltage: ±1mV (Typ) l Input Common Mode Voltage Range Includes l Differential Input Voltage Range Equals to the Power Supply Voltage GS331 Available in SOT23-5 Package Ground General Description The GS331 consists of a single precision voltage com-parator with a typical input offset voltage of 1.0mV and high voltage gain. It is specifically designed to operate from a single power supply over wide range of voltages. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The GS331 is available in standard SOT-23-5 package. Applications l Battery Charger l DC-DC Module l Cordless Telephone l PC Motherboard l Switching Power Supply l Communication Equipment Pin Configuration GS331 Figure 1. Pin Assignment Diagram March 2020-REV_V0 1/10 GS331 Functional Block Diagram Figure 2. Functional Block Diagram of GS331 Absolute Maximum Ratings Condition Symbol Max Vcc ±20V or 40V VI(DIFF) 40V Input Voltage VI -0.3V~40V Operating Junction Temperature TJ 150°C Tstg -65°C ~+150°C Power Supply Voltage Differential input voltage Storage Temperature Range Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Max-imum Ratings" for extended periods may affect device reliability. Note 2: This input current will only exist when the voltage at any of the input leads is driven negative. It is due to the collector-base junction of the input PNP transistors becoming forward biased and thereby acting as input diode clamps. In addition to this diode action, there is also lateral NPN parasitic transistor action on the IC chip. This transistor action can cause the output voltages of the comparators to go to the V+ voltage level (or to ground for a large overdrive) for the time duration that an input is driven negative. This is not destructive and normal output states will re-establish when the input voltage, which was negative, again returns to a value greater than -0.3 VDC at 25°C). Package/Ordering Information MODEL CHANNEL ORDER NUMBER GS331 Single GS331-TR March 2020-REV_V0 PACKAGE PACKAGE MARKING DESCRIPTION OPTION INFORMATION SOT23-5 Tape and Reel,3000 331 2/10 GS331 Recommended Operating Conditions Electrical Characteristics VCC=5V, GND=0V, TA=25oC, unless otherwise specified. Bold typeface applies over TA=-40 to 85oC (Note 3) Note 3: These specifications are limited to -40oC≤TA≤85oC. Limits over temperature are guaranteed by design, but not tested in production. Note 4: The input common mode voltage of either input signal voltage should not be allowed to go negatively by more than 0.3V (at 25°C). The upper end of the common mode voltage range is VCC-1.5V (at 25°C), but either or both inputs can go to 18V without damages, March 2020-REV_V0 independent of the magnitude of the VCC. 3/10 GS331 Typical Performance characteristics March 2020-REV_V0 4/10 GS331 Typical Performance Characteristics (Continued) March 2020-REV_V0 5/10 GS331 Typical Performance Characteristics (Continued) March 2020-REV_V0 6/10 GS331 Typical Performance Characteristics (Continued) March 2020-REV_V0 7/10 GS331 Typical Performance Characteristics (Continued) March 2020-REV_V0 8/10 GS331 Typical Applications March 2020-REV_V0 9/10 GS331 Package Information SOT23-5 March 2020-REV_V0 10/10
