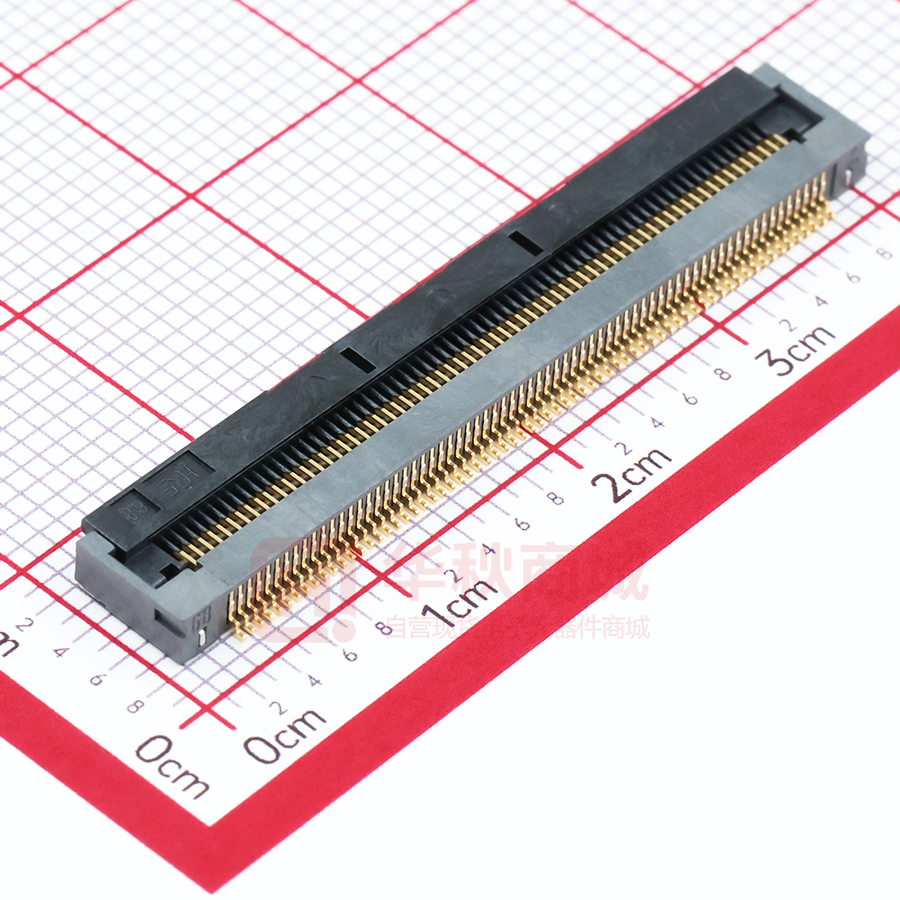

FH28D-68S-0.5SH(05)

APPLICABLE STANDARD OPERATING TEMPERATURE RANGE Nov.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. In case of consideration for using Automotive equipment / device which demand high reliability, kindly contact our sales window correspondents. RATING 1 -40 C TO STORAGE -10 C TO 50 C (PACKED CONDITION) TEMPERATURE RANGE OPERATING OR STORAGE RELATIVE HUMIDITY 90 % MAX (NOT DEWED) HUMIDITY RANGE APPLICABLE CABLE 105 C VOLTAGE 50 V AC / DC CURRENT 0.5 A (note 1) t=0.3±0.05mm, GOLD PLATING SPECIFICATIONS ITEM TEST METHOD REQUIREMENTS QT AT ACCORDING TO DRAWING. × × × × 50 m MAX. × × 100 V DC. INCLUDING FPC,FFC BULK RESISTANCE (L=8mm) 500 M MIN. × × 150 V AC FOR 1 min. NO FLASHOVER OR BREAKDOWN. × × ① CONTACT RESISTANCE: 50 m MAX. ② NO DAMAGE, CRACK AND LOOSENESS OF PARTS. ① NO ELECTRICAL DISCONTINUITY OF 1 s. ② CONTACT RESISTANCE: 50 m MAX. ③ NO DAMAGE, CRACK AND LOOSENESS OF PARTS. DIRECTION OF INSERTION: 0.4×n N MIN ( n : NUMBER OF CONTACTS). × － × － × － × － ① CONTACT RESISTANCE: 50 m MAX. ② INSULATION RESISTANCE: 50 M MIN. ③ NO DAMAGE, CRACK AND LOOSENESS OF PARTS. × － × － ① CONTACT RESISTANCE: 50 m MAX. ② INSULATION RESISTANCE: 1 M MIN. (AT HIGH HUMIDITY) ③ INSULATION RESISTANCE: 50 M MIN. (AT DRY) ④ NO DAMAGE, CRACK AND LOOSENESS OF PARTS. ① CONTACT RESISTANCE: 50 m MAX. ② NO DAMAGE, CRACK AND LOOSENESS OF PARTS. ① CONTACT RESISTANCE: 50 m MAX. ② NO EVIDENCE OF CORROSION WHICH AFFECTS TO OPERATION OF CONNECTOR. × － × － × － × － × － × － CONSTRUCTION GENERAL EXAMINATION VISUALLY AND BY MEASURING INSTRUMENT. MARKING CONFIRMED VISUALLY. ELECTRICAL CHARACTERISTICS CONTACT RESISTANCE 1mA(DC OR 1000Hz). INSULATION RESISTANCE VOLTAGE PROOF MECHANICAL CHARACTERISTICS MECHANICAL OPERATION 20 TIMES INSERTIONS AND EXTRACTIONS. 1 VIBRATION 1 SHOCK FREQUENCY 10 TO 55 Hz, HALF AMPLITUDE 0.75 mm, FOR 10 CYCLES IN 3 AXIAL DIRECTIONS. 2 981 m/s , DURATION OF PULSE 6 ms AT 3 TIMES IN 3 BOTH AXIAL DIRECTIONS. FPC RETENTION FORCE MEASURED BY APPLICABLE FPC. (CONNECTOR,FPC AT INITIAL CONDITION. THICKNESS OF FPC SHALL BE t=0.30mm ) ENVIRONMENTAL CHARACTERISTICS 1 RAPID CHANGE OF TEMPERATURE DAMP HEAT (STEADY STATE) DAMP HEAT,CYCLIC 1 1 1 TEMPERATURE-40→+15TO+35→+105→+15TO+35C TIME 30→ 2 TO 3 → 30→ 2 TO 3 min. UNDER 5 CYCLES. EXPOSED AT 40±2 C, RELATIVE HUMIDITY 90 TO 95 %, 96 h. EXPOSED AT -10 TO +65 C, RELATIVE HUMIDITY 90 TO 96 %, 10 CYCLES,TOTAL 240 h. DRY HEAT EXPOSED AT 105±2 C, COLD EXPOSED AT -40±3C, 96 h. 96 h. CORROSION SALT MIST EXPOSED AT 35±2 C 5% SALT WATER SPRAY FOR 96 h. SULPHUR DIOXIDE EXPOSED AT 40±2 C , RELATIVE HUMIDITY [JIS C 60068-2-42] 80±5% , 25±5 ppm FOR 96 h. HYDROGEN SULPHIDE EXPOSED AT 40±2 C , RELATIVE HUMIDITY [JIS C 60068-2-43] 80±5% , 10 TO 15 ppm FOR 96 h. 1 COUNT DESCRIPTION OF REVISIONS DESIGNED 9 DIS-F-00000493 RT.IKEDA REMARK 1 Unless otherwise specified, refer to IEC 60512 . Note QT:Qualification Test FORM HD0011-2-1 AT:Assurance Test X:Applicable Test PART NO. HIROSE ELECTRIC CO., LTD. CODE NO. DATE HS.SAKAMOTO 15.10.26 APPROVED RI.TAKAYASU 05.04.19 CHECKED SS.WATANABE 05.04.18 DESIGNED HH.TSUKUMO 05.04.18 DRAWN HH.TSUKUMO 05.04.18 DRAWING NO. SPECIFICATION SHEET CHECKED ELC4-155415-02 FH28D-**S-0.5SH(05) CL586 1 △ 1/2 SPECIFICATIONS Nov.1.2022 Copyright 2022 HIROSE ELECTRIC CO., LTD. All Rights Reserved. In case of consideration for using Automotive equipment / device which demand high reliability, kindly contact our sales window correspondents. 1 ITEM RESISTANCE TO SOLDERING HEAT SOLDERABILITY TEST METHOD REQUIREMENTS 1) REFLOW SOLDERING (MAX 2 CYCLES.) NO DEFORMATION OF CASE OF PEAK TMP 250 C MAX EXCESSIVE LOOSENESS OF THE REFLOW TMP OVER 230 C WITHIN 60 sec. TERMINALS. PRE-HEAT 150 TO 200C FOR 90 TO 120 sec. 2) SOLDERING IRONS TMP 350 ± 10 C FOR 5± 1 sec. SOLDERED AT SOLDER TEMPERATURE, A NEW UNIFORM COATING OF SOLDER 235±3 C FOR IMMERSION DURATION, SHALL COVER A MINIMUM OF 95 % OF 2±0.5 sec. THE SURFACE BEING IMMERSED. QT AT × － × － (note 1) WHEN THE SAME VALUE OF CURRENT ARE APPLIED TO ALL CONTACTS AT THE SAME TIME IN ONCE, SET THE CURRENT TO THE 70 % OF THE RATED CURRENT VALUE. Note QT:Qualification Test FORM HD0011-2-2 AT:Assurance Test X:Applicable Test DRAWING NO. SPECIFICATION SHEET PART NO. HIROSE ELECTRIC CO., LTD. CODE NO ELC4-155415-02 FH28D-**S-0.5SH(05) CL586 △ 1 2/2
