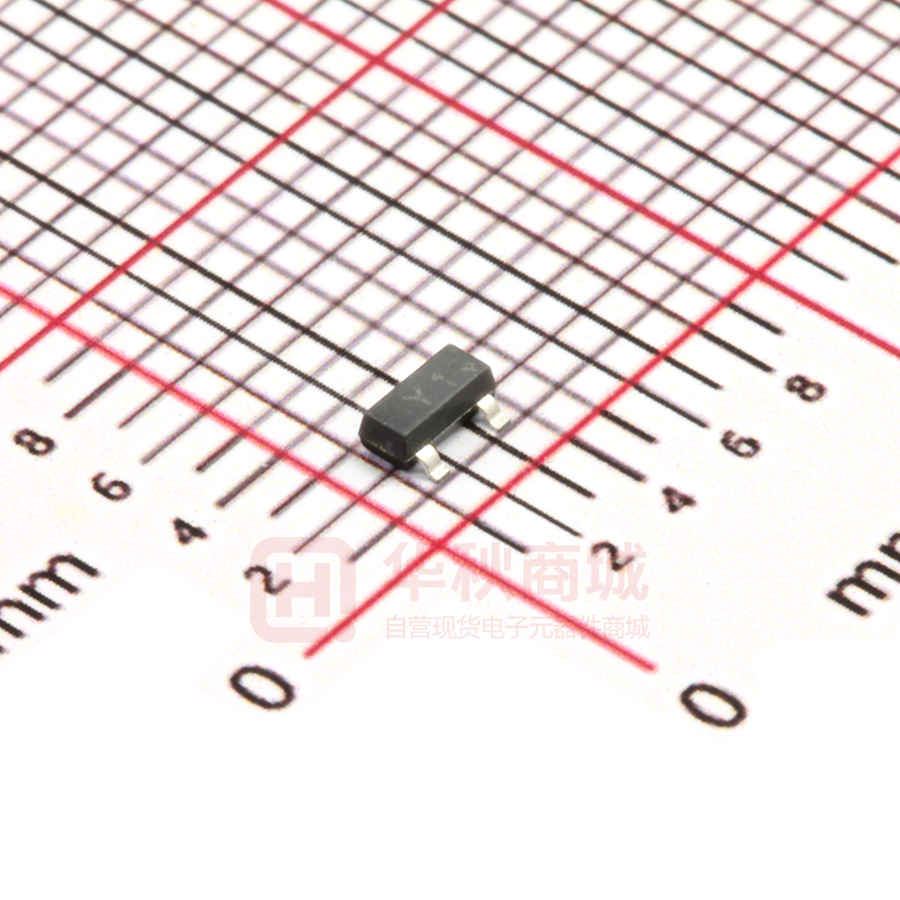

SS8050

SS8050 SS8050 TRANSISTOR (NPN) FEATURES Complimentary to SS8550 SOT-23 1．BASE 2．EMITTER 3．COLLECTOR MARKING: Y1 MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Parameter Symbol Value Units VCBO Collector-Base Voltage 40 V VCEO Collector-Emitter Voltage 25 V VEBO Emitter-Base Voltage 5 V IC Collector Current -Continuous 1.5 A PC Collector Power Dissipation 0.3 W Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55-150 ℃ ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) Parameter Symbol Test conditions MIN TYP MAX UNIT Collector-base breakdown voltage V(BR)CBO IC= 100μA, IE=0 40 V Collector-emitter breakdown voltage V(BR)CEO IC= 0.1mA, IB=0 25 V Emitter-base breakdown voltage V(BR)EBO IE=100μA, IC=0 5 V Collector cut-off current ICBO VCB=40V, IE=0 0.1 μA Collector cut-off current ICEO VCB=20V, IE=0 0.1 μA Emitter cut-off current IEBO VEB= 5V, IC=0 0.1 μA hFE(1) VCE=1V, IC= 100mA 200 hFE(2) VCE=1V, IC= 800mA 40 350 DC current gain Collector-emitter saturation voltage VCE(sat) IC=800mA, IB= 80mA 0.5 V Base-emitter saturation voltage VBE(sat) IC=800mA, IB= 80mA 1.2 V Transition frequency www.tw-gmc.com fT VCE=10V, IC= 50mA f=30MHz 1 100 MHz SS8050 Typical Characteristics Static Characteristic 100 300uA 250uA 60 200uA 40 150uA 300 Ta=25℃ 100 30 100uA 20 IB=50uA 0 0.0 0.5 1.0 1.5 2.0 COLLECTOR-EMITTER VOLTAGE VCEsat 1000 COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (mV) DC CURRENT GAIN 350uA 80 IC Ta=100℃ 400uA VCE 1 10 3 VBEsat —— 1.2 300 Ta=100℃ Ta=25℃ 30 100 30 COLLECTOR CURRENT (V) IC —— 100 10 2.5 BASE-EMITTER SATURATION VOLTAGE VBEsat (V) (mA) IC COLLECTOR CURRENT 450uA —— COMMON EMITTER VCE=1V COMMON EMITTER Ta=25℃ 500uA 120 hFE 1000 hFE 140 10 3 IC 1000 1500 300 (mA) IC 1.0 Ta=25℃ 0.8 Ta=100℃ 0.6 0.4 β=10 β=10 1 1 10 3 100 30 COLLECTOR CURRENT VBE 1500 1000 300 IC 0.2 1000 1500 1 30 10 3 (mA) 100 COLLECTOR CURRENT — — IC Cob/ Cib 200 (mA) IC — — VCB/ VEB f=1MHz IE=0/IC=0 Ta=25℃ Cib Ta=25℃ 10 3 COMMON EMITTER VCE=1V 0.4 0.6 0.8 BASE-EMMITER VOLTAGE fT (MHz) fT 1000 300 100 CAPACITANCE 30 1 0.2 TRANSITION FREQUENCY 30 Cob C (pF) Ta=100℃ 100 —— 1.0 VBE IC VCE=10V Ta=25℃ 3 www.tw-gmc.com 30 10 COLLECTOR CURRENT PC 350 3 IC 3 1 0.3 REVERSE VOLTAGE 10 1 3 (V) 30 1 10 1 0.1 1.2 COLLECTOR POWER DISSIPATION PC (mW) COLLCETOR CURRENT IC (mA) 100 300 100 — — V 2 10 20 (V) Ta 300 250 200 150 100 50 0 0 25 50 75 AMBIENT TEMPERATURE (mA) 1000 1500 300 100 Ta 125 (℃ ) 150 SS8050 PACKAGE OUTLINE Plastic surface mounted package; 3 leads www.tw-gmc.com SOT-23 3
