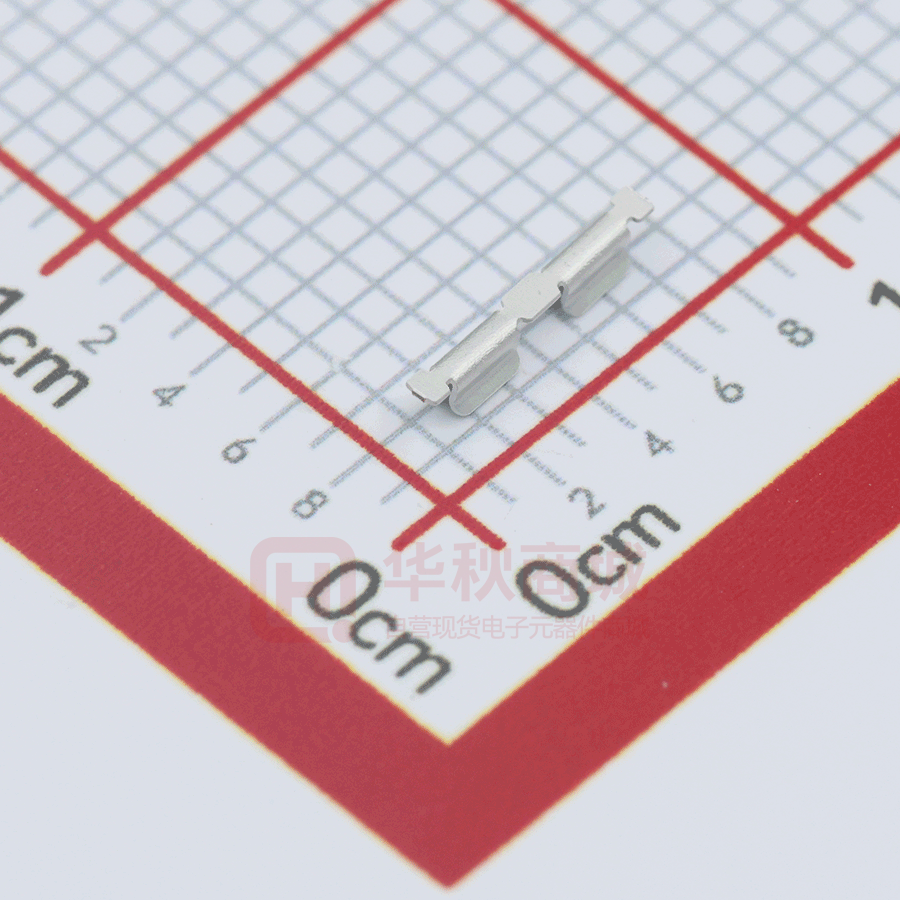

ICSRC6508-030SFR

0,7 O 4 ±0.1 0,3 16 7,5 ±0.1 1,4 3,25 6,5 1 2 ±0.05 APPROVED P.K.KOH P.K.KOH +0.1 0 TAPING DWG (SCALE 3/1) 1,75 ±0.1 0,5 1,85 0,15 1,55 0,8 0,4 REVISION HISTORY DATE REV DESCRIPTION 2011.05.23 N/M A B SHIELD CASE THICKNESS 0.3±0.02 => 0.3 + 0.02 -0 2011.06.09 4 ±0.1 0,8 0,92 0,25 +0.1 -0.05 +0.02 -0.05 1,22 SCALE : 15/1 0,8 1,1 1 1,1 0,9 Max 0,8 6,7 RECOMMENDED PCB LAY-OUT 6,4 RECOMMENDED STENCIL LAY-OUT 1,5 NOTES 1. MATERIAL : STS301 2. MATERIAL THICKNESS :0.15t 3. FINISHED : Sn(100%) PLATING ON BOTH SIDE ( NI 0.5㎛ Sn 1.27㎛ ) 4. PACKING MATERIALS. - REEL : HIPS 0.3t - COVER TAPE : PS _ Q'TY/REEL : 10,000ea 5. AVAILABLE SHIELD CASE THICKNESS : 0.3 +0.02 -0 6. CONTACT RESISTANCE : MAX 300mmΩ 7. STENCIL THICKNESS : 0.12T 8. MAINTAIN 90˚±3 WHILE ENGAGE & DISENGAGE SHIELD CAN & SHIELD CLIP TO PREVENT DEFORMATION & TO MAINTAIN RETENTION FORCE OF SHIELD CLIP DATA 2011.05.23 APP. CHECK DESG. 2011.05.23 NAME LEE P.K.KOH UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS TOLERANCES ARE ANGLES ± 0. 3° 0~1 ± 0.05 1 ~ 5 ± 0.1 5~10 ± 0.15 TITLE SIZE DWG NO SHIELD CLIP A3 ICSRC6508-030SFR FILE NAME: ICSRC6508-030SFR.dft SCALE: WEIGHT: SHEET 1 OF 1 REV B
