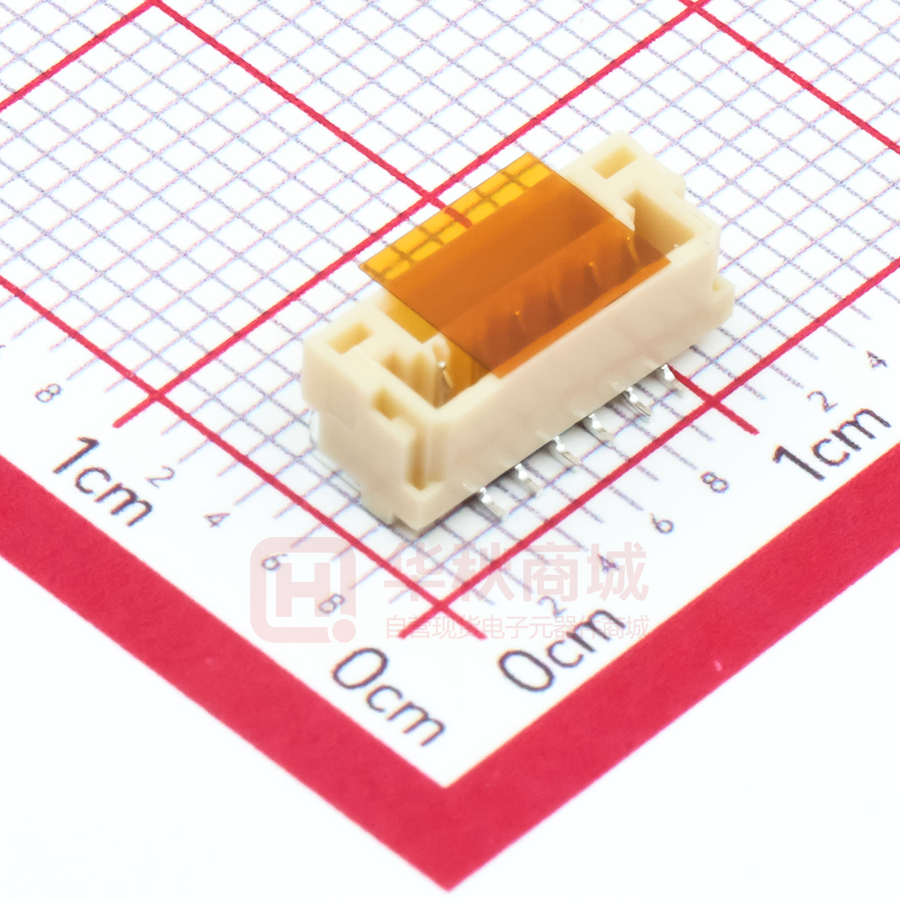

BM06B-GHS-TBT(LF)(SN) 数据手册
Specifications –––––––––––––––––––
Developed for PDP, LCD or small
electronics equipment.
This low insertion force type connector
realizes easier mating operation. The basic
concept of the contact part of this
connector is equivalent to the performance
proven SHL connector.
• Secure locking structure
• Contact lock structure
• Prevention of contact deformation
• Clear engagement click sounds
• Current rating: 1.0 A AC, DC (AWG #26)
• Voltage rating: 50 V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 30 mΩ max.
After environmental tests/ 50 mΩ max.
• Insulation resistance: 100 MΩ min.
• Withstanding voltage: 500 VAC/minute
• Applicable wire: Conductor size/ AWG #30 to #26
Insulation O.D./ 0.76 to 1.0 mm
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.
Standards ––––––––––––––––––––––
0
Recognized E60389
PC board layout and Assembly layout
Top entry type
Side entry type
4.25
0.6 ±0.05
0.6 ±0.05
1.25 ±0.05
1.25±0.05
±0.1
5.4 ±0.1
4.35
2.7 ±0.1
±0.1
3.7 ±0.1
5.6
±0.1
7.3
0.25
1.35
1
1.35 ±0.1
0.3 ±0.1
±0.1
3.9
2.8 ±0.1
±0.1
7.15
1 ±0.1
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative: ±0.05 mm for all centers.
3. The dimensions above should serve as a guideline. Contact JST for details.
Contact
mm2
AWG#
Insulation O.D.
(mm)
Q'ty/reel
0.05∼0.13
30∼26
0.76∼1.0
35,000
4.8
2.1
0.6
0.85
2.3
0.8
0.4
RoHS compliance
Note: 1. Contact JST for gold-plated product.
2. This contact can be applied only for the GH connector.
SSHL-003( )-P0.2 cannot be applied for the GH connector.
Contact
AP-K2N
1
Applicator
Dies
Crimp applicator with dies
MKS-L-10-3
MK/SSHL-002-02
APLMK SSHL002-02
−
−
−
Crimping
machine Crimp applicator
Housing
Q'ty/
bag
5.7
4.15
Circuit No.1
1.25
2.65
A
B
RoHS compliance
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
GHR-04V-SS…natural (white) LE…light blue TR…tomato red K…black
E…blue O…orange L…lemon yellow MG…moss green
DPK…dark pink
Shrouded header
Top entry type
Circuits
0.7
4.05
4.25
1.25
0.2
Circuit No.1
A
B
Side entry type
4.05
Model No.
Dimensions (mm)
A
B
2
1.25
5.75
2,500
3
2.50
7.00
2,500
4
3.75
8.25
2,500
5
5.00
9.50
2,500
6
6.25
10.75
2,500
7
7.50
12.00
2,500
8
8.75
13.25
2,500
9
10.00
14.50
2,500
10
11.25
15.75
2,500
11
12.50
17.00
2,500
12
13.75
18.25
2,500
13
15.00
19.50
2,500
14
16.25
20.75
2,500
15
17.50
22.00
2,500
0.8
4.25
Material and Finish
RoHS compliance This product displays (LF)(SN) on a label.
Note: Contact JST for gold-plated product.
Circuit No.1
1.25
0.2
A
B
1.75
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
BM04B-GHS-TBTS…natural (ivory) LE…light blue TR…tomato red K …black
E…blue O…orange L…lemon yellow MG…moss green
DPK…dark pink
2
Housing (Keying pattern A)
4.15
3.75
6.25
5.7
7.50
RoHS compliance
2.95
B
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
1.25
GHR-04V-2PP…purple (for keying pattern A)
HD…dark gray (for keying pattern B)
Circuit No.1
A
Shrouded header (Keying pattern A)
Top entry type
Circuits
A
1.25
Circuit No.1
0.2
Model No.
Dimensions (mm)
A
B
2
1.25
5.75
2,500
4
3.75
8.25
2,500
5
5.00
9.50
2,500
Material and Finish
RoHS compliance This product displays (LF)(SN) on a label.
4.25
0.7
4.05
ex.
B
Side entry type
4.05
Circuit No.1
1.25
0.2
A
B
3
1.75
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
0.8
BM04B-GHP-A-TBTP…purple (for keying pattern A)
HD…dark gray (for keying pattern B)
Housing (Keying pattern B)
Q'ty/
bag
5.7
4.15
RoHS compliance
2.95
B
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
GHR-02V-3HDP…purple (for keying pattern A)
HD…dark gray (for keying pattern B)
Circuit No.1
1.25
A
Shrouded header (Keying pattern B)
Circuits
Top entry type
A
1.25
0.2
Circuit No.1
Model No.
Dimensions (mm)
A
B
2
1.25
5.75
2,500
4
3.75
8.25
2,500
5
5.00
9.50
2,500
Material and Finish
RoHS compliance This product displays (LF)(SN) on a label.
Note: Contact JST for gold-plated products.
4.25
0.7
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
4.05
ex.
BM04B-GHHD-B-TBTP…purple (for keying pattern A)
HD…dark gray (for keying pattern B)
B
Side entry type
0.8
4.25
4.05
Circuit No.1
1.25
0.2
1.75
A
B
4
