Preliminary Datasheet
LP6216
High Efficiency 3A Boost DC/DC Convertor
General Description
Features
The LP6216 is a current mode boost DC-DC converter.
Up to 94% efficiency
Its PWM circuitry with built-in 3A current power
Shut-down current:1uA
MOSFET makes this converter highly power efficiently.
Input and Output voltage Up to 24V
Internal Compensation, Soft-start
1MHz fixed frequency switching
component sizes. The LP6216 features automatic
High switch on current:3A
shifting to pulse frequency modulation mode at light
Available in SOT23-6 Package
The LP6216 implements a constant frequency 1MHz
PWM control scheme. The high frequency PWM
operation also saves board space by reducing external
loads.Highly integration and internal compensation
network minimizes as 6 external component counts.
Optimized
operation
frequency
can
meet
the
requirement of small LC filters value and low operation
current with high efficiency.
The LP6216 includes under-voltage lockout, current
limiting, and thermal overload protection to prevent
damage in the event of an output overload.
VIN
4.7uH
VOUT
Diode
C1
22uF
C2
22uF
SW
The
LP6216 is available in a small 6-pin SOT23-6
package.
Typical Application Circuit
VIN
FB
R3
500K
EN
Order Information
C3
NC
R1
110K
R2
15K
GND
LP6216
F: Pb-Free
Package Type
B6: SOT23-6
Feedback Voltage
Default: 0.6V
A: 1.24V

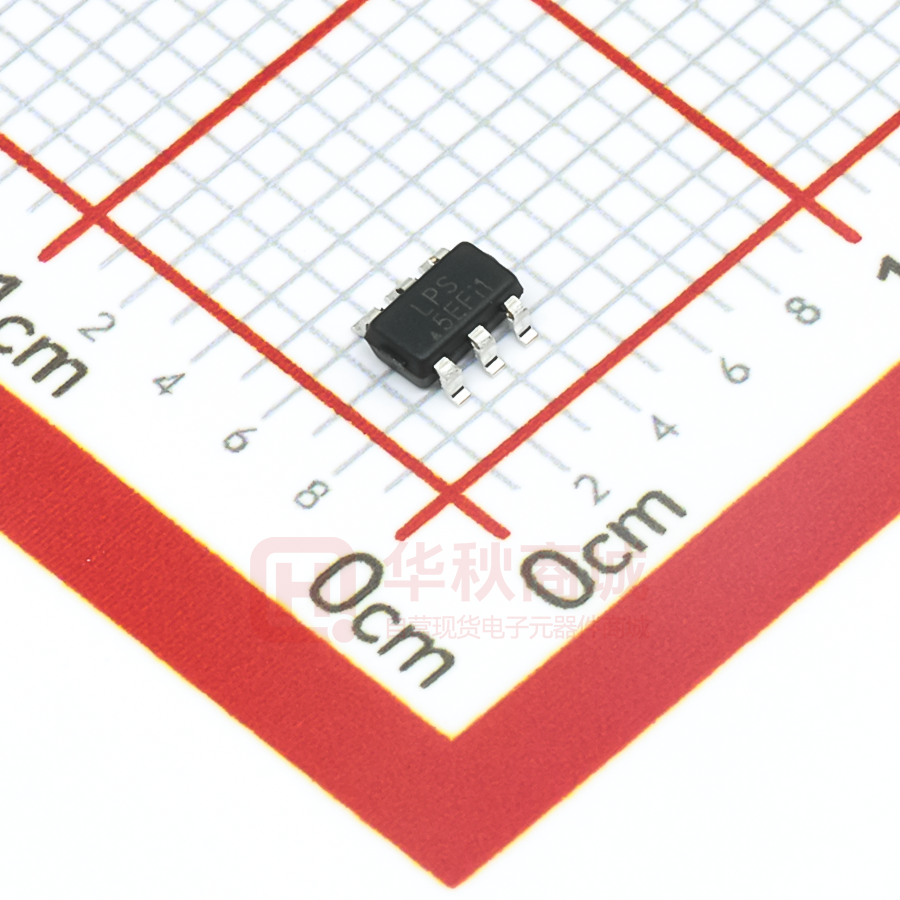

Marking Information
Device
LP6216B6F
Marking
LPS
5EYWX
Package
Shipping
SOT23-6
3K/REEL
Marking indication:
Y:Production year
W:Production period
X:Production batch
Applications
Battery products
Host Products
Panel
LP6216-01
Dec.-2019
Email: marketing@lowpowersemi.com
www.lowpowersemi.com
Page 1 of 8
Preliminary Datasheet
LP6216
Functional Pin Description
Package Type
Pin Configurations
6
4
LP6216
SOT23-6
1
Pin
Name
1
SW
switching pin.
2
GND
Ground.
3
FB
4
EN
5
VIN
Power Supply pin.
6
NC
No connecter.
LP6216-01
5
Dec.-2019
2
3
Description
Regulation Feedback Input. Connect to an external resistive voltage divider from the
output to FB to set the output voltage.
Regulator ON/OFF Control Input. A logic high input(VEN>1.4V) turns on the regulator. A
logic low input(VEN
