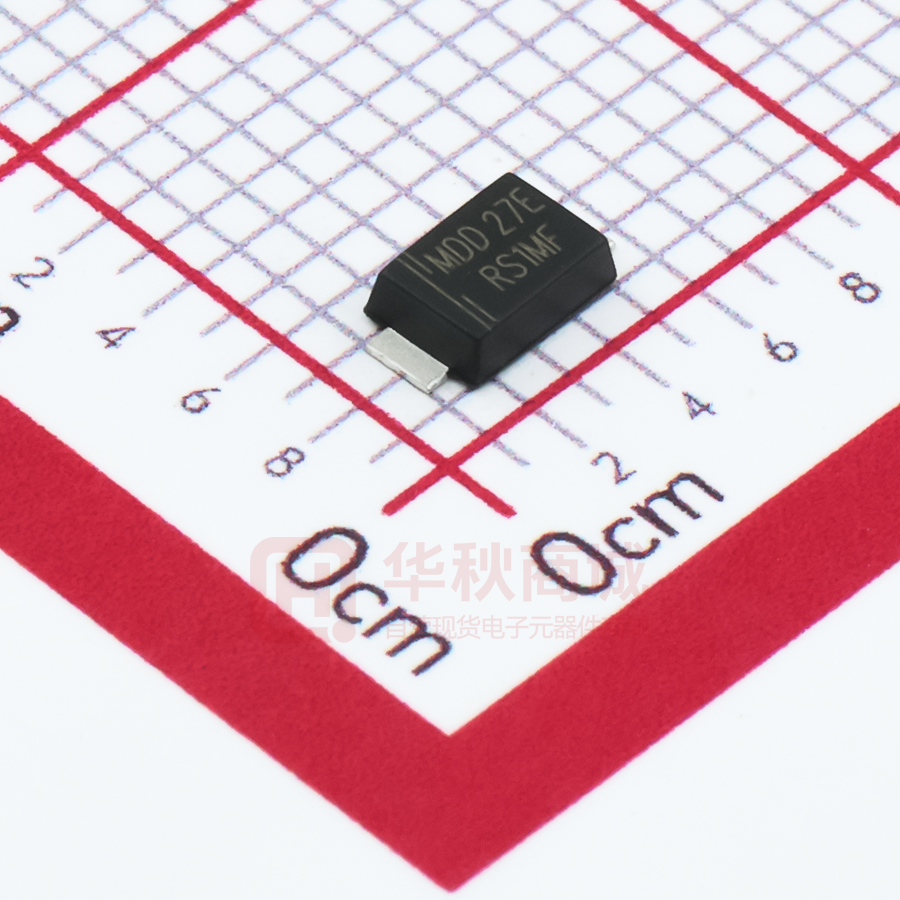

RS1MF

RS1AF THRU RS1MF Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere SURFACE MOUNT FAST RECOVERY RECTIFIER Features SMAF  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Fast switching for high efficiency  Low reverse leakage  Built-in strain relief,ideal for automated placement 0.106(2.70) 0.094(2.40) 0.063 (1.60) 0.051 (1.30) 0.146(3.70) 0.130(3.30)  High forward surge current capability  High temperature soldering guaranteed: 260°C/10 seconds at terminals 0.047(1.20) 0.035(0.90) Glass passivated chip junction 0.008(0.20) 0.005(0.12) 0.047(1.20) 0.031(0.80) Mechanical Data 0.193(4.90) 0.173(4.40) Case : JEDEC SMAF Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.00095ounce, 0.027 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS MDD RS1AF MDD RS1BF VRMM 50 35 50 100 70 100 Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=125℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current at rated DCblocking voltage Maximum reverse recovery time TA=25℃ TA=125℃ (NOTE 1) Typical junction capacitance (NOTE 2) Typical thermal resistance (NOTE 3) Operating junction and storage temperature range VRMS VDC MDD MDD RS1DF RS1GF 200 140 200 400 280 400 MDD RS1JF 600 420 600 MDD MDD RS1KF RS1MF 800 560 800 1000 700 1000 UNITS V V V A I(AV) 1.0 IFSM 30 A VF 1.30 V IR 5.0 50.0 uA trr 150 250 500 ns CJ RJA 15.0 pF 80.0 ℃/W TJ,TSTG -55 to +150 ℃ Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 RS1AF THRU RS1MF Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere Ratings And Characteristic Curves Fig.1 Forward Current Derating Curve Fig.2 Typical Reverse Characteristics 1.2 Instaneous Reverse Current（μ A） 100 Average Forward Current (A) 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 1.0 TJ=25°C 0.1 175 00 Case Temperature (°C) 20 40 60 80 100 100 Junction Capacitance (pF) 1.0 0.1 pulse with 300μ s 1% duty cycle 0.0 0.5 1.0 1.5 140 Fig.4 Typical Junction Capacitance 10 0.01 120 percent of Rated Peak Reverse Voltage (%) Fig.3 Typical Instaneous Forward Characteristics TJ=25°C Instaneous Forward Current (A) TJ=125°C 10 2.0 TJ=25°C 10 1 2.5 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surage Current (A) 35 30 25 20 15 10 05 00 8.3 ms Single Half Sine Wave (JEDEC Method) 1 10 100 Number of Cycles The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 RS1AF THRU RS1MF Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere Packing information P0 P1 unit:mm d E Item F B A Symbol Tolerance A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 SMAF W P D2 T D1 C W1 D Carrier width Carrier length Carrier depth Sprocket hole 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width 2.80 4.75 1.42 1.50 178.00 54.40 13.00 1.75 5.05 4.00 4.00 2.00 0.30 8.00 12.30 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE SMAF REEL SIZE 7" REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) APPROX. GROSS WEIGHT (kg) 3,000 4.0 6,000 210*208*203 178 400*265*400 120,000 10.0 Suggested Pad Layout Symbol Unit (mm) Unit (inch) A 1.8 0.071 B 1.6 3.8 0.150 D 2.2 0.087 E 5.4 0.213 C http://www.microdiode.com 0.063 Rev:2024A2 Page :3
