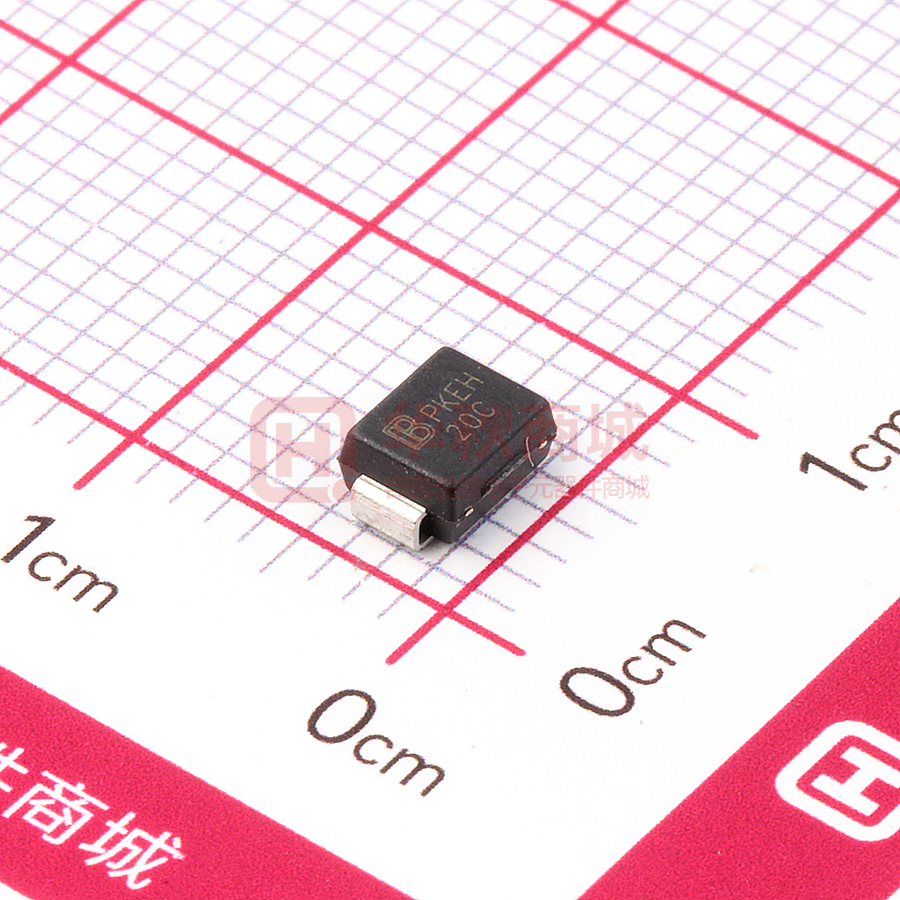

P6SMB20CA/TR13

P6SMB SERIES Transient Voltage Suppressors (TVS) Data Sheet Features ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ For surface mounted applications in order to optimize board space Low profile package Built-in strain relief Glass passivated junction Low inductance Excellent clamping capability 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.01% Fast response time Typical IR less than 1μA above 12V High Temperature soldering: 260℃/10 seconds at terminals Plastic package has underwriters laboratory flammability 94V-0 ■ Meets MSL level 1, per J-STD-020 ■ Safety certification: UL: E244458 ■ IEC61000-4-2 ESD 30KV Air, 30KV contact compliance Mechanical Data ■ ■ ■ ■ ■ Case: JEDEC DO-214AA. Molded plastic over glass passivated junction Terminal: Tin plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode except bi-directional models Standard Packaging: 12mm tape (EIA STD RS-481) Weight: 0.10g Applications ■ I/O interface ■ AC/DC power supply ■ Low frequency signal transmission line (RS232, RS485, etc.) Maximum Ratings and Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Rating Symbol Value Units Peak pulse power dissipation at 10/1000μs waveform (Note1, Note2, Fig.1) PPPM Minimum 600 Watts Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table Amps PM(AV) 5.0 Watts IFSM 100 Amps TJ,TSTG -55 to +150 ℃ Typical thermal resistance junction to lead RθJL 20 ℃/W Typical thermal resistance junction to ambient RθJA 100 ℃/W Steady state power dissipation at TA=50℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note3, Fig.6) Operating junction and Storage Temperature Range. Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig.2. 2. Mounted on 5.0mm×5.0mm (0.03mm thick) copper pads to each terminal. 3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum. Revision:TVS-P6SMB SERIES-001(A3) 1/7 http://brightking.yageo.com P6SMB SERIES Dimensions (SMB/DO-214AA) Millimeters Cathode Band D1 D L H1 H d Inches Symbol T1 T Min. Max. Min. Max. L 4.06 4.57 0.160 0.180 D 3.30 3.94 0.130 0.155 D1 1.95 2.20 0.077 0.086 T 5.21 5.59 0.205 0.220 T1 0.76 1.52 0.030 0.060 d - 0.203 - 0.008 H 2.15 2.65 0.085 0.104 H1 2.13 2.47 0.084 0.097 Electrical Characteristics (TA=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) P6SMB6.8A P6SMB6.8CA 6V8A 6V8C 5.80 6.45~7.14 10 10.5 58.1 1000 P6SMB7.5A P6SMB7.5CA 7V5A 7V5C 6.40 7.13~7.88 10 11.3 54.0 500 P6SMB8.2A P6SMB8.2CA 8V2A 8V2C 7.02 7.79~8.61 10 12.1 50.4 200 P6SMB9.1A P6SMB9.1CA 9V1A 9V1C 7.78 8.65~9.55 1 13.4 45.5 50 P6SMB10A P6SMB10CA 10A 10C 8.55 9.50~10.50 1 14.5 42.1 10 P6SMB11A P6SMB11CA 11A 11C 9.40 10.50~11.60 1 15.6 39.1 5 P6SMB12A P6SMB12CA 12A 12C 10.20 11.40~12.60 1 16.7 36.5 5 P6SMB13A P6SMB13CA 13A 13C 11.10 12.40~13.70 1 18.2 33.5 1 P6SMB15A P6SMB15CA 15A 15C 12.80 14.30~15.80 1 21.2 28.8 1 P6SMB16A P6SMB16CA 16A 16C 13.60 15.20~16.80 1 22.5 27.1 1 P6SMB18A P6SMB18CA 18A 18C 15.30 17.10~18.90 1 25.2 24.2 1 P6SMB20A P6SMB20CA 20A 20C 17.10 19.00~21.00 1 27.7 22.0 1 P6SMB22A P6SMB22CA 22A 22C 18.80 20.90~23.10 1 30.6 19.9 1 P6SMB24A P6SMB24CA 24A 24C 20.50 22.80~25.20 1 33.2 18.4 1 P6SMB27A P6SMB27CA 27A 27C 23.10 25.70~28.40 1 37.5 16.3 1 P6SMB30A P6SMB30CA 30A 30C 25.60 28.50~31.50 1 41.4 14.7 1 P6SMB33A P6SMB33CA 33A 33C 28.20 31.40~34.70 1 45.7 13.3 1 Revision:TVS-P6SMB SERIES-001(A3) 2/7 http://brightking.yageo.com P6SMB SERIES Electrical Characteristics (TA=25℃) Part Number Device Marking Code Reverse Stand-Off Voltage Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VRWM Unidirectional Bidirectional UNI BI VRWM(V) VBR(V) IT(mA) VC(V) IPP(A) IR(μA) P6SMB36A P6SMB36CA 36A 36C 30.80 34.20~37.80 1 49.9 12.2 1 P6SMB39A P6SMB39CA 39A 39C 33.30 37.10~41.00 1 53.9 11.3 1 P6SMB43A P6SMB43CA 43A 43C 36.80 40.90~45.20 1 59.3 10.3 1 P6SMB47A P6SMB47CA 47A 47C 40.20 44.70~49.40 1 64.8 9.4 1 P6SMB51A P6SMB51CA 51A 51C 43.60 48.50~53.60 1 70.1 8.7 1 P6SMB56A P6SMB56CA 56A 56C 47.80 53.20~58.80 1 77.0 7.9 1 P6SMB62A P6SMB62CA 62A 62C 53.00 58.90~65.10 1 85.0 7.2 1 P6SMB68A P6SMB68CA 68A 68C 58.10 64.60~71.40 1 92.0 6.6 1 P6SMB75A P6SMB75CA 75A 75C 64.10 71.30~78.80 1 103.0 5.9 1 P6SMB82A P6SMB82CA 82A 82C 70.10 77.90~86.10 1 113.0 5.4 1 P6SMB91A P6SMB91CA 91A 91C 77.80 86.50~95.50 1 125.0 4.9 1 P6SMB100A P6SMB100CA 100A 100C 85.50 95.00~105.00 1 137.0 4.5 1 P6SMB110A P6SMB110CA 110A 110C 94.00 105.00~116.00 1 152.0 4.0 1 P6SMB120A P6SMB120CA 120A 120C 102.00 114.00~126.00 1 165.0 3.7 1 P6SMB130A P6SMB130CA 130A 130C 111.00 124.00~137.00 1 179.0 3.4 1 P6SMB150A P6SMB150CA 150A 150C 128.00 143.00~158.00 1 207.0 2.9 1 P6SMB160A P6SMB160CA 160A 160C 136.00 152.00~168.00 1 219.0 2.8 1 P6SMB170A P6SMB170CA 170A 170C 145.00 162.00~179.00 1 234.0 2.6 1 P6SMB180A P6SMB180CA 180A 180C 154.00 171.00~189.00 1 246.0 2.5 1 P6SMB200A P6SMB200CA 200A 200C 171.00 190.00~210.00 1 274.0 2.2 1 P6SMB220A P6SMB220CA 220A 220C 185.00 209.00~231.00 1 328.0 1.9 1 P6SMB250A P6SMB250CA 250A 250C 214.00 237.00~263.00 1 344.0 1.8 1 P6SMB300A P6SMB300CA 300A 300C 256.00 285.00~315.00 1 414.0 1.5 1 P6SMB350A P6SMB350CA 350A 350C 300.00 332.00~368.00 1 482.0 1.3 1 P6SMB400A P6SMB400CA 400A 400C 342.00 380.00~420.00 1 548.0 1.1 1 P6SMB440A P6SMB440CA 440A 440C 376.00 418.00~462.00 1 602.0 1.04 1 P6SMB480A P6SMB480CA 480A 480C 408.00 456.00~504.00 1 658.0 0.9 1 P6SMB510A P6SMB510CA 510A 510C 434.00 485.00~535.00 1 698.0 0.9 1 P6SMB530A P6SMB530CA 530A 530C 450.00 503.50~556.50 1 725.0 0.8 1 P6SMB540A P6SMB540CA 540A 540C 459.00 513.00~567.00 1 740.0 0.8 1 P6SMB550A P6SMB550CA 550A 550C 467.00 522.50~577.50 1 760.0 0.8 1 P6SMB600A P6SMB600CA 600A 600C 510.00 570.00~630.00 1 828.0 0.75 1 Revision:TVS-P6SMB SERIES-001(A3) 3/7 http://brightking.yageo.com P6SMB SERIES Ratings and Characteristic Curves (T A=25℃ unless otherwise noted) Figure 1. Peak Pulse Power Rating Curve Figure 2. Pulse Derating Curve Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % PPPM - Peak Pulse Power (kW) 100 10 1 0.2×0.2″(5.0×5.0mm) Copper Pad Area 0.1 1 100 10 1000 100 80 60 40 20 0 0 td-Pulse Width (µs) 100 1 td 2.0 3.0 Bi-directional @VR 4.0 TJ=25℃ f=1.0MHz Vsig=50mVp-p 1 6 5 4 3 2 1 0 25 50 75 100 125 150 175 1000 120 100 80 60 40 20 0 1 10 100 Number of Cycles at 60Hz TA-Ambient Temperature (℃) Revision:TVS-P6SMB SERIES-001(A3) 100 Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only IFSM - Peak Forward Surve Current (A) PM(AV), Steady State Power Dissipation (W) Figure 5. Steady State Power Dissipation Derating Curve 10 VBR-Reverse Breakdown Voltage (V) t-Time (ms) 0 175 Uni-directional V=0V 10 10/1000µs Waveform as defined by R.E.A 1.0 150 Uni-directional @VR Cj (pF) IPPM - Peak Pulse Current, %IRSM 1000 50 0 125 Bi-directional V=0V Half Value IPPM (IPPM/2) 0 100 10000 Peak Value IPPM 100 75 Figure 4. Typical Junction Capacitance TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM tr=10µs 50 TA-Ambient Temperature (℃) Figure 3. Pulse Waveform 150 25 4/7 http://brightking.yageo.com P6SMB SERIES Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (tS) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) 20-40 seconds Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature Revision:TVS-P6SMB SERIES-001(A3) 8 minutes max. 5/7 http://brightking.yageo.com P6SMB SERIES Marking Code Cathode Band YXXX YXXX 6V8A Logo 6V8C Internal control code Logo Marking Code Internal control code Marking Code Part Number Code P6SMB XXX C A / XXXX Package Code TR7:7 inch reel package TR13:13 inch reel package 5% VBR Voltage Tolerance Bidirectional VBR Voltage Series Code Ordering Code for Different Package 7 inch reel package: Add suffix “ /TR7” at the end of the part number, such as P6SMBXXXCA/TR7 13 inch reel package: Add suffix “ /TR13” at the end of the part number, such as P6SMBXXXCA/TR13 Revision:TVS-P6SMB SERIES-001(A3) 6/7 http://brightking.yageo.com P6SMB SERIES Packaging Tape P0 P1 P2 D0 B T E F W B0 D1 A A K0 B SECTION B-B Symbol Dimension (mm) W 12.00±0.20 P0 4.00±0.10 P1 8.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ1.5±0.10 E 1.75±0.10 F 5.50±0.10 A0 3.86±0.15 B0 5.65±0.10 K0 2.75±0.15 T 0.25±0.05 D2 Φ178.0±2.0 D3 Φ50.0Min. D4 Φ13.0±0.5 W1 16.0±2.0 A0 SECTION A-A 7” Reel D4 D3 D2 W1 Quantity: 500PCS 13” Reel D5 Φ330.0±2.0 D6 Φ13.5±0.5 H 2.5±1.0 W2 16.0±2.0 Quantity: 3000PCS Revision:TVS-P6SMB SERIES-001(A3) 7/7 http://brightking.yageo.com
