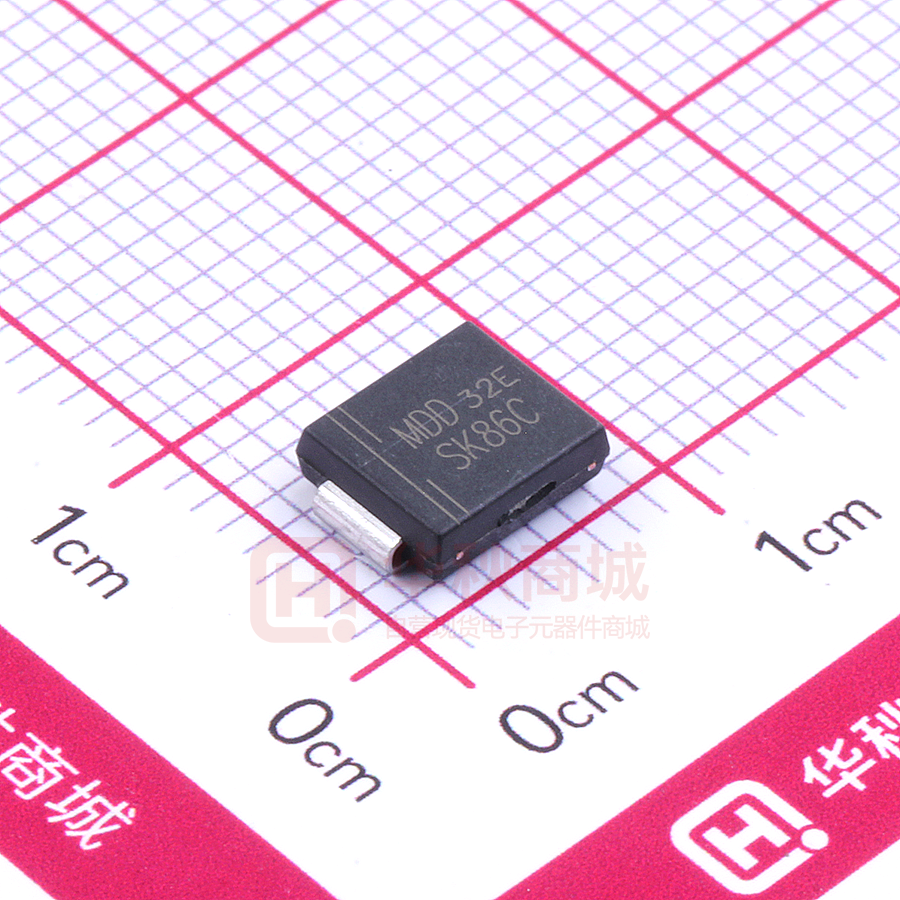

SK82C THRU SK810C Reverse Voltage - 20 to 100 Volts Forward Current - 8.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features DO-214AB/SMC  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  For surface mounted applications  Metal silicon junction,majority carrier conduction  Low power loss,high efficiency 0.245(6.22) 0.220(5.59) 0.126 (3.20) 0.114 (2.90)  Built-in strain relief,ideal for automated placement 0.280(7.11) 0.260(6.60)  High forward surge current capability  High temperature soldering guaranteed: 0.012(0.305) 0.006(0.152) 250 °C/10 seconds at terminals 0.103(2.62) 0.079(2.06) 0.060(1.52) 0.030(0.76) Mechanical Data 0.008(0.203)MAX. 0.320(8.13) 0.305(7.75) Case: JEDEC DO-214AB/SMC molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight : 0.0077 ounce, 0.22 grams Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS MDD SK82C VRRM 20 30 35 40 45 60 80 100 VRMS VDC 14 20 21 30 24.5 35 28 40 31.5 45 42 60 56 80 70 100 Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current MDD MDD MDD MDD SK83C SK835C SK84C SK845C MDD SK86C MDD SK88C MDD SK810C UNITS V V V I(AV) 8.0 A IFSM 150 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 8.0A Maximum DC reverse current at rated DCblocking voltage TA=25℃ TA=100℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range VF 0.55 0.45 1.0 IR CJ RJA 0.85 0.70 mA 50 900 35 V 600 pF ℃/W TJ -55 to +150 ℃ TSTG -55 to +150 ℃ Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 2.0”x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A2 Page :1 SK82C THRU SK810C Reverse Voltage - 20 to 100 Volts Forward Current - 8.0 Ampere Typical Characterisitics Fig.2 Typical Reverse Characteristics Fig.1 Forward Current Derating Curve Instaneous Reverse Current ( μA) 12.0 Average Forward Current (A) 10.0 8.0 6.0 7.0 2.0 0.0 25 75 50 100 125 10 4 10 3 10 2 TJ=100°C 101 TJ=25°C 0 10 150 0 Case Temperature (°C) 60 80 100 Fig.4 Typical Junction Capacitance TJ=25°C 20 1000 10 Junction Capacitance (pF) 500 1 SK82C SK84C SK86C SK88C/SK820C 0.1 0 0.5 1.0 1.5 100 SK82C/SK84C SK82C/SK820C 20 10 0.1 2.0 W） °C / 175 150 125 100 75 50 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 Number of Cycles at 60Hz 100 Transient Thermal Impedance（ 200 1 10 100 Fig.6- Typical Transient Thermal Impedance Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 25 1 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Instaneous Forward Current (A) TJ=75°C 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 SK82C THRU SK810C Reverse Voltage - 20 to 100 Volts Forward Current - 8.0 Ampere Packing information unit:mm P0 Item Symbol Tolerance SMC Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width A B C d D D1 D2 E F P P0 P1 T W Reel width W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 6.15 8.41 2.42 1.50 330.00 50.00 13.00 1.75 7.50 8.00 4.00 2.00 0.25 16.00 16.50 P1 d E F B A W P D2 T D1 C W1 D Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (mm) SMC 13" 3,000 4.0 BOX (pcs) 6000 INNER BOX (mm) REEL DIA, (mm) 190*190*41 330 CARTON SIZE (mm) CARTON (pcs) 365*365*340 42000 APPROX. GROSS WEIGHT (kg) 14.0 Suggested Pad Layout http://www.microdiode.com Unit (inch) Symbol Unit (mm) A 4.3 0.170 B 0.160 C 4.1 7.9 0.311 D 3.8 0.150 E 12 0.472 Rev:2024A2 Page :3
