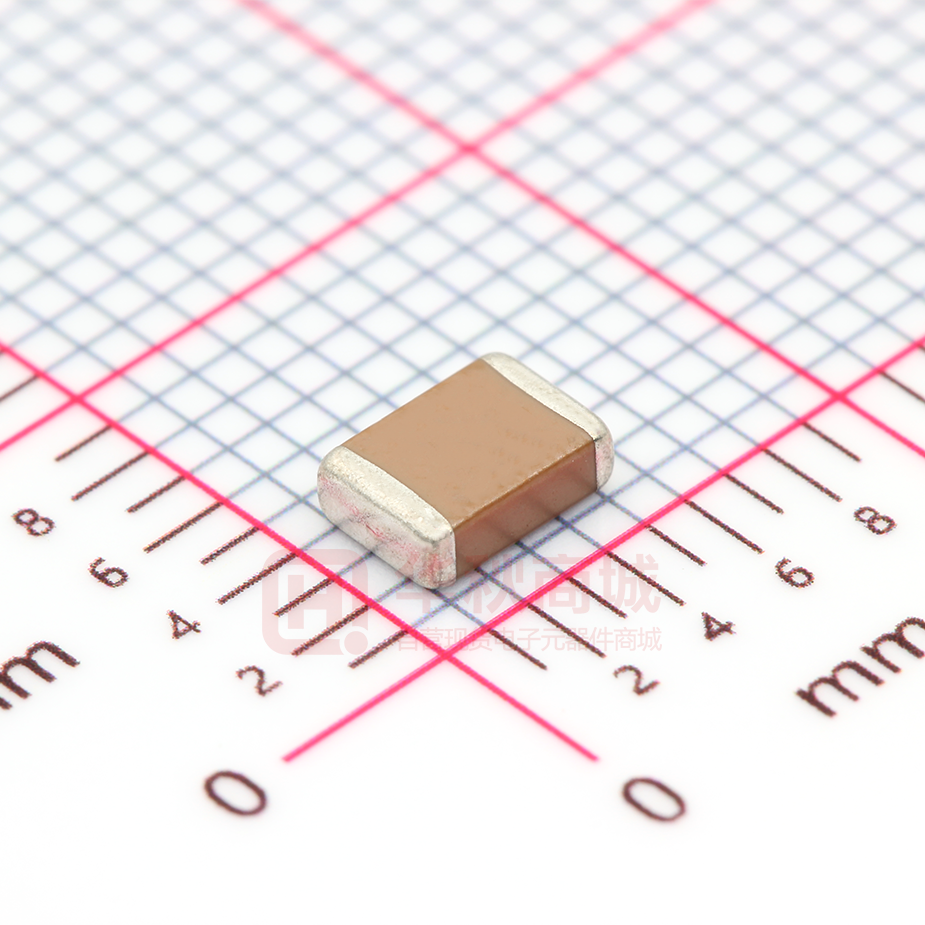

FS43X335K101EGG

信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. No.566-1, Kaoshi Rd., Yangmei, Taoyuan 32668, Taiwan (R.O.C.) Tel : 886-3-4753355 Fax : 886-3-4854959 Messrs. : Date : 一般共用 2020/11/02 APPROVAL SHEET Product Name : High Capacitance Multilayer Ceramic Chip Capacitors Part No. : FS Series Description : Size≤2225, X7R/X7S/X6S/X5R/Y5V, Cap.≥1μF, UR1μF products or 0603/Cap.≥10μFSIZE S/B thickness ±0.2mm products. “#3” For 1206 size P thickness products. “#4” 1206/100V/Cap.≥1.2μF products 6. GENERAL ELECTRICAL DATA Dielectric X7R X7S X6S X5R Y5V 0402, 0603, 0805, 0201, 0402, 0603, 0201, 0402, 0603, 0402, 0603, 0805, 1206, 1210 0805, 1206, 1210 0805, 1206, 1210 1206, 1210, 1812 6.3V, 10V, 16V, 25V, 6.3V, 10V, 16V, 25V, 4V, 6.3V, 10V, 16V, 6.3V, 10V, 16V, 25V, 50V, 100V 35V, 50V 25V, 35V, 50V 35V, 50V, 100V 1μF to 100μF 1μF to 100μF 1μF to 220μF 1μF to 100μF K(±10%), M(±20%) K(±10%), M(±20%) K(±10%), M(±20%) Z(-20/+80%) -55 to +125°C -55 to +125°C -55 to +105°C -55 to +85°C -25 to +85°C ±15% ±22% ±22% ±15% +30/-80% 0402, 0603, 0805, Size 1206, 1210, 1812, 1825, 2220, 2225 6.3V, 10V, 16V, 25V, Rated voltage (WVDC) 50V, 100V, 250V, 500V, 630V Capacitance range* Capacitance tolerance** 1μF to 47μF J(±5%)K(±10%), M(±20%) Tan δ* Note 1 Operating temperature Capacitance characteristic Termination Cu or Ag/Ni/Sn or Au (lead-free termination) * Measured at the condition of 30~70% related humidity. X7R/X7S/X6S/X5R : Apply 1.0±0.2Vrms, 1.0KHz±10% for Cap.≤10μF; 0.5±0.2Vrms, 120Hz±20% for Cap.>10µF, at 25°C ambient temperature. Y5V : Apply 1.0±0.2Vrms, 1.0KHz±10% for Cap.≤10μF; 0.5±0.2Vrms, 120Hz±20% for Cap.>10µF, at 20°C ambient temperature. ** Preconditioning for Class II MLCC : Perform a heat treatment at 150±10°C for 1 hour, then leave in ambient condition for 24±2 hours before measurement. Note 1 : X7R/X7S/X6S/X5R Rated D.F.≤ ≥100V ≤2.5% 50V ≤2.5% 35V ≤3.5% 25V ≤3.5% 16V ≤3.5% 10V ≤5% 6.3V ≤10% 4V ≤15% Exception of D.F.≤ ≤3.5% 1206≥0.47μF, 1812≥4.7μF, 1825≥4.7μF, 2220≥4.7μF, 2225≥4.7μF ≤5% 0603≥0.068μF, 0805>0.1µF, 1206>1μF, 1210≥2.2μF ≤10% 0805>0.22µF, 1210≥3.3μF 0201(50V), 0603≥0.047μF, 0805≥0.18μF, 1206≥0.47μF, ≤3.5% 1210≥2.2μF, 1812≥4.7μF, 1825≥4.7μF, 2220≥4.7μF, 2225≥4.7μF ≤5% 0201≥0.01uF, 1210≥4.7μF ≤10% 0402≥0.012μF, 0603>0.1μF, 0805≥1μF, 1206≥2.2μF, 1210≥10μF ≤10% 0603≥1μF, 0805≥2.2µF, 1206≥2.2μF, 1210≥10μF ≤5% 0201≥0.01μF, 0805≥1μF, 1210≥10μF ≤7% 0603≥0.33μF, 0201≥0.1μF, 0402≥0.056μF, 0603≥0.47μF, 0805≥2.2μF, ≤10% 1206≥2.2μF, 1210≥22μF ≤12.5% 0402≥0.47μF 0201≥0.01μF, 0402≥0.033μF, 0603≥0.15μF, 0805≥0.68μF, ≤5% 1206≥2.2μF, 1210≥4.7μF 0201≥0.1uF(0201/X7R≥0.022μF), 0402≥0.22uF, 0603≥0.15μF, ≤10% 0805≥2.2μF, 1206≥4.7μF, 1210≥22μF 0201≥0.012μF, 0402≥0.33μF(0402/X7R≥0.22μF), 0603≥0.33μF, ≤10% 0805≥2.2μF, 1206≥2.2μF, 1210≥22μF ≤15% 0201≥0.1μF, 0402≥1μF, 0603≥10μF 0201≥0.1μF, 0402≥1μF, 0603≥10μF, 0805≥4.7μF, 1206≥47μF, ≤15% 1210≥100μF ≤20% 0402≥2.2μF ----- Y5V Rated D.F.≤ ≥50V ≤5% 35V ≤7% Exception of D.F.≤ ≤7% --≤7% 25V ≤5% ≤9% 16V ≤7% (C10µF, 0.5±0.2Vrms, 120Hz±20%. ** Test condition : 0.5±0.2Vrms, 1KHz±10%. X7R: 0805=106(6.3V), 0603/475(6.3V) X5R: 0201≧224 (6.3V,10V,16V)#1, 0402≧475 (6.3V,16V), 0402≧225(10V), 0603=106 (6.3V) TT18X≧475(10V) , TT15X series X6S: 0201/474(4V),0201≧104 (6.3V,10V#1), Q/D.F. 3. (Tangent Of loss angle) 0402≧225 (6.3V), 0402/475 (10V), 0603/106 (6.3V), X7S: 0402/225(6.3V) #1 Excluding Exception of D.F.≤ 1206≥0.47μF, 1812≥4.7μF, 1825≥4.7μF, 2220≥4.7μF, ≤3.5% 2225≥4.7μF ≤5% 0603≥0.068μF, 0805>0.1µF, 1206>1μF, 1210≥2.2μF ≤10% 0805>0.22µF, 1210≥3.3μF 0201(50V), 0603≥0.047μF, 0805≥0.18μF, ≤3.5% 1206≥0.47μF, 1210≥2.2μF, 1812≥4.7μF, 1825≥4.7μF, 2220≥4.7μF, 2225≥4.7μF ≤5% 0201≥0.01uF, 1210≥4.7μF 0402≥0.1μF, 0603>0.1μF, 0805≥1μF, 1206≥2.2μF, ≤10% 1210≥10μF ≤10% 0603≥1μF, 0805≥2.2µF, 1206≥2.2μF, 1210≥10μF ≤5% 0201≥0.01μF, 0805≥1μF, 1210≥10μF ≤7% 0603≥0.33μF 0201≥0.1μF, 0402≥0.10μF, 0603≥0.47μF, ≤10% 0805≥2.2μF, 1206≥2.2μF, 1210≥22μF ≤12.5% 0402≥0.47μF 0201≥0.01μF, 0402≥0.033μF, 0603≥0.15μF, ≤5% 0805≥0.68μF, 1206≥2.2μF, 1210≥4.7μF 0201≥0.1uF(0201/X7R≥0.022μF), 0402≥0.22uF, ≤10% 0603≥0.68μF, 0805≥2.2μF, 1206≥4.7μF, 1210≥22μF 0201≥0.012μF, 0402≥0.33μF(0402/X7R≥0.22μF), ≤10% 0603≥0.33μF, 0805≥2.2μF, 1206≥2.2μF, 1210≥22μF ≤15% 0201≥0.1μF, 0402≥1μF 0201≥0.1μF, 0402≥1μF, 0603≥10μF, 0805≥4.7μF, ≤15% 1206≥47μF, 1210≥100μF ≤20% 0402≥2.2μF ----- * Y5V X5R/0201/105(6.3V);225(10V), Rated Vol. D.F.≤ X6S/0201/104(10V) (1.0±0.2Vrms，1KHz±10%) ≥50V Exception of D.F.≤ ≤7% 0603≥0.1μF, 0805≥0.47μF, 1206≥4.7μF ≤12.5% 1210≥6.8μF 35V ≤7% ----0402≥0.047μF, 0603≥0.1μF, 0805≥0.33μF, ≤7% 1206≥1μF, 1210≥4.7μF ≤5% *Before initial measurement (Class II only) : To 25V 0402≥0.068μF, 0603≥0.47μF, 1206≥4.7μF, ≤9% 1210≥22μF apply de-aging at 150°C for 1hr then set for 24±2 ≤9% 0402≥0.068μF, 0603≥0.68μF 16V hrs at room temp. ≤7% (C100V ≤50V X7R 100V Capacitance C≥0.1µF C≥0.022µF C≥0.1µF C≥0.22µF C≥0.47µF C≥0.082µF C≥1.0µF C≥2.2µF C≥4.7µF C≥0.47µF C≥0.12µF C≥4.7µF C≥1.0µF C≥1.0µF C≥0.22µF C≥4.7µF C≥1.0µF X7R C≥1.0µF ≥100V (6) 120% of rated voltage for below range : Size 2220 Dielectric X7R Rated Voltage ≥100V Capacitance C≥15µF * Test time : 1000 +24/-0 hrs. * Before initial measurement (Class II only) : To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp. * Measurement to be made after keeping at room temp. for 48±4 hrs (Class II). ** De-rating conditions : Specification No. : FS-000-001-22 ~ 10 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 8. RELIABILITY TEST CONDITIONS AND REQUIREMENTS No. Item Test Condition Requirements * Capacitors mounted on a substrate. A force of 5N(≤0603) or 10N(>0603) applied perpendicular to the place of substrate and parallel the line joining Adhesive the center of terminations for 10±1 second. Strength of 13. Termination * No remarkable damage or removal of the terminations. (Robustness of termination) * The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1mm per second until the deflection becomes 1mm. * No remarkable damage. Resistance to Flexure of 14. Substrate (Substrate Dielectric Cap. Change X7R/X7S/X6S/X5R Within ±12.5% Y5V Within ±30% (This capacitance change means the change of capacitance under bending test) specified flexure of substrate from the capacitance measured before the test) Unit : mm * Vibration frequency : 10~55 Hz/min. * Total amplitude : 1.5mm. * Test time : 6 hrs. (Two hrs each in three mutually 15. Vibration Resistance perpendicular directions) * Before initial measurement (Class II only) : To apply de-aging at 150°C for 1hr then set for 24±2 hrs at * No remarkable damage. * Cap. change and D.F. : To meet initial spec. room temp. * Measurement to be made after keeping at room temp. for 48±4 hrs (Class II). Specification No. : FS-000-001-22 ~ 11 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 9. PACKAGE DIMENSION AND QUANTITY Size 0201(0603) 0402(1005) 0603(1608) 0805(2012) 1206(3216) 1210(3225) 1808(4520) 1812(4532) 1825(4563) 2220(5750) 2225(5763) Thickness (mm) 0.30±0.03 0.30±0.05 0.30±0.09 0.50±0.05 0.50 +0.02/-0.05 0.50±0.20 0.50±0.10 0.80±0.07 0.80 +0.15/-0.10 0.50±0.10 0.60±0.10 0.80±0.10 0.85±0.10 1.25±0.10 1.25±0.20 0.80±0.10 0.85±0.10 0.95±0.10 1.15±0.15 1.25±0.10 1.60±0.20 1.60 +0.30/-0.10 0.85±0.10 0.95±0.10 1.25±0.10 1.60±0.20 2.00±0.20 2.50±0.30 1.25±0.10 1.60±0.20 2.00±0.20 1.25±0.10 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 1.60±0.20 2.00±0.20 2.50±0.30 2.80±0.30 Paper tape 7” reel 15k 15k 15k 10k 10k 10k 4k 4k 4k 4k 4k 4k 4k 4k 4k - Plastic tape 13” reel 70k 50k 50k 15k 15k 15k 15k 15k 15k 15k 15k - 7” reel 3k 3k 3k 3k 3k 2k 2k 3k 3k 3k 2k 1k 1k 2k 2k 1k 1k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k 1k 1k 0.5k 0.5k 13” reel 10k 10k 10k 10k 10k 10k 9k 10k 10k 10k 6k 6k 10k 8k 6k 5k 3k Unit : pcs Specification No. : FS-000-001-22 ~ 12 ~ DCM-003-8.3 Rev 2 信昌電子陶瓷股份有限公司 Prosperity Dielectrics Co., Ltd. 9. PACKAGE DIMENSION AND QUANTITY 9.1. EMBOSSED TAPE DIMENSIONS Fig. 9.1 The dimension of paper tape Size Chip Thickness A0 B0 T K0 W P0 10xP0 P1 P2 D0 D1 E F Unit : 0201 0402 0.50±0.05 0.50±0.10 0.70±0.20 1.20±0.20 ≤0.80 8.00±0.10 4.00±0.10 40.00±0.10 2.00±0.05 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm 0.30±0.03 0.39±0.07 0.69±0.07 ≤0.50 8.00±0.10 4.00±0.10 40.00±0.10 2.00±0.05 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm Size Fig. 9.2 The dimension of plastic tape 0603 0.80±0.07 0.80 +0.15/-0.1 0.80±0.10 1.00 +0.05/-0.1 1.80±0.10 0.95±0.05 8.00±0.10 4.00±0.10 40.00±0.20 4.00±0.10 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm 1.02 +0.05/-0.1 1.80±0.10 0.97±0.05 8.00±0.10 4.00±0.10 40.00±0.20 4.00±0.10 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm 1.50±0.10 2.30±0.10 0.95±0.05 8.00±0.10 4.00±0.10 40.00±0.20 4.00±0.10 2.00±0.05 1.55±0.05 1.75±0.05 3.50±0.05 mm 1206 Chip Thickness 0.80±0.10 A0 B0 T K0 W P0 10xP0 P1 P2 D0 D1 E F Unit : 2.00±0.10 3.50±0.10 0.95±0.05 8.00±0.10 4.00±0.10 40.00±0.20 4.00±0.10 2.00±0.05 1.55±0.05 1.75±0.10 3.50±0.05 mm 0805 1210 0.95±0.10 1.25±0.10 1.60±0.20 1.60+0.3/-0/1
