V-Series
Sealed Rocker Switches
P ROD UC T WE BP A GE
request sample, configure part, watch video

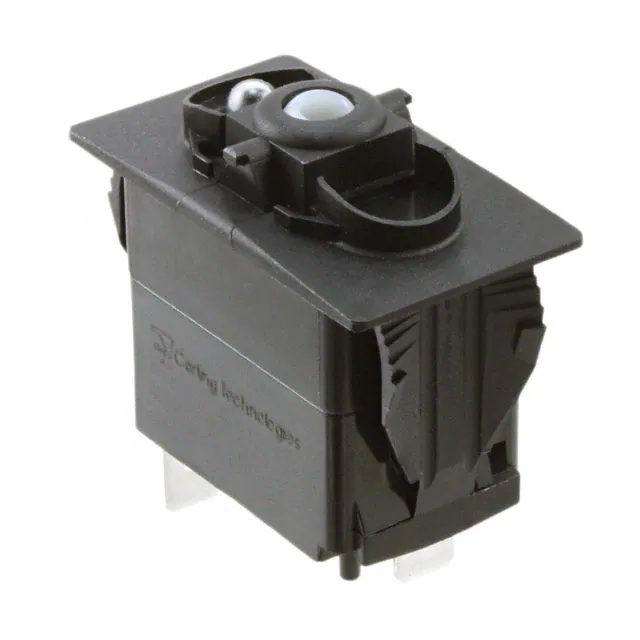

Contura® IP66/68 Snap-In Mounted Switches
These switches are a staple in the marine and
transportation industries and have passed a range of
environmental, corrosion, temperature, vibration, shock
and sealing tests including MIL Std 202F, MIL Std 510.1, UL
1500, ISO 8846, IEC 60529 and BS 5490 among others,
making them one of the most rugged and reliable
switches ever manufactured.
1-2
Poles
.4-20
Amps
125-250
VAC
Typical Applications
∙ On/Off-Highway
∙ Marine
www.carlingtech.com
∙ Armoured Vehicles
∙ Mining Machinery
860.793.9281
∙ Any Application Requiring
Sealing Protection
sales@carlingtech.com
12-24
VDC
Design Features
INTERCHANGEABLE ACTUATORS
Panel redesign is a snap with our
wide range of rocker styles. Achieve
maximum design variety with
minimum inventory. Simply swap
rockers to create an entirely new look
for your panel.
OPTIONAL PANEL SEAL
Helps prevent water/
dust ingress behind
panel.
2.
DUAL SEAL PROTECTION
Seals out water, dust, debris,
and sealed to IP66/68 for
above-panel components
MULTIPLE LIGHTING OPTIONS
In addition to Incandescent
lamps, our LED illumination
is offered in a wide array of
light intensities, colors, as
well as dual level, tri-color,
and flashing options.
CLEAN CONNECTIONS
Options for both eight and
ten terminal base styles with
AMP & Packard compatible
connectors affords myriad
circuit options while
providing ease of assembly.
BRASS ROLLER PIN
Robust mechanism
eliminates the need for
lubricants. Enables switch
to withstand -40°C to
+85°C temperatures.
SILVER PLATED BUTT
CONTACT MECHANISM
Providing 50k to 100k
electrical cycles,
circuit and load
dependent
Actuator Options & Accessories
Contura II & III
Contura X
constructed of thermoplastic
Contura X helps prevent inadvertent
The Contura II & III actuators are
polycarbonate and are offered with
a hard nylon overlay or a “soft-touch”
elastomer overlay. These models
incorporate aesthetic designs on
the top and bottom of the rocker
featuring two rows of raised “bumps”
The raised bracket/bezel on the
actuation of the rocker, as well as
preventing debris from being trapped
under the actuator. This curved rocker
style is available with a variety of
lenses and legends.
on the Contura II and three “indented”
lines on the Contura III.
Contura IV
Contura XI
a Shape” actuator works with the
Contura XI helps prevent inadvertent
The Contura IV’s “Shape to create
curves, contours & advanced styling
of the latest panel designs, flowing
with these advanced curves & radii.
This actuator style fits on the Contura
flush bracket/bezel.
The raised bracket/bezel on the
actuation of the rocker, as well as
preventing debris from being trapped
under the actuator. This convex style
rocker is available with a wide variety of
lenses and legends.
Contura V
Contura XII
V actuator provides the perfect
paddle style actuator with the raised
“Shape to create a Shape” design
contoured handle design provides
bracket, Contura V can be mounted in
operation and is available with all
in groups.
offerings.
The symmetrically curved Contura
The Contura XII version features a
complement to the Contura IV’s
bracket/bezel of Contura X and XI. The
concept. With its flush style mounting
intuitive recognition and ease of
between two Contura IV’s, by itself, or
Contura X and XI lens and legend
Contura VI (WAVE)
Contura XIV
switches, when used in a row, create
crossover rocker design which should
The Contura VI WAVE sealed rocker
an uniquely appealing “wave” design
on your panel. A variety of colors and
finishes are available for both rocker
and wave insert. Contura VI features
bar and oval lenses.
The Contura XIV represents a sleek new
appeal to Trucks, Buses and Heavy
Vehicles as well as the Marine Industry.
Intuitive feel is provided by recessed
ridges along with a Center Groove
which effectively defines the boundary
between top and bottom switch
functions.
Contura VII
Contura VII featuring gently curved
corners and edges assuring
compatibility with most any panel
design. Intuitive feel is maximized
by the use of 2 embossed circular
pads located at opposite ends of
the rocker. Any combination of Bar
or Oval style lenses can be located
in the pads providing a truly unique
look, exclusive to Contura VII.
3.
Illuminated Indicators &
Accessories
Alert operator of systems functions or
malfunctions, are offered with removable/
replaceable lamps in Contura II, II, V or X styles.
Accessories include connectors, mounting
panels, hole plugs, panel seals, and actuator
removal tools. Refer to accessories page for
full details
Tech Specs
Electrical
Contact Rating
Environmental
4VA @ 24VDC (MAX) resistive
15 amps, 125VAC
10 amps, 250VAC
1/2 HP 125-250VAC
20 amps, 4-14VDC
15 amps, 15-28VDC
10A, 14VT
6A, 125VAC L
Sealing
IP66/68, for above-panel
components of actual switch
only.
Corrosion
Mixed Flowing Gas (MFG) Class III
3 year accelerated exposure per
ASTM B-827, B-845 Silver and gold
contacts
Dielectric Strength
1500 Volts RMS
Operating Temp
-40°C to +85°C
Insulation Resistance
50 Megohms
Vibration 1
Initial Contact Resistance
10 milliohms max. @ 4VDC
Life
Up to 100,000 cycles, circuit
and load dependent
Per Mil-Std 202F, Method 204D
Test Condition A 0.06 DA or
10G’s 10-500 Hz. Tested with VCH
connector. Test criteria - No loss
of circuit during test, pre and post
test contact esistance.
Contacts
Silver alloy, silver tin-oxide, fine
silver
Vibration 2
Terminals
Brass or copper/silver plate
1/4” (6.3mm) Quick Connect
terminations standard. Solder lug,
Wire Lead
Resonance search24-50 Hz
0.40 DA50-2000 Hz ±10 G’s peak
Horizontal Axis 3-5 G’s max.
Random 24 Hz 0.06 PSD-Gsq/Hz
60 Hz 0.50 100 Hz 0.50 200 Hz 0.025
2000 Hz 0.025 No loss of circuit
during test;
Browse Standard Parts >
Ordering Scheme
V
Sample
Part Number
1 D A S W 0 B - A Z E 00 - 0
1
Selection
2
3
4
5
6
V-Series
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position: 1 2 3
SP DP
2 & 3, 5 & 6 Connected Terminals 1 & 2, 4 & 5
1 A
ON NONE OFF
4 D
ON NONE ON
6 J
ON OFF ON
7 K
ON OFF (ON)
8 L
(ON) OFF (ON)
9 N
OFF NONE ON
SPECIAL CIRCUITS
H*
2 & 3
2 & 3, 5 & 4
5&4
G*
2 & 3, 5 & 6
2 & 3
OFF
S*
2 & 3, 5 & 6
2 & 3
1&2
M*
(2 & 3, 5 & 6)
2 & 3
OFF
R*
(2 & 3, 5 & 6)
2 & 3
2&1
E*
5 & 6
5 & 3
5&1
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified in
selection 4. External jumper between terminals 2 & 4 for circuit E are
provided by customer. Circuit E may be used for SP OFF-ON-ON circuit.
3. RATING
1
B
C
D
E
F
M
N
4
.4VA @ 28VDC Resistive
15A 24V
20A 18V
20A 12V
20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
10A 14V, 6A 14VT (circuit G only)
.4VA/20A 12V
.4VA/15A 24V
9
10
11
5. ILLUMINATION & SWITCH SEALING
3 & 6 end of switch. Positive (+) and negative (-) symbols apply to
LED lamps only
Unsealed
Lamps
S
0
NONE
C
3
2
H
Z
2
DOUBLE POLE SWITCHES ONLY
M
R
1
2
P V
1
2
Illumination Type Lamp wired to Terminals
–
UP
INDEPENDENT
–
3 (+) 7 (–)
8 (+) 7 (–)
UP
DOWN
UP
UP
3 (+) 6 (–)
1 (+) 4 (–)
1 (+) 4 (–)
3 (+) 6 (–)
Lock above terminals 1 & 4 end of switch
W lock
13
Lamp above terminals 3 & 6 end of switch
No lamp
0
Neon 1 125VAC 2 250VAC
Incandescent 4 3V 5 6V 6 12V 7 18V 8 24V
LED*
superbright superbright
Red
Amber
Green
Red
2VDC
A L F R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
8. FLUSH BRACKET COLOR, PANEL SEAL
1
Black White Gray
No Seal B W G
One Seal C Y H
9. HARD SURFACE ACTUATOR
1
Black Gray Red White
Contura II A B G H
Contura III C D E F
Actuator orientation above terminals:
1,4
3,6
10. LENS
Z - No Lens
Clear White Amber Green Red Blue
3
8
D
J
P
V
Lock Color
Match Actuator
Black
White
Red
Safety Orange
1
Up
Down Up & Down Center 3
A H
R
1
B J
S
2
C K
T
3
D L
V
4
E M
W
5
12. ACTUATOR LENS OR BODY LEGENDS
2
00 - No Legend
21
22
23
24
OFF
ON
O
I
25 O
26 O
27 O
28 I
F
N
F
For additional legend options & codes, visit us at www.carlingtech.com
13. LEGEND ORIENTATION
0
1
2
3
4
No legend (used with codes 21-28 in selection 12)
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
Notes: Consult factory to verify horsepower rating for your particular
circuit choice.
1 Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators; Black imprinting
is standard on white, red and gray actuators. Custom colors are
available, consult factory.
3 Only available with 3 position circuits. Center OFF and special
circuits only available with center position lock function.
4 Additional ratings available. See V-Series Switch Accessories page.
Configure Complete Part Number >
6.
12
11. ACTUATOR LOCK FUNCTION AND COLOR
8 term 10 Term Termination
Jumper
1 2
.250 TAB (QC) no barriers
No
A B
.250 TAB (QC) with barriers No
J K
.250 TAB (QC) no barriers
Yes T2 to 5
3 4
Solder Lug no barriers
No
C D
Solder Lug
No
5 6 Wire Leads no barriers
No
E F
Wire Leads
No
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector
assembly, as it is detrimental to function and performance.
6. LOCK
8
Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
4. TERMINATION / BASE STYLE
Sealed
7
7. LAMP
1. SERIES
V
Contura II & III locking
Browse Standard Parts >
Ordering Scheme
Sample
Part Number
Selection
V
1
1 D A B T 0 B - E P C 00 - 0 00
2
3
4
5
6
1. SERIES
V
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position:
1 2 3
SP DP
2 & 3, 5 & 6 Connected Terminals 1 & 2, 4 & 5
1 A
ON NONE OFF
2 B
(ON) NONE OFF
3 C
ON NONE (OFF)
4 D
ON NONE ON
5 F
ON NONE (ON)
6 J
ON OFF ON
7 K
ON OFF (ON)
8 L
(ON) OFF (ON)
SPECIAL CIRCUITS
H*
2 & 3
2 & 3, 5 & 4
5&4
G*
2 & 3, 5 & 6
2 & 3
OFF
S*
2 & 3, 5 & 6
2 & 3
1&2
M*
(2 & 3, 5 & 6)
2 & 3
OFF
R*
(2 & 3, 5 & 6)
2 & 3
2&1
E*
5 & 6
5 & 3
5&1
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified in
selection 4. External jumper between terminals 2 & 4 for circuit E are provided
by customer. Circuit E may be used for SP OFF-ON-ON circuit.
1
B
C
D
E
F
M
N
4
.4VA @ 28VDC Resistive
15A 24V
20A 18V
20A 12V
20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
10A 14V, 6A 14VT (circuit G only)
.4VA/20A 12V
.4VA/15A 24V
4. TERMINATION / BASE STYLE
8 term 10 Term
1 2
A B
J K
3 4
C D
5 6
E F
7.
7
8
9
10
11
12
13
14
6,7. LAMP (SAME CODING FOR BOTH SELECTIONS)
V-Series
3. RATING
Contura IV
Termination
.250 TAB (QC) no barriers
.250 TAB (QC) with barriers
.250 TAB (QC) no barriers
Solder Lug no barriers
Solder Lug
Wire Leads no barriers
Wire Leads
Selection 6: above terminals 1 & 4; Selection 7: above terminals 3 & 6
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent 4 3V
5 6V
6 12V
7 18V
8 24V
LED*
superbright superbright
Red Amber Green Red
2VDC
A
L
F
R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
8. FLUSH BRACKET COLOR, PANEL SEAL
1
Black
White
Gray
No Seal B W G
One Seal
C Y H
9. ACTUATOR
1,4
E
Contura IV, left orientation
T
Contura IV, left orientation, laser etched
F
Contura IV, right orientation
R
Contura IV, right orientation, laser etched
Actuator orientation over terminals:
3,6
10. LENS
0 - No Actuator Z - No Lens
Clear White Amber Green
1
6
8
G
2
7
C
H
3
8
D
J
4
9
E
K
5
A
F
L
Red
M
N
P
R
S
Blue
T
U
V
W
Y
EF
Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
11. ACTUATOR COLOR
Jumper
No
No
Yes T2 to 5
No
No
No
No
No Actuator 0
White
Y
1, 5, 6
Black C
Nickel D
Gray H
Pewter E
12. ACTUATOR LENS OR BODY LEGENDS
Red S
2
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector assembly, as it
is detrimental to function and performance.
11 ON 12 OFF 13 I
14 O
OFF ON O I
15 O O 16 O O 17 O I 18 I O
F N N F
F F
For additional legend options & codes, visit us at www.carlingtech.com
5. ILLUMINATION & SWITCH SEALING
13. LEGENDS ORIENTTATION
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above
terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols
apply to LED lamps only
Sealed Unsealed Lamps Illumination Type Lamp wired to Terminals
S
0
NONE –
–
A
1
1
INDEPENDENT
8 (+) 7 (–)
B
2
1
DOWN
3 (+) 7 (–)
C
3
2
UP
3 (+) 7 (–)
D
4
1
DOWN
3 (+) 7 (–)
2
DOWN
1 (+) 7 (–)
E 5
1
UP
1 (+) 7 (–)
2
UP
3 (+) 7 (–)
F
6
1
INDEPENDENT
8 (+) 7 (–)
2
UP
3 (+) 6 (–)
G
7
1
INDEPENDENT
8 (+) 7 (–)
2
UP
3 (+) 7 (–)
H
Z
2
INDEPENDENT
8 (+) 7 (–)
U Y
1
INDEPENDENT
8 (+) 7 (–)
2
INDEPENDENT
10 (+) 9 (–)
SINGLE POLE SWITCHES ONLY
J 8
1
DOWN
3 (+) 8 (–)
2
INDEPENDENT
6 (+) 7 (–)
K W
1
INDEPENDENT
8 (+) 7 (–)
2
INDEPENDENT
6 (+) 7 (–)
DOUBLE POLE SWITCHES ONLY
L 9
1
DOWN
3 (+) 6 (–)
M R
1
UP
3 (+) 6 (–)
N T
1
DOWN
3 (+) 6 (–)
2
DOWN
1 (+) 4 (–)
P V
1
UP
1 (+) 4 (–)
2
UP
3 (+) 6 (–)
0
1
2
3
4
No legend (used with codes 11-18 in selection 12)
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
13. ACTUATOR LENS LEGENDS
00 No legend this location / no actuator
(used with codes 11-18 in selection 12) Selection 14 required when
switch requires two legends. If the two legends consist of one lens
and one body legend, lens legend must be specified in selection
12; body legend specified in selection 14.
For legend options & codes, visit us at www.carlingtech.com.
Notes:
Consult factory to verify horsepower rating for your particular circuit choice.
1
Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators; Black imprinting is
standard on white, red and gray actuators. Custom colors are available,
consult factory.
3 Gloss brow is on left side of E actuator and right side of F actuator.
4 Additional ratings available. See V-Series Switch Accessories page.
5 Laser etched rocker only available with lens code Z & actuator colors
black, nickel or pewter.
6 Pewter and nickel colors only available with laser etched actuator.
Configure Complete Part Number >
Browse Standard Parts >
Ordering Scheme
Sample
Part Number
Selection
V
1 D A B T 0 B -G P C 00 - 0 00
1
2
3
4
5
6
V-Series
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position: 1
2
3
SP DP
2 & 3, 5 & 6
Connected Terminals 1 & 2, 4 & 5
1 A ON NONE OFF
2 B (ON) NONE OFF
3 C ON NONE (OFF)
4 D ON NONE ON
5 F ON NONE (ON)
6 J ON OFF ON
7 K ON OFF (ON)
8 L (ON) OFF (ON)
SPECIAL CIRCUITS
H*
2 & 3
2 & 3, 5 & 4
5&4
G*
2 & 3, 5 & 6
2 & 3
OFF
S*
2 & 3, 5 & 6
2 & 3
1&2
M*
(2 & 3, 5 & 6)
2 & 3
OFF
R*
(2 & 3, 5 & 6)
2 & 3
2&1
E*
5 & 6
5 & 3
5&1
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified in
selection 4. External jumper between terminals 2 & 4 for circuit E are provided
by customer. Circuit E
may be used for SP OFF-ON-ON circuit.
3. RATING
1
B
C
D
E
F
M
N
4
.4VA @ 28VDC Resistive
15A 24V
20A 18V
20A 12V
20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
10A 14V, 6A 14VT (circuit G only)
.4VA/20A 12V
.4VA/15A 24V
8
9
10
11
12
13
14
8 term
10 Term
1 2
A B
J K
3 4
C D
5 6
E F
Jumper
No
No
Yes T2 to 5
No
No
No
No
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector assembly, as it
is detrimental to function and performance.
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above
terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols
apply to LED lamps only
Illumination Type
No Seal
One Seal
1
Black
White
Gray
B W G
C Y H
9. ACTUATOR
0
G
P
No Actuator
Contura V
Contura V, laser etched
10. LENS
0 - No Actuator Z - No Lens
style & location: #1 / #2
Clear White Amber Green Red Blue
1
6
8
G
M T
2
7
C
H
N
U
3
8
D
J
P
V
4
9
E
K
R
W
5
A
F
L
S
Y
Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
1, 3, 5
Black C
Nickel D
Gray H
Pewter E
12. ACTUATOR LENS OR BODY LEGENDS
Red S
2, 6
11 ON 12 OFF 13 I
14 O
OFF ON O I
15 O O 16 O O 17 O I 18 I O
F N N F
F F
For additional legend options & codes, visit us at www.carlingtech.com
12. LEGENDS ORIENTATION
5. ILLUMINATION & SWITCH SEALING
S
0
NONE
–
A
1
1
INDEPENDENT
B
2
1
DOWN
C
3
2
UP
D
4
1
DOWN
2
DOWN
E 5
1
UP
2
UP
F
6
1
INDEPENDENT
2
UP
G
7
1
INDEPENDENT
2
UP
H
Z
2
INDEPENDENT
U Y
1
INDEPENDENT
2
INDEPENDENT
SINGLE POLE SWITCHES ONLY
J 8
1
DOWN
2
INDEPENDENT
K W
1
INDEPENDENT
2
INDEPENDENT
DOUBLE POLE SWITCHES ONLY
L 9
1
DOWN
M R
1
UP
N T
1
DOWN
2
DOWN
P V
1
UP
2
UP
8. FLUSH BRACKET COLOR, PANEL SEAL
No Actuator 0
White
Y
Termination
.250 TAB (QC) no barriers
.250 TAB (QC) with barriers
.250 TAB (QC) no barriers
Solder Lug no barriers
Solder Lug
Wire Leads no barriers
Wire Leads
Sealed Unsealed Lamps
Selection 6: above terminals 1 & 4; Selection 7: above terminals 3 & 6
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent 4 3V
5 6V
6 12V
7 18V
8 24V
LED*
superbright superbright
Red Amber Green
Red
2VDC
A L F
R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J
V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
11. ACTUATOR COLOR
4. TERMINATION / BASE STYLE
8.
7
6,7. LAMP
1. SERIES
V
Contura V
Lamp wired to Terminals
–
8 (+) 7 (–)
3 (+) 7 (–)
3 (+) 7 (–)
3 (+) 7 (–)
1 (+) 7 (–)
1 (+) 7 (–)
3 (+) 7 (–)
8 (+) 7 (–)
3 (+) 6 (–)
8 (+) 7 (–)
3 (+) 7 (–)
8 (+) 7 (–)
8 (+) 7 (–)
10 (+) 9 (–)
3 (+) 8 (–)
6 (+) 7 (–)
8 (+) 7 (–)
6 (+) 7 (–)
3 (+) 6 (–)
3 (+) 6 (–)
3 (+) 6 (–)
1 (+) 4 (–)
1 (+) 4 (–)
3 (+) 6 (–)
0
1
2
3
4
No legend (used with codes 11-18 in selection 12)
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
13. ACTUATOR LENS LEGEND
00 No legend this location / no actuator
(used with codes 11-18 in selection 12) Selection 14 required when
switch requires two legends. If the two legends consist of one lens
and one body legend, lens legend must be specified in selection 12;
body legend specified in selection 14.
For legend options & codes, visit us at www.carlingtech.com
Notes:
Consult factory to verify horsepower rating for your particular circuit choice.
1
Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators; Black imprinting is standard
on white, red and gray actuators. Custom colors are available, consult factory.
3 Laser Etched rocker only available with lens code Z & actuator colors black,
nickel or pewter.
4 Additional ratings available. See V-Series Switch Accessories page.
5 Nickel and Pewter colors only available with laser etched actuator.
6 Consult factory for laser etched lens callout.
Configure Complete Part Number >
Browse Standard Parts >
Ordering Scheme
Sample
Part Number
Selection
V 1 D A S W 0 B - J Z E 00 - 0
1
2
3
4
5
6
7
1. SERIES
V
2. CIRCUIT
3
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal
10 terminal DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7 Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position: 1
2
3
SP DP
2 & 3, 5 & 6 Connected Terminals 1 & 2, 4 & 5
1 A ON NONE OFF
4 D ON NONE ON
6 J ON OFF ON
7 K ON OFF (ON)
8 L (ON) OFF (ON)
9 N OFF NONE ON
1
B
C
D
E
F
M
N
4
.4VA @ 28VDC Resistive
15A 24V
20A 18V
20A 12V
20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
10A 14V, 6A 14VT (circuit G only)
.4VA/20A 12V
.4VA/15A 24V
9
10
11
12
13
8. FLUSH BRACKET COLOR, PANEL SEAL
No Seal
One Seal
9. HARD SURFACE ACTUATOR
CONTURA IV:
Orientation
Left
Right
Black Gray Red White
J K L M
N P R S
CONTURA V:
Black Gray Red White
U V W Y
10. LENS
5. ILLUMINATION & SWITCH SEALING
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above
terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols
apply to LED lamps only
Sealed Unsealed Lamps Illumination Type Lamp wired to Terminals
S
0
NONE –
–
C
3
2 UP
3 (+) 7 (–)
H
Z
2 INDEPENDENT
8 (+) 7 (–)
DOUBLE POLE SWITCHES ONLY
M R
1
UP
3 (+) 6 (–)
6. LOCK
Lock above terminals 1 & 4 end of switch.
W
low profile lock
Y 6
1
Black
White
Gray
B W G
C Y H
Actuator orientation over terminals:
8 term
10 Term Termination
Jumper
1 2
.250 TAB (QC) no barriers No
A B
.250 TAB (QC) with barriers No
J K
.250 TAB (QC) no barriers Yes T2 to 5
3 4
Solder Lug no barriers
No
C D
Solder Lug
No
5 6
Wire Leads no barriers
No
E F
Wire Leads
No
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector assembly, as it is detrimental to function and performance.
high profile lock
Notes: Consult factory to verify horsepower rating for your particular
circuit choice.
1 Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators; Black
imprinting is standard on white, red and gray actuators. Custom
colors are available, consult factory.
3 Only available with 3 position circuits. Center OFF and special
circuits only available with center position lock function.
4 Additional ratings available. See V-Series Switch Accessories page.
5 Located at T3-6 end of switch.
6 Contura V style only.
Configure Complete Part Number >
Lamp above terminals 3 & 6 end of switch
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent
4 3V
5 6V
6 12V
7 18V
8 24V
LED*
superbright superbright
Red
Amber Green Red
2VDC
A L F R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
Actuator orientation over terminals:
4. TERMINATION / BASE STYLE
9.
8
7. LAMP
V-Series
3. RATING
Contura IV & V Locking
Browse Standard Parts >
3,6
1,4
3,6
1,4
5
Z - No Lens
Clear White Amber Green Red Blue
A
B
C
D
E
F bar lens
G
H
J
K
L
M oval lens
Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
11. ACTUATOR LOCK FUNCTION AND COLOR
Lock Color
Match Actuator
Black
White
Red
Safety Orange
Gray
1
Up
Down
Up & Down Center 3
A H
R
1
B J
S
2
C K
T
3
D L
V
4
E M W
5
F G
N
6
12. ACTUATOR LENS OR BODY LEGENDS
2
00 - No Legend
21
22
23
24
OFF
ON
O
I
25 O
26 O
27 O
28 I
F N
F
For additional legend options & codes, visit us at www.carlingtech.com
13. LEGENDS ORIENTTATION
0
1
2
3
4
No legend
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
Ordering Scheme
Sample
Part Number
Selection
V 1 D B G N T B - H A 7 C B - AC 1 00
1. SERIES
V
1
2
3
4
5
6
7
8
V-Series
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position: 1
2
3
SP DP
2 & 3, 5 & 6 Connected Terminals 1 & 2, 4 & 5
1 A ON NONE OFF
2 B (ON) NONE OFF
3 C ON NONE (OFF)
4 D ON NONE ON
5 F
ON NONE (ON)
6 J ON OFF ON
7 K ON OFF (ON)
8 L (ON) OFF (ON)
SPECIAL CIRCUITS
H*
2 & 3
2 & 3, 5 & 4
5&4
G*
2 & 3, 5 & 6
2 & 3
OFF
S*
2 & 3, 5 & 6
2 & 3
1&2
M*
(2 & 3, 5 & 6)
2 & 3
OFF
R*
(2 & 3, 5 & 6)
2 & 3
2&1
E*
5 & 6
5 & 3
5&1
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified inselection 4. External jumper between terminals 2 & 4 for circuit E are provided by
customer. Circuit E may be used for SP OFF-ON-ON circuit.
3. RATING
3
Termination
.250 TAB (QC) no barriers
.250 TAB (QC) with barriers
.250 TAB (QC) no barriers
Solder Lug no barriers
Solder Lug
Wire Leads no barriers
Wire Leads
10
11
6,7. LAMP
12
13
14
15
16
Lamp above terminals 3 & 6 end of switch
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent 4 3V
5 6V
6 12V
7 18V
8 24V
LED*
superbright superbright
Red Amber Green Red
2VDC
A L F R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
8. FLUSH BRACKET COLOR, PANEL SEAL
No Seal
One Seal
1
Black
White
Gray
B W G
C Y H
9. ACTUATOR
0
H High Insert
No Actuator
L Low Insert
10,11. LENS
0 - No Actuator
Z - No Lens
Clear White Amber Green Red
–
7
C
H
N
3
–
D
J
P
4
–
E
K
R
–
A
F
L
S
Blue
U Bar Lens Translucent
V Bar Lens Transparent
W Oval Lens Transparent
Y Oval Lens Translucent
12. ACTUATOR COLOR
C
Black
H Gray
S
Red
Y
White
13. INSERT COLOR
4. TERMINATION / BASE STYLE
8 term 10 Term
1 2
A B
J K
3 4
C D
5 6
E F
9
Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
1
.4VA @ 28VDC Resistive
B 15A 24V
C 20A 18V
D 20A 12V
E 20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
F 10A 14V, 6A 14VT (circuit G only)
M .4VA/20A 12V
N .4VA/15A 24V
Jumper
No
No
Yes T2 to 5
No
No
No
No
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector assembly, as it
is detrimental to function and performance.
5. ILLUMINATION & SWITCH SEALING
10.
Contura VI Wave
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols apply
to LED lamps only
Sealed Unsealed Lamps Illumination Type Lamp wired to Terminals
S
0
NONE –
–
A
1
1
INDEPENDENT
8 (+) 7 (–)
B
2
1
DOWN
3 (+) 7 (–)
C
3
2 UP
3 (+) 7 (–)
D
4
1
DOWN
3 (+) 7 (–)
2 DOWN
1 (+) 7 (–)
E 5
1
UP
1 (+) 7 (–)
2
UP
3 (+) 7 (–)
F
6
1
INDEPENDENT
8 (+) 7 (–)
2
UP
3 (+) 6 (–)
G
7
1
INDEPENDENT
8 (+) 7 (–)
2
UP
3 (+) 7 (–)
H
Z
2 INDEPENDENT
8 (+) 7 (–)
U Y
1
INDEPENDENT
8 (+) 7 (–)
2
INDEPENDENT
10 (+) 9 (–)
SINGLE POLE SWITCHES ONLY
J 8
1
DOWN
3 (+) 8 (–)
2
INDEPENDENT
6 (+) 7 (–)
K W
1
INDEPENDENT
8 (+) 7 (–)
2
INDEPENDENT
6 (+) 7 (–)
DOUBLE POLE SWITCHES ONLY
L 9
1
DOWN
3 (+) 6 (–)
M R
1
UP
3 (+) 6 (–)
N T
1
DOWN
3 (+) 6 (–)
2
DOWN
1 (+) 4 (–)
P V
1
UP
1 (+) 4 (–)
B Black
C Bright Chrome Plated
D Satin Chrome Painted
N Bright Nickel Plated
S Satin Chrome Plated
T Satin Nickel Plated
W White
14. ACTUATOR LENS OR BODY LEGEND
2
00 - No Legend this location/No actuator
11 ON 12 OFF 13 I
14 O
OFF ON O I
15 O O 16 O O 17 O I 18 I O
F N N F
F F
For additional legend options & codes, visit us at www.carlingtech.com
15. ACTUATOR ORIENTATION
0
1
2
3
4
No legend (used with codes 11-18 in selection 12)
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
16. ACTUATOR LENS LEGEND
00
No legend this location / no actuator
(used with codes 11-18 in selection 12) Selection 14 required when
switch requires two legends. If the two legends consist of one lens
and one body legend, lens legend must be specified in selection
12; body legend specified in selection 14.
For legend options & codes, visit us at www.carlingtech.com.
Notes: Consult factory to verify horsepower rating for your
particular circuit choice.
1 Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators.
Black imprinting is standard on white, red and gray actuators.
Custom colors are available, consult factory.
3 Additional ratings available. See V-Series Switch Accessories page.
Configure Complete Part Number >
Browse Standard Parts >
Ordering Scheme
Sample
Part Number
Selection
V
1
1 D A B T 0 B - Z R C 00 - 0 00
2
3
4
5
6
1. SERIES
V
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position:
1 2 3
SP DP
2 & 3, 5 & 6 Connected Terminals 1 & 2, 4 & 5
1 A ON NONE OFF
2 B (ON) NONE OFF
3 C ON NONE (OFF)
4 D ON NONE ON
5 F ON NONE (ON)
6 J ON OFF ON
7 K ON OFF (ON)
8 L (ON) OFF (ON)
SPECIAL CIRCUITS
H*
2 & 3
2 & 3, 5 & 4
5&4
G*
2 & 3, 5 & 6
2 & 3
OFF
S*
2 & 3, 5 & 6
2 & 3
1&2
M*
(2 & 3, 5 & 6)
2 & 3
OFF
R*
(2 & 3, 5 & 6)
2 & 3
2&1
E*
5 & 6
5 & 3
5&1
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified in
selection 4. External jumper between terminals 2 & 4 for circuit E are
provided by customer. Circuit E may be used for SP OFF-ON-ON circuit.
4
8
9
10
11
12
13
14
Termination
.250 TAB (QC) no barriers
.250 TAB (QC) with barriers
.250 TAB (QC) no barriers
Solder Lug no barriers
Solder Lug
Wire Leads no barriers
Wire Leads
8. FLUSH BRACKET COLOR, PANEL SEAL
No Seal
One Seal
1
Black
White
Gray
B W G
C Y H
9. ACTUATOR
0
No Actuator
Z
Contura VII
Actuator orientation over terminals:
3,6 1,4
10. LENS
Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
0 - No Actuator Z - No Lens
White Amber Green Red Blue Lens style & location
6
B
G
M T
8
D
J
P V
9
A
1
C
E
F
2
H
K
L
3
N U
R W
S Y
4 5
11. ACTUATOR COLOR/ THUMB PRINT COLOR
4. TERMINATION / BASE STYLE
8 term
10 Term
1 2
A B
J K
3 4
C D
5 6
E F
Selection 6: above terminals 1 & 4; Selection 7: above terminals 3 & 6
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent 4 3V
5 6V
6 12V
7 18V
8 24V
LED*
superbright superbright
Red Amber Green Red
2VDC
A L F
R
6VDC
B M G S
12VDC
C N H
T
24VDC
D P J
V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
7
1
.4VA @ 28VDC Resistive
B 15A 24V
C 20A 18V
D 20A 12V
E 20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
F 10A 14V, 6A 14VT (circuit G only)
M .4VA/20A 12V
N .4VA/15A 24V
Jumper
No
No
Yes T2 to 5
No
No
No
No
Note: Codes J & K for circuits H, G & M. Do not use silicone based lubricants to
reduce terminal insertion forces during connector assembly, as it is detrimental
to function and performance.
5. ILLUMINATION & SWITCH SEALING
11.
7
6,7. LAMP (SAME CODING FOR BOTH SELECTIONS)
V-Series
3. RATING
Contura VII
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above
terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols
apply to LED lamps only
Sealed Unsealed Lamps Illumination Type Lamp wired to Terminals
0
NONE –
–
A
1
1
INDEPENDENT
8 (+) 7 (–)
B
2
1
DOWN
3 (+) 7 (–)
C
3
2
UP
3 (+) 7 (–)
D
4
1
DOWN
3 (+) 7 (–)
2
DOWN
1 (+) 7 (–)
E 5
1
UP
1 (+) 7 (–)
2
UP
3 (+) 7 (–)
F
6
1
INDEPENDENT
8 (+) 7 (–)
2
UP
3 (+) 6 (–)
G
7
1
INDEPENDENT
8 (+) 7 (–)
2
UP
3 (+) 7 (–)
H
Z
2
INDEPENDENT
8 (+) 7 (–)
U Y
1
INDEPENDENT
8 (+) 7 (–)
2
INDEPENDENT
10 (+) 9 (–)
SINGLE POLE SWITCHES ONLY
J 8
1
DOWN
3 (+) 8 (–)
2
INDEPENDENT
6 (+) 7 (–)
K W
1
INDEPENDENT
8 (+) 7 (–)
2
INDEPENDENT
6 (+) 7 (–)
DOUBLE POLE SWITCHES ONLY
L 9
1
DOWN
3 (+) 6 (–)
M R
1
UP
3 (+) 6 (–)
N T
1
DOWN
3 (+) 6 (–)
2
DOWN
1 (+) 4 (–)
P V
1
UP
1 (+) 4 (–)
2
UP
3 (+) 6 (–)
O
N/A - No Actuator
H Grey/Black
Y White/Black
1
C Black/Black
S Red/Black
12. ACTUATOR LENS OR BODY LEGENDS
2
11 ON 12 OFF 13 I
14 O
OFF ON O I
15 O O
16 O O 17 O I 18 I O
F N N F
F F
For additional legend options & codes, visit us at www.carlingtech.com
13. ACTUATOR LENS OR BODY LEGENDS
0
1
2
3
4
No legend (used with codes 11-18 in selection 12)
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
16. ACTUATOR LENS LEGEND
00
No legend this location / no actuator
(used with codes 11-18 in selection 12) Selection 14 required when
switch requires two legends. If the two legends consist of one lens
and one body legend, lens legend must be specified in selection
12; body legend specified in selection 14.
For legend options & codes, visit us at www.carlingtech.com.
Notes:
Consult factory to verify horsepower rating for your particular
circuit choice.
1 Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators.
Black imprinting is standard on white, red and gray actuators.
Custom colors are available, consult factory.
3 Additional ratings available. See V-Series Switch Accessories page.
4 Legends available for lighted oval lens version only
Configure Complete Part Number >
Browse Standard Parts >
Ordering Scheme
Sample
Part Number
Selection
V
1
1. SERIES
V
1 D A B 6 0 1 - 6 P Z 00 - 0 00
2
3
4
5
6
V-Series
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position: 1
2
3
SP DP
2 & 3, 5 & 6
Connected Terminals
1 & 2, 4 & 5
1 A ON NONE OFF
2 B (ON) NONE
OFF
3 C ON NONE (OFF)
4 D ON NONE
ON
5 F ON NONE (ON)
6 J ON
OFF
ON
7 K ON
OFF (ON)
8 L (ON)
OFF
(ON)
SPECIAL CIRCUITS
H*
2 & 3
2 & 3, 5 & 4
5&4
G*
2 & 3, 5 & 6
2 & 3
OFF
S*
2 & 3, 5 & 6
2 & 3
1&2
M*
(2 & 3, 5 & 6)
2 & 3
OFF
R*
(2 & 3, 5 & 6)
2 & 3
2&1
E*
5 & 6
5 & 3
5&1
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified in
selection 4. External jumper between terminals 2 & 4 for circuit E are p
rovided
by customer. Circuit E
may be used for SP OFF-ON-ON circuit.
3. RATING
4
4. TERMINATION / BASE STYLE
Termination
.250 TAB (QC) no barriers
.250 TAB (QC) with barriers
.250 TAB (QC) no barriers
Solder Lug no barriers
Solder Lug
Wire Leads no barriers
Wire Leads
Jumper
No
No
Yes T2 to 5
No
No
No
No
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector assembly, as it
is detrimental to function and performance.
5. ILLUMINATION & SWITCH SEALING
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above
terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols
apply to LED lamps only
Sealed
Unsealed
Lamps
S
0
NONE
A
1
1
B
2
1
C
3
2
D
4
1
2
E 5
1
2
F
6
1
2
G
7
1
2
H
Z
2
U Y
1
2
SINGLE POLE SWITCHES ONLY
J 8
1
2
K W
1
2
DOUBLE POLE SWITCHES ONLY
L 9
1
M R
1
N T
1
2
P V
1
2
12.
Illumination Type Lamp wired to Terminal
–
INDEPENDENT
DOWN
UP
DOWN
DOWN
UP
UP
INDEPENDENT
UP
INDEPENDENT
UP
INDEPENDENT
INDEPENDENT
INDEPENDENT
–
8 (+) 7 (–)
3 (+) 7 (–)
3 (+) 7 (–)
3 (+) 7 (–)
1 (+) 7 (–)
1 (+) 7 (–)
3 (+) 7 (–)
8 (+) 7 (–)
3 (+) 6 (–)
8 (+) 7 (–)
3 (+) 7 (–)
8 (+) 7 (–)
8 (+) 7 (–)
10 (+) 9 (–)
DOWN
INDEPENDENT
INDEPENDENT
INDEPENDENT
3 (+) 8 (–)
6 (+) 7 (–)
8 (+) 7 (–)
6 (+) 7 (–)
DOWN
UP
DOWN
DOWN
UP
UP
3 (+) 6 (–)
3 (+) 6 (–)
3 (+) 6 (–)
1 (+) 4 (–)
1 (+) 4 (–)
3 (+) 6 (–)
Configure Complete Part Number >
7
8
9
10
11
12
13
6,7. LAMP (SAME CODING FOR BOTH SELECTIONS)
14
Selection 6: above terminals 1 & 4; Selection 7: above terminals 3 & 6
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent 4 3V
5 6V
6 12V
7 18V
8 24V
LED*
superbright superbright
Red Amber Green
Red
2VDC
A L F
R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J
V
*Consult factory for “daylight bright” LED. Typical current draw for LED is 20ma
8. FLUSH BRACKET COLOR, PANEL SEAL
X & XI with Flush Bracket
1
Black
B
C
White
W Y
Gray
G H
# of gaskets 0
1
X, XI, XII with Raised Bracket
2 0
1
D
1
4
Z 2
5
J 3 6
9. ACTUATOR
No Actuator
0
Black Gray White Red
Contura X
1 2 3 4
Contura XI
6 7 8 9
Contura XII
J K N M
Actuator orientation over terminals:
10. LENS -ABOVE LAMP #1 TERMINALS
11. LENS - ABOVE LAMP #2 TERMINALS
3,6
1,4
1,4
3,6
0 - No Actuator
Z - No Lens
Clear White Amber Green Red Blue Lens Style
3 8 D J P V Bar
4 9 E
K R W One piece Square
5 A F
L S Y Two piece Square*
(With clear top protective lens)
2 7 C H N U Two piece Square*
(With smoke top protective lens)
1 6 B
G M T Two piece Square*
(With white top protective lens)
1
.4VA @ 28VDC Resistive
B 15A 24V
C 20A 18V
D 20A 12V
E 20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
F 10A 14V, 6A 14VT (circuit G only)
M .4VA/20A 12V
N .4VA/15A 24V
8 term 10 Term
1 2
A B
J K
3 4
C D
5 6
E F
Contura X, XI & XII
Browse Standard Parts >
* All bottom lenses are molded of opaque material. Consult factory for other
lens colors. Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
12. ACTUATOR LENS OR BODY LEGENDS
2
00 - No Legend this location / No actuator
11 ON 12 OFF
13 I
14 O
OFF
ON
O
I
15 O O 16 O O 17 O I 18 I O
F N
N F
F
F
21
22
23
24
OFF
ON
O
I
25 O
26 O
27 O
28 I
F
N
F
For additional legend options & codes, visit us at www.carlingtech.com
13. ACTUATOR LENS OR BODY LEGENDS
0
1
2
3
4
(3)
No legend (used with codes 11-18 in selection 12)
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
16. ACTUATOR LENS LEGEND
00 No legend this location / no actuator
(used with codes 11-18 in selection 12) Selection 14 required when
switch requires two legends. If the two legends consist of one lens
and one body legend, lens legend must be specified in selection
12; body legend specified in selection 14.
For legend options & codes, visit us at www.carlingtech.com.
Notes: Consult factory to verify horsepower rating for your particular circuit choice.
1
Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators; Black imprinting is standard
on white, red & gray actuators. Custom colors are available, consult factory.
3 With 2 square lenses, use selection 12 for lens above lamp 1, & selection 14 for
lens above lamp 2.
4 Additional ratings available. See V-Series Switch Accessories page.
5 Not available with Contura XI rockers.
Ordering Scheme
Sample
Part Number
Selection
V
1
1 D A S W 0 1 - 1 P B 00 - 0
2
3
4
5
6
V-Series
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position: 1
2
3
SP DP
2 & 3, 5 & 6
Connected Terminals
1 & 2, 4 & 5
1 A ON
NONE OFF
4 D ON
NONE ON
6 J ON
OFF
ON
9 N OFF
NONE ON
SPECIAL CIRCUITS
H*
2 & 3
2 & 3, 5 & 4
5&4
G*
2 & 3, 5 & 6
2 & 3
OFF
S*
2 & 3, 5 & 6
2 & 3
1&2
E*
5 & 6
5 & 3
5&1
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified in
selection 4. External jumper between terminals 2 & 4 for circuit E are p
rovided
by customer. Circuit E may be used for SP OFF-ON-ON circuit.
3. RATING
4
8
9
10
11
12
13
4. TERMINATION / BASE STYLE
8 term
10 Term Termination
Jumper
1 2
.250 TAB (QC) no barriers No
A B
.250 TAB (QC) with barriers No
J K
.250 TAB (QC) no barriers Yes T2 to 5
3 4
Solder Lug no barriers
No
C D
Solder Lug
No
5 6
Wire Leads no barriers
No
E F
Wire Leads
No
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector assembly, as it is detrimental to function and performance.
5. ILLUMINATION & SWITCH SEALING
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above
terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols apply to LED lamps only
Sealed Unsealed
minals
Lamps
Illumination Type
S
0
NONE
–
C
3
2
UP
H
Z
2
INDEPENDENT
DOUBLE POLE SWITCHES ONLY
M R
1
UP
Lamp wired to Ter-
–
3 (+) 7 (–)
8 (+) 7 (–)
3 (+) 6 (–)
6. LOCKS
Lock above terminals 1 & 4 end of switch.
W Lock
8. FLUSH BRACKET COLOR, PANEL SEAL
No Gasket
One Gasket
Browse Standard Parts >
1
Black White
Gray
1 2 3
4 5 6
9. HARD SURFACE ACTUATOR
Contura X
Black Gray Red White
1 2 3 4
Actuator orientation over terminals:
3,6 1,4
5
Z - No Lens
Clear White Amber Green Red Blue Lens Style
3 8 D J P V Bar
4 9 E
K R W One piece Square
5 A F
L S Y Two piece Square*
(with clear top protective lens)
2 7 C H N U Two piece Square*
(with smoke top protective lens)
1
6 B
G M T Two piece Square*
(with white top protective lens)
* All bottom lenses are molded of opaque material. Consult
factory for other lens colors. Lens color for LEDs must be clear,
white, or match color of LED. Green or blue lenses are not
recommended with Neon lamps.
12. ACTUATOR LOCK FUNCTION
Lock Color
Match Actuator
Black
White
Red
Gray
Safety Orange
3
Up
Down
Up & Down
A H R
B J S
C K T
D L V
E M W
F N Y
13. ACTUATOR LENS OR BODY LEGENDS
2
00 - No Legend
21
22
23
24
OFF
ON
O
I
25 O
26 O
27 O
28 I
F
N
F
For additional legend options & codes, visit us at www.carlingtech.com
14. LEGEND ORIENTATION
Notes: Consult factory to verify horsepower rating for your particular
circuit choice.
1 Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators; Black imprinting
is standard on white, red and gray actuators; Custom colors are
available, consult factory.
3 Located over T1-4 end of switch.
4 Additional ratings available. See V-Series Switch Accessories page.
5 Located over T3-6 end of switch.
Configure Complete Part Number >
Selection 6: above terminals 1 & 4; Selection 7: above terminals 3 & 6
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent 4 3V
5 6V
6 12V
7 18V
8 24V
LED*
superbright superbright
Red Amber Green
Red
2VDC
A L F
R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J
V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
10. LENS - ABOVE LAMP #2 TERMINALS
1
.4VA @ 28VDC Resistive
B 15A 24V
C 20A 18V
D 20A 12V
E 20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
F 10A 14V, 6A 14VT (circuit G only)
M .4VA/20A 12V
N .4VA/15A 24V
13.
7
6,7. LAMP (SAME CODING FOR BOTH SELECTIONS)
1. SERIES
V
Contura X locking
0
1
2
3
4
3
No legend (used with codes 11-18 in selection 12)
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
Ordering Scheme
Sample
Part Number
Selection
V
1
1 D B B C 0 B - FA P C AB- 1 00
2
3
4
5
6
V-Series
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10- - 9
Position: 1
2
3
SP DP
2 & 3, 5 & 6
Connected Terminals
1 & 2, 4 & 5
1 A ON NONE OFF
2 B (ON) NONE OFF
3 C ON NONE (OFF)
4 D
ON NONE ON
5 F ON NONE (ON)
6 J
ON OFF ON
7 K ON OFF (ON)
8 L
(ON) OFF (ON)
SPECIAL CIRCUITS
H*
2 & 3
2 & 3, 5 & 4
5&4
G*
2 & 3, 5 & 6
2 & 3
OFF
M*
(2 & 3, 5 & 6)
2 & 3
OFF
R*
(2 & 3, 5 & 6)
2 & 3
2&1
E*
5 & 6
5 & 3
5&1
S*
2 & 3, 5 & 6
2 & 3
1&2
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified in
selection 4. External jumper between terminals 2 & 4 for circuit E are
provided by customer. Circuit E may be used for SP OFF-ON-ON circuit.
3. RATING
1
B
C
D
E
F
3
.4VA @ 28VDC Resistive
15A 24V
20A 18V
20A 12V
20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
10A 14V, 6A 14VT (circuit G only)
4. TERMINATION / BASE STYLE
8 Term
10 Term Termination
Jumper
1 2
.250 TAB (QC) no barriers No
A B
.250 TAB (QC) with barriers No
J K
.250 TAB (QC) no barriers Yes T2 to 5
3 4
Solder Lug no barriers
No
C D
Solder Lug
No
5 6
Wire Leads no barriers
No
E F
Wire Leads
No
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector assembly, as it is detrimental to function and performance.
5. ILLUMINATION & SWITCH SEALING
14.
7
8
9
10
11
12
13
14
6 & 7. LAMP
1. SERIES
V
Contura XIV
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above
terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols
apply to LED lamps only
Lamps
Illumination Type Lamp wired to Terminals
S
NONE
–
–
A
1
INDEPENDENT
8 (+) 7 (–)
B
1
DOWN
3 (+) 7 (–)
C
2
UP
3 (+) 7 (–)
D
1
DOWN
3 (+) 7 (–)
2
DOWN
1 (+) 7 (–)
E
1
UP
1 (+) 7 (–)
2
UP
3 (+) 7 (–)
F
1
INDEPENDENT
8 (+) 7 (–)
2
UP
3 (+) 6 (–)
G
1
INDEPENDENT
8 (+) 7 (–)
2
UP
3 (+) 7 (–)
H
2
INDEPENDENT
8 (+) 7 (–)
SINGLE POLE SWITCHES ONLY
J
1
DOWN
3 (+) 8 (–)
2
INDEPENDENT
6 (+) 7 (–)
K
1
INDEPENDENT
8 (+) 7 (–)
2
INDEPENDENT
6 (+) 7 (–)
DOUBLE POLE SWITCHES ONLY
L
1
DOWN
3 (+) 6 (–)
M
1
UP
3 (+) 6 (–)
N
1
DOWN
3 (+) 6 (–)
2
DOWN
1 (+) 4 (–)
P
1
UP
1 (+) 4 (–)
2
UP
3 (+) 6 (–)
U
1
INDEPENDENT
8 (+) 7 (–)
2
INDEPENDENT
10 (+) 9 (–)
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent
4 3V
5 6V
6 12V
7 18V
8
24V
LED*
superbright superbright
Red
Amber Green Red
2VDC
A L F R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
8. BRACKET COLOR & PANEL SEAL
Color No Gasket
Black
B
Gray
G
White
W
1 Gasket 2 Gasket
C D
H J
Y Z
9. ACTUATOR STYLE
0
No Actuator - Furnished separately
FA Contura XIV
FB Contura XIV - Laser Etched
10. LENS COLOR / STYLE
0 - No Actuator
Z - No Lens
Clear White Amber Green Red
1
6
B
G
M
2
7
C
H
N
3
8
D
J
P
4
9
E
K
R
5
A
F
L
S
5
A
N/A
N/A N/A
Blue
T
U
V
W
Y
N/A
Laser-Etched Actuator
Only Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
11. ACTUATOR COLOR
1
O
N/A - No Actuator
C Black
S Red
Y White
12. ACTUATOR LENS OR BODY LEGEND
2
00 - No Legend this location / No actuator
11 ON
12 OFF 13 I
14 O
OFF ON O I
15
O O 16 O O 17 O I 18 I O
F N N F
F F
12. ACTUATOR LENS OR BODY LEGEND
0
1
2
3
4
No legend
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
12. ACTUATOR LENS OR BODY LEGEND
00 No legend this location / no actuator
(used with codes 11-18 in selection 12) Selection 14 required when
switch requires two legends. If the two legends consist of one lens
and one body legend, lens legend must be specified in selection 12;
body legend specified in selection 14.
For legend options & codes, visit us at www.carlingtech.com.
Notes: Consult factory to verify horsepower rating for your particular
circuit choice.
1 Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators; Black imprinting
is standard on white, red and gray actuators.
3 Additional ratings available. See V-Series Switch Accessories page.
Configure Complete Part Number >
Browse Standard Parts >
Ordering Scheme
Sample
Part Number
Selection
V
1 D A B W 0 B -FC Z B 00 - 0
1
2
3
4
5
6
1. SERIES
V
2. CIRCUIT
Terminal Connections as viewed ( ) - momentary
from bottom of switch: SP - single pole: terminals 1, 2 & 3.
8 terminal 10 terminal
DP - double pole: terminals 1, 2, 3, 4, 5 & 6.
8 - - 7
8 - - 7
Terminals 7, 8, 9 & 10 for lamp circuit only.
1 - - 4
1 - - 4
2 - - 5
2 - - 5
3 - - 6
3 - - 6
10 - - 9
Position: 1
2
3
SP DP
2 & 3, 5 & 6 Connected Terminals 1 & 2, 4 & 5
1 A ON NONE OFF
- B (ON) NONE OFF
4 D ON NONE ON
6 J ON OFF ON
7 K ON OFF (ON)
8 L (ON) OFF (ON)
9 N OFF NONE ON
SPECIAL CIRCUITS
H*
2 & 3
G*
2 & 3, 5 & 6
M*
(2 & 3, 5 & 6)
R*
(2 & 3, 5 & 6)
E*
5 & 6
S*
2 & 3, 5 & 6
2 & 3, 5 & 4
2 & 3
2 & 3
2 & 3
5 & 3
2 & 3
5&4
OFF
OFF
2&1
5&1
1&2
*Jumper between terminals 2 & 5 for circuits H,G,M,R & S are specified in
selection 4. External jumper between terminals 2 & 4 for circuit E are
provided by customer. Circuit E may be used for SP OFF-ON-ON circuit.
1
B
C
D
E
F
3
.4VA @ 28VDC Resistive
15A 24V
20A 18V
20A 12V
20A 14V, 10A 14VT (circuit 1, 4 , A & D only)
10A 14V, 6A 14VT (circuit G only)
8 Term 10 Term
1 2
A B
J K
Termination
.250 TAB (QC) no barriers
.250 TAB (QC) with barriers
.250 TAB (QC) no barriers
Jumper
No
No
Yes T2 to 5
Note: Codes J & K for circuits H, G & M. Do not use silicone based
lubricants to reduce terminal insertion forces during connector assembly, as it is detrimental to function and performance.
5. ILLUMINATION & SWITCH SEALING
Lamp #1:above terminals 1 & 4 end of switch.; Lamp #2 above terminals 3 & 6 end of switch. Positive (+) and negative (-) symbols
apply to LED lamps only
Lamps Illumination Type Lamp wired to Terminals
S
NONE
–
–
C
2
UP
3 (+) 7 (–)
H
2
INDEPENDENT
8 (+) 7 (–)
DOUBLE POLE SWITCHES ONLY
M
1
UP
3 (+) 6 (–)
5. LOCK OPTION
Low Profile Lock
Notes: Consult factory to verify horsepower rating for your particular
circuit choice.
1 Custom colors are available. Consult factory.
2 White imprinting is standard on black actuators; Black
imprinting is standard on white, red and gray actuators.
3 Additional ratings available. See V-Series Switch Accessories page.
Configure Complete Part Number >
15.
8
9
10
11
12
13
No lamp
0
Neon
1 125VAC 2 250VAC
Incandescent
4 3V
5 6V
6 12V
7 18V 8 24V
LED*
superbright superbright
Red
Amber Green Red
2VDC
A L F R
6VDC
B M G S
12VDC
C N H T
24VDC
D P J V
* Consult factory for “daylight bright” LED options. Typical current
draw for LED is 20ma.
8. BRACKET COLOR & PANEL SEAL
Color No Gasket
Black
B
Gray
G
White W
1 Gasket 2 Gasket
C D
H J
Y Z
9. ACTUATOR COLOR / STYLE
FC
FD
FS
FT
Black - Standard Rocker
Black - Laser Etched
Red - Standard Rocker
Red - Laser Etched
10. LENS COLOR / STYLE
Z - No Lens
Clear White Amber Green Red Blue
1
6
B
G
M
T
3
8
D
J
P
V
5
A
N/A
N/A N/A N/A
Laser-Etched Only
Lens color for LEDs must be clear, white, or match color of LED.
Green or blue lenses are not recommended with Neon lamps.
11. ACTUATOR LOCK COLOR / FUNCTION
4. TERMINATION / BASE STYLE
W
7
7. LAMP
V-Series
3. RATING
Contura XIV Locking
Browse Standard Parts >
12. ACTUATOR LENS OR BODY LEGENDS
00 - No Legend
21
22
23
OFF
ON
O
25 O
F
F
26 O
N
1
LOCK IN POSITION
UP
DOWN
UP & DOWN CENTER
A H
R
1
B J
S
2
C K
T
3
D L
V
4
E M
W
5
F G
N
6
Lock Color
Match Actuator
Black
White
Red
Orange
Gray
27 O
24
2
I
28 I
13. LEGEND ORIENTATION
0
1
2
3
4
No legend
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
Dimensional Specs
inches [millimeters]
CONTURA II
CONTURA III
SHOWN WITH
SQUARE LENS
1.950
[49.09]
CONTURA IV
SHOWN WITH
BAR LENS
2.000
[50.55]
1.950
[49.09]
1.079
[27.40]
1.126
[28.60]
1.550
[39.37]
8 TERMINAL BASE
W/BARRIERS
10 TERMINAL BASE
W/BARRIERS
8 TERMINAL BASE
W/O BARRIERS
1.050
[26.67]
.940
[24.87]
.505
[12.83]
.505
[12.82]
.250
[6.35]
.250
[6.35]
.031
[.78]
.031
[.78]
.390
[9.90]
.960
[24.38]
.820
[20.82]
.250
[6.35]
.031
[.78]
.820
[20.82]
.960
[24.38]
10 TERMINAL BASE
W/O BARRIERS
10 TERMINAL BASE
W/BARRIERS
8
1
2.029
[51.53]
SWITCH SHOWN WITH
VCH CONNECTOR 8
TERMINAL
16.
7
4
8
1
7
4
2
5
2
5
3
6
3
10
6
9
BOTTOM VIEW
TERMINAL
ARRANGEMENT
8 TERMINAL BASE
.960
[24.38]
BOTTOM VIEW
TERMINAL
ARRANGEMENT
10 TERMINAL BASE
SWITCH SHOWN WITH
VC1 CONNECTOR 10
TERMINAL
Dimensional Specs
inches [millimeters]
CONTURA V
CONTURA V
SHOWN WITH
BAR LENS
1.922
[48.56]
1.922
[48.56]
10 TERMINAL BASE
W/BARRIER AND
LAMP TERMINAL
1.020
[25.91]
.250
[6.35]
X
.031
[.78]
.820
[20.83]
.960
[24.38]
8 TERMINAL BASE
W/O BARRIERS
8
2
5
2
5
3
6
3
6
1
SWITCH SHOWN WITH
VCH CONNECTOR 8
TERMINAL
4
BOTTOM VIEW
TERMINAL
ARRANGEMENT
8 TERMINAL BASE
1
10
.820
[20.83]
10 TERMINAL BASE
W/O BARRIERS
7
8
2.029
[51.53]
.250 .031
[6.35] [.78]
.960
[24.38]
.960
[24.38]
8 TERMINAL BASE
W/BARRIERS
0.985
[25.02]
.250 [6.35]
.031 [.78]
.250
[6.35]
X
.031
[.78]
.390
[9.90]
10 TERMINAL BASE
W/O BARRIERS
1.000
[25.40]
.505
[12.83]
.505
[12.83]
17.
1.922
[48.82]
1.126
[28.60]
8 TERMINAL BASE
W/O BARRIERS
1.020
[25.91]
.250
[6.35]
X
.031
[.78]
1.950
[49.53]
1.479
[37.57]
8 TERMINAL BASE
W/BARRIERS
CONTURA VII
SHOWN WITH LARGE LENS
AND BAR LENS
SHOWN WITH OVAL
LENS
.080
[2.03]
1.079
[27.40]
1.550
[39.37]
CONTURA VI
SHOWN WITH
LOW PROFILE LOCK
.820
[20.83]
.960
[24.38]
10 TERMINAL BASE
W/O BARRIERS
7
4
9
BOTTOM VIEW
TERMINAL
ARRANGEMENT
10 TERMINAL BASE
SWITCH SHOWN WITH
VC1 CONNECTOR 10
TERMINAL
SWITCH SHOWN
WITH VC1
CONNECTOR 10
TERMINAL
Dimensional Specs
inches [millimeters]
CONTURA X
CONTURA XI
SHOWN WITH RAISED BRACKET
.350
[8.89]
1.910
[48.51]
.667
[16.94]
.350
[8.89]
1.584
[40.28]
1.305
[33.15]
.573
[14.56]
1.370
[34.79]
10 TERMINAL BASE
W/O BARRIERS
.960
[24.38]
1.928
[48.97]
1.506
[38.25]
1.370
[34.79]
1.370
[34.79]
8 TERMINAL BASE
W/BARRIERS
SHOWN WITH LARGE LENS
SHOWN WITH PADDLE
ACTUATOR
.426
[10.82]
1.910
[48.51]
CONTURA XIV
CONTURA XII
SHOWN WITH RAISED
BRACKET AND TWO SQUARE
LENSES
.960
[24.38]
.960
[24.38]
.780
[19.81]
10 TERMINAL BASE
W/O BARRIERS
8 TERMINAL BASE
W/O BARRIERS
.970
[24.64]
.780
[19.81]
.780
[19.81]
.250
[6.35]
X
.031
[.78]
.820
[20.82]
8 TERMINAL BASE
W/BARRIERS
8
1
7
4
1
4
2
5
2
5
6
3
10
6
9
3
18.
7
BOTTOM WITH TERMINAL
ARRANGEMENT
8 TERMINAL BASE
.820
[20.83]
10 TERMINAL BASE
W/O BARRIERS
10 TERMINAL BASE
W/O BARRIERS
8
SWITCH SHOWN WITH
VCH CONNECTOR
8 TERMINAL
.390
[9.90]
.820
[20.82]
.390
[9.90]
.390
[9.90]
.820
[20.82]
BOTTOM WITH TERMINAL
ARRANGEMENT
10 TERMINAL BASE
SWITCHES SHOWN WITH
VC1 CONNECTOR
10 TERMINAL
.960
[24.38]
Circuit Diagrams:
CIRCUIT
CODE
CIRCUIT DIAGRAM
CIRCUIT
CODE
CIRCUIT DIAGRAM
3
1
3
2
3
5
3
2
2
3
5
3
1
2
5
3 4
2
5
3 4
1
2
5
1
6
5
3
3
1
6
5
3
2
6
5
6
G
2
3
S
2
7
5
2
F
1
1
6
3 4
1
2
6
R
2
6
6
5
2
E
3
4
M
2
1
6
3
6
D
5
4
5
3
1
6
2
3
3
L
2
1
5
2
C
4
6
K
2
3
1
6
B
1
4
J
2
3
CIRCUIT DIAGRAM
13
6
A
2
CIRCUIT
CODE
SYMBOL LEGEND
2
5
3
3
4
SYM.
DEFINITION
DESIGNATES TERMINALS AND CONTACTS
DESIGNATES MAINTAINED CIRCUITS
DESIGNATES OTHER POSITION
8
H
2
19.
DESIGNATES MOMENTARY CIRCUITS
DESIGNATES TWO POSITION CONNECTION
2
5
DESIGNATES EXTERNAL JUMPER PROVIDED
BY CUSTOMER
Lamp Circuit Diagrams:
LAMP CIRCUIT
CODE
CIRCUIT DIAGRAM
LAMP CIRCUIT
CODE
+8
+8
A/1
F/6
1
-6
+3
L/9
2
LAMP CIRCUIT
CODE
G/7
+3
-6
SPECIAL
#1
1
+3
+3
M/R
2
1
-7
2
SPECIAL
#3
N/T
2
-7
1
2
SPECIAL
#4
+3
-8
1
J/8
2
+3
1
+1 +3 -4 -6
+6
P/V
2
1
-7
2
-7
-7
+1 +3
+6
1
+8
+1 +3 -4 -6
H/Z
2
2
-7
+8
C/3
+6
1
+8
-6
-7
+3
CIRCUIT DIAGRAM
-7
+8
1
1
2
-7
+1 +3
E/5
CIRCUIT DIAGRAM
-7
+3
D/4
+3
1
-7
B/2
LAMP CIRCUIT
CODE
CIRCUIT DIAGRAM
+8
K/W
2
1
U/Y
2
1
-7
+8
+6
(-)7
+10
1
2
-7
-9
J-Series Hazard Warning Circuit Diagrams:
CIRCUIT
CODE
1
3
17
18 10(-)
J1
1
2
11 13
5
17
3 14
1
18 10(-)
3
5
5
3 14
8
6
JA
11 13
3 14
JJ
8
1
2
11 13
17 18 10(-)
J4
2
5
1
5
17 18
3
8
J3
1
J5
17 18 10(-)
3
2
10(-) 1
2
1
5
CIRCUIT DIAGRAM
8
J2
20.
CIRCUIT
CODE
CIRCUIT DIAGRAM
11 13
JK
3 14 15 12
6 16
NOTE:
J circuits are available for all
non-locking V-Series styles.
Consult factory for partnumber details.
SYMBOL LEGEND
SYM.
DEFINITION
DESIGNATES TERMINALS AND CONTACTS
DESIGNATES LAMP LOCATION
2
Stand-Alone Components
Reduce inventory levels and cost by stocking actuators and base switches separately.
Contura II, III, IV, V, VI, VII, X, XI, XII, XIV Base switches separately: specify V with code selections 2-8 in the ordering schemes.
Contura II, III, IV, V Actuator only: VV with code A or C for selection 9, & with selections 10-14 in the ordering schemes.
Contura VI Actuator with lenses and inserts only: VT with code selections 9-16
Contura II, III, IV, V, VII Actuator only: VV with code A, C, E, G, P or Z for selection 9 & with selections 10-14 in the ordering schemes.
Contura X, XI, XII, XIV actuators with lenses separately: VV with code selections 9-14 in the ordering schemes.
Panel Seal: VPS
Contura X & XI actuators without lenses separately
Contura XII actuators without lenses separately
VVR 6 1 00 1
1
2
3
4
VVP J 1 Z 21 1 00
5
1
1. CONTURA X & XI ACTUATOR SEPARATELY
4
5
6
7
VVP
2. ACTUATOR STYLE & COLOR
Contura X
Contura XI
2. ACTUATOR STYLE & COLOR
Black Gray White Red
1 2 3 4
6 7 8 9
J Black
Z
One bar lens
Two bar lenses
One square lens
Two square lens
5
square lens on top/
bar lens on bottom
(Contura X only)
4. ACTUATOR LENS OR BODY LEGEND
2
00 - No Legend
21
OFF
22
ON
23
25 O
F
F
26 O
N
27 O
6 LEGEND ORIENTATION
0 No legend
1 Orientation 1
2 Orientation 2
1
2
1
2
3
4
VVL 2 1 00 0
1
2
3
4
VVT 1
1 TOP OF LENS SEPARATELY
VVT
1 Bar lens
2 One Piece Square lens
3 Bottom of Two-Piece Square lens 5
2 COLOR
3 TRANSLUCENT LENS COLOR
5
VVL
2 LENS STYLE
2
2 Smoke
28 I
3
1 CONTURA X, XI & XII LENS SEPARATELY
1 Clear
I
Contura X, XI & XII actuator lens assembly separately
Contura X, XI & XII top piece of 2-piece lens separately
1
24
O
For additional legend options & codes, visit us at www.carlingtech.com
1
No legend
Orientation 1
Orientation 2
Orientation 3
Orientation 4
Square lens
5, 7 LENS OR BODY LEGEND 2
For additional legend options & code, visit us at www.carlingtech.com
0
1
2
3
4
N White M Red
1 Bar lens
No lens
00 - No Legend this location
11 ON 12 OFF
13 I
14 O
OFF
ON
O
I
15 O O 16 O O 17 O I 18 I O
F N
N F
F
F
5. LEGEND ORIENTATION 1
K Gray
3,4 LENS OPENING FOR 1
3. LENS OPENING FOR 1
actuator stem
posts mount toward actuator stem
3
1 Clear 2 White 3 Amber 4 Green 4
3 White
Contura X, XI & XII actuator lens assembly:
top lens
bottom lens
}
two piece
lens assembly
1 piece lens/bar lens are positioned the same as bottom lens for
assembly, minus the top lens. Lenses snap in from bottom.
Notes:
1
If actuator lens opening for 2 bar or 2 square lenses, legend orientation 0,1,
or 2 must be chosen.
2 Center of actuator marking not available for Contura XII.
3 Legend is not available for bar style lens.
4 Not recommended with neon lamps.
5 Must also order top piece of 2 piece square lens separately.
21.
3
1 CONTURA XII ACTUATOR SEPARATELY
VVR
1
2
3
4
2
4 LENS OR BODY LEGEND
00 - No Legend
21
25 O
F
F
5 Red 6 Blue 4
2
OFF
22
ON
23
26 O
N
O
27 O
24
I
28 I
For additional legend options & codes, visit us at www.carlingtech.com.
5 LEGEND ORIENTATION 3
0
1
2
3
4
No legend
Orientation 1
Orientation 2
Orientation 3
Orientation 4
1
2
3
4
Accessories
Easily integrate Contura products into your system, with Contura
Accessories
Q.C. SELECTION GUIDE
Contura Connectors
PART NO
COMPANY
SERIES
WIRE
RANGE
TIN
PLAIN
Q.C.
SELECTION
PLATEDGUIDEAWG
BRASS
BRASS
ORIENTATION
MM 2
(REF)
WIRE
PART NO
02965580
12
3.0
RANGE
COMPANY
ORIEN02965471 TIN
12010601
(2)16-14
(2)1.0-2.0
2
SERIES
TATION
PLAIN
PACKARD
AWG 16-14 MM 1.0-2.0
PLATED
02965470
B
BRASS
58 SERIES
(REF)
BRASS
Q.C.
SELECTION
Q.C.06288318
SELECTION
GUIDE Q.C. SELECTION
GUIDE
GUIDE
02965469
20-18
.5-.8
02965580
12
3.0
WIRE
WIRE
105.0 WIRE
12084590
PART NO 12010601
PART
NO
PART NO
02965471
(2)16-14
(2)1.0-2.0
RANGE
RANGE
RANGE
TANG
12052224
123.0 ORIENCOMPANY
COMPANY
COMPANY
ORIENORIENPACKARD
TIN
TIN
TIN
02965470
16-14
1.0-2.0
B
2
2
SERIES
PLAIN
SERIES
PLAIN
PLAIN
TATION
TATION
TATION
58SERIES
SERIES
AWG
MM
AWG
MM
AWG
MM 2
12015870
16-14
1.0-2.0
PLATED
PLATED
PLATED
BRASS
BRASS
PACKARD BRASS
02965469 BRASS
06288318 BRASS
20-18(REF)
.5-.8
(REF)
(REF)
BRASS
METRI-PACK
12020035
(2)22-18
(2).5-.8
A
02965580
3.0 12
3.0
105.03.012
12084590 12 02965580
630 SERIES 02965580
12015832
12015869
20-18
.5-.8
TANG
12010601
12010601
12010601 (2)1.0-2.0
02965471
02965471
02965471
(2)1.0-2.0
(2)16-14
(2)16-14
(2)1.0-2.0
12052224(2)16-14
123.0
PACKARD
PACKARD
PACKARD
Q.C.
SELECTION
GUIDE
12052222
20-22
.35-.5
B1.0-2.0
B1.0-2.0
B
02965470
02965470
16-14
02965470
16-14 1.0-2.0
16-14
16-141.0-2.0
58 SERIES
58 SERIES
5812015870
SERIES
TANG SYMBOL =
SHOWS ORIENTATION OF TANG IN SLOT
PACKARD
02965469
06288318
02965469 20-18
06288318
02965469 .5-.8
20-18
06288318
.5-.8
20-18
.5-.8
WIRE
16-12
PART
NO
METRI-PACK
12020035
(2)22-18
(2).5-.81.3-3
A
SYMBOL
RANGE
AMPCOMPANY 60253-1
105.0
105.0
105.0
12084590 60253-2
12084590
12084590
630 SERIES
ORIEN(2) 16 .5-.8 (2)
1.3
12015832 PLAIN
12015869
TANG
TANG
TANG
TIN12052224
250 SERIES
12052224
123.0 20-18 12052224
123.0
123.0
SERIES
TATION
B
AWG 18-14 MM 2
Q.C.
SELECTION
GUIDE
PLATED
FASTIN-FASTON
42100-1
42100-2
.8-2
BRASS
12052222
20-22
.35-.51.0-2.0
12015870
12015870
12015870
16-14
1.0-2.0
16-14
16-14
1.0-2.0
(REF)
BRASS
PACKARD
PACKARD
PACKARD
TANG SYMBOL =
SHOWS ORIENTATION OF TANG IN SLOT
WIRE
(2)22-18
(2)22-18
(2)22-18
A(2).5-.8
A
12020035
12020035
12020035
METRI-PACK
METRI-PACK60295-1
METRI-PACK
22-18
.3-.9
16-12
1.3-3A(2).5-.8
PART NO 60295-2
02965580
12 (2).5-.8
RANGE 3.0
SYMBOL
630
SERIES
630
SERIES
630
SERIES
60253-2
60253-1 12015869
AMP
12015869
12015869
20-18
.5-.8
20-18
.5-.8
20-18
.5-.8
12015832
12015832
12015832
COMPANY
ORIEN12010601
02965471
(2)16-14
(2)1.0-2.0
16
(2) 1.3
TIN Amp(2)
PACKARD
NOTE:
Consult
Delphi Packard
and/or
on
actual
part
numbers
and
250
SERIES
PLAIN
SERIES
TATION
20-22
.35-.5
20-22
20-22
.35-.5
12052222
12052222
12052222
B
02965470
16-14
1.0-2.0
B availability.
AWG
MM 2 .35-.5
PLATED
TANG
SYMBOL = TANGSHOWS
SYMBOLORIENTATION
= TANGSHOWS
SYMBOL
=
OFORIENTATION
TANG
INSHOWS
SLOTOF ORIENTATION
TANG IN SLOTOF TANG IN SLOT
BRASS
FASTIN-FASTON
42100-102965469
42100-2
.8-2PA
AMP 58
is SERIES
a registered
trademark
of
AMP18-14
Inc. Harrisburg,
(REF)
BRASS
06288318
20-181.3-3
16-12
16-12 .5-.8
1.3-3
16-12
1.3-3
SYMBOL
SYMBOL
SYMBOL
Delphi
Packard
is
a
registered
trademark
of
Delphi-Packard
Electrical
Systems
Warren, Ohio
60253-2
60253-2
60253-2
60253-1
60253-1
60253-1
AMP
AMP
AMP
60295-1
60295-2
02965580
12
105.0
12084590
(2) 16 22-18
(2) 1.3
(2) 16 3.0.3-.9
(2) 1.3
(2) 16
(2) 1.3
250 SERIES
250 SERIES
250 SERIES
B
B
TANG
B
12010601
(2)16-14
(2)1.0-2.0 .8-2
12052224
123.0.8-2
18-14
18-14
18-14
.8-2
42100-2
42100-2
42100-2
FASTIN-FASTON FASTIN-FASTON
42100-1 02965471
FASTIN-FASTON
42100-1
42100-1
.820
NOTE: Consult Delphi
and/or Amp
on actual
part numbers
andB availability. .820
PACKARDPackard
02965470
16-14
1.0-2.0
12015870
16-14 .3-.9
1.0-2.0
22-18
.3-.9
22-18
.3-.9[20.83]
60295-2
60295-2
60295-2
60295-1trademark
60295-1
60295-1
58
SERIES
PACKARD
AMP is a registered
of AMP22-18
Inc.
Harrisburg,
PA
02965469
06288318
20-18
.5-.8
(2)22-18
(2).5-.8
A
12020035
METRI-PACK [20.83]
Packard
is a registered
trademark
of Delphi-Packard
Systems
Warren,
Ohio
630
SERIES
NOTE:Delphi
Consult
Delphi
NOTE:
Packard
Consult
and/or
Delphi
NOTE: Packard
Amp
Consult
on actual
and/or
Delphi part
Packard
Amp
numbers
on actual
and/or
and
part
Amp
availability.
numbers
onElectrical
actual
and
part
availability.
numbers and
availability.
12015832
12015869
12084590
20-18
105.0
.5-.8
AMP is a registered
AMPtrademark
is a registered
ofAMP
AMP
trademark
isInc.
a registered
Harrisburg,
of AMP
trademark
PA
Inc. Harrisburg,
of AMPPA
Inc. Harrisburg, PA
TANG
12052224
123.0 of Delphi-Packard
.35-.5 Systems
12052222
.820
Delphi Packard is
Delphi
a registered
Packardtrademark
is
Delphi
a registered
Packard
of Delphi-Packard
trademark
is a 20-22
registered
Electrical
trademark
of Delphi-Packard
Electrical
Warren,
Systems
Ohio
Electrical
Warren,
Warren,
Ohio
TANG
SYMBOLSystems
=Ohio SHOWS
ORIENTATION
OF TANG IN SLOT
.820
.770
12015870
16-14
1.0-2.0
16-12
1.3-3
[20.83]
PACKARD
SYMBOL
60253-2
60253-1
[20.83]
AMP
.820
.820 A
.820
[19.56]
.820 12020035 .820(2)22-18
.820
(2).5-.8
METRI-PACK
(2) 16
(2)
1.3
250 SERIES
SERIES
[20.83]
[20.83] B
[20.83]
630
[20.83] 12015869
[20.83]
.5-.8
12015832
18-14
.8-2
42100-2[20.83]20-18
FASTIN-FASTON
42100-1
20-22
.35-.5
12052222
22-18
.3-.9
60295-2
60295-1
TANG SYMBOL
SHOWS ORIENTATION OF TANG IN SLOT
.770
.920 =
.920
1.170
16-12
1.3-3
.770
.770
.770
NOTE: AMP
Consult Delphi60253-1
Packard and/or
Amp on actual part numbers and availability.
[19.56]
60253-2
[23.37] SYMBOL
[23.37]
[29.72]
(2) 16
(2) 1.3
AMP
is
a
registered
trademark
of
AMP
Inc.
Harrisburg,
PA
[19.56]
[19.56]
[19.56]
250 SERIES
B
Delphi
Packard
is
a
registered
trademark
of
Delphi-Packard
Electrical
Systems
Warren,
Ohio
18-14
.8-2
42100-2
FASTIN-FASTON
42100-1
A
A
A
A
.920
.3-.9
60295-2 .920 22-18
60295-1
.920
.920
.920 .820
.920
PACKARD 630
1.170 1.170
.920 PACKARD
.920
.820
1.170
1.170PACKARD 630
VC2
630
PACKARD 630
VC1
VC1
VC2
.950
[20.83] [23.37]
[23.37]
[23.37]
[23.37]
[20.83]
[23.37]
[23.37]
[23.37]
[29.72]
[29.72]
[29.72]
[23.37]
[29.72]
NOTE: Consult Delphi Packard and/or Amp on actual
B
B part numbers and availability.
[24.13]
AMP is a registered trademark of AMP Inc. Harrisburg, PA
B
B
A
A
A
A
A
A
A
A
A
A
A
A
AMP, PACKARD 58
AMP, PACKARD
58
AMP
AMP
Delphi Packard is a registered
trademark
of Delphi-Packard Electrical
Systems Warren, Ohio
A
A
A
A
PACKARD 630
PACKARD 630
PACKARD
PACKARD
630630
PACKARD 630
AMP,
PACKARD 58PACKARD 630
AMP, PACKARD 58
VC2
VC2
PACKARD PACKARD
630
PACKARD 630
PACKARD 630 VC2
PACKARD 630
PACKARD 630
630
.770 PACKARD 630
PACKARD 630
VC1
VC1
VC1
VC1
VC1
VC2
VC2
VC1
10 3
8
7 4 5 6 9VC2 .950
.9503 2 1 8 .950
VC2 2 1
PACKARD 630
PACKARD 630
7 4
5 6
VC1 B
VC2
VC1
B
B
B
B
[19.56]
.820
.950[24.13]
.820 B
[24.13]
[24.13]
B
B AMP, PACKARD 581.266 AMP, PACKARD 58
B AMP
B
B
B
B
B
1.466
1.466
[20.83]
AMP,
PACKARD
AMP,
PACKARD
58
58
AMP,
PACKARD
58
AMP
AMP,
PACKARD
58
AMP
AMP
AMP
AMP
1.266
1.250
[20.83]
AMP, PACKARD 58
AMP, PACKARD 58
AMP,
AMP,
PACKARD
PACKARD
58 58 [24.13]
AMP, PACKARD 58
AMP, PACKARD 58
B
B
10PACKARD
3 258[32.16]
1 8 10 3 2 1 78 4AMP,
105PACKARD
3 62958 1[37.24]
78 4 5 6 9 10 73 4 2 51AMP689 10 3 .920
2 1 8 7104 3 5 2 619 8 7
5 69
73 42 15 8 6 9
AMP,
AMP4
3 2
34 2 5 1 6 8
7 4
5 [31.75]
6
7 4
5 6
[37.24]
[32.16]
.920
1.170 1 AMP,8 PACKARD7 58
AMP, PACKARD 58
10 3 1.266
2 1 8
4 1.266
5 6 9 1.466
10 3 2 1.266
1 8
7 41.4665 6 9
1.466
1.466
1.466
1.266 [23.37]71.466
1.266
1.266
1.250
1.250
1.250
[23.37]
[29.72]
7 4
5 6
.770 3 2 1 8
[37.24]
[37.24]
[37.24]
[37.24]
[37.24] MARKING
[37.24]
[32.16]
[32.16]
[32.16]
[32.16]
[32.16]
MARKING
DETAIL
MARKING
DETAIL [32.16]
MARKING
DETAIL
DETAIL[31.75]
MARKING DETAIL
MARKING1.250
DETAIL
[31.75]
[31.75]
1.466
1.466
1.266
1.266
[19.56]
A
A
A
A
10 3 2
1 8
7 4
FRONT VIEW
5 69
REAR VIEW
FRONT VIEW
REAR VIEW
FRONT VIEW
REAR VIEW
PACKARD 630
PACKARD 630
VC2
PACKARD DETAIL
630MARKING DETAIL
PACKARDMARKING
630
MARKING
DETAIL
MARKING
DETAIL MARKING DETAIL
MARKING
MARKING
MARKING
DETAIL
MARKING
DETAIL
DETAIL
MARKING
DETAIL
MARKING
DETAIL
MARKING DETAIL MARKING DETAIL
MARKING
DETAIL
MARKING
MARKING
DETAIL
[37.24]
[37.24]
[32.16]DETAIL
VC1
VC1 DETAIL
VC2 MARKING
[32.16]
[31.75]
.950 DETAIL
FRONT
FRONT VIEW
FRONT
VIEW
FRONT VIEW
FRONT VIEWREARFRONT
VIEW VIEWREARB VIEW
REARVIEW
VIEW
REAR VIEW
REAR VIEW FRONT
REAR
VIEW FRONT VIEW
REAR
VIEW
REAR VIEW
REAR VIEW
VIEW
FRONT
VIEW
B
VC1
MARKING DETAIL
AMP, PACKARD 58
.920
AMP, PACKARD 58
MARKING
DETAIL
1VC1
8 [23.37]
7
4 5 69
VC1
10 3 2
VC1VIEW
FRONT
REAR VIEW
CONNECTOR
HOUSING
1.466
CONNECTOR HOUSING
CONNECTOR
HOUSING
CONNECTOR HOUSING
1.266
A
A
[32.16] VC1
VC1
MARKING DETAIL
CONNECTOR HOUSING
FRONT VIEW
PACKARD 630
B
AMP, PACKARD 58
10 3 2
1 8
1.266
VC1
[32.16]
CONNECTOR
HOUSING
MARKING DETAIL
FRONT VIEW
[37.24]VC1
PACKARD 630
B
.920
VC2
MARKING[23.37]
DETAIL
10 3 FRONT
2 1 8 VIEW
VC2
VC2
AMP
7 VC2
4 5 69
2
1
8
7 VIEW
4
5 6
REAR VIEW 3 VCH
FRONT
CONNECTOR
HOUSING
CONNECTOR
HOUSING
CONNECTOR HOUSING
CONNECTOR
HOUSING
CONNECTOR1.466
HOUSING
CONNECTOR
HOUSING
CONNECTOR
CONNECTOR
HOUSING
1.266
1.250 HOUSING
A
A
(For
AMP
terminals
only)
PACKARD 630
PACKARD 630
(For AMP terminals
only)
(Foronly)
AMP terminals
(For
AMP
terminals
VC2
[37.24] only)
[32.16]
[31.75]
VC2
VC2
MARKING DETAILHOUSING
MARKING DETAIL
CONNECTOR
FRONT VIEW
REAR VIEW
10 3AMP
2 terminals
1 8
(For
only) 7 4 5 6 9
MARKING DETAIL
REAR VIEW
AMP, PACKARD 58
7 4
[24.13]
1.170
B
VCH
MARKING
AMP, DETAIL
PACKARD 58
[29.72]
VCH
VCH
MARKING DETAIL
B
AMP
AMP
5 69
1.466
[37.24]
AMP
1.266
VC2
CONNECTOR
[32.16]HOUSING
(For AMP terminals only)
MARKING DETAIL
FRONT VIEW
MARKING DETAIL
REAR VIEW
Contura X Boot (P/N VB1-01)
VC1
CONNECTOR HOUSING
VC2
CONNECTOR HOUSING
(For AMP terminals only)
1.466
[37.24]
MARKING DETAIL
REAR VIEW
AMP, PACKARD 58
MARKING DETAIL
REAR VIEW
.950
VCH
MARKING
DETAIL
MARKING
DETAIL [24.13]
B
B
CONNECTOR
HOUSING
REAR
FRONT
AMP,
PACKARD VIEW
58
AMP,
PACKARDVIEW
58
3
2
1
8
1.250
VCH
[31.75]
CONNECTOR HOUSING
MARKING DETAIL
FRONT VIEW
7
4
5
6
MARKING DETAIL
REAR VIEW
Additional V-Series Ratings
1
VCH
CONNECTOR HOUSING
.4VA @ 28VDC Resistive
VB1-01
VB1-01
4VB1-01
X BOOT
10A
250VAC
1/2 HP,
15A
125
CONTURA
CONTURA
X BOOT
CONTURA
X
BOOT
VAC 1/2 HP, No Agency Listings
10A 250VAC 1/2 HP, 15A 125 VAC 1/2 HP, UL Recognized, CSA Certified
5 1
VB1-01
B
15A 24V CONTURA X BOOT
C VB1-01
20A 18VVB1-01
.757
.757
.757 CONTURA X BOOT
D
20A
12V
CONTURA
X BOOT
[19.23]
[19.23]
[19.23]
E
20A 14V, 10A 14VT (circuits 1, 4, A, & D only)
F VB1-01
10A 14V, 6A, 14VT (circuit G only)
.757
.757
CONTURA
X20A
BOOT 6V
G
[19.23]
[19.23]
H
20A 3V
.757
[19.23]
15A 125 VAC, 10A 250VAC, 1/2 HP 125-250 VAC; 6A 125 VAC L
L 2
3.99
3.99
3.99
.757[101.35]
[101.35]
[101.35]
M
.4VA/20A 12V (combi-contact)
[19.23]
VRT (combination
gold/silver
contacts for borderline dry circuit
VRT
VRT
REMOVAL
ACTUATOR REMOVAL
3.99
.900
.900ACTUATOR
.900ACTUATOR REMOVAL
applications)
TOOL
TOOL
TOOL
[101.35]
[22.86]
[22.86] (For flush[22.86]
(For flush bracket)
flush bracket)
N bracket)
.4VA/15A
24V(For
(combi-contact)
3.99
VRT
(combination gold/silver contacts for borderline dry circuit
ACTUATOR
REMOVAL
.900
[101.35]
TOOL
3.99
applications)
[22.86]
3.99
(For flush bracket)
Contura II, III, IV, V, VI & VII Actuator
Removal Tool (P/N VRT)
TOP
TOP
TOP
INSERT POINTS UNDER
INSERT POINTS UNDER
INSERT POINTS UNDER
ACTUATOR
ACTUATOR
ACTUATOR
HOLD FLUSH ON BRACKET AND PUSH
HOLD FLUSH ON BRACKET AND PUSH
HOLD FLUSH ON BRACKET AND PUSH
IN
IN
IN
TOP
TOP
TOP
TOP
INSERT POINTS UNDER
ACTUATOR
HOLD FLUSH ON BRACKET AND PUSH
IN
TOP
TOP
[101.35]
[101.35]
TOP
TOP
INSERT POINTS UNDER
ACTUATOR
INSERT POINTS
UNDER
HOLD FLUSH ON BRACKET
ACTUATOR
INSERT
POINTS
UNDER
HOLD
FLUSH
ON BRACKET
AND PUSH
IN
IN
ACTUATOR
HOLD FLUSH ON BRACKET
AND TOP
PUSH
TOP
IN
TOP
22.
VRT
ACTUATOR REMOVAL
VRT
.900
NOTES
VRT
ACTUATOR
REMOVAL
TOOL
REMOVAL
TOOLACTUATOR
.900 [22.86]
Consult
factory to
determine
availability for individual circuits and their HP rating.
(For
flush bracket)
(For flush bracket) TOOL
[22.86]
1.
Not(For
available
with Contura 7 or 14 rocker styles.
flush bracket)
.900
AND PUSH
[22.86]
2.
Rating L available with circuits 1, 4, A & D only.
Accessories
Contura Mounting Panels
Dimensional Specifications: in. [mm]
TEST
CUT
HOLE IN
ACTUAL
MATERIAL
TEST CUT
HOLE IN
ACTUAL MATERIAL
VMS
MOUNTING PANEL
HOLE
MOUNTING PANEL
OPENING
(2) UNITS
+.008[+.20]
-.000[-.00]
1.90
[48.2]
MOUNTING PANEL THICKNESS
.187
[4.75]
.250
[6.35]
.375
[9.52]
.62
[1.57]
.093
[2.36]
.125
[3.17]
+.008[+.20]
-.000[-.00]
2.02
[51.3]
+.008[+.20]
-.000[-.00]
.984
[25.00]
MOUNTING PANEL
For additional units, add 1.03[26.2] per unit. For
more than 2 V-Series Switches, add middle
section. Available in panel Thicknesses listed
below. Consult factory.
+.008[+.20]
-.000[-.00]
2.90
[48.2]
1.970
[50.03]
2.300
[58.42]
1.187
[30.14]
2.300
[58.42]
1.034
[26.26]
1.340
[34.03]
VMM
MOUNTING PANEL
MIDDLE
VME
MOUNTING PANEL
END
1.700
[43.18]
VMS
MOUNTING
PANEL
.670
[17.01]
1.030
[26.16]
1.030
[26.16]
2.300
[58.42]
2.300
[58.42]
6.490
[164.85]
3.400
[86.36]
VM6
MOUNTING PANEL
VM3
MOUNTING PANEL
Contura Hole Plug
Dimensional Specifications: in. [mm]
1.450
[36.83]
TEST CUT
HOLE IN
ACTUAL
PLUG
MOUNTING HOLE
1.450 MATERIAL
[36.83]
.830
[21.08]
1.910
[48.51]
.830
[21.08]
.960
[24.38]
VHP
CONTURA II,III HOLE PLUG
1.900
[48.26]
1.900
[48.26]
.960
[24.38]
.960
[24.38]
.430
[10.92]
.430
[10.92]
TEST CUT
HOLE IN
ACTUAL
MATERIAL
VHP
CONTURA II,III HOLE PLUG
VH1
STANDARD HOLE PLUG
(No wing serrations)
(With VC1 connector attached)
2.000
[50.80]
1.067
[27.10]
DETAIL VIEW
VH1
HOLE PLUG
(No wing Serrations
for ease of removal)
1.928
[48.97]
VH1
HOLE PlUG
(No wing Serrations
with VC1 connector attached)
VH3
CONTURA IV HOLE PLUG
(No wing serrations)
1.240
[31.50]
.080
[2.03]
1.240
[31.50]
1.820
[46.23]
VHP
MOUNTING PANEL PLUG
1.460
[37.08]
1.820
[46.23]
VH2
HOLE PLUG
(with wing Serrations )
VH4
CONTURA IV HOLE PLUG
(With wing serrations)
VH2
STANDARD HOLE PLUG
(With wing serrations)
DETAIL VIEW
VH2
HOLE PLUG
(with wing Serrations )
DETAIL VIEW
VH1,VH3 & VH5
HOLE PLUGS
(No wing serrations
for ease of removal)
1.020
[25.91]
VH5
CONTURA V HOLE PLUG
(No wing serrations)
23.
VH6
CONTURA V HOLE PLUG
(With wing serrations)
DETAIL VIEW
VH2,VH4 & VH6
HOLE PLUGS
(With wing serrations)
Authorized Sales Representatives and Distributors
Click on a region of the map below to find your local representatives and distributors
or visit www.carlingtech.com/findarep.
CANADA
EUROPE
USA
MIDDLE
EAST
MEXICO
AFRICA
ASIA-PACIFIC
OCEANIA
SOUTH
AMERICA
About Carling
Founded in 1920, Carling Technologies is a leading manufacturer of electrical and
electronic switches and assemblies, circuit breakers, electronic controls, power
distribution units, and multiplexed power distribution systems. With six ISO9001 and
IATF16949 registered manufacturing facilities and technical sales offices worldwide,
Carling Technologies Sales, Service and Engineering teams do much more than
manufacture electrical components, they engineer powerful solutions! To learn more
about Carling please visit www.carlingtech.com/company-profile.
To view all of Carling’s environmental, quality, health & safety certifications please visit
www.carlingtech.com/environmental-certifications.
24.
© Carling Technologies, Inc.
Carling, Contura are registered trademarks of Carling Technologies, Inc. in the U.S. and other countries.
