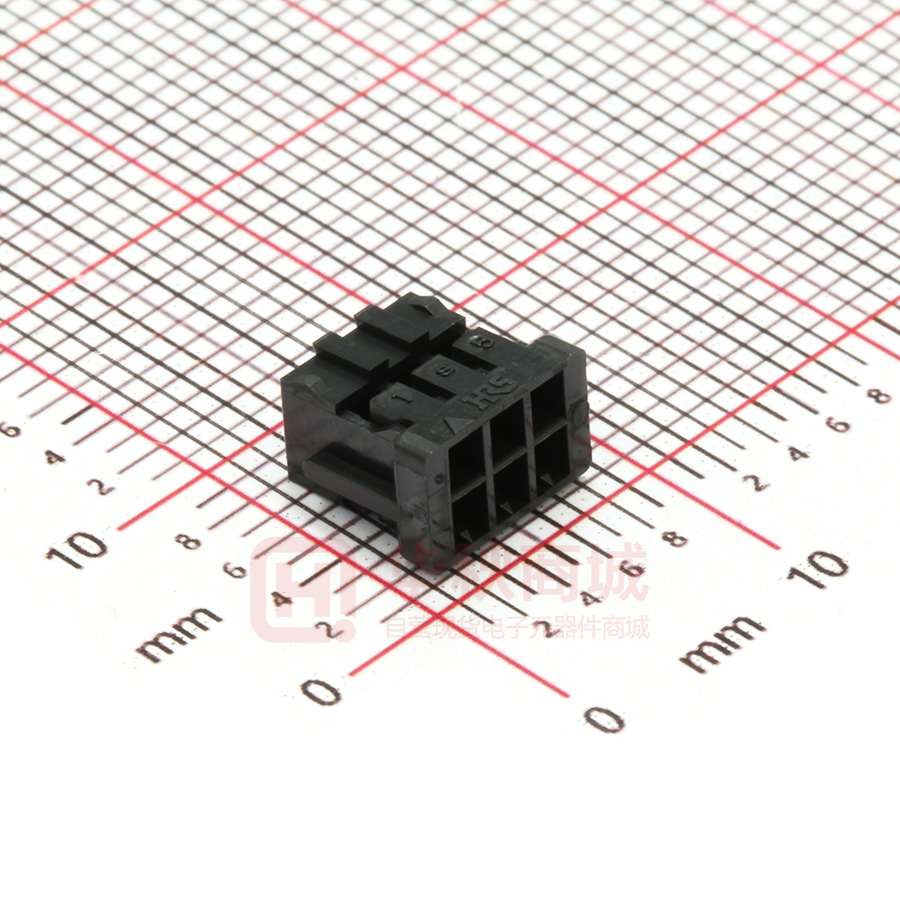

DF11-6DS-2C

2mm Double-Row Connector (Product Compliant to UL/CSA Standard) Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. DF11 Series ■Features 1. Space-saving on Board Realized Double rows of 2mm pitch contact has been condensed within the 5mm width. The multiple number of signals can be secured in the same space as the conventional 2mm single-row contact. 2. Broad Variation The insulation displacement and crimping methods are prepared for connection. Thus, board to cable, in-line, board to board connectors are provided in order to widen a board design variation. In addition, "Gold" or "Tin" can be selected for the plating according application, while the SMT products line up. Rib to prevent mis-insertion 3. Applicable Wire Covers Wide Range Simple lock Rib to prevent contact mis-insertion as well as disimilar contact mis-insertion According to the double rows of 2mm pitch compact design, the applicable wire can cover 22 to 30 AWG. 4. The ID Type Connector Achieves Connection Work. Using the full automatic insulation displacement machine, the complicated multi-harness can be easily connected, reducing the man-hour and eliminating the manual work process. 5mm 4 wall box style ■Applications Business equipments such as copy machine, printer and so on. B220 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) ■Features of DF11 Insulation Displacement Machine (Single Core Punching Full Automatic ID Machine AM700/DF11) ● 5 Major Features of ID Machine AM700/DF11 Data storage 1. Perform the multi-harness. 2. The setup time has been widely reduced. (10 minutes maximum) Low cost Multi-harness Setup in 10 minutes Half space 3. Space saving design. (About half space compared with the conventional machine) 4. Minimize initial cost with low cost. 5. The harness data can be saved in the floppy disk and easily changed. Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Points Since the DF11 insulation displacemention allows double rows ID with a single part, the harness service is completed with machine connection only. ■Product Specifications Current rating Rating Crimping Wire size (Note 1) Insulation Displacement Wire size Voltage rating Crimping 22 to 26 AWG : 2A Operating Temperature Range -30 to 85ç (Note 2) 28 AWG : 1A Operating Humidity Range 30 AWG : 0.5A 26 AWG : 1A Storage Temperature Range -10 to 60ç (Note 4) 250V AC Insulation Displacement 100V AC Storage Humidity Range Current rating Voltage rating Item 1. Insulation Resistance Wire size 22 AWG : 2A 24 to 28 AWG : 1A 30 AWG : 0.5A 30V AC Specification Condition 1000Mø min. 500V DC 2. Withstanding voltage No flashover or insulation breakdown. 650V AC/1 minute 3. Contact Resistance 30mø max. 100mA 4. Single Insertion/Extraction Force 0.3N (30gf) min., 4.4N(450gf) max. 5. Vibration No electrical discontinuity of 1μs or more 6. Humidity (Steady state) Contact resistance : 30mø max. Insulation resistance : 500Mø min. 7. Temperature Cycle 40 to 70% (Note 4) ■UL·CSA Safety Standard File No. UL : E52653 CSA : LR95109 UL-CSA Safety Standard Approved Specification Rating 40 to 80% (Note 3) Contact resistance : 30mø max. Insulation resistance : 1000Mø min. 8. Durability (Mating/un-mating) Contact resistance : 30mø max. 9. Resistance to Soldering heat No deformation of components affecting performance. Measured by the square steel-made pin of 0.5±0.002mm Frequency : 10 to 55 Hz, single amplitude of 0.75mm, 2 hours in each of the 3 directions. 96 hours at temperature of 40ç and humidity of 90% to 95% (-55ç : 30 minutes ➝ 5 to 35ç : 5 to 15 minutes (-85ç : 30 minutes ➝ 5 to 35ç : 5 to 15 minutes) 5 cycles Tin plated : 30 cycles Gold plated : 50 cycles Flow : Manual soldering : 260ç for 10 seconds 300ç for 2 seconds Reflow : Manual soldering : At the recommended temperature profile 300ç for 3 seconds Note 1 : This is the maximum current rating while all pins are powered or used as all power lines. When isolating power lines into multiple circuits, current ratings may go above the stated current ratings. Please consult Hirose for specifi c details before doing this. Current rating of header is 2A. Note 2 : Includes the temperature rise of power lines. Note 3 : The connector should be completely dry. (no condensation present) Note 4 : The term "storage" refers to the long-term storage condition of unused products before PCB mounting. The operating temperature and humidity ranges are applied while in a non-energized state, while in transport or after PCB mounting. Note 5 : Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a specific part number shown. B221 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) ■Material / Finish Product Type Part MateriaI Finish Remarks Crimping Socket Insulator Polyamide Black UL94V-0 Crimping Contact for Socket ID Socket Receptacle Pin Header Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. SMT Header In-line Plug In-line Plug Crimping Contact In-line Adaptor Contact Phosphor copper Tin plated or gold plated ––––––– Insulator Polyamide Black UL94V-0 Contact Phosphor copper Tin plated ––––––– Insulator Polyamide Black UL94V-0 Contact Phosphor copper Tin plated or gold plated ––––––– Insulator Polyamide Black UL94V-0 Contact Brass Tin plated or gold plated ––––––– Insulator Polyamide Beige UL94V-0 Contact Brass Tin plated or gold plated ––––––– Metal fittings Brass Tin plated ––––––– Insulator Polyamide Black UL94V-0 Contact Phosphor copper Tin plated or gold plated ––––––– Insulator Polyamide Black UL94V-0 Contact Brass Tin plated ––––––– ■Product Number Structure Refer to the chart below when determining the product specifications from the product number. Please select from the product numbers listed in this catalog when placing orders. ●Connector DF11 - * DS - 2C q q Series Name : DF11 w e r t t Connection Form/Contact Style w Number of Contacts : 4 to 32 C e Connector Type R26 : Insulation Displacemented socket for AWG26 : Crimping socket DS : Double Row socket DSA : Straight through hole DP : Double Row pin header DS : Right angle through hole V : Straight SMT A : Adaptor DEP : Double Row in-line plug r Contact Pitch : 2mm ●Contact DF11 - EP2428PCFA q q Contact Type e r e Contact Type/Packaging Type Blank : For socket SCF : Socket contact, Embossed tape EP SC : Socket contact, Bag PCF : Plug contact, Embossed tape PC : Plug contact, Bag : For in-line plug w Applicable Wire Size 22 : 22 AWG 2428 : 24 to 28 AWG 30 B222 w : 30 AWG r Plating Type Blank : Tin plated A : Gold plated DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) ■ID Socket Note 1 : Port 1-piece indicates odd number row, and port 2- pcs. indicate even number row. Note 2 : Use the dip type header as follows. · Straight angle type : DF11-*DP-2DSA(08) · Angle type : DF11-*DP-2DS(24) Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Photo : Cable connection status [Specific No.] –* *, (* *) (05) : Tin plated, 100 pcs. per bag (25) : Tin plated, Tube packaging Unit : mm Part No. HRS No. No. of Contacts A B DF11- 4DS-2R26(**) 543-0652-0 ** 4 6.0 2.0 Tube Packaging Quantity 188 DF11- 6DS-2R26(**) 543-0653-3 ** 6 8.0 4.0 140 DF11- 8DS-2R26(**) 543-0654-6 ** 8 10.0 6.0 112 DF11-10DS-2R26(**) 543-0655-9 ** 10 12.0 8.0 94 DF11-12DS-2R26(**) 543-0656-1 ** 12 14.0 10.0 80 DF11-14DS-2R26(**) 543-0657-4 ** 14 16.0 12.0 70 DF11-16DS-2R26(**) 543-0658-7 ** 16 18.0 14.0 62 DF11-18DS-2R26(**) 543-0659-0 ** 18 20.0 16.0 56 DF11-20DS-2R26(**) 543-0660-9 ** 20 22.0 18.0 50 DF11-22DS-2R26(**) 543-0661-1 ** 22 24.0 20.0 46 DF11-24DS-2R26(**) 543-0662-4 ** 24 26.0 22.0 42 DF11-26DS-2R26(**) 543-0663-7 ** 26 28.0 24.0 40 DF11-28DS-2R26(**) 543-0664-0 ** 28 30.0 26.0 36 DF11-30DS-2R26(**) 543-0665-2 ** 30 32.0 28.0 34 DF11-32DS-2R26(**) 543-0666-5 ** 32 34.0 30.0 32 Note 1 : The specific No. (05) item is delivered per bag unit (100 pcs.). Please order products per bag unit. Note 2 : To use the full automatic insulation displacement machine to punch the DF11 single contact, the (25) tube packaging specification should be applied. Note 3 : Please order the tube packaging products by multiplying the packaging quantity ( pcs.). ■Applicable Cable Part No. Applicable Cable Jacket Diameter DF11-*DS-2R26 UL1061 26 AWG (7/0.16) Ø0.9 to 1.05mm ■DF11-*DS-2R Insulation Displacement Machine Type Part No. Punching full automatic ID machine DF11 single contact AM700/DF11 Desktop ID Machine SA700/DF11 903-0013-5 Connection Type ■Effective harness form 1. DF11-both ended, one ended 2. DF11-DF11, separation 3. DF11-DF3, separation ■Effective harness length 100 to 2,000mm ■Continuity Inspection Mechanism Equipped ■Used for DF11 only, No restricted condition Remarks The connector is applicable to (25) tube packaging. Desktop machine for small lot B223 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) ■Crimping Socket [Specific No.] –* *, (* *) Blank : 100 pcs. per pack Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Photo : Contact insertion status Unit : mm Part No. HRS No. No. of Contacts A B Part No. HRS No. No. of Contacts A B DF11- 4DS-2C(**) 543-0568-6 ** 4 6.0 2.0 DF11-20DS-2C(**) 543-0509-7 ** 20 22.0 18.0 DF11- 6DS-2C(**) 543-0502-8 ** 6 8.0 4.0 DF11-22DS-2C(**) 543-0510-6 ** 22 24.0 20.0 DF11- 8DS-2C(**) 543-0503-0 ** 8 10.0 6.0 DF11-24DS-2C(**) 543-0511-9 ** 24 26.0 22.0 DF11-10DS-2C(**) 543-0504-3 ** 10 12.0 8.0 DF11-26DS-2C(**) 543-0512-1 ** 26 28.0 24.0 DF11-12DS-2C(**) 543-0505-6 ** 12 14.0 10.0 DF11-28DS-2C(**) 543-0513-4 ** 28 30.0 26.0 DF11-14DS-2C(**) 543-0506-9 ** 14 16.0 12.0 DF11-30DS-2C(**) 543-0514-7 ** 30 32.0 28.0 DF11-16DS-2C(**) 543-0507-1 ** 16 18.0 14.0 DF11-32DS-2C(**) 543-0515-0 ** 32 34.0 30.0 18 20.0 16.0 DF11-18DS-2C(**) 543-0508-4 ** Note : Delivered per bag unit (100 pcs.). Please order products bag pack unit. ■Receptacle (DIP) [Specific No.] –* *, (* *) (05) : Tin plated 100 pcs. per pack (06) : Gold plated 100 pcs. per pack ●Board Through-hole Diameter : Ø0.8++0.1 0 ●Kink Prefixed Effective Diameter : Ø0.8++0.05 0 Unit : mm Part No. B224 HRS No. No. of Contacts A B Part No. HRS No. No. of Contacts A B DF11- 6DS-2DSA(**) 543-0553-9 ** 6 8.0 4.0 DF11-20DS-2DSA(**) 543-0560-4 ** 20 22.0 18.0 DF11- 8DS-2DSA(**) 543-0554-1 ** 8 10.0 6.0 DF11-22DS-2DSA(**) 543-0561-7 ** 22 24.0 20.0 DF11-10DS-2DSA(**) 543-0555-4 ** 10 12.0 8.0 DF11-24DS-2DSA(**) 543-0562-0 ** 24 26.0 22.0 DF11-12DS-2DSA(**) 543-0556-7 ** 12 14.0 10.0 DF11-26DS-2DSA(**) 543-0563-2 ** 26 28.0 24.0 DF11-14DS-2DSA(**) 543-0557-0 ** 14 16.0 12.0 DF11-28DS-2DSA(**) 543-0564-5 ** 28 30.0 26.0 DF11-16DS-2DSA(**) 543-0558-2 ** 16 18.0 14.0 DF11-30DS-2DSA(**) 543-0565-8 ** 30 32.0 28.0 18 20.0 16.0 DF11-18DS-2DSA(**) 543-0559-5 ** DF11-32DS-2DSA(**) 543-0566-0 ** Note : Delivered per bag unit (100 pcs.). Please order products per bag unit. 32 34.0 30.0 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) ■Receptacle (SMT) Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. [Specific No.] –* *, (* *) (22) : Tin plated embossed tape packaging (with vacuum pick-up cap) (52) : Gold plated embossed tape packaging (with vacuum pick-up cap) Unit : mm No. of Contacts A DF11CZ- 4DS-2V(**) 543-2063-0 ** 4 2.0 8.5 8.7 DF11CZ- 6DS-2V(**) 543-2064-3 ** 6 4.0 10.5 10.7 DF11CZ- 8DS-2V(**) 543-2065-6 ** 8 6.0 12.5 12.7 DF11CZ-10DS-2V(**) 543-2066-9 ** 10 8.0 14.5 14.7 DF11CZ-18DS-2V(**) 543-2070-6 ** 18 16.0 22.5 22.7 DF11CZ-20DS-2V(**) 543-2071-9 ** 20 18.0 24.5 24.7 DF11CZ-22DS-2V(**) 543-2072-1 ** 22 20.0 26.5 26.7 DF11CZ-26DS-2V(**) 543-2074-7 ** 26 24.0 30.5 30.7 DF11CZ-30DS-2V(**) 543-2076-2 ** 30 28.0 34.5 34.7 Part No. HRS No. B C 40 38.0 44.5 44.7 DF11CZ-40DS-2V(**) 543-0584-2 ** Note 1 : Tape and reel packaging(500 pieces/reel). Order by number of reels. Note 2 : The 40 contacts connector is marchandized only in combination with the SMT product. Note 3 : Embossed packaging products have the reel wrapped in polyethylene and include a desiccant. BPCB mounting pattern Note : If the pattern is included in the shaded area and not treated with resist, it could touch the connector contact . B225 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) ■Straight Pin Header [Specific No.] –* *, (* *) (01) : Gold plated (08) : Tin plated (24) : Tin plated tube package product Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ●Board Through-hole Diameter : Ø0.8++0.1 0 Unit : mm No. of Contacts A B Tube Package Quantity DF11- 4DP-2DSA(**) 543-0517-5 ** 4 6.0 2.0 81pcs. DF11-20DP-2DSA(**) 543-0525-3 ** 20 22.0 18.0 22pcs. DF11- 6DP-2DSA(**) 543-0518-8 ** 6 8.0 4.0 61 DF11-22DP-2DSA(**) 543-0526-6 ** 22 24.0 20.0 20 DF11- 8DP-2DSA(**) 543-0519-0 ** 8 10.0 6.0 49 DF11-24DP-2DSA(**) 543-0527-9 ** 24 26.0 22.0 18 DF11-10DP-2DSA(**) 543-0520-0 ** 10 12.0 8.0 40 DF11-26DP-2DSA(**) 543-0528-1 ** 26 28.0 24.0 17 DF11-12DP-2DSA(**) 543-0521-2 ** 12 14.0 10.0 34 DF11-28DP-2DSA(**) 543-0529-4 ** 28 30.0 26.0 16 DF11-14DP-2DSA(**) 543-0522-5 ** 14 16.0 12.0 30 DF11-30DP-2DSA(**) 543-0530-3 ** 30 32.0 28.0 15 DF11-16DP-2DSA(**) 543-0523-8 ** 16 18.0 14.0 27 DF11-32DP-2DSA(**) 543-0531-6 ** 32 34.0 30.0 14 Part No. HRS No. Part No. HRS No. No. of A Contacts B Tube Package Quantity 18 20.0 16.0 24 DF11-18DP-2DSA(**) 543-0524-0 ** Note 1 : Specific No. (01) and (08) items are delivered per bag unit (100 pcs.). Please order products per bagunit. Note 2 : Please order the tube packaging products, by mutiplying a tube quantity( pcs.). ■Right Angle Pin Header [Specific No.] –* *, (* *) (24) : Tin plated tube packaging product (52) : Gold plated tube packaging product ●Board Through-hole Diameter : Ø0.8++0.1 0 Unit : mm Part No. HRS No. No. of Contacts DF11- 4DP-2DS(**) 543-0533-1 ** 4 A B Tube Package Quantity 6.0 2.0 81pcs. DF11-20DP-2DS(**) 543-0541-0 ** 20 22.0 18.0 22pcs. Part No. HRS No. Contacts A B Tube Package Quantity DF11- 6DP-2DS(**) 543-0534-4 ** 6 8.0 4.0 61 DF11-22DP-2DS(**) 543-0542-2 ** 22 24.0 20.0 20 DF11- 8DP-2DS(**) 543-0535-7 ** 8 10.0 6.0 48 DF11-24DP-2DS(**) 543-0543-5 ** 24 26.0 22.0 18 DF11-10DP-2DS(**) 543-0536-0 ** 10 12.0 8.0 40 DF11-26DP-2DS(**) 543-0544-8 ** 26 28.0 24.0 17 DF11-12DP-2DS(**) 543-0537-2 ** 12 14.0 10.0 34 DF11-28DP-2DS(**) 543-0545-0 ** 28 30.0 26.0 16 DF11-14DP-2DS(**) 543-0538-5 ** 14 16.0 12.0 30 DF11-30DP-2DS(**) 543-0546-3 ** 30 32.0 28.0 15 DF11-16DP-2DS(**) 543-0539-8 ** 16 18.0 14.0 27 DF11-32DP-2DS(**) 543-0547-6 ** 32 34.0 30.0 14 18 20.0 16.0 24 DF11-18DP-2DS(**) 543-0540-7 ** Note 1 : Please order the tube packaging product by mutiplying a tube quantity( pcs.). B226 No. of DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) ■Straight Pin Header (SMT) B [Specific No.] –* *, (* *) (27) : Tin plated embossed tape packaging (57) : Gold plated embossed tape packaging 1.5 No.1 2 Ø0 .5 A 1.5 No.2 2 6.2 0.65 1.5 A P=2 Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 2.25 7.2 1.5 Unit : mm Tin plated Gold plated Part No. HRS No. Part No. HRS No. No. of Contacts DF11CZ- 4DP-2V(27) 543-2047-4 27 DF11C- 4DP-2V(57) 543-0682-1 57 4 2.0 8.5 8.7 DF11CZ- 6DP-2V(27) 543-2048-7 27 DF11C- 6DP-2V(57) 543-0683-4 57 6 4.0 10.5 10.7 DF11CZ- 8DP-2V(27) 543-2049-0 27 DF11C- 8DP-2V(57) 543-0684-7 57 8 6.0 12.5 12.7 DF11CZ-10DP-2V(27) 543-2050-9 27 DF11C-10DP-2V(57) 543-0685-0 57 10 8.0 14.5 14.7 DF11CZ-12DP-2V(27) 543-2051-1 27 DF11C-12DP-2V(57) 543-0686-2 57 12 10.0 16.5 16.7 DF11CZ-14DP-2V(27) 543-2052-4 27 DF11C-14DP-2V(57) 543-0687-5 57 14 12.0 18.5 18.7 DF11CZ-16DP-2V(27) 543-2053-7 27 DF11C-16DP-2V(57) 543-0688-8 57 16 14.0 20.5 20.7 DF11CZ-18DP-2V(27) 543-2054-0 27 DF11C-18DP-2V(57) 543-0689-0 57 18 16.0 22.5 22.7 DF11CZ-20DP-2V(27) 543-2055-2 27 DF11C-20DP-2V(57) 543-0690-0 57 20 18.0 24.5 24.7 DF11CZ-22DP-2V(27) 543-2056-5 27 DF11C-22DP-2V(57) 543-0691-2 57 22 20.0 26.5 26.7 DF11CZ-24DP-2V(27) 543-2057-8 27 DF11C-24DP-2V(57) 543-0692-5 57 24 22.0 28.5 28.7 DF11CZ-26DP-2V(27) 543-2058-0 27 DF11C-26DP-2V(57) 543-0693-8 57 26 24.0 30.5 30.7 DF11CZ-28DP-2V(27) 543-2059-3 27 DF11C-28DP-2V(57) 543-0694-0 57 28 26.0 32.5 32.7 DF11CZ-30DP-2V(27) 543-2060-2 27 DF11C-30DP-2V(57) 543-0695-3 57 30 28.0 34.5 34.7 DF11CZ-32DP-2V(27) 543-2061-5 27 DF11C-32DP-2V(57) 543-0696-6 57 32 30.0 36.5 36.7 543-0697-9 57 40 38.0 DF11CZ-40DP-2V(27) 543-2062-8 27 DF11C-40DP-2V(57) Note 1 : Tape and reel packaging(500 pieces/reel). Order by number of reels. Note 2 : The 40 contacts connector is merchandized in combination with the SMT product. Note 3 : Embossed packaging products have the reel wrapped in polyethylene and include a desiccant. 44.5 44.7 A B C Note 2 BPCB mounting pattern Note : If the pattern is included in the shaded area and not treated with resist, it could contact to the connector contact . B227 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) ■In-line Plug Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Photo : Contact insertion status BIn-line Plug Panel Cutouts Note 1 : Please use the non-radius side for the panel hooking area. Note 2 : Applicable panel thicknessing is 1.6 to 1.0mm (A slight deviation will occur for the thickness except for 1.6 and 1.2mm.) Unit : mm Part No. HRS No. No. of Contacts A B C D E F DF11- 4DEP-2C 543-0619-5 4 11.0 9.2 6.0 2.0 9.4 6.3 DF11- 6DEP-2C 543-0620-4 6 13.0 11.2 8.0 4.0 11.4 8.3 DF11- 8DEP-2C 543-0621-7 8 15.0 13.2 10.0 6.0 13.4 10.3 DF11-10DEP-2C 543-0622-0 10 17.0 15.2 12.0 8.0 15.4 12.3 DF11-12DEP-2C 543-0623-2 12 19.0 17.2 14.0 10.0 17.4 14.3 DF11-14DEP-2C 543-0624-5 14 21.0 19.2 16.0 12.0 19.4 16.3 DF11-16DEP-2C 543-0625-8 16 23.0 21.2 18.0 14.0 21.4 18.3 DF11-18DEP-2C 543-0626-0 18 25.0 23.2 20.0 16.0 23.4 20.3 DF11-20DEP-2C 543-0627-3 20 27.0 25.2 22.0 18.0 25.4 22.3 DF11-22DEP-2C 543-0628-6 22 29.0 27.2 24.0 20.0 27.4 24.3 DF11-24DEP-2C 543-0629-9 24 31.0 29.2 26.0 22.0 29.4 26.3 DF11-26DEP-2C 543-0630-8 26 33.0 31.2 28.0 24.0 31.4 28.3 DF11-28DEP-2C 543-0631-0 28 35.0 33.2 30.0 26.0 33.4 30.3 DF11-30DEP-2C 543-0632-3 30 37.0 35.2 32.0 28.0 35.4 32.3 DF11-32DEP-2C 543-0633-6 32 39.0 37.2 34.0 30.0 37.4 34.3 Note 1 : Delivered per bag unit (100 pcs.). Please order products per bag unit. B228 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■In-line Adaptor BIn-line Adaptor Panel Cutouts Note 1 : Please use the non-radius surface in the panel hooking area. Note 2 : Applicable panel thickness is 1.6 to 1.0mm (A slight backlash will occur in the thickness other than 1.6 and 1.2mm.) Unit : mm Part No. HRS No. No. of Contacts A B C D E F DF11- 4DEP-2A 543-0698-1 4 11.0 9.2 6.0 2.0 9.4 6.3 DF11- 6DEP-2A 543-0699-4 6 13.0 11.2 8.0 4.0 11.4 8.3 DF11- 8DEP-2A 543-0700-1 8 15.0 13.2 10.0 6.0 13.4 10.3 DF11-10DEP-2A 543-0701-4 10 17.0 15.2 12.0 8.0 15.4 12.3 DF11-12DEP-2A 543-0702-7 12 19.0 17.2 14.0 10.0 17.4 14.3 DF11-14DEP-2A 543-0703-0 14 21.0 19.2 16.0 12.0 19.4 16.3 DF11-16DEP-2A 543-0704-2 16 23.0 21.2 18.0 14.0 21.4 18.3 DF11-18DEP-2A 543-0705-5 18 25.0 23.2 20.0 16.0 23.4 20.3 DF11-20DEP-2A 543-0706-8 20 27.0 25.2 22.0 18.0 25.4 22.3 DF11-22DEP-2A 543-0707-0 22 29.0 27.2 24.0 20.0 27.4 24.3 DF11-24DEP-2A 543-0708-3 24 31.0 29.2 26.0 22.0 29.4 26.3 DF11-26DEP-2A 543-0709-6 26 33.0 31.2 28.0 24.0 31.4 28.3 DF11-28DEP-2A 543-0710-5 28 35.0 33.2 30.0 26.0 33.4 30.3 DF11-30DEP-2A 543-0711-8 30 37.0 35.2 32.0 28.0 35.4 32.3 DF11-32DEP-2A 543-0712-0 32 39.0 37.2 34.0 30.0 37.4 34.3 Note 1 : Delivered per bag unit (100 pcs.). Please order products per bag unit. B229 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. ■Crimping Contact for Socket ■Crimping Contact for In-line Plug BApplicable Crimping Tool B230 Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) B231 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) BApplication Pattern DF11-πDS-2R**(05) DF11-πDS-2R**(05) DF11#Z-πDP-2V Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. DF11-πDS-2R**(05) B232 DF11-πDS-2R**(05) DF11#Z-πDP-2V DF11-πDS-2DSA(05) DF11#Z-*DS-2V DF11-πDS-2DSA(05) DF11#Z-πDP-2V DF11Z-πDS-2V DF11-πDS-2DSA(05) DF11Z-πDS-2V DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) BEmbossed Carrier tape Dimensions E-E ●Header (SMT) .5 2±0.15 16±0.1 4±0.1 + 0 0 .1 1.75±0.1 Ø1 9.4±0.3 E 7.8±0.3 0.4±0.1 2±0.5 (8) ( 5.8) A±0.3 .8 (Ø80) Ø370±2 Ø21±0 A A B±0.1 Ø1.5 Lead hole depth 1.7 +0.15 0 R0 .7 5 D+20 (D+6)MAX E Unreeling direction 1.5 +0.1 0 Unit : mm A 24.0 32.0 44.0 56.0 72.0 04~80 10~12 14~22 24~32 004000 2 ±0.1 1 0. + 0 .5 Ø1 16±0.1 4 ±0.1 E ( 5.5 ) A A C±0.1 Contact NO.1 Reel Dimensions E-E 2±0.5 Ø1.5 Lead hole depth .8 Ø21±0 Ø370±2 ( Ø80 ) ●Receptacle (SMT) D 24.4 32.4 44.4 56.4 72.4 Ø1 DF11C-**DP-2V(57) C 11.5 14.2 20.2 26.2 34.2 B±0.1 A±0.3 DF11CZ-**DP-2V(27) B ----------------28.4 40.4 52.4 68.4 0.2 No. of Contacts 3± Size 1.75±0.1 Product Type .75 R0 ( 5) D+20 (D+6) MAX 1.7 +0.15 0 Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. Ø1 3± 0.2 C±0.1 Reel Dimensions 0.4±0.1 E Unreeling direction 1.5 +0.1 0 6.6±0.3 8.4±0.3 Unit : mm Product Type Size DF11CZ-**DS-2V No. of Contacts 04~80 10~12 14~18 002000 002200 24~32 004000 A 24.0 32.0 44.0 56.0 44.0 56.0 72.0 B ----------------28.4 40.4 52.4 40.4 52.4 68.4 C 11.5 14.2 20.2 26.2 20.2 26.2 34.2 D 24.4 32.4 44.4 56.4 44.4 56.4 72.4 B233 DF11 Series●2mm Double-Row Connector (Product Compliant to UL/CSA Standard) BPrecautions 1. Recommended Temperature Profile (SMT) Temperature (ç) 10s max 250 230 200 180±10 60s max 150 100 to 120s Apr.1.2020 Copyright 2020 HIROSE ELECTRIC CO., LTD. All Rights Reserved. 100 Time (S) Note 1 : UP to 2 cycles of Reflow soldering are possible under the same conditions, provided that there is a return to normal temperature between the first and second cycle Note 2 : The temperature profile indicates the board surface temperature at the point of contacts with the connector terminals. Note 3 : This reflow profile is for the connectors packaged in embossed tape(reel), with desiccant in the package. Temperature (ç) 230 200 165±5 60s max 150 90 to 120s 100 Time (S) Note 4 : Reflow temperature for SMT connectors in another package is 240ç, 10 sec.max. 2. Recommended Manual Soldering Condition (SMT) Soldering iron temperature: 290±10ç, Soldering time: Within 2 seconds 3. Recommended Screen Thickness (SMT) 0.15 to 0.2mm Based on the both connector edges, 0.03mm max. is allowed in the connector center area. 4. Board Warp age (SMT) 5. Recommended Soldering Condition(Through hole) 6. Cleaning Condition 7. Connection Condition 8. Precautions 9. Handling instructions B234 10s max 240 Flow : 250ç for 10 seconds Manual soldering : 290ç for 2 seconds Refer to the "Wire-to-Board Connector Use Hand book". Refer to the "Wire-to-Board Connector Use Hand book". ■When inserting crimp-type (solderless) terminals to crimping (solderless) sockets, to maintain reliable performance, please do not insert obliquely. ■Please refer to the documents "DF11 Series Cable assembly Procedure ETAD-H0965-00", "DF11#****SC**(%%) Crimp quality standards ETAD-H0773-00", "DF11-EP****PC**(%%) Crimp quality standards ETAD-H0935-00" and "Crimp condition" for the cable assembly procedures. ■Please refrain from pushing/pulling operation when the PCB is not mounted. It may cause breakage, contact deformation, etc. ■Please refrain from pushing/pulling operation with wires in your hand. It maycause damage. ■During hand soldering, do not apply flux which will cause flux oozing on connector. ■This product may have a little difference in its molded color depending on the production lot, but the difference doesn't have any influence on the performance." Please refer to the following documents in handling this product. ■Crimp quality standards (ETAD-H0773-00, ETAD-H0935-00) ■Cable assembly Procedure (ETAD-H0965-00) ■User guide for Wire-to-Board connector
