规格承认书
Specification for approval
客户名称:
（Customer Name）
贴片铝电解电容器
产品名称:
SMD Aluminum Electrolytic Capacitor
（Product Name）
客户料号：
（Customer part number）
科尼盛料号：

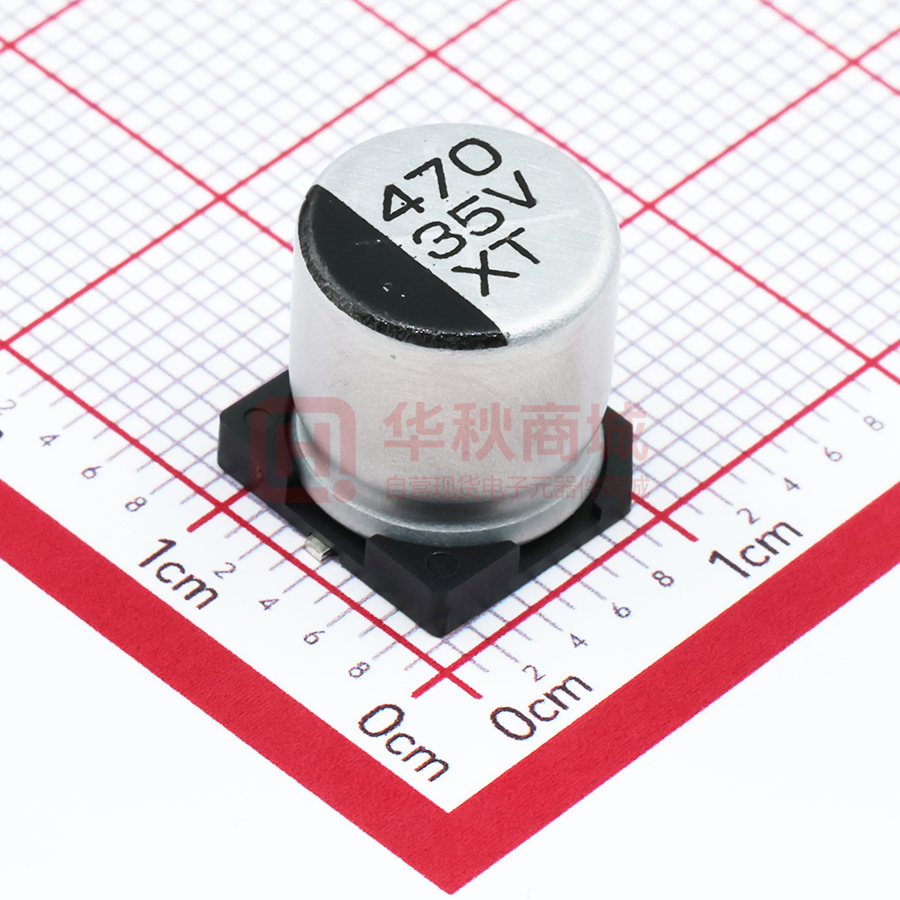

XT470UF35V90RV0080
（KNSCHA number）
型号规格:
XT 470UF35V 10*10.5mm
（Specifications）
XT 470UF35V 10*10.5mm
拟 制
制 造
(Manufacture)
客
户
(Customer)
Approval
Approval
核
准
(Fiction)
审 核
(Chief)
(Approval)
刘淑芬
刘军军
薛子文
检 验
(Inspect)
东莞市科尼盛电子有限公司
DONG GUAN KNSCHA ELECTRONICS CO.,LTD.
No. The 8th Floor, A3 Building, R&D Center (Phase I),
Songshan Lake Intelligent Valley, Liaobu Town, Dongguan City.
TEL:0769-83698067 81035570
FAX: 0769-83861559
Email：sales@knscha.com Website: http://www.knscha.com
审 核
(Chief)
核
准
(Approval)
Product Dimensions
Unit: mm
10
Ф
L
10.5±0.4
A
10.3
B
10.3
11.2
C
Items
W
0.7~1.2
P
4.4±0.2
Performance
Category Temperature Range
-55℃~105℃
Rated Voltage VR
Capacitance CR
35 V
470 µF
(120Hz,20℃)
Capacitance Tolerance
± 20 %
(120Hz,20℃)
Surge Voltage VS
44 VDC
ILEAK ≤ 164.5 µA
≤ 0.16
≤ / Ω
Leakage Current (20℃)
Tan δ
Impedance max.
Ripple Current (IAC, R / rms)
After 2 minutes
(120Hz,20℃)
(100KHz,20℃)
(120Hz,105℃)
310mA
Low Temperature
Impedance ratio
Characteristics at 120 Hz
Z(-25℃) / Z(+20℃)
2
3
Z(-55℃) / Z(+20℃)
Ripple Current (A) and
Frequency (Hz)
50,60
120
1K
10k up
Frequency Multipliers
Multiplier
0.85
1.00
1.10
1.20
Endurance and Shelf Life
Test
Items
Endurance
Shelf Life Test
Test Time
2,000 Hrs at 105℃; VR
1,000 Hrs at 105℃
Cap. Change
Within ±25 % of initial value
Within ±25 % of initial value
Tan δ
Less than 300% of specified value
Less than 300% of specified value
Leakage Current
Within specified value
Within specified value
Standards
JIS C 5101-1, -18, IEC 60384-4
Remarks
RoHS Compliance, Halogen-free
Marking: Each capacitor shall be marked with the following information.
Marking color: Black
D≥ 12.5mm
D≤10mm
Negative
polarity
220
35V
XT
Rated cap
Negative
Rated
polarity
voltage
Series code
560
35V
XT
Rated cap
Rated
voltage
Series code
Please refer to “Precautions and Guidelines for Aluminum Electrolytic Capacitors” section in catalog for further details.
XT SERIES
V-chip
Aluminum
Electrolytic
Capacitors
1
Diagram of Dimensions
(※)For 4~6.3Ф is 0.4 max.
Unit:mm
D
±0.5
4
4
4
8
P
±0.2
Fig.No.
1
4.3
4.3
5.1
0.5to0.8
1.0
1
±0.4
4.3
4.3
5.1
0.5to0.8
1.0
1
±0.4
5.3
5.3
6.1
0.5to0.8
1.3
1
±0.4
5.3
5.3
6.1
0.5to0.8
1.3
1
±0.4
5.3
5.3
6.1
0.5to0.8
1.3
1
±0.4
6.6
6.6
7.2
0.5to0.8
2.2
1
±0.4
6.6
6.6
7.2
0.5to0.8
2.2
1
±0.4
6.6
6.6
7.2
0.5to0.8
2.2
1
±0.4
6.6
6.6
7.2
0.5to0.8
2.2
1
±0.5
8.3
8.3
9.2
0.7to1.2
3.1
1
±0.5
5.8
7.0
7.0
5.4
5.8
7.7
6.5
8
w
1.0
7.9
8
±0.2
0.5to0.8
8
8
C
5.1
6.3
8
±0.2
4.3
5.8
6.3
B
4.3
5.4
6.3
±0.2
±0.4
5.4
5
6.3
A
±0.4
5
5
7.9
8.3
8.3
9.2
0.7to1.2
3.1
1
10.5
±0.5
8.3
8.3
9.2
0.7to1.2
3.1
1
11.5
±0.5
8.3
8.3
9.2
0.7to1.2
3.1
1
12.5
±0.5
8.3
8.3
9.2
0.7to1.2
3.1
1
13.5
±0.5
8.3
8.3
9.2
0.7to1.2
3.1
1
±0.5
10
7.7
10.3
10.3
11.2
0.7to1.2
4.4
1
10
10.5
±0.5
10.3
10.3
11.2
0.7to1.2
4.4
1
11.5
±0.5
10.3
10.3
11.2
0.7to1.2
4.4
1
12.5
±0.5
10.3
10.3
11.2
0.7to1.2
4.4
1
13.5
±0.5
10.3
10.3
11.2
0.7to1.2
4.4
1
13.5
±0.5
13.0
13.0
14.0
1.0to1.4
4.4
2
12.5
16.0
±0.5
13.0
13.0
14.0
1.0to1.4
4.4
2
16
16.5
±0.5
17.0
17.0
18.0
1.0to1.4
6.4
2
21.5
±0.5
17.0
17.0
18.0
1.0to1.4
6.4
2
16.5
±0.5
19.0
19.0
20.0
1.0to1.4
6.4
2
21.5
±0.5
19.0
19.0
20.0
1.0to1.4
6.4
2
10
10
10
12.5
16
18
18
XT SERIES
L
V-chip
Aluminum
Electrolytic
Capacitors
2
Part Numbering System
Product Code Guide – SMD Type
1. Carrier Tape
Fig. 1-1
Carrier tape φD≤10
Fig. 1-2
Carrier tape φD≥12.5
Unit:mm
±0.3
±0.2
E
±0.1
5.0
8.0
1.75
5.5
6.0
－
1-1
ɸ4×5.8
12.0
5.0
5.0
8.0
1.75
5.5
6.5
－
1-1
ɸ4×7.0
12.0
5.0
5.0
8.0
1.75
5.5
7.5
－
1-1
ɸ5×5.4
12.0
6.0
6.0
12.0
1.75
5.5
6.0
－
1-1
ɸ5×5.8
12.0
6.0
6.0
12.0
1.75
5.5
6.5
－
1-1
ɸ5×7.0
12.0
6.0
6.0
12.0
1.75
5.5
7.5
－
1-1
ɸ6.3×5.4
16.0
8.7
8.7
12.0
1.75
7.5
6.0
－
1-1
ɸ6.3×5.8
16.0
8.7
8.7
12.0
1.75
7.5
6.5
－
1-1
ɸ6.3×7.7
16.0
8.7
8.7
12.0
1.75
7.5
8.2
－
1-1
ɸ6.3×7.9
16.0
8.7
8.7
12.0
1.75
7.5
8.5
－
1-1
ɸ8×6.5
16.0
8.7
8.7
12.0
1.75
7.5
7.2
－
1-1
ɸ8×10.5
24.0
8.7
8.7
16.0
1.75
11.5
11.5
－
1-1
ɸ8×11.5
24.0
8.7
8.7
16.0
1.75
11.5
12.0
－
1-1
ɸ8×12.5
24.0
8.7
8.7
16.0
1.75
11.5
13.5
－
1-1
ɸ8×13.5
24.0
8.7
8.7
16.0
1.75
11.5
14.5
－
1-1
ɸ10×7.7
24.0
10.7
10.7
16.0
1.75
11.5
8.5
－
1-1
ɸ10×10.5
24.0
10.7
10.7
16.0
1.75
11.5
11.5
－
1-1
ɸ10×11.5
24.0
10.7
10.7
16.0
1.75
11.5
12.5
－
1-1
ɸ10×12.5
24.0
10.7
10.7
16.0
1.75
11.5
13.5
－
1-1
ɸ10×13.5
24.0
10.7
10.7
16.0
1.75
11.5
14.5
－
1-1
ɸ12.5×13.5
32.0
13.9
13.9
24.0
1.75
14.2
14.5
28.5
1-2
ɸ12.5×16.0
32.0
13.9
13.9
24.0
1.75
14.2
16.5
28.5
1-2
ɸ16×16.5
44.0
17.5
17.5
28.0
1.75
20.2
17.5
40.5
1-2
ɸ16×21.5
44.0
17.5
17.5
28.0
1.75
20.2
22.5
40.5
1-2
ɸ18×16.5
44.0
19.5
19.5
32.0
1.75
20.2
17.5
40.5
1-2
ɸ18×21.5
44.0
19.5
19.5
32.0
1.75
20.2
22.5
40.5
1-2
Capacitors
T
±0.1
5.0
Electrolytic
F
±0.2
12.0
Aluminum
P
±0.1
ɸ4×5.4
V-chip
W
±0.1
Y
XT SERIES
H
±0.2
Size(ɸD×L)
S
Fig.No.
3
2. Reel Package
Fig. 2-1
Fig. 2-2
Pull out direction
Case size
Φ4~5
Φ6.3
Φ8×6.5
Φ8
Φ10
Φ12.5
Φ16~18
A
14
18
18
26
26
34
46
D
380
380
380
380
380
380
380
T
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3. Packing specification
Fig. 3-1 Carrier Tape
Unit:pcs
Case size
Q’ty / Reel
Reels/Box
Q’ty/Box
Φ4
2,000
12
24,000
Φ5
1,000
12
12,000
Φ6.3
1,000
10
10,000
Φ8×6.5
1,000
10
10,000
Φ8×10.5
500
10
5,000
Φ8×11.5~13.5
400
10
4,000
Φ10×7.7~10.5
500
10
5,000
Φ10×11.5~13.5
400
10
4,000
Φ12.5×13.5
250
6
1,500
Φ12.5×16
200
6
1,200
Φ16×16.5
125
5
625
Φ16×21.5
100
5
500
Φ18×16.5
125
5
625
Φ18×21.5
100
5
500
Case size
Φ4~5
Φ6.3
Φ8×6.5
Φ8
Φ10
Φ12.5
Φ16~18
H
260
260
260
340
340
240
260
W
395
395
395
395
395
395
395
L
390
390
390
390
390
390
390
XT SERIES
V-chip
Aluminum
Electrolytic
Capacitors
4
4. Sealing Tape Reel Strength
4.1 Peel angle: 165 to 180℃refered to the surface on which the tape is glued.
4.2 Peel speed: 300mm per minutes
4.3 The peel strength must be 0.1 ~ 0.7N under these conditions.
Cover tape
Peel speed: 300mm/min
Direction of unreeling
Carrier tape
5. Packing Method
5.1 The leader length of the tape shall not be less than 150 mm including 10 or more embossed sections inwhich no parts
are contained.
5.2 the core has an empty section with a length less than 60mm, and the perforation carrier is only suitable for φ D ≤ 5mm.
Empty section
Embossed carrier
Empty section(leader section)
Chipcomponent mounting section
Top cover tape
70 mm or more
-
-
+
+
70 mm min
Pull out direction
150 mm min
Top cover tape
XT SERIES
V-chip
Start of the tape
Aluminum
Electrolytic
Capacitors
5
Endurance characteristic:
No.
Item
Conditions
Specification
Capacitor is placed in an oven whose temperature
follow specific regulation to change. The specific
Rotational
1
Temperature
Test
regulation is " +25℃ (3 min.) → -55℃ (30 min.) →
+25℃ (3 min.) → +105℃ (30 min.) → +25℃ (3
min.)", and it is called a cycle. The test totals 10
cycles, and then the capacitor shall be subjected to
Capacitance change Within ± 10% of initial value
Tanδ
Within specified value
Leakage Current
Within specified value
Physical
No broken and undamaged
standard atmospheric conditions for 4 hours, after
which measurements shall be made.
High
2
Temperature
Endurance
Life Test
High
3
Temperature
1.Capacitors shall be placed in oven with application
of rated voltage2,000 +72 / -0 hours at 105℃.
2.hen the capacitor shall be subjected to standard
atmospheric conditions for 4 hours, after which
measurements shall be made.
After 1,000 +48 / -0 hours test at 105℃ without
rated voltage. And then the capacitor shall
Unload Life
be subjected to standard atmospheric conditions for
Test
4 hours, after which measurements shall be made.
Capacitors shall be exposed for 1,000 +48 / -0
4
Humidity
Test
hours in an atmosphere of 90 ~ 95% R. H. at 60 ±
3℃.And then the capacitor shall be subjected to
standard atmospheric conditions for 4 hours,
afterwhich measurements shall be made.
Low
5
Temperature
Test
6
Vibration
Test
Capacitors are placed at -55 ± 3℃ for 96 ± 4
hours. And then the capacitor shall be subjected to
standard atmospheric conditions for 4 hours, after
which measurements shall be made.
Capacitance change Within ±25% of initial value
Less than300% of specified
Tanδ
value
Leakage Current
Within specified value
Physical
No broken and undamaged
Capacitance change Within ± 25% of initial value
Less than300% of specified
Tanδ
value
Leakage Current
Within specified value
Physical
No broken and undamaged
Capacitance change Within ± 10% of initial value
Less than 150% of specified
Tanδ
value
Leakage Current
Within specified value
Physical
No broken and undamaged
Capacitance change Within ± 10% of initial value
Tanδ
Within specified value
Leakage Current
Within specified value
Physical
No broken and undamaged
1. Fix it at the point 4 mm or less from body. For ones
Capacitance change Within ± 10% of initial value
of 12.5 mm or more in diameter or 25 mm or more
Tanδ
Within specified value
Leakage Current
Within specified value
Physical
No broken and undamaged
length, use separate fixture.
2. Direction and during of vibration:3 orthogonal
directions mutually each for 2 hours (total of 6
hours).
3. Frequency:10 to 55 Hz reciprocation for 1 minute.
4. Total amplitude : 1.5 mm
he capacitor shall be subjected to 1,000 cycles at
15 ~ 35℃. Protective series resistor a 1KΩ
eachconsisting of a charge period of 30 ± 5
seconds, followed by discharge period of
Surge
7
Voltage
Test
XT SERIES
approximately 5.5 minutes.
Capacitance change Within ± 20% of initial value
Less than 200% of specified
Tanδ
value
Leakage Current
Within specified value
Physical
No broken and undamaged
Applying voltage:
Rated Voltage(V)
4
6.3
10
16
25
35
50
63
80
100
Surge Voltage(V)
4.6
7.3
11.5
18.4
28.8
40.3
57.5
72.5
92
115
Rated Voltage(V)
160
200
250
315
350
400
420
450
500
525
Surge Voltage(V)
176
220
275
347
385
440
462
495
550
578
V-chip
Aluminum
Electrolytic
Capacitors
6
No.
Item
Conditions
Specification
After the lead wire fully immersed in the solder for
8
Capacitance change Within ± 10% of initial value
3 ± 0.5 secs at a temperature of 245 ± 5℃,
Solderability
the solder the solder coating must be more than
Tanδ
Within specified value
Dipping speed: 25±2.5mm/s
Leakage Current
Within specified value
Dipping time: 3±0.5s
Physical
No broken and undamaged
95%. .
Test
1. IR Reflow
Solder
Heat-Resistance
Capacitance change Within ± 10% of initial value
t3
Temperature(°
C)
Test
Tanδ
Within specified value
Leakage Current
Within specified value
Physical
No broken and undamaged
t2
t1
Time(sec)
Rated voltage (V)
4-50
63 up
4-100
160 up
Case size (φ)
4-6.3
4-6.3
8-18
8-18
Preheat
9
Duration
Peak
Temp.(T1~T2,℃)
150-180
Time (t1)(Max,secs)
Temp.(T3,℃)
Time (t2)(Max,secs)
100
217
230
90
Temp.(T4,℃)
217
217
60
60
40
260
250
Time (t3,secs)
230
40
250
217
40
245
5
Reflow cycles
2 or less
2.Solder iron method:
Bit temperature: 350 ± 5℃
Application time of soldering Iron: 3 +1/-0 sec
※Please contact our representative if your condition is higher.
※Please ensure that the capacitor became cold enough tothe room temperature (5℃ ~ 35℃) before
the second reflow.
※Consult with us when performing reflow profile in IPC /JEDEC (J-STD-020)
1. pplicable to the capacitors with case size is 8×10 mm and larger.
2. Test condition:
(1) AC test: The capacitor shall be connected across an applying 50 or 60 Hz AC which is 0.7 times
ofrated voltage or 250Vrms AC whichever is the lower.
(2) DC test: Applying inverse DC rated voltage with current to the capacitor.
10
Where case diameter: φD ≦ 12.5 mm: 2 A DC max.
Venting Test
φD＞12.5 mm: 10 A DC max.
Note:
(1) When the pressure relief vent operated, the capacitor shall avoid any danger of fire or explosion
ofcapacitor element (terminal and metal foil etc.) or cover.
(2) When the pressure relief device does not open with the voltage applied over 30 minutes, the test
isconsidered to be passed.
XT SERIES
V-chip
Aluminum
Electrolytic
Capacitors
7
No.
Item
Conditions
Recommended pad pattern and size
Unit:mm
Case size
11
Land Pattern
X
Y
G
:pad
12
Standards
Land size
G
Y
X
Φ4
1.0
2.6
1.8
Φ5
1.4
3.0
1.8
Φ6.3
1.9
3.5
1.8
Φ8
3.0
4.0
2.5
Φ10
4.0
4.0
2.5
Φ12.5
4.0
5.8
3.0
Φ16
6.0
6.8
3.5
Φ18
6.0
8.0
3.5
Satisfies Characteristic JIS C 5101-1, -18
Conforming to RoHS and European REACH Regulation
The capacitors do not intentionally contain the banned substances (Cd, Pb, Hg, Cr(Ⅵ), PBB, PBDE, DEHP, BBP, DBP, DIBP)
listed in “RoHS directrive : (EU) 2015/863” and its concentration is less than the threshold values.
Our products are "articles without any intended releas" besed published on 26 May2008. They are not applicable for
"Registration" for European REACH Regulation Article 7 (1).
Precautions and Guidelines for Aluminum Electrolytic Capacitors
1.Guidelines for Circuit Design (General / Application guidelines for using electrolytic capacitors)
Selecting of a right capacitor is a key to a good circuit design.
(1)Polarity
Most of the aluminum electrolytic capacitors are polarized. Therefore, they must be installed with the correct polarity. Usage in
the reverse polarity results into a short-circuit condition that may damage or even explode the capacitor. In addition, it may
influence circuit functionality. A bi-polar electrolytic capacitor should be installed when polarity across a capacitor is unstable /
reversible. It should be, however, noted that usage of both polar and bi-polar capacitors are limited to DC applications. They must
NOT be used for AC application.
(2)Operating Voltage
Applied DC voltage must not exceed rated voltage of the capacitor. Applying higher voltage than its rated voltage across a
capacitor terminals cause overheating due to higher leakage currents and capacitor dielectric/insulation deterioration that will
ultimately affect a capacitor’s performance. The device, however, is capable of working under short-time transient voltages such
as DC transients and peak AC ripples. Reverse voltages higher than 1 Volt with a specified temperature limit or AC voltages are
not permissible. Overall, using capacitors at recommended operating voltages can prolong its lifespan. Note that the result of DC
voltage overlapped with peak ripple voltage should not exceed rated voltage.
XT SERIES
V-chip
Aluminum
Electrolytic
Capacitors
8
(3)Ripple Current
One of the key functions of any capacitor is removal of the ripple current i.e. the RMS value of AC flowing through a capacitor. But,
a ripple current higher than rated ripple current will drop resultant capacitance, cause undue internal heating and thus reduces
life span of the capacitor, In extreme cases, internal high temperature will cause the pressure relief vent to operate while
destroying the device. Overall, it is important to note that an electrolytic capacitor must be used within a permissible range of
ripple current. Indicators like temperature coefficient of allowable ripple current are generally sued to determine life expectancy of
the capacitor, but to avoid related complex calculations and for the sake of simplicity, we haven’t provided temperature
coefficient in the catalogue. But it offers key indicators like maximum operating temperature for calculation of life expectancy at
a given temperature.
(4)Operating Temperature
Capacitors should be used within a permissible range of operating temperatures. Using capacitor at a higher temperature than
maximum rated temperature will considerably shorten its life. In the worst-case scenario, high temperature can cause pressure
relief vent to operate and the device will get destroyed. Using capacitors at an ambient room temperature assure their longer life.
(5)Leakage Current
Leakage current flows through a capacitor when DC voltage is applied across it. Leakage current varies with changes in ambient
temperature and applied DC voltage level and its time of application. Overvoltage situation, presence of moisture, and thermal
stresses, especially occurring during the soldering process can enhance leakage current. Initial leakage current is usually higher
and does not decrease until voltage is applied for a certain period of time. It is recommended to keep initial leakage current within
specified levels.
(6)Charge and Discharge
Regular electrolytic capacitors are not suitable for rapid charging/discharging circuits. Such usage may either cause reduction
in overall capacitance or damage due to overheating. provides special assistance for selecting appropriate capacitors for
rapid charging/discharging circuits.
(7)Surge Voltage
The Surge voltage rating is referred as the maximum DC overvoltage that may be applied to an electrolytic capacitor for a short
time interval of 30 seconds at infrequent at infrequent time intervals not exceeding 5.5minutes with a limiting resistance of 1k
Ω. Unless otherwise described on the catalogue or product specifications, please do not apply a voltage exceeding the
capacitor’s voltage rating. The rated surge voltages corresponding to rated voltages of electrolytic capacitors are presented as
follows:
Rated Voltage(V)
4
6.3
10
16
25
35
50
63
80
100
Surge Voltage(V)
4.6
7.3
11.5
18.4
28.8
40.3
57.5
72.5
92
115
Rated Voltage(V)
160
200
250
315
350
400
420
450
500
525
Surge Voltage(V)
176
220
275
347
385
440
462
495
550
578
(8)Surge Voltage
The capacitor shall NOT be exposed to:
(a)Fluids including water, saltwater spray, oil, fumes, highly humid or condensed climates, etc.
(b)Ambient conditions containing hazardous gases/fumes like hydrogen sulfide, sulfurous acid, nitrous acid, chlorine or bromine
gas, ammonia, tec.
(c)Exposed to ozone, ultraviolet rays and radiation.
(d)Severe vibrations or physical shocks that exceeds the specifications mentioned in this catalogue.
(9)Circuit Design Consideration
(a)Please ensure whether application, operating and mounting conditions satisfy the conditions specified in the catalog before
installation of a capacitor. Please consult , if any of the conditions are beyond the conditions specified in the catalog.
(b)Heat-generating components or heat sinks should not be placed closer to Aluminum electrolytic capacitors on the PCB to
avoid their premature failure. A cooling system is recommended to improve their reliable working.
(c)Electrical characteristics and performance of aluminum electrolytic capacitors are affected by variation of applied voltage,
ripple current, ripple frequency and operating temperature. Therefore, these parameters shall not exceed specified values in
the catalog.
(d)Aluminum capacitors may be connected in the parallel fashion for increasing total capacitance and/or for achieving higher
ripple current capability. But, such design may cause unequal current flow through each of the capacitors due to differences
in their impedances.
XT SERIES
V-chip
Aluminum
Electrolytic
Capacitors
9
(e)When two or more capacitors are connected in series, voltage across each capacitor may differ and fall below the applied
voltage. A resistor should be placed across each capacitor so as to match applied voltage with voltage across a capacitor.
(f)Please consult while selecting a capacitor for high- frequency switching circuit or a circuit that undergoes rapid
charging/ discharging.
(g)Standard outer sleeve of the capacitor is not a perfect electrical insulator therefore is unsuitable for the applications that
requires perfect electrical insulation. Please consult , if your application requires perfect electrical insulation.
(h)Tilting or twisting capacitor body is not recommended once it is soldered to the PCB.
2.Caution for Assembling Capacitors
(1)Mounting
(a)Aluminum electrolytic capacitors are not recommended to reuse in other circuits once they are mounted and powered in a
circuit.
(b)Aluminum electrolytic capacitors may hold static charge between its anode and cathode, which is recommended to be
discharged through a 1kΩ resistor before re-use.
(c)A long storage of capacitors may result into its insulation deterioration. This can lead to a high leakage current when voltage
is applied that may damage the capacitor. Capacitors following a long storage period must undergo voltage
treatment/re-forming.
Capacitors are charged by applying rated DC voltage through a resistor of 1kΩ in series at least for an hour. It is recommended
to increase applied voltage gradually using a voltage regulator unit once capacitors are assembled on the board. The charging
should be followed by discharging through a 1KΩ resistor.
(d)Please check capacitor rated voltage before mounting.
(e)Please check capacitor polarity before mounting.
(f)Please don’t drop capacitor on the floor / hard object.
(g)Please don’t deform the capacitor during installation.
(h)Please confirm whether the lead spacing of the capacitors match with its pad spacing / footprint on PCB prior to installation.
(i)Please avoid excessive mechanical shocks to capacitor during the auto-insertion process, inspection or centering operations.
Please don’t place any wiring or circuit over the capacitor’s pressure relief vent. The pressure relief vent may fail to open if
adequate clearance space is not provided. Following table shows minimum clearance space required for different case diameters.
Case Diameter
φ6.3 ~ φ16
φ18 ~ φ35
φ40 or above
Clearance(mm)
2 mm
3 mm
5 mm
(2)Soldering
(a)Please confirm that soldering conditions, especially temperature and contact time are within our specifications. Dip or flow
soldering temperature should be limited at 260 ± 5 ℃ for 10 ± 1 sec while manual soldering using soldering iron should be
limited at 350 ± 5℃ for 3 +1/-0 seconds. Please do not dip capacitor body into molten solder. A capacitor’s life will be
negatively affected if these conditions are violated.
(b)Storage of capacitors in high humidity conditions is likely to affect the solder-ability of lead wires and terminals.
(c)Reflow soldering should NOLY be used for SMD type capacitors. The temperature and duration shall not exceed the specified
temperature and duration in the specification. If the temperature or duration is higher than the value specified, please consult
before usage.
(d)Standard aluminum electrolytic capacitors are not designed to withstand multiple reflow processes. Please consult if
repeated reflowing is unavoidable.
(e)Incorrect mounting on PCB with improper external strength applied on its lead wires or capacitor body after soldering may
damage a capacitor’s internal structure, cause short circuit, or lead to high leakage current issues. Do not bend or twist the
capacitor body after soldering. Referring to the drawings below only case (i) is recommended.
(i)Correct soldering
(ii)Hole-to-hole spacing on PCB differs from the lead space of lead wires.
(iii)Lead wires are bent after soldering.
(iv)Capacitor body doesn’t stand vertical on PCB after soldering.
(3)Cleaning Circuit Boards after Soldering
(a)Following chemicals are not recommended for cleaning: Solvent containing halogen ions, Alkaline solvent, Xylene, Acetone,
Terpene, petro-based solvent.
(b)Recommended cleaning conditions:
XT SERIES
V-chip
Aluminum
Electrolytic
Capacitors
10
Fatty-alcohol - Pine Alpha ST-100S, Clean Through-750H and IPA (isopropyl alcohol) are examples of the most acceptable
cleaning agents. Temperature of the cleaning agent must not exceed 60℃. Flux content in the cleaning agents should be limited
to 2 Wt. %. Overall length of cleaning process (e.g., immersion, ultrasonic or other) shall be within 5 minutes (5 ~ 7mm height
within 3 minutes). CFC substitute cleaning agents such as AK225AES can also be used for cleaning. In this case, its
temperature shall not exceed 40 C and cleaning process (e.g., immersion, ultrasonic or other) shall be completed within 2 ~ 3
minutes. After cleaning capacitors should be dried with hot air for at least 10 minutes along with the PCB. Temperature of hot air
shall not exceed maximum category temperature of
the capacitor. Insufficient drying may cause appearance defects, sleeve shrinkage, and bottom-plate bulging. However, usage of
this CFC substitute must completely regulated for protection of environment.
3.Maintenance Inspection
Periodical inspection of aluminum capacitors is absolutely necessary especially when they are used with industrial equipment.
The following items should be checked:
(1)Appearance: Bloated, vent operated, leaked, etc.
(2)Electrical characteristic: Capacitance, Tanδ, leakage current, and other specified items listed in specification.
recommend replacing the capacitors if any of the abovementioned items fail to meet specifications.
4.Storage
(1)The most suitable conditions for aluminum capacitor storage are 5 ℃ ~ 35℃ and indoor relative humidity less than 75%.
High temperature and/or humidity storage is detrimental to the capacitors.
(2)Capacitors shall not be stored in wet or damp atmospheres containing water, brine, fumes or oil.
(3)Capacitors storage area shall neither be exposed to hazardous gases such as hydrogen sulfide, sulfurous acid, nitrous acid,
chlorine, ammonium, etc. nor to acidic or alkaline solutions.
(4)Capacitors shall not be exposed to ozone, ultraviolet rays or radiation.
5.Estimation of life time
T0max - Tr max
Lr =L0×2
10
Lr : Estimated lifetime (hours)
L0: Base lifetime specified at maximum operating temperature with applied the DC voltage and the ripple current (hours)
T0 max: The core temperature that rated ripple current applied at maximum operating temperature.
Tr max: The core temperature that applied actual ripple current at ambient temperature.
6.Maintenance Inspection
Please consult with a local industrial waste disposal specialist when disposing of aluminum electrolytic capacitors.
7.Environmental Consideration
already have received ISO 14000 certificate. Cadmium (Cd), Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr+6), PBB,PBDE,
DEHP, BBP, DBP and DIBP have never been using in capacitor. If you need “Halogen-free” products, please consult with us.
For further details, please refer to the following industrial standards:
IEC 60384-4-
Fixed capacitors for use in electronic equipment – Part 4: Sectional specification – Aluminum electrolytic
capacitors with solid (MnO2) and non-solid electrolyte (Established in January 1995, Revised in March 2007)
EIAJ RCR-2367B- Guideline of notabilia for fixed aluminum electrolytic capacitors for use in electronic equipment [Technical
Standardization Committee on Passive Components (Established in March 1995, Revised in March 2002)].
XT SERIES
V-chip
Aluminum
Electrolytic
Capacitors
11
工商网监
湘ICP备2023018690号
