ESD73034D
ESD73034D
4-Lines, Bi-directional, Ultra-low Capacitance
http//:www.sh-willsemi.com
Transient Voltage Suppressors
Descriptions
The ESD73034D is an ultra-low capacitance TVS (Transient
Voltage Suppressor) array designed to protect high speed
data interfaces. It has been specifically designed to protect
sensitive electronic components which are connected to data
DFN2510-10L (Bottom view)
and transmission lines from over-stress caused by ESD
NC
(Electrostatic Discharge).
NC GND NC
NC
10
9
8
7
6
1
2
3
4
5
The ESD73034D incorporates four pairs of ultra-low
capacitance steering diodes plus a TVS diode.
I/O1 I/O2 GND I/O3 I/O4
The ESD73034D may be used to provide ESD protection up
to ±10kV (contact discharge) according to IEC61000-4-2,
and withstand peak pulse current up to 5.5A (8/20μs)
according to IEC61000-4-5.
1
2
3, 8
4
5

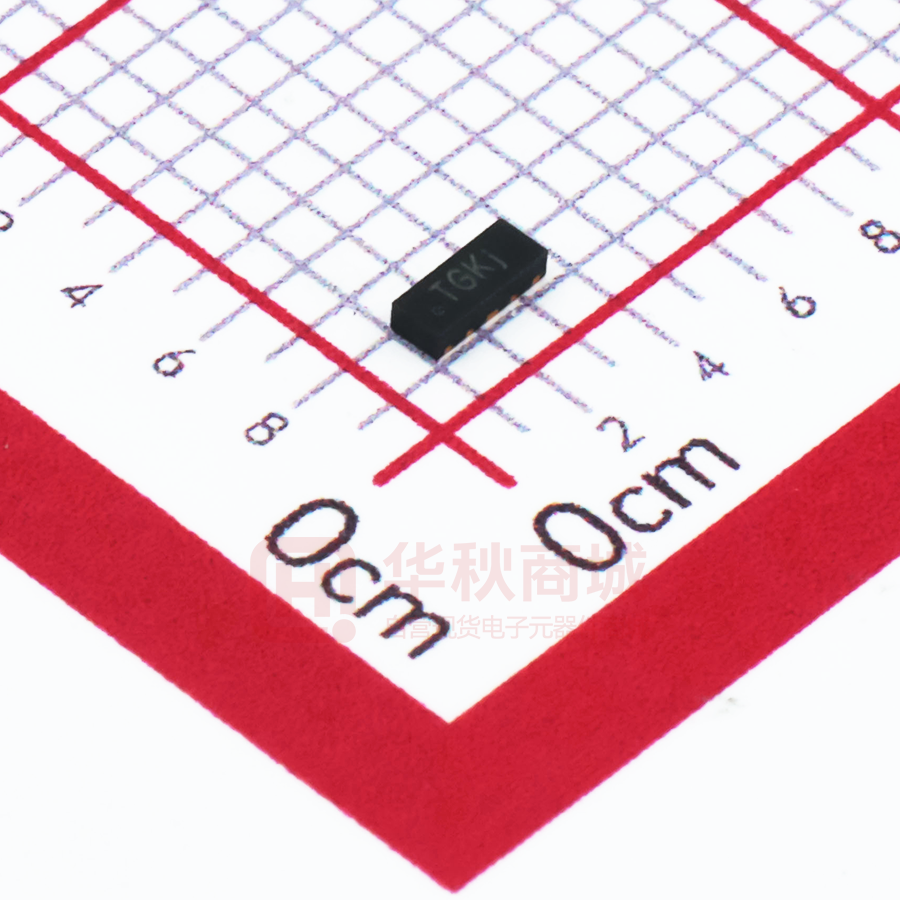

The ESD73034D is available in DFN2510-10L package.
Standard products are Pb-free and Halogen-free.
Pin configuration (Top view)
Features
Stand-off voltage: ±3.3V Max.
Transient protection for each line according to
10
TGYW
IEC61000-4-2 (ESD): ±10kV (contact discharge)
1
IEC61000-4-4 (EFT): 40A (5/50ns)
IEC61000-4-5 (surge): 5.5A (8/20μs)
Ultra-low capacitance: CJ = 0.2pF typ.
Low leakage current
Low clamping voltage: VCL = 8.7V typ. @ IPP = 16A (TLP)
Solid-state silicon technology
YW = Date code
Marking
Order information
Applications
USB 3.0 and USB 3.1
HDMI 1.3, HDMI 1.4 and HDMI 2.0
Portable Electronics and Notebooks
Will Semiconductor Ltd.
5
TG = Device code
6
Device
Package
Shipping
ESD73034D-10/TR DFN2510-10L 3000/Tape&Reel
1
Revision 1.1, 2019/01/03
ESD73034D
Absolute maximum ratings
Parameter
Symbol
Rating
Unit
Peak pulse power (tp = 8/20μs)
Ppk
33
W
Peak pulse current (tp = 8/20μs)
IPP
5.5
A
ESD according to IEC61000-4-2 air discharge
±15
VESD
ESD according to IEC61000-4-2 contact discharge
Junction temperature
±10
125
o
-40~85
o
260
o
-55~150
o
TJ
Operating temperature
TOP
Lead temperature
TL
Storage temperature
TSTG
kV
C
C
C
C
Electrical characteristics (TA=25 oC, unless otherwise noted)
I
VRWM Reverse stand-off Voltage
IR
Reverse leakage current
VCL
Clamping voltage
IPP
Peak pulse current
IPP
IHOLD
VHOLD
VTRIG VBR
VCLVRWM
IBR
ITRIG
IR
IR
I
ITRIG BR
VBRVTRIG V
VRWMVCL
VHOLD
IHOLD
VTRIG Reverse trigger voltage
ITRIG
Reverse trigger current
VBR
Reverse breakdown voltage
IBR
Reverse breakdown current
VHOLD Reverse holding voltage
IPP
IHOLD
Reverse holding current
Definitions of electrical characteristics
Will Semiconductor Ltd.
2
Revision 1.1, 2019/01/03
ESD73034D
o
Electrical characteristics (TA = 25 C, unless otherwise noted)
Parameter
Symbol
Reverse maximum working voltage
VRWM
Reverse leakage current
Reverse breakdown voltage
Clamping voltage
1)
Dynamic resistance
1)
IR
IT = 100μA
VCL
IPP = 16A, tp = 100ns
RDYN
2)
VCL
Clamping voltage
3)
VCL
CJ
Min.
Typ.
VRWM = 3.3V
VBR
Clamping voltage
Junction capacitance
Condition
VESD = 8kV
9
Max.
Unit
3.3
V
100
nA
12
V
8.7
V
0.38
Ω
10
V
IPP = 1A, tp = 8/20μs
3.5
V
IPP = 5.5A, tp = 8/20μs
6.0
V
0.28
pF
VR = 1.5V, f = 1MHz
0.2
Notes:
1)
TLP parameter: Z0 = 50 Ω, tp = 100ns, tr = 2ns, averaging window from 60ns to 80ns. RDYN is calculated from 4A to
16A.
2)
Contact discharge mode, according to IEC61000-4-2.
3)
Non-repetitive current pulse, according to IEC61000-4-5.
Will Semiconductor Ltd.
3
Revision 1.1, 2019/01/03
ESD73034D
o
Typical characteristics (TA = 25 C, unless otherwise noted)
Time to half-value: T2= 20s
Current (%)
Peak pulse current (%)
100
90
Front time: T1= 1.25 T = 8s
100
90
50
T2
10
10
0
0
tr = 0.7~1ns
Time (s)
T1
Time (ns)
Contact discharge current waveform per IEC61000-4-2
8/20μs waveform per IEC61000-4-5
CJ - Junction capacitance (pF)
5.0
Pulse waveform: tp = 8/20s
VC - Clamping voltage (V)
t
60ns
30ns
20
T
4.5
4.0
3.5
3.0
0.35
f = 1MHz
0.30
0.25
0.20
0.15
0.10
2.5
1
2
3
4
5
0.05
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
6
VR - Reverse voltage (V)
IPP - Peak pulse current (A)
Clamping voltage vs. Peak pulse current
Capacitance vs. Reverse voltage
1000
% of Rated power
Peak pulse power (W)
100
100
10
1
80
60
40
20
0
1
10
100
Pulse time (s)
1000
25
50
75
100
125
150
o
TA - Ambient temperature ( C)
Non-repetitive peak pulse power vs. Pulse time
Will Semiconductor Ltd.
0
Power derating vs. Ambient temperature
4
Revision 1.1, 2019/01/03
ESD73034D
o
Typical characteristics (TA = 25 C, unless otherwise noted)
10V/div
10V/div
20ns/div
20ns/div
ESD clamping
ESD clamping
(+8kV contact discharge per IEC61000-4-2)
20
TLP current (A)
16
12
8
(-8kV contact discharge per IEC61000-4-2)
Z0 = 50
tr = 2ns
tp = 100ns
4
0
-4
-8
-12
-16
-20
-14 -12 -10 -8 -6 -4 -2 0
2
4
6
8 10 12 14
TLP voltage (V)
TLP Measurement
Will Semiconductor Ltd.
5
Revision 1.1, 2019/01/03
ESD73034D
Package outline dimensions
DFN2510-10L
Symbol
Dimensions in millimeter
Min.
Typ.
Max.
A
0.50
0.55
0.60
A1
0.00
0.02
0.05
A3
Recommended Land Pattern (Unit: mm)
0.15 Ref.
D
2.40
2.50
2.60
E
0.90
1.00
1.10
E1
0.50
0.60
0.50
0.50 Ref.
b
0.15
0.20
0.25
b1
0.13
0.18
0.23
b2
0.35
0.40
0.45
e
L
0.50 BSC
0.28
0.39
0.50
0.20
Notes:
This recommended land pattern is for reference
purposes only. Please consult your manufacturing
0.20
0.40
Will Semiconductor Ltd.
group to ensure your PCB design guidelines are met.
6
Revision 1.1, 2019/01/03
ESD73034D
TAPE AND REEL INFORMATION
RD
Reel Dimensions
W
Tape Dimensions
P1
Quadrant Assignments For PIN1 Orientation In Tape
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
User Direction of Feed
RD
Reel Dimension
7inch
13inch
W
Overall width of the carrier tape
8mm
12mm
P1
Pitch between successive cavity centers
2mm
4mm
8mm
Pin1
Pin1 Quadrant
Q1
Q2
Q3
Will Semiconductor Ltd.
7
Q4
Revision 1.1, 2019/01/03
