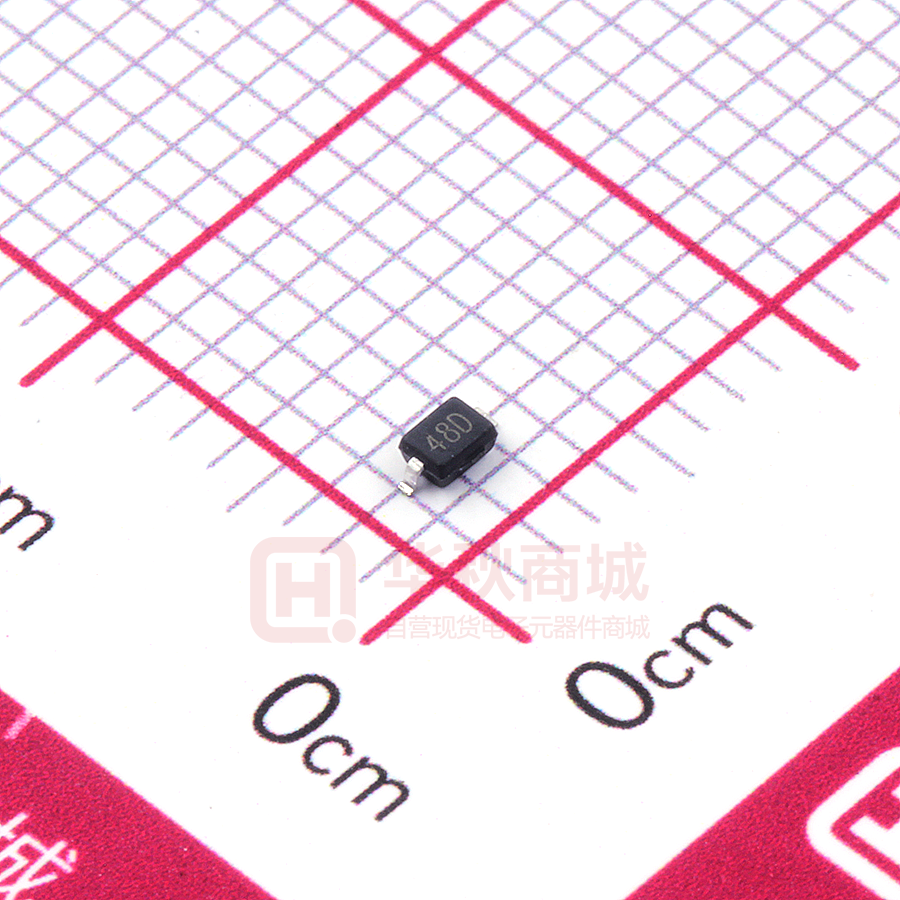

TPE4V5KHC 1-Line Bi-directional Diode www.sot23.com.tw Features Mechanical Characteristics  2500W peak pulse power (8/20μs)  Package：SOD-323  Protects one data or power line Operating voltage: 4.5V   Ultra low leakage: nA level   Ultra low clamping voltage UL Flammability Classification Rating 94V-0  Complies with following standards: – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV – IEC61000-4-5 (SURGE) 160A (8/20us)   Case Material: “Green” Molding Compound. IC Moisture Sensitivity: Level 3 per J-STD-020 Applications Mobile Phones and Accessories PU BL  TPE4V5KHC Qty per Reel 3000  USB VBus  Power Line Protection  Hand Held Portable Applications Reel Size 7” TE Part Number Battery Protection CH Ordering Information  Dimensions and Pin Configuration 1 2 1 TPE4V5KHC 1-Line Bi-directional Diode www.sot23.com.tw Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 2500 W Peak Pulse Current (8/20µs) IPP 160 A ESD per IEC 61000−4−2 (Air) ±30 VESD ESD per IEC 61000−4−2 (Contact) TJ −55 to +125 °C IC Operating Temperature Range kV ±30 Storage Temperature Range Tstg −55 to +150 °C Symbol Reverse Working Voltage VRWM VBR Leakage Current ILeak VC Clamping Voltage Typ TE CJ Unit 4.5 V 0.8 11 V Junction Capacitance Max 4.7 CH Breakdown Voltage Clamping Voltage Min PU Parameter BL Electrical Characteristics (TA=25°C unless otherwise specified) 15 320 Test Condition V IT=1mA uA VRWM=4.5V V IPP=100A,Tp=8/20μs V I =160A,Tp=8/20μs pF VR=0V, f=1MHz WWW.TPsemi.COM TPE4V5KHC 1-Line Bi-directional Diode www.sot23.com.tw Characteristic Curves 300 250 200 150 100 50 10 5 0 0 1 2 3 4 0 5 VR—Reverse Voltage(V) Junction Capacitance vs. Reverse Voltage 40 CH 10 0.1 1 TE 1 0.1 80 100 120 140 160 Ipp-Peak Pulse Current(A) Clamping Voltage vs. Peak Pulse Current 10 100 -20 1000 0 20 120 100 100 80 60 40 20 0 50 75 100 125 Ambient Temperature_Ta(℃) Power Derating Curve 150 Ipp-Peak Pulse Current-%of Ipp 120 25 60 80 100 IEC61000−4−2 Pulse Waveform Peak Pulse Power vs. Pulse Time 0 40 Time (nS) Tp-Pulse time(us) % of Rated Power 60 PU 100 20 BL 0 Ppp-peak pulse power(W) 15 IC Vc-Clamping Voltage(V) 20 Voltage (V) CJ-Junction Capacitance (pF) 350 80 60 40 20 0 -20 -20 0 20 40 T-Time(us) 8 X 20us Pulse Waveform 60 TPE4V5KHC 1-Line Bi-directional Diode www.sot23.com.tw Outline Drawing -SOD323 DIMENSIONS MILLIMETERS MIN INCHES MAX MIN MAX 1.50 1.80 0.060 0.071 B 1.20 1.40 0.045 0.054 C 2.30 2.70 0.090 0.107 D - 1.10 - 0.043 E 0.30 0.40 0.012 0.016 F 0.10 0.25 0.004 0.010 H - 0.10 - 0.004 TE CH PU A BL IC SYM Land Pattern - SOD323 SYM DIMENSIONS MILLIMETERS INCHES A 3.15 0.120 B 0.80 0.031 C 0.80 0.031
