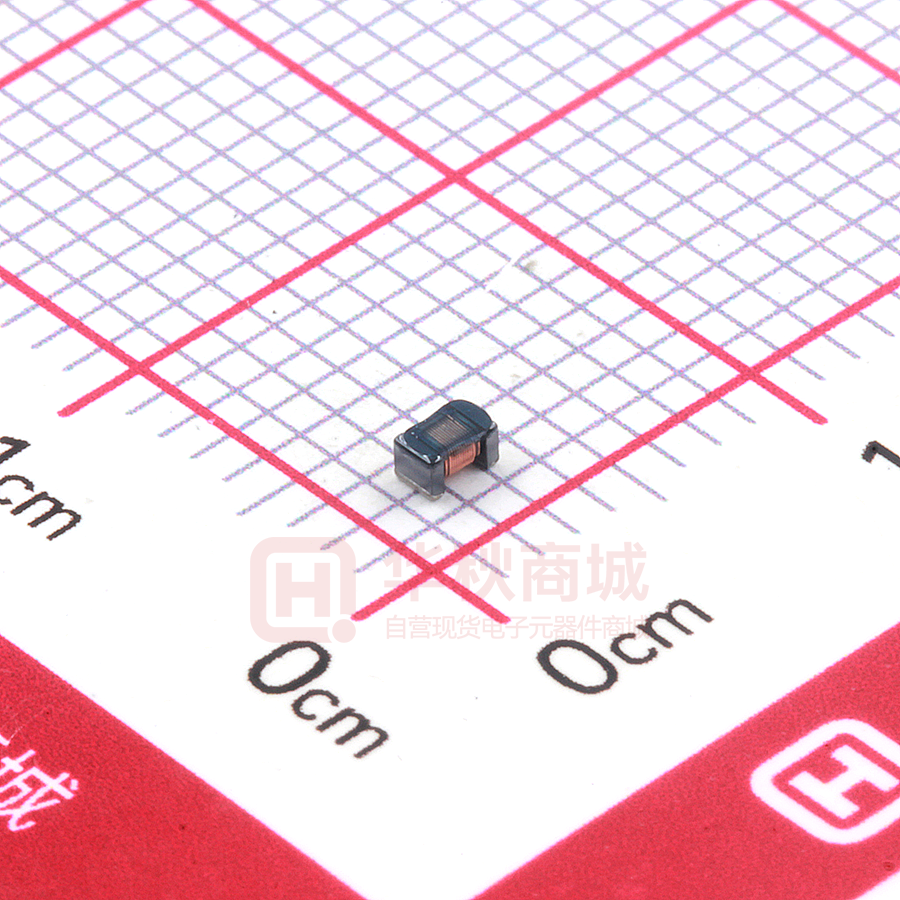

MWSD2012FE100MT

Wire Wound Chip Ferrite Inductor – MWSD-FE Series Operating Temp. : -40℃~+85℃ FEATURES Small chip suitable for surface mounting Large inductance with ferrite material Single-sided package, thinner than WL-FS series ● ●  APPLICATIONS   Mobile phones and other electronic devices Bluetooth modules and TWS earphones PRODUCT IDENTIFICATION MWSD ① 1608 F E 2R2 □ T ② ③ ④ ⑤ ⑥ ⑦ ① ③ ② Type MWSD External Dimensions (L×W) (mm) 1608[0603] 1.6×0.8 Wire Wound Chip Inductor 2012[0805] 2.0×1.25 Material Code F Ferrite ④ Internal Code E ⑤ ⑥ Nominal Inductance Internal Code ⑦ Inductance Tolerance Example Nominal Value 2R2 2.2μH K ±10% B Bulk Package 100 10μH M ±20% T Tape & Reel Packing SHAPE AND DIMENSIONS Unit: mm Series MWSD1608FE A 1.80 Max B 1.20 Max C 1.00 Max D Typ. 0.92 E Ref. 0.30 H Ref. 1.15 I Ref. 0.64 J Ref. 0.64 MWSD2012FE 2.40 Max 1.65 Max 1.30 Max 1.28 0.48 1.50 1.02 0.96 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/08/18 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWSD1608FE TYPE Part Number Inductance Tolerance L Test Freq. Typ. Self-resonant Frequency DC Resistance Typ. Rated Current Units μH - MHz MHz Ω mA Symbol L - Freq. S.R.F DCR Ir MWSD1608FE1R0□T MWSD1608FE2R2□T MWSD1608FE4R7□T MWSD1608FE6R8□T MWSD1608FE100□T MWSD1608FE150□T MWSD1608FE220□T MWSD1608FE470□T 1.0 2.2 4.7 6.8 10 15 22 47 K,M K,M K,M K,M K,M K,M K,M K,M 7.9 7.9 7.9 7.9 2.5 2.5 2.5 2.5 340 103 51 43 36 29 24 14 0.30±30% 0.56±30% 0.97±30% 1.50±30% 1.85±30% 2.60±30% 2.80±30% 6.65±30% 700 580 420 340 280 240 200 100 Part Number Inductance Tolerance L Test Freq. Typ. Self-resonant Frequency DC Resistance Typ. Rated Current Units μH - MHz MHz Ω mA Symbol L - Freq. S.R.F DCR Ir MWSD2012FE2R2□T MWSD2012FE4R7□T MWSD2012FE6R8□T MWSD2012FE100□T MWSD2012FE150□T MWSD2012FE220□T MWSD2012FE470□T MWSD2012FE101□T 2.2 4.7 6.8 10 15 22 47 100 K,M K,M K,M K,M K,M K,M K,M K,M 7.9 7.9 7.9 2.5 2.5 2.5 1 1 87 51 46 31 28 20 15 9 0.22±30% 0.43±30% 0.68±30% 0.85±30% 1.40±30% 1.76±30% 3.40±30% 7.50±30% 1040 840 700 560 380 340 280 180 MWSD2012FE TYPE ※□: Please specify the inductance tolerance code (K=±10%, M=±20%). TYPICAL ELECTRICAL CHARACTERISTICS MWSD1608FE TYPE Inductance vs. Frequency Characteristics Q vs. Frequency Characteristics MWSD2012FE TYPE Inductance vs. Frequency Characteristics Q vs. Frequency Characteristics Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/08/18 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
