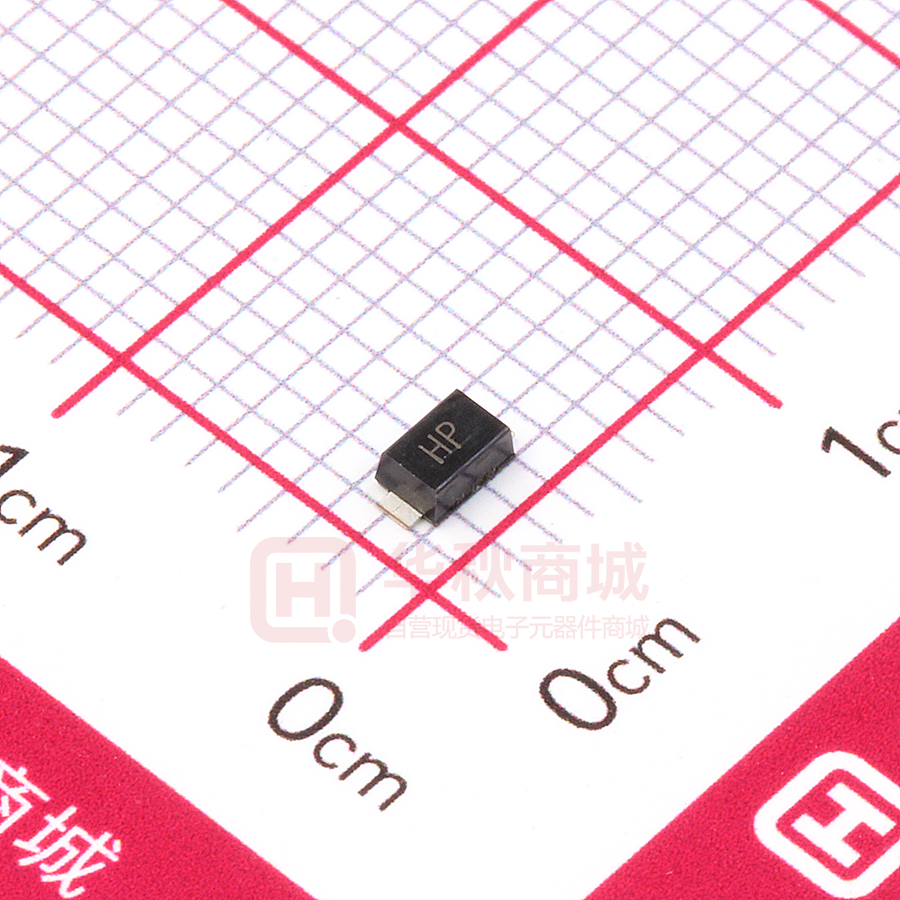

SMFJ16CA

www.msksemi.com SMFJxxxA(CA) Semiconductor Compiance Mechanical Data POWER: 200Wa t t s Features  Case: JEDEC SOD-123FL, molded plastic over passivated chip  Polarity: Color band denotes positiveend  For surface mounted applications  Low profile package  Low incremental surge resistance, excellent clamping capability ( cathode ) except for bidirectional  200W peak pulse power capability with a10/1000 s wave from,repetition rate (dutycycle):0.01%  High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals  Mounting position: Any  Weight: 0.006 ounces, 0.02 gram B C E SOD-123FL Dim Min Max Typ A 3.50 3.80 3.65 B 2.60 2.90 2.75 C 1.70 1.90 1.80 D 1.00 1.30 1.15 E 0.80 1.10 0.95 H 0.12 0.20 0.16 L 0.07 0.09 0.08 All Dimensions in mm D H L E A Maximum Ratings TA = 25C unless otherwise specified Characteristic Symbol Value Unit Maximum PPK Dissipation (PW - 10/1000 μs) PPK 200 W Maximum PPK Dissipation @ Ta = 25 °C (PW - 8/10 μs) (Note 2) PPK 1000 W DC Power Dissipation @ Ta = 25 °C PD 385 mW 4.0 mW/ °C (Note 3) Derate above 25 °C Thermal Resistance, Junction to Ambient (Note 3) RӨJA 325 °C/W Thermal Resistance, Junction to Lead (Note 3) RӨJL 26 °C/W TJ, TSTG -55 to +150 °C Operating Junction and Storage Temperature Range Notes : (1) Non−repetitive current pulse at Ta = 25°C, per waveform of Fig. 2. (2) Non−repetitive current pulse at Ta = 25°C, per waveform of Fig. 5. (3) Mounted with recommended minimum pad size, DC board FR − 4. www.msksemi.com SMFJxxxA(CA) Semiconductor Compiance (Bi) (Uni) (Bi) IR(uA) Maximum Clamping Voltage @IPP VC(V) SMFJ5.0A SMFJ6.0A SMFJ6.5A SMFJ5.0CA SMFJ6.0CA SMFJ6.5CA FE FG FK 5.0 6.0 6.5 6.40 6.67 7.22 7.00 7.37 7.98 10 10 10 400 400 250 9.2 10.3 11.2 21.7 19.4 17.9 SMFJ7.0A SMFJ7.5A SMFJ8.0A SMFJ8.5A SMFJ9.0A SMFJ10A SMFJ11A SMFJ12A SMFJ13A SMFJ14A SMFJ15A SMFJ7.0CA SMFJ7.5CA SMFJ8.0CA SMFJ8.5CA SMFJ9.0CA SMFJ10CA SMFJ11CA SMFJ12CA SMFJ13CA SMFJ14CA SMFJ15CA KE KG KK KM KP KR KT KV KX KZ LE LG LK LM FM FP FR FT FV 7.0 7.5 8.0 8.5 9.0 10 11 12 13 14 15 7.78 8.33 8.89 9.44 10.0 11.1 12.2 13.3 14.4 15.6 16.7 8.60 9.21 9.83 10.4 11.1 12.3 13.5 14.7 15.9 17.2 18.5 10 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 100 50 25 10 5.0 2.5 2.5 2.5 1.0 1.0 1.0 12.0 12.9 13.6 14.4 15.4 17.0 18.2 19.9 21.5 23.2 24.4 16.7 15.5 14.7 13.9 13.0 11.8 11.0 10.1 9.3 8.6 8.2 SMFJ16A SMFJ17A SMFJ18A SMFJ20A SMFJ22A SMFJ24A SMFJ26A SMFJ28A SMFJ30A SMFJ33A SMFJ36A SMFJ40A SMFJ43A SMFJ45A SMFJ48A SMFJ51A SMFJ54A SMFJ58A SMFJ60A SMFJ64A SMFJ16CA SMFJ17CA SMFJ18CA SMFJ20CA SMFJ22CA SMFJ24CA SMFJ26CA SMFJ28CA SMFJ30CA SMFJ33CA SMFJ36CA SMFJ40CA SMFJ43CA SMFJ45CA SMFJ48CA SMFJ51CA SMFJ54CA SMFJ58CA SMFJ60CA SMFJ64CA SMFJ70A SMFJ75A SMFJ78A SMFJ85A SMFJ90A SMFJ100A SMFJ110A SMFJ120A SMFJ130A SMFJ150A SMFJ160A SMFJ170A SMFJ70CA SMFJ75CA SMFJ78CA SMFJ85CA SMFJ90CA SMFJ100CA SMFJ110CA SMFJ120CA SMFJ130CA SMFJ150CA SMFJ160CA SMFJ170CA 16 17 18 20 22 24 26 28 30 33 36 40 43 45 48 51 54 58 60 64 70 75 78 85 90 100 110 120 130 150 160 170 17.8 18.9 20.0 22.2 24.4 26.7 28.9 31.1 33.3 36.7 40.0 44.4 47.8 50.0 53.3 56.7 60.0 64.4 66.7 71.1 77.8 83.3 86.7 94.4 100 111 122 133 144 167 178 189 19.7 20.9 22.1 24.5 26.9 29.5 31.9 34.4 36.8 40.6 44.2 49.1 52.8 55.3 58.9 62.7 66.3 71.2 73.7 78.6 86.0 92.1 95.8 104 111 123 135 147 159 185 197 209 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 26.0 27.6 29.2 32.4 35.5 38.9 42.1 45.4 48.4 53.3 58.1 64.5 69.4 72.7 77.4 82.4 87.1 93.6 96.8 103 113 121 126 137 146 162 177 193 209 243 259 275 7.7 7.2 6.8 6.2 5.6 5.1 4..8 4.4 4.1 3.8 3.4 3.1 2.9 2.8 2.6 2.4 2.3 2.1 1.8 1.7 1.5 1.4 1.4 1.3 1.2 1.1 1.0 0.9 0.8 0.7 0.7 0.6 TYPE (Uni) Marking LP LR LT LV LX LZ ME MG MK MM MP MR MT MV MX MZ NE NG NK NM NP NR NT NV NX NZ PE PG PK PM PP PR FX FZ HE HG HK HM HP HR HT HV HX HZ JE JG JK JM JP JR JT JV JX JZ XE XG XK XM XP XR XT XB XX XZ TE TG TK TM TP TR Reverse Stand-Off Voltage VRWM (V) Breakdown Breakdown Test Voltage Current Voltage Max. @ I T Min. @IT VBR MIN(V) VBR MAX(V) IT (mA) Reverse Leakage @VRWM Peak Pulse Current IPP ( A) www.msksemi.com SMFJxxxA(CA) Semiconductor Compiance Attention ■ Any and all MSKSEMI Semiconductor products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your MSKSEMI Semiconductor representative nearest you before using any MSKSEMI Semiconductor products described or contained herein in such applications. ■ MSKSEMI Semiconductor assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specificationsof any andall MSKSEMI Semiconductor products described orcontained herein. ■ Specifications of any and all MSKSEMI Semiconductor products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’sproducts orequipment. ■ MSKSEMI Semiconductor. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with someprobability. It is possiblethat these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits anderror prevention circuitsfor safedesign, redundant design, and structural design. ■ In the event that any or all MSKSEMI Semiconductor products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, products must not be exported without obtaining the export license from theauthorities concerned such in accordance with the above law. ■ No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of MSKSEMI Semiconductor. ■ Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. MSKSEMI Semiconductor believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringementsof intellectual property rights or other rightsof third parties. ■ Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. Whendesigning equipment, referto the "Delivery Specification" for the MSKSEMI Semiconductor productthat you intend to use. www.msksemi.com
