Intematix ChromaLit
Intematix
™
Demonstration Kit User Guide
Welcome to your Intematix ChromaLit™ demonstration kit. ChromaLit™ offers lighting module and luminaire makers
greater design freedom, improved operational efficiency, exceptional light quality and higher system efficacy. The
ChromaLit kit will allow you to experience the latest Intematix technology for yourself.

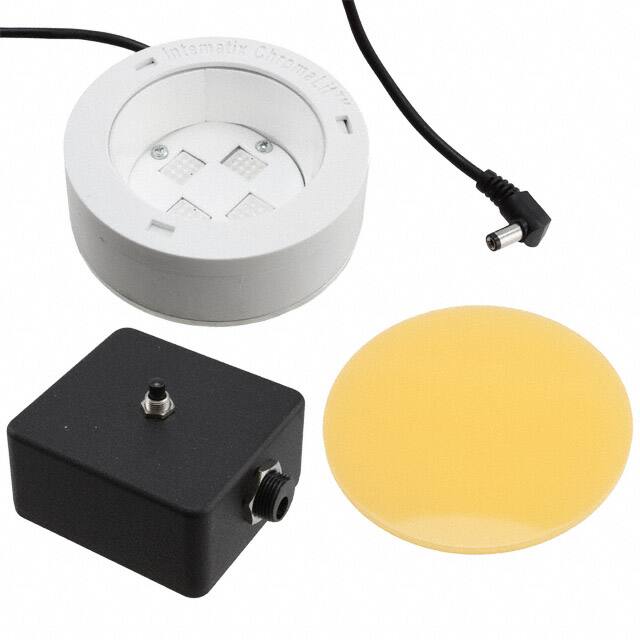

ChromaLit Reference Design Module
ChromaLit Demo Kit
Fastening Ring
2700K, 90CRI
ChromaLit Light Source
Blue LEDs
Mixing Reflector
3500K, 80CRI
4000K, 80CRI
5000K, 70CRI
3000K, 80CRI
Battery Pack
Operation Instructions
To operate the ChromaLit™ Kit,
1. Insert choice of ChromaLit™ glossy side up
2. Twist the fastening ring onto the mixing reflector
3. Connect the blue LED module to the power source
4. Point the light away from eyes (i.e. against a wall) and push the button to see the uniform light pattern emitting
from the module.
5. Easily interchange the ChromaLit™ units by unscrewing the fastening ring.
Caution: Intense blue light may be harmful to eyes. Do not look directly into light.
The demo kit provided here is intended to be a reference. Optimization of the mixing reflector geometry and external
optics will help provide higher color uniformity, customized beam angle, and improved efficacy.
Please contact your Intematix representative with any questions.
For details on ChromaLit product specifications, please visit www.intematix.com/ChromaLit
The CAD drawing of the reference design mixing chamber is available upon request. Please contact ChromaLit@intematix.com for a copy of the
reference design.
46410 Fremont Boulevard, Fremont, CA 94538
Phone: (510) 933-3300 Fax: (510) 668-0793
www.intematix.com
Intematix
ChromaLit Demonstration Performance
Blue LED Module Performance
Input Power (Welectrical)
Radiant Flux (Wrad)
Efficacy (Wrad/Welectrical)
13W
5.3W
40%
For better performance results, other blue LEDs may be exchanged with those included for evaluation.
ChromaLit + Blue LED Module Performance1
1
CCT
Input Power
Flux
CRI
90
Conversion
Efficacy2
(Lm/Wrad )
145
System
Efficacy
(Lm/W)
60
2700K
13W
1000lm
3000K
13W
1000lm
80
200
80
3500K
13W
1100lm
80
205
85
4000K
13W
1100lm
80
210
85
5000K
13W
1200lm
70
230
92
Performance values were based on pulse measurement using external power supply. Estimated values only. Actual results may vary.
2
Conversion Efficacy is the luminous flux (white light) output per radiant watt of blue light input to the ChromaLit light source. Wrad is the
radiometric power measured in watts. Conversion efficacy is rated based on reference operation and dominant blue LED wavelength of 455nm.
Testing Instructions
ChromaLit Demo Kits are provided as-is and are intended to demonstrate the capabilities of Intematix ChromaLit light
sources. ChromaLit samples should be considered as engineering prototypes and are not intended to meet final product
specifications.
When operating for an extended period time, adequate thermal interface is required. Heat sink and thermal grease can
be mounted to the bottom of the LED module. For optimal performance, connect LED module to an external power
supply instead of the battery pack.
For additional support call toll-free 1-855-CHROMALIT or email ChromaLit@intematix.com.
46410 Fremont Boulevard, Fremont, CA 94538
Phone: (510) 933-3300 Fax: (510) 668-0793
www.intematix.com
