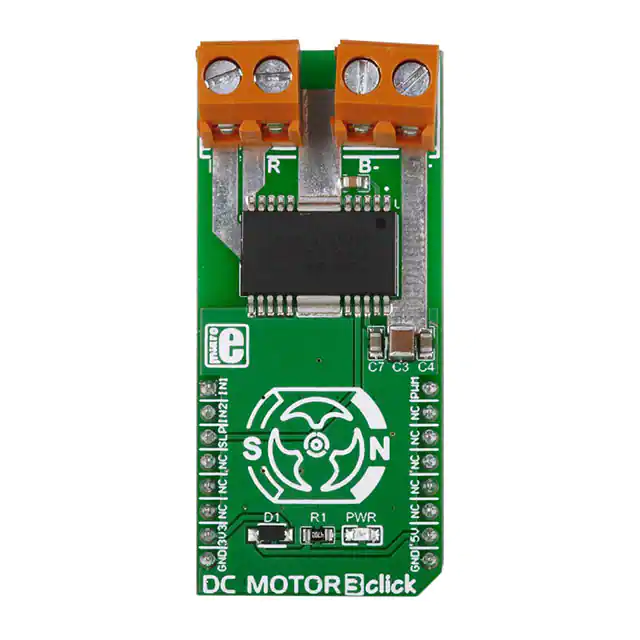

DC MOTOR 3 click 1 DC MOTOR 3 click DC MOTOR 3 click DC MOTOR 3 click IC/Module Interface Power supply Website TB6549FG [1] PWM, IN1, IN2, SLP 3.3V www.mikroe.com/click/dc-motor-3 [2] DC Motor 3 click is a mikroBUS™ add-on board with a Toshiba TB6549FG full-bridge driver for direct current motors. The IC is capable of outputting currents of up to 4.5 A with 30V, making it suitable for high-power motors. Features and usage notes Two pairs of screw terminals are positioned on the top of the board. One is for bringing an external power supply; the other is for connecting a motor. TB6549FG has four operating modes: clockwise, counter-clockwise, short brake and stop. The operating mode is configured through IN1 and IN2 pins. A separately controlled standby mode is also available. Schematic also available in PDF [3] For safety, the TB6549FG IC incorporates overcurrent protection and a thermal shutdown circuit. The click communicates with the target MCU through the mikroBUS™ PWM pin, with additional functionality provided by IN1, IN2 and SLP pins (in place of default mikroBUS™ AN, RST and CS pins). Designed to use a 3.3 power supply only. Summary of TB6549FG specifications: • • • • Power supply voltage: 30 V (max) Output current: 3.5 A (max) (FG,PG type) Low ON-resistance: 1.0 Ω (up + low/typ.) PWM control capability DC MOTOR 3 click • • • • 2 Standby system Function modes: CW/CCW/short brake/stop Built-in overcurrent protection Built-in thermal shutdown circuit Programming This example shows how to setup the DC Motor 3 on ARM, and use buttons to turn the motor, as well as speed up or slow down the motor. #include "dc_motor3.h" unsigned int current_duty; unsigned int pwm_period; sbit SLP at GPIOD_ODR.B14; sbit IN2 at GPIOC_ODR.B3; sbit IN1 at GPIOA_ODR.B5; void main() { GPIO_Digital_Input (&GPIOE_BASE, _GPIO_PINMASK_8 | _GPIO_PINMASK_9 | _GPIO_PINMASK_10 | _GPIO_PINMASK_11 | _GPIO_PINMASK_12); // configure PORTE pins as input GPIO_Digital_Output (&GPIOD_BASE, _GPIO_PINMASK_14 ); GPIO_Digital_Output (&GPIOC_BASE, _GPIO_PINMASK_3 ); GPIO_Digital_Output (&GPIOA_BASE, _GPIO_PINMASK_5 ); current_duty = 40000; current_duty pwm_period = PWM_TIM4_Init(5000); // initial value for PWM_TIM4_Set_Duty(current_duty, _PWM_NON_INVERTED, _PWM_CHANNEL1); // Set current duty for PWM_TIM1 PWM_TIM4_Start(_PWM_CHANNEL1, &_GPIO_MODULE_TIM4_CH1_PD12); while(1) { if (Button(&GPIOE_IDR, 8, 50, 1)) { dc_motor3_clockwise(); } if (Button(&GPIOE_IDR, 9, 50, 1)) { DC MOTOR 3 click 3 dc_motor3_counter_clockwise(); } if (Button(&GPIOE_IDR, 10, 50, 1)) { Delay_ms(1); current_duty *= 2; PWM_TIM4_Set_Duty(current_duty, _PWM_NON_INVERTED, _PWM_CHANNEL1); } if (Button(&GPIOE_IDR, 11, 50, 1)) { Delay_ms(1); current_duty /= 2; PWM_TIM4_Set_Duty(current_duty, _PWM_CHANNEL1); } _PWM_NON_INVERTED, if (Button(&GPIOE_IDR, 12, 50, 1)) { dc_motor3_stop(); } Delay_ms(1); } } Code examples for DC MOTOR 3 click are available for ARM and AVR compilers. Download them from Libstock [4] . Resources - DC Motor 3 click Libstock example [4] - Vendor’s data sheet [1] - mikroBUS™ standard specifications [5] References [1] [2] [3] [4] [5] http:/ / toshiba. semicon-storage. com/ ap-en/ product/ linear/ motordriver/ detail. TB6549FG. html http:/ / www. mikroe. com/ click/ dc-motor-3 http:/ / cdn-docs. mikroe. com/ images/ 9/ 98/ Dc-motor-3-click-schematic. pdf http:/ / libstock. mikroe. com/ projects/ view/ 1904/ dc-motor-3-click http:/ / download. mikroe. com/ documents/ standards/ mikrobus/ mikrobus-standard-specification-v200. pdf Article Sources and Contributors Article Sources and Contributors DC MOTOR 3 click  Source: http://docs.mikroe.com/index.php?oldid=743  Contributors: Srdjan.misic Image Sources, Licenses and Contributors File:DC MOTOR 3 click.jpg  Source: http://docs.mikroe.com/index.php?title=File:DC_MOTOR_3_click.jpg  License: unknown  Contributors: Srdjan.misic File:Dc-motor-3-click-schematic.png  Source: http://docs.mikroe.com/index.php?title=File:Dc-motor-3-click-schematic.png  License: unknown  Contributors: Srdjan.misic License Creative Commons Attribution https:/ / creativecommons. org/ licenses/ by/ 4. 0/ 4
