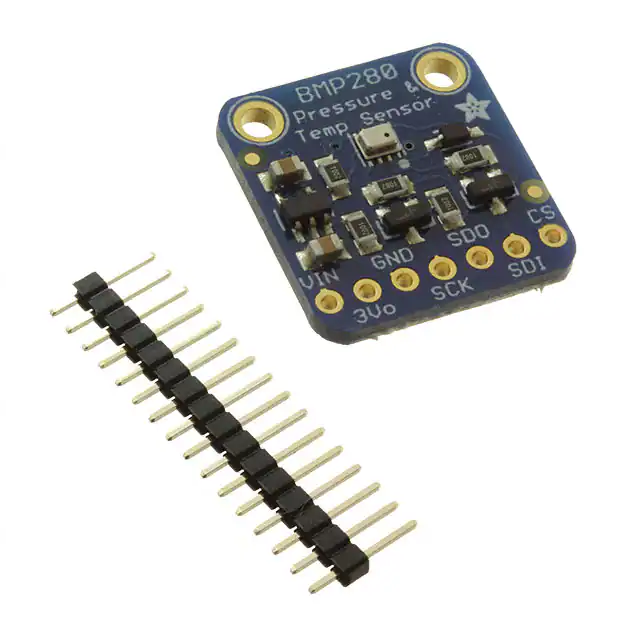

Adafruit BMP280 Barometric Pressure + Temperature Sensor Breakout Created by lady ada https://learn.adafruit.com/adafruit-bmp280-barometric-pressure-plus-temperature-sensorbreakout Last updated on 2022-06-28 02:49:24 PM EDT ©Adafruit Industries Page 1 of 27 Table of Contents Overview 3 Pinouts 6 • SPI Logic pins: • Power Pins: • I2C Logic pins: Assembly 8 • Prepare the header strip: • Add the breakout board: • And Solder! Arduino Test • • • • • I2C Wiring SPI Wiring Download Adafruit_BMP280 library Load Demo Library Reference Python & CircuitPython Test • • • • • 10 17 CircuitPython Microcontroller Wiring Python Computer Wiring CircuitPython Installation of BMP280 Library Python Installation of BMP280 Library CircuitPython & Python Usage Python Docs 24 F.A.Q. 24 Downloads 25 • • • • • Documents Schematic - STEMMA QT version Fab Print - STEMMA QT version Schematic - Original version Fab Print - Original version ©Adafruit Industries Page 2 of 27 Overview Bosch has stepped up their game with their new BMP280 sensor, an environmental sensor with temperature, barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI! This precision sensor from Bosch is the best low-cost, precision sensing solution for measuring barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy. ©Adafruit Industries Page 3 of 27 The BMP280 is the next-generation of sensors from Bosch, and is the upgrade to the BMP085/BMP180/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications, but can use either I2C or SPI. For simple easy wiring, go with I2C. If you want to connect a bunch of sensors without worrying about I2C address collisions, go with SPI. Nice sensor right? So we made it easy for you to get right into your next project. The surface-mount sensor is soldered onto a custom made PCB in the STEMMA QT form factor (https://adafru.it/LBQ), making them easy to interface with. The STEMMA QT connectors (https://adafru.it/JqB) on either side are compatible with the SparkFun Qwiic (https://adafru.it/Fpw) I2C connectors. This allows you to make solderless ©Adafruit Industries Page 4 of 27 connections between your development board and the BMP280 or to chain it with a wide range of other sensors and accessories using a compatible cable (https:// adafru.it/JnB). We’ve of course broken out all the pins to standard headers and added a voltage regulator and level shifting so allow you to use it with either 3.3V or 5V systems such as the Metro M4 or Arduino Uno respectively. We even wrote up a nice tutorial with wiring diagrams, schematics, libraries and examples to get you running in 10 minutes! Make sure to check the tutorial for example code for Arduino and CircuitPython, pinouts, assembly, wiring, downloads, and more! (https://adafru.it/MbA) There are two versions of this board - the STEMMA QT version shown above, and the original header-only version shown below. Code works the same on both! ©Adafruit Industries Page 5 of 27 Pinouts Power Pins: • Vin - this is the power pin. Since the sensor chip uses 3 VDC, we have included a voltage regulator on board that will take 3-5VDC and safely convert it down. To power the board, give it the same power as the logic level of your microcontroller - e.g. for a 5V micro like Arduino, use 5V • 3Vo - this is the 3.3V output from the voltage regulator, you can grab up to 100mA from this if you like ©Adafruit Industries Page 6 of 27 • GND - common ground for power and logic SPI Logic pins: All pins going into the breakout have level shifting circuitry to make them 3-5V logic level safe. Use whatever logic level is on Vin! • SCK - This is the SPI Clock pin, its an input to the chip • SDO - this is the Serial Data Out / Microcontroller In Sensor Out pin, for data sent from the BMP280 to your processor • SDI - this is the Serial Data In / Microcontroller Out Sensor In pin, for data sent from your processor to the BMP280 • CS - this is the Chip Select pin, drop it low to start an SPI transaction. Its an input to the chip If you want to connect multiple BMP280's to one microcontroller, have them share the SDI, SDO and SCK pins. Then assign each one a unique CS pin. I2C Logic pins: • SCK - this is also the I2C clock pin (SCL), connect to your microcontroller's I2C clock line. • SDI - this is also the I2C data pin (SDA), connect to your microcontroller's I2C data line. Leave the other pins disconnected ©Adafruit Industries Page 7 of 27 Assembly The assembly pix use the BME280 but it is identically shaped/sized as the BMP280 Prepare the header strip: Cut the strip to length if necessary. It will be easier to solder if you insert it into a breadboard - long pins down ©Adafruit Industries Page 8 of 27 Add the breakout board: Place the breakout board over the pins so that the short pins poke through the breakout pads And Solder! Be sure to solder all pins for reliable electrical contact. (For tips on soldering, be sure to check out our Guide to Excellent Soldering (https:// adafru.it/aTk)). ©Adafruit Industries Page 9 of 27 You're done! Check your solder joints visually and continue onto the next steps Arduino Test You can easily wire this breakout to any microcontroller, we'll be using an Arduino. For another kind of microcontroller, as long as you have 4 available pins it is possible to 'bit-bang SPI' or you can use two I2C pins, but usually those pins are fixed in hardware. Just check out the library, then port the code. I2C Wiring Use this wiring if you want to connect via I2C interface ©Adafruit Industries Page 10 of 27 Connect Vin (red wire on STEMMA version) to the power supply, 3-5V is fine. Use the same voltage that the microcontroller logic is based off of. For most Arduinos, that is 5V Connect GND (black wire on STEMMA version) to common power/data ground Connect the SCK (yellow wire on STEMMA version) pin to the I2C clock SCL pin on your Arduino. On an UNO & '328 based Arduino, this is also known as A5, on a Mega it is also known as digital 21 and on a Leonardo/Micro, digital 3 Connect the SDI (blue wire on STEMMA version) pin to the I2C data SDA pin on your Arduino. On an UNO & '328 based Arduino, this is also known as A4, on a Mega it is also known as digital 20 and on a Leonardo/Micro, digital 2 SPI Wiring Since this is a SPI-capable sensor, we can use hardware or 'software' SPI. To make wiring identical on all Arduinos, we'll begin with 'software' SPI. The following pins should be used: ©Adafruit Industries Page 11 of 27 Connect Vin to the power supply, 3V or 5V is fine. Use the same voltage that the microcontroller logic is based off of. For most Arduinos, that is 5V Connect GND to common power/data ground Connect the SCK pin to Digital #13 but any pin can be used later Connect the SDO pin to Digital #12 but any pin can be used later Connect the SDI pin to Digital #11 but any pin can be used later Connect the CS pin Digital #10 but any pin can be used later Later on, once we get it working, we can adjust the library to use hardware SPI if you desire, or change the pins to other Download Adafruit_BMP280 library To begin reading sensor data, you will need to install the Adafruit_BMP280 library (code on our github repository) (https://adafru.it/fIK). It is available from the Arduino library manager so we recommend using that. From the IDE open up the library manager... ©Adafruit Industries Page 12 of 27 And type in adafruit bmp280 to locate the library. Click Install You'll also need to install the Adafruit Unified Sensor library We also have a great tutorial on Arduino library installation at: http://learn.adafruit.com/adafruit-all-about-arduino-libraries-install-use (https:// adafru.it/aYM) Load Demo Open up File->Examples->Adafruit_BMP280->bmp280test and upload to your Arduino wired up to the sensor ©Adafruit Industries Page 13 of 27 Depending on whether you are using I2C or SPI, change the pin names and comment or uncomment the following lines. #define #define #define #define BMP_SCK 13 BMP_MISO 12 BMP_MOSI 11 BMP_CS 10 Adafruit_BMP280 bmp; // I2C //Adafruit_BMP280 bmp(BMP_CS); // hardware SPI //Adafruit_BMP280 bmp(BMP_CS, BMP_MOSI, BMP_MISO, BMP_SCK); Once uploaded to your Arduino, open up the serial console at 9600 baud speed to see data being printed out ©Adafruit Industries Page 14 of 27 Temperature is calculated in degrees C, you can convert this to F by using the classic F = C * 9/5 + 32 equation. Pressure is returned in the SI units of Pascals. 100 Pascals = 1 hPa = 1 millibar. Often times barometric pressure is reported in millibar or inches-mercury. For future reference 1 pascal =0.000295333727 inches of mercury, or 1 inch Hg = 3386.39 Pascal. So if you take the pascal value of say 100734 and divide by 3389.39 you'll get 29.72 inches-Hg. You can also calculate Altitude. However, you can only really do a good accurate job of calculating altitude if you know the hPa pressure at sea level for your location and day! The sensor is quite precise but if you do not have the data updated for the current day then it can be difficult to get more accurate than 10 meters. ©Adafruit Industries Page 15 of 27 Library Reference You can start out by creating a BMP280 object with either software SPI (where all four pins can be any I/O) using Adafruit_BMP280 bmp(BMP_CS, BMP_MOSI, BMP_MISO, BMP_SCK); Or you can use hardware SPI. With hardware SPI you must use the hardware SPI pins for your Arduino - and each arduino type has different pins! Check the SPI reference to see what pins to use. (https://adafru.it/d5h) In this case, you can use any CS pin, but the other three pins are fixed Adafruit_BMP280 bmp(BMP_CS); // hardware SPI or I2C using the default I2C bus, no pins are assigned Adafruit_BMP280 bmp; // I2C Once started, you can initialize the sensor with if (!bmp.begin()) { Serial.println("Could not find a valid BMP280 sensor, check wiring!"); while (1); } begin() will return True if the sensor was found, and False if not. If you get a False value back, check your wiring! Reading temperature and pressure is easy, just call: bmp.readTemperature() bmp.readPressure() Temperature is always a floating point, in Centigrade. Pressure is a 32 bit integer with the pressure in Pascals. You may need to convert to a different value to match it with your weather report. It's also possible to turn the BMP280 into an altimeter. If you know the pressure at sea level, the library can calculate the current barometric pressure into altitude ©Adafruit Industries Page 16 of 27 Python & CircuitPython Test It's easy to use the BMP280 sensor with CircuitPython and the Adafruit CircuitPython BMP280 (https://adafru.it/C0x) module.  This module allows you to easily write Python code that reads the temperature and pressure from the sensor. You can use this sensor with any CircuitPython microcontroller board or with a computer that has GPIO and Python thanks to Adafruit_Blinka, our CircuitPython-forPython compatibility library (https://adafru.it/BSN). CircuitPython Microcontroller Wiring First wire up a BMP280 to your board exactly as shown on the previous pages for Arduino.  You can use either I2C or SPI wiring, although it's recommended to use I2C for simplicity.  Here's an example of wiring a Feather to the sensor with I2C: ©Adafruit Industries Page 17 of 27 Board 3V to sensor VIN (red wire on STEMMA version) Board GND to sensor GND (black wire on STEMMA version) Board SCL to sensor SCK (yellow wire on STEMMA version) Board SDA to sensor SDI (blue wire on STEMMA version) And an example of a Feather M0 wired with hardware SPI: ©Adafruit Industries Page 18 of 27 Board 3V to sensor VIN Board GND to sensor GND Board SCK to sensor SCK Board MOSI to sensor SDI Board MISO to sensor SDO Board D5 to sensor CS (or use any other free digital I/O pin) Python Computer Wiring Since there's dozens of Linux computers/boards you can use we will show wiring for Raspberry Pi. For other platforms, please visit the guide for CircuitPython on Linux to see whether your platform is supported (https://adafru.it/BSN).  Here's the Raspberry Pi wired with I2C: ©Adafruit Industries Page 19 of 27 Pi 3V3 to sensor VIN (red wire on STEMMA version) Pi GND to sensor GND (black wire on STEMMA version) Pi SCL to sensor SCK (yellow wire on STEMMA version) Pi SDA to sensor SDI (blue wire on STEMMA version) And an example on the Raspberry Pi 3 Model B wired with SPI: ©Adafruit Industries Page 20 of 27 Pi 3V3 to sensor VIN Pi GND to sensor GND Pi MOSI to sensor SDI Pi MISO to sensor SDO Pi SCLK to sensor SCK Pi #5 to sensor CS (or use any other free GPIO pin) CircuitPython Installation of BMP280 Library You'll need to install the Adafruit CircuitPython BMP280 (https://adafru.it/C0x) library on your CircuitPython board. First make sure you are running the latest version of Adafruit CircuitPython (https:// adafru.it/Amd) for your board. Next you'll need to install the necessary libraries to use the hardware--carefully follow the steps to find and install these libraries from Adafruit's CircuitPython library bundle  (https://adafru.it/uap).  Our CircuitPython starter guide has a great page on how to install the library bundle (https://adafru.it/ABU). For non-express boards like the Trinket M0 or Gemma M0, you'll need to manually install the necessary libraries from the bundle: • adafruit_bmp280.mpy ©Adafruit Industries Page 21 of 27 • adafruit_bus_device Before continuing make sure your board's lib folder or root filesystem has the adafruit _bmp280.mpy, and adafruit_bus_device files and folders copied over. Next connect to the board's serial REPL  (https://adafru.it/Awz)so you are at the CircuitPython >>> prompt. Python Installation of BMP280 Library You'll need to install the Adafruit_Blinka library that provides the CircuitPython support in Python. This may also require enabling I2C on your platform and verifying you are running Python 3. Since each platform is a little different, and Linux changes often, please visit the CircuitPython on Linux guide to get your computer ready (https: //adafru.it/BSN)! Once that's done, from your command line run the following command: • sudo pip3 install adafruit-circuitpython-bmp280 If your default Python is version 3 you may need to run 'pip' instead. Just make sure you aren't trying to use CircuitPython on Python 2.x, it isn't supported! CircuitPython & Python Usage To demonstrate the usage of the sensor we'll initialize it and read the temperature, humidity, and more from the board's Python REPL. If you're using an I2C connection run the following code to import the necessary modules and initialize the I2C connection with the sensor: import board import adafruit_bmp280 i2c = board.I2C() sensor = adafruit_bmp280.Adafruit_BMP280_I2C(i2c) Or if you're using a SPI connection run this code instead to setup the SPI connection and sensor: ©Adafruit Industries Page 22 of 27 import board import digitalio import adafruit_bmp280 spi = board.SPI() cs = digitalio.DigitalInOut(board.D5) sensor = adafruit_bmp280.Adafruit_BMP280_SPI(spi, cs) Now you're ready to read values from the sensor using any of these properties: • temperature - The sensor temperature in degrees Celsius. • pressure - The pressure in hPa. • altitude - The altitude in meters. For example to print temperature and pressure: print('Temperature: {} degrees C'.format(sensor.temperature)) print('Pressure: {}hPa'.format(sensor.pressure)) For altitude you'll want to set the pressure at sea level for your location to get the most accurate measure (remember these sensors can only infer altitude based on pressure and need a set calibration point).  Look at your local weather report for a pressure at sea level reading and set the seaLevelhPA property: sensor.sea_level_pressure = 1013.25 Then read the altitude property for a more accurate altitude reading (but remember this altitude will fluctuate based on atmospheric pressure changes!): print('Altitude: {} meters'.format(sensor.altitude)) That's all there is to using the BMP280 sensor with CircuitPython! Here's a starting example that will print out the temperature, pressure and altitude every 2 seconds: ©Adafruit Industries Page 23 of 27 # SPDX-FileCopyrightText: 2021 ladyada for Adafruit Industries # SPDX-License-Identifier: MIT """Simpletest Example that shows how to get temperature, pressure, and altitude readings from a BMP280""" import time import board # import digitalio # For use with SPI import adafruit_bmp280 # Create sensor object, communicating over the board's default I2C bus i2c = board.I2C() # uses board.SCL and board.SDA bmp280 = adafruit_bmp280.Adafruit_BMP280_I2C(i2c) # # # # OR Create sensor object, communicating over the board's default SPI bus spi = board.SPI() bmp_cs = digitalio.DigitalInOut(board.D10) bmp280 = adafruit_bmp280.Adafruit_BMP280_SPI(spi, bmp_cs) # change this to match the location's pressure (hPa) at sea level bmp280.sea_level_pressure = 1013.25 while True: print("\nTemperature: %0.1f C" % bmp280.temperature) print("Pressure: %0.1f hPa" % bmp280.pressure) print("Altitude = %0.2f meters" % bmp280.altitude) time.sleep(2) Python Docs Python Docs (https://adafru.it/C0B) F.A.Q. How come the altitude calculation is wrong? Is my sensor broken? No, your sensor is likely just fine. The altitude calculation depends on knowing the barometric pressure at sea level If you do not set the correct sea level pressure for your location FOR THE CURRENT DAY it will not be able to calculate the altitude accurately Barometric pressure at sea level changes daily based on the weather! If I have long delays between reads, the first data read seems wrong? The BMx280 'saves' the last reading in memory for you to query. Just read twice in a row and toss out the first reading! ©Adafruit Industries Page 24 of 27 Downloads Documents • Datasheet for the BMP280 sensor used in the breakout (https://adafru.it/fIO) • Arduino BMP280 Driver (https://adafru.it/fIK) • Fritzing object in the Adafruit Fritzing Library (https://adafru.it/Mbx) • EagleCAD PCB files on GitHub (https://adafru.it/rDq) Schematic - STEMMA QT version ©Adafruit Industries Page 25 of 27 Fab Print - STEMMA QT version Schematic - Original version Click to enlarge. BMP280 shares the same package & pinout as the BME280 so the schematic is the same ©Adafruit Industries Page 26 of 27 Fab Print - Original version In inches. BMP280 shares the same package & pinout as the BME280 so the layout is the same ©Adafruit Industries Page 27 of 27
