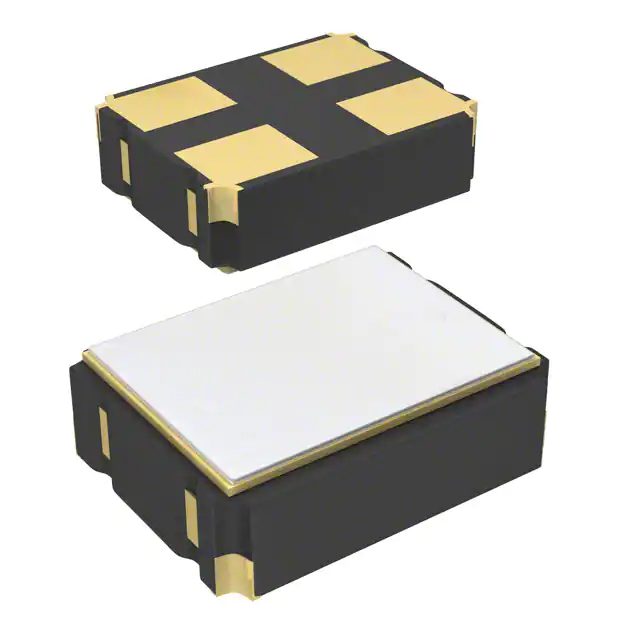

AU-27.000MBE-T

come visit our site http://www.txccorp.com Automotive Application Series Think of Frequency Think of SMD OscillatorsCMOS Output 3.2 x 2.5 x 1.0 mm AU Series Features 92 T1 Q2J ．Ultra small SMD seam sealed clock crystal oscillator units. ．High precision characteristic covering up to high frequency range. H ．Designed for automatic mounting and reflow soldering. ．Supply voltage rang:1.8V ~ 3.3V. ．High stability, low jitter, low power consumption. ．RoHS Compliant / Pb Free. Item / Type AU Output Type CMOS Output Load 15 pF Oscillation Mode Fundamental Supply Voltage 1.8 V , 2.5 V , 2.8 V , 3.3 V 1 MHz ~ 70 MHz Frequency Range Frequency Stability ± 25 ppm , ± 50 ppm , ± 100 ppm ± 100 ppm , or specify OperatingTemperature Range - 40 ~ + 85 ℃ - 40 ~ + 125 ℃ Storage Temperature Range - 55 ~ + 125 ℃ Voltage Vol ( Max. ) / Voh ( Min. ) 0.1 VDD / 0.9 VDD Rise ( Tr ) / Fall ( Tf ) Time 5 ns Max. Supply Current 10 mA Max. Symmetry 45 ~ 55 % Start-up Time 5 ms Max. Phase Jitter ( 12 KHz ~ 20 MHz ) 1 ps Max. Aging ( at 25 ℃ ) ± 3 ppm / year Max. Reliability Standard AEC-Q100 Dimensions PAD FUNCTION: 1:ENABLE CONTROL 2:GND 3:OUT 4:VDD Suggested Layout Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com Electrical Specifications Units: mm 33
