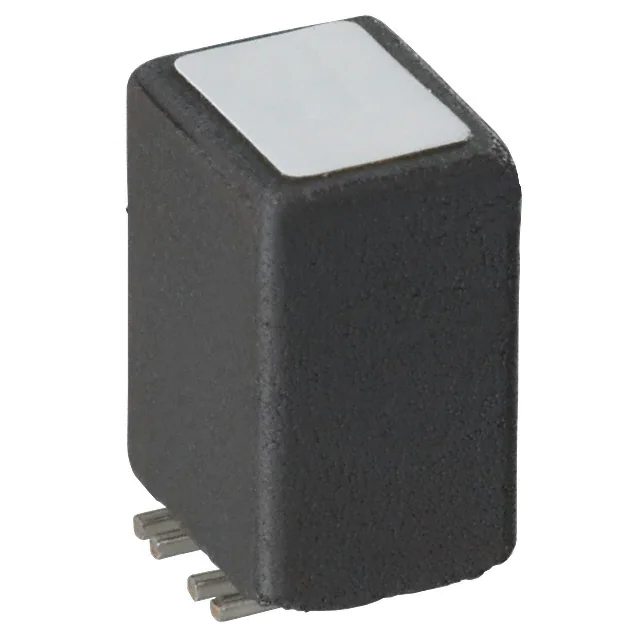

CM2722R201R-00

Part Curves Page 1 of 3 CM2722R201R-00 Drawing Figure # Figure Number 1 Electrical Characteristics NET Z DCR @ 100 MHz Max 200 0.02 Rated Current mA 5000 Physical Dimensions http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/19/2004 Part Curves Page 2 of 3 A B B1 C C1 D E E1 A B B1 C C1 D E E1 mm mm mm mm mm mm mm mm in in in in in in in in 6.99 5.72 6.73 9.53 10.31 2.41 0.89 1.91 0.275 0.225 0.265 0.375 0.406 0.095 0.035 0.075 Wire Dimensions T1 mm T2 mm T3 mm T1 in T2 in T3 in 1.91 0.38 0.38 0.075 0.015 0.015 http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/19/2004 Part Curves Page 3 of 3 Specifications, which provide more details for the correct use of the described products, are available upon request. All specifications are subject to change without notice. For more information on any of the products listed above, please contact Steward customer service department at (800) 634-2673. Copyright© 2004 Steward, Inc. Last Updated: 2/19/2004 http://www.steward.com/web_part_no.asp?line=EMC / EMI Board Level and Cable Core ... 2/19/2004
