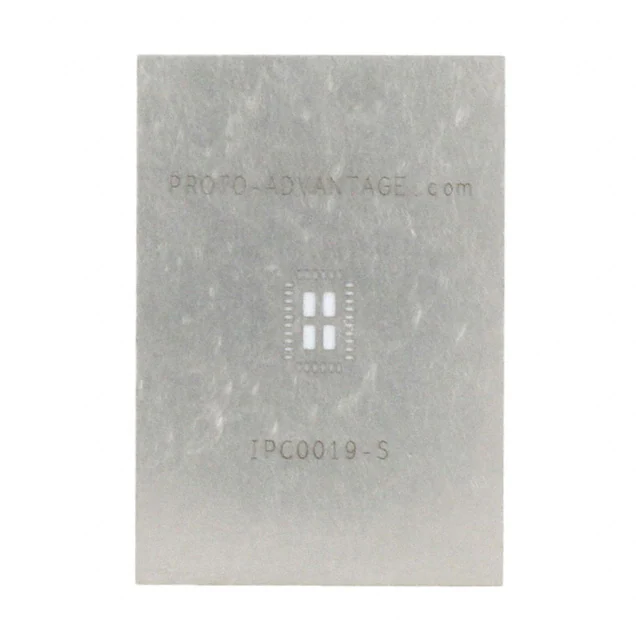

IPC0019-S

IPC0019-S Datasheet revision 1.0 www.Proto-Advantage.com QFN-32 Stencil (0.5 mm pitch, 4 x 6 mm body) REF. MIN. A A2 B C B2 C2 D D2 E DIMENSIONS mm TYP. MAX. MIN. inches TYP. MAX. 3.20 5.20 0.60 0.25 2.50 4.50 0.25 0.35 0.50 Top View (SMT Footprint) B A C E D A2 C2 B2 D2 (Representative drawing only - not to scale) 1 © 2014 Proto Advantage Inc.
