IPC0145-S

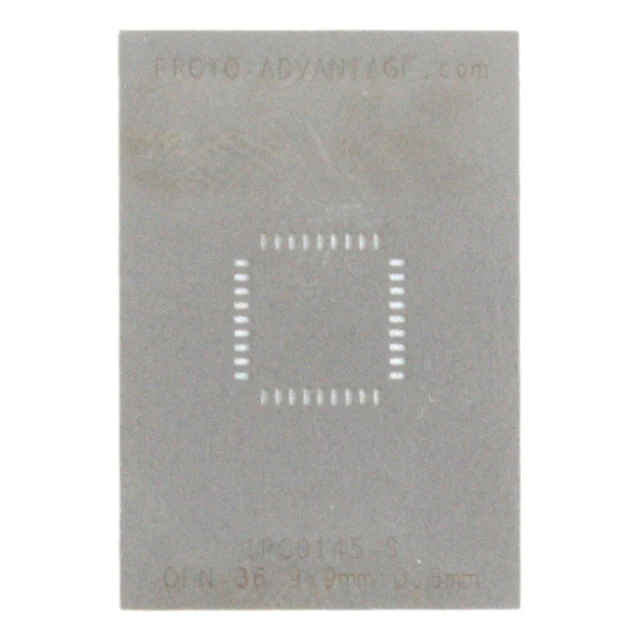

IPC0145-S Datasheet revision 1.0 www.Proto-Advantage.com QFN-36 Stencil (0.8 mm pitch, 9 x 9 mm body) REF. A A2 B C D E MIN. DIMENSIONS mm TYP. MAX. MIN. inches TYP. MAX. 7.80 7.80 1.00 0.45 0.35 0.80 Top View (SMT Footprint) B A C E D A2 (Representative drawing only - not to scale) 1 © 2014 Proto Advantage Inc Concept to Life Solutions (CTLS) Inc DBA Proto Advantage Inc
