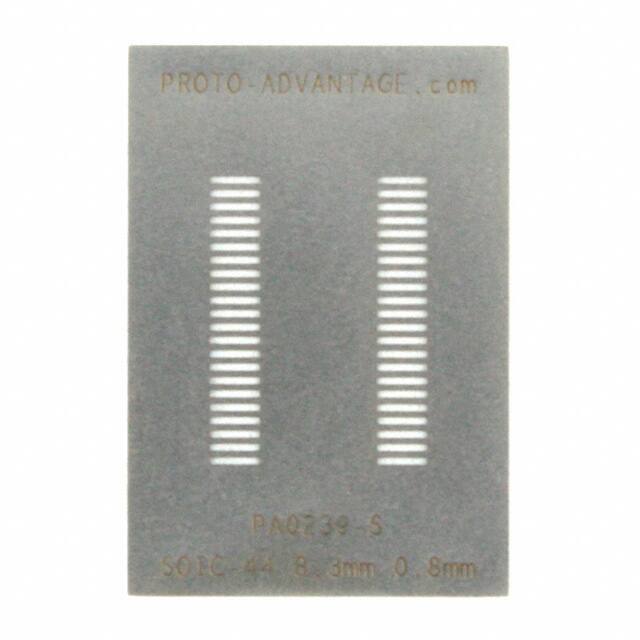

PA0239-S

PA0239 Datasheet revision 1.0 www.Proto-Advantage.com SOIC-44 to DIP-44 SMT Adapter (0.8 mm pitch, 8.3 mm body) REF. A B C D E F G H MIN. DIMENSIONS mm TYP. MAX. MIN. inches TYP. MAX. 7.00 3.00 0.45 0.35 0.80 0.600 0.100 0.025 Top View (SMT Footprint) A B C E D (Representative drawing only - not to scale) 1 © 2012 Proto Advantage Bottom View (DIP Pins) F H G (Representative drawing only - not to scale) Side View (DIP Pins) F (Representative drawing only - not to scale) 2 © 2012 Proto Advantage
